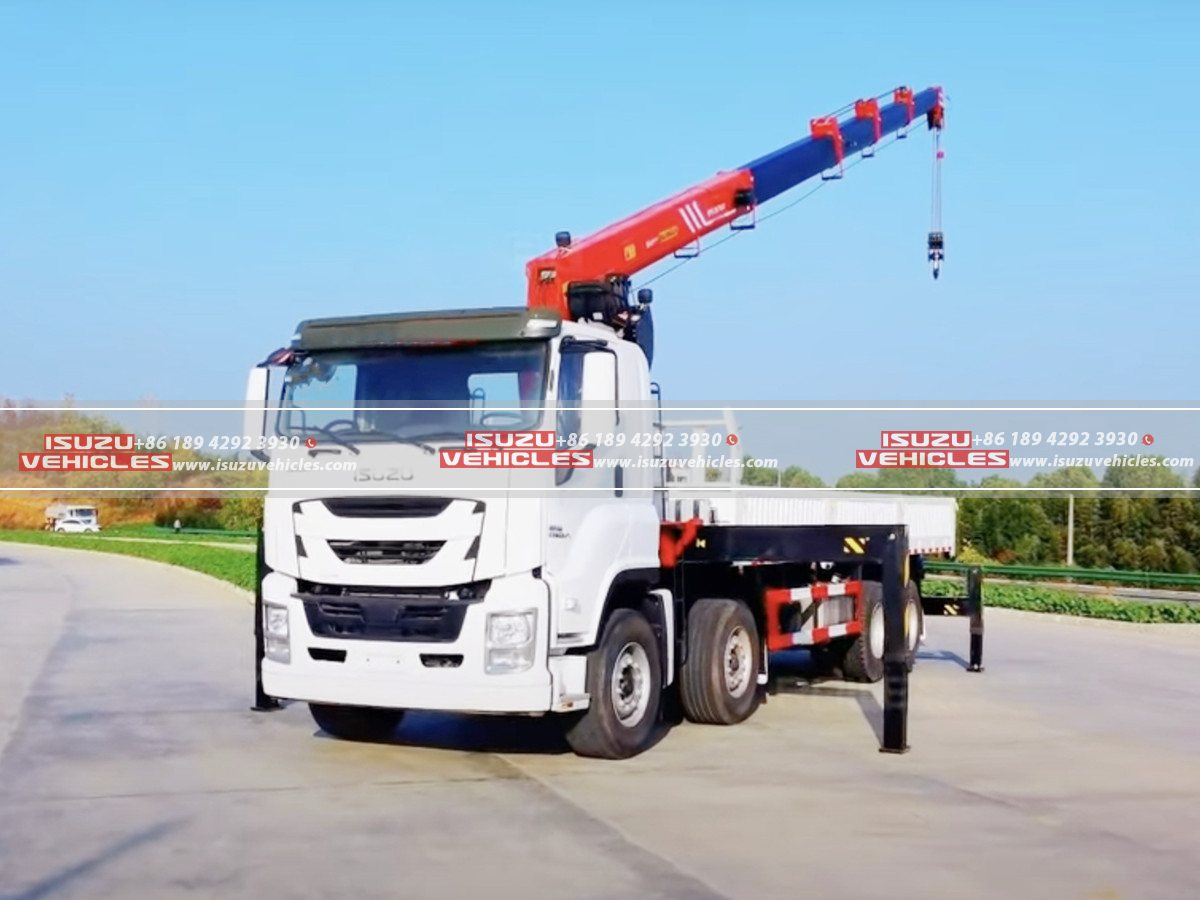

BRIEF:
Introducing the robust and versatile ISUZU Truck Mounted 20 Ton PALFINGER Crane, engineered for heavy-duty lifting and cargo transportation. This exceptional vehicle combines the renowned reliability of ISUZU with the unparalleled performance of PALFINGER cranes, delivering unparalleled efficiency and productivity in demanding work environments.
FEATURES:
High-Strength Cargo Box: Equipped with a 7.5×2.4×0.45m cargo box constructed from high tensile steel, providing durability and longevity for carrying heavy loads. The all-side-open doors ensure convenient access to the cargo.
Powerful Chassis: Built on the ISUZU QL5440TZZ chassis with an 8×4 wheel drive configuration, offering exceptional stability and traction on various terrains. The vehicle’s overall size of 11800×2550×3980mm provides ample space for cargo and crane operations.
Heavy-Duty Crane: Featuring the PALFINGER SPS 50000C crane truck with impressive lifting capabilities, including a rated lifting capacity of 20,000 kg at 2.5m and a maximum outreach of 21.2m. This crane’s dynamic crane moment of 913.8 kNm ensures efficient and precise lifting operations.
Advanced Engine: Powered by the ISUZU 6WG1-TCG62 engine, delivering 382kW of output power at 1800rpm and 2250N.m of torque at 900-1300rpm. This EURO 6 compliant engine ensures optimal performance, fuel efficiency, and reduced emissions.
Comfortable Cab: The sleeper cab design of the VC66 model offers a comfortable and ergonomic workspace for the driver, equipped with airbags, air conditioning, power steering, and standard instrumentation and controls.
Efficient Transmission: Utilizing the ZF8S manual transmission system with 8 forward gears and 1 reverse gear, providing smooth and precise shifting for enhanced driving control and efficiency.
Durable Wheels and Tires: Fitted with 12 wheels and 315/80R22.5 20PR tires, ensuring excellent grip and stability, even under heavy loads and challenging road conditions.
Safety Features: Incorporating safety features such as airbags, ABS brakes, and automatic window controls to enhance driver and cargo safety during operations.
Optimized Hydraulic System: The crane’s hydraulic system operates at a recommended flow rate of 80-110 L/min and an operating pressure of 32 Mpa, ensuring smooth and efficient crane movements.
Extended Boom Reach: With a boom system length of 6.25m when fully extended and a maximum lifting height of 23.2m from the ground, the crane provides exceptional reach and versatility for various lifting tasks.
The ISUZU Truck Mounted 20 Ton PALFINGER Crane is the ultimate solution for heavy-duty lifting and cargo transportation requirements, combining unmatched performance, durability, and reliability for maximum productivity in demanding work environments.
SPECIFICATIONS:
Cargo Box | |
---|---|
Model/Model | 07CB/CSCTRUCK |
Cargo Box Size | 7.5×2.4×0.45m |
Material | High tensile steel |
Floor/Platform Thick | 3mm |
Door | All side open |
Side Wall Thickness | 2mm |
General Information | |
---|---|
Cab Chassis Make/Model | ISUZU/QL5440TZZ |
Wheel Drive | 8×4 LHD |
Measurement | |
---|---|
Overall Size (L × W × H)(mm) | 11800×2550×3980 |
Front/Rear Overhang(mm) | 1370/1950mm |
Front/Rear Track(mm) | 2140/1855mm |
Wheelase(mm) | 2100+4325+1370mm |
Weights | |
---|---|
G.C.W(kg) | 64000 |
Chassis Tare /Curb Weight(kg) | 10960 |
G.V.W (kg) | 44000 |
Crane Tare Weight(kg) | 6800 |
Vehicle Tare /Curb Weight(kg) | 20060 |
Cargo Box Weight(kg) | 2300 |
Payload Weight(kg) | 23490 |
F/R Axle Rating(Ton) | 9+9/13+13 |
Cab | |
---|---|
Cab Style | Sleeper Cab |
Cab Model | VC66 |
Cab Roof | Standard(low roof) |
Cab Width | 2400mm |
Construction | Full steel suspended |
No. of Seats | 3 |
Instrument & Controls | standard |
Driver Seats | airbag |
Tiltable | Front tiltble |
Equipment & Device | AC, power steering |
Engine | |
---|---|
Make/Model | ISUZU/6WG1-TCG62 |
Output Power/Speed | 382kW at 1800rpm |
Max. Torque / Speed | 2250N.m at 900-1300rpm |
Displacement | 15.681L |
Engine Type | Water-cooled, 6 cylinders,4 strokes, turbocharged, diesel engine |
Emission Regulation | EURO 6 |
Transmission | |
---|---|
Make/Model | ZF8S |
Type | Manual |
Gear Numbers | 8 forward +1 reverse |
First Gear Ratio | / |
Wheels | |
---|---|
Wheel Numbers | 12+1 spare tire |
Tires | 315/80R22.5 20PR |
Crane | |
---|---|

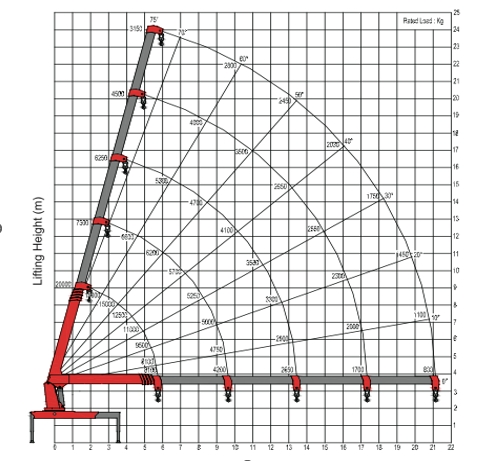

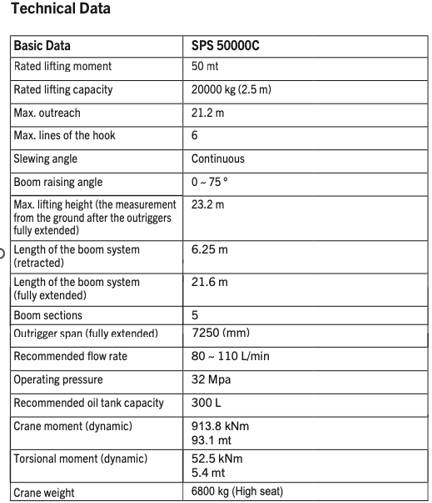

Basic Data | |
Rated lifting moment | 50 mt |
Rated lifting capacity | 20000 kg (2.5 m) |
Max. outreach | 21.2 m |
Max. lines of the hook | 6 |
Slewing angle | Continuous |
Boom raising angle | 0-75° |
Max, lifting height (from ground after outriggers fully extended) | 23.2 m |
Length of the boom system(retracted) | 6.25 m |
Length of the boom system(fully extended) | 21.6 m |
Boom sections | 5 |
Outrigger span (fully extended) | 7250(mm) |
Recommended flow rate | 80~110 L/min |
Operating pressure | 32 Mpa |
Recommended oil tank capacity | 300 L |
Crane moment (dynamic) | 913.8 kNm |
SPS 50000C | |
Torsional moment (dynamic) | 52.5 kNm |
Crane weight | 5.4 mt |
6800 kg (High seat) |
