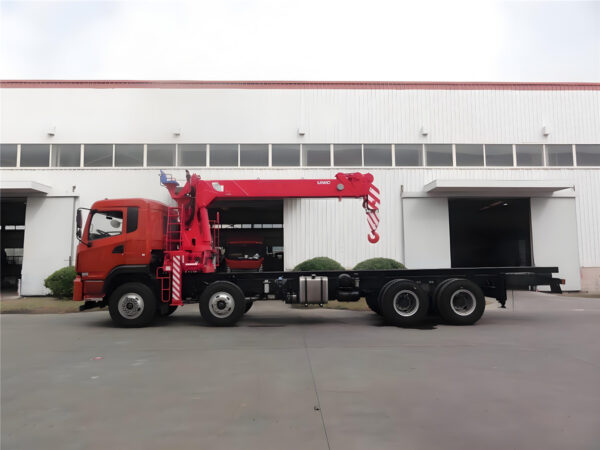

ISUZU 8×4 UNIC 10T Telescopic Boom Crane Truck
The ISUZU 8×4 UNIC 10T Telescopic Boom Crane Truck is a highly efficient and versatile heavy-duty lifting and transport solution, purpose-built on the durable ISUZU QL1310FVFHY chassis and integrated with the reliable UNIC URV1004 telescopic crane, offering a well-balanced combination of lifting power, structural stability, and long-haul transport capability for construction, logistics, and infrastructure operations.
Powered by the proven Isuzu Motors 6HK1-TCG60 engine, the vehicle delivers a robust 221 kW (300 HP) output from a 7.79L turbocharged and intercooled inline 6-cylinder diesel engine, ensuring consistent torque delivery and fuel-efficient performance even under demanding load conditions. The integration of a FAST 9-speed manual transmission (9JS119TA), featuring 8 forward gears, 1 reverse gear, and an additional crawler gear, provides enhanced control, especially during low-speed heavy-duty operations and challenging terrains.
The 8×4 drive configuration significantly enhances payload capacity and axle load distribution, making it ideal for transporting heavy cargo while maintaining operational stability. Combined with a multi-section wheelbase (1850+4575+1370 mm) and reinforced leaf spring suspension system, the truck ensures excellent durability and load-bearing performance across long distances and harsh working environments.

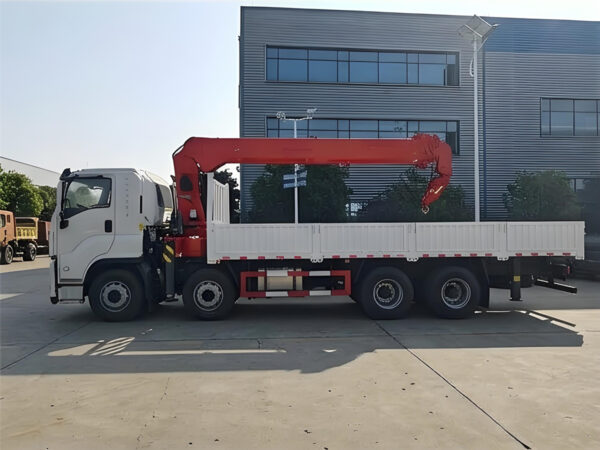

The ISUZU VC61 5X cabin is designed with operator comfort and efficiency in mind, featuring air conditioning, central locking, and power windows, providing a modern and ergonomic workspace for prolonged operational hours. Additionally, the truck is equipped with a CSCTRUCK cargo box (8000 mm length), constructed using 5 mm floor plates and 3 mm side plates, enabling efficient transportation of materials alongside lifting tasks, thereby maximizing productivity.
Key Features
Powerful UNIC URV1004 Crane System
The integrated UNIC URV1004 telescopic boom crane delivers a rated lifting capacity of 10,100 kg at 2.5 meters and a rated lifting moment of 10,100 kg × 2.5 m, making it suitable for medium-to-heavy lifting operations such as construction material handling, equipment installation, and industrial logistics.
Optimized Reach and Lifting Coverage
With a maximum outreach of 13.69 meters and a maximum lifting height of approximately 15.6 meters, the truck crane offers excellent operational coverage, reducing repositioning time and increasing job-site efficiency. The 4-section telescopic boom, extending from 5 meters to 14 meters, provides flexibility for a wide range of lifting scenarios.
Smooth Operation and Precision Control
The crane system features continuous 360° slewing capability, allowing seamless rotation for efficient load handling, while the boom raising angle from 0° to 78° ensures precise positioning under varying working conditions. The floor control system enhances operational safety and ease of use, enabling operators to maintain clear visibility during lifting operations.
Enhanced Stability with Advanced Outriggers
Equipped with fully extended outriggers spanning 5700 mm and a rear outrigger system, the truck ensures superior stability during lifting tasks, even at extended reach, significantly improving safety and operational confidence.
Heavy-Duty Chassis Performance
The ISUZU 8×4 chassis platform is engineered for durability and efficiency, featuring:
- 400L fuel tank for extended operational range
- High-capacity tire configuration (295/80R22.5, 12+1 units) for improved load support
- Reinforced suspension system for enhanced shock absorption and longevity
These features ensure reliable performance in demanding environments while minimizing maintenance requirements.
Integrated Lifting and Transport Efficiency
The combination of a large 8000 mm cargo box, a high-performance crane system, and an equipped working bucket enables this vehicle to function as a comprehensive cargo truck with lifting and aerial operation capabilities, significantly reducing the need for multiple specialized machines and improving overall operational efficiency.
The ISUZU 8×4 UNIC 10T Telescopic Boom Crane Truck is engineered to deliver powerful lifting capacity, extended reach, and reliable transport performance, making it an ideal choice for contractors and logistics operators seeking a durable, efficient, and multi-functional heavy-duty solution.
SPECIFICATIONS
| Item | Details |
|---|---|
| Chassis Model | QL1310FVFHY |
| Drive Type | 8×4, LHD |
| Cabin | ISUZU/VC61 5X |
| No. of Seats | 2 |
| Cabin Features | AC, Center lock, Power window |
| Engine | ISUZU/6HK1-TCG60 |
| Output Power | 221 kW (300 HP) |
| Displacement | 7.79 L |
| Engine Type | 6-Cylinder in-line, Turbocharged and Intercooled |
| Emissions | EURO 5 |
| Fuel Tank | 400 L |
| Transmission | FAST/9JS119TA |
| Transmission Type | MT |
| Gear Numbers | 8 forward speeds, 1 reverse speed + 1 crawler gear |
| Front/Rear Track | 2060 / 1855 mm |
| Front/Rear Overhang | 1370 / 2430 mm |
| Wheel base | 1850+4575+1370 mm |
| Rim / Tire | 295/80R22.5 18PR, 12+1 |
| Suspension | Front and rear leaf spring suspension |
| Crane Model | UNIC URV1004 |
| Rated lifting moment | 10100 kg×2.5 m |
| Rated lifting capacity | 10100 kg (2.5 m) |
| Max. outreach | 13.69 m |
| Slewing angle | Continuous |
| Boom raising angle | 0~78° |
| Max. lifting height | ~15.6 m |
| Length of the basic boom | 5 m |
| Length of fully extended boom | 14 m |
| Boom sections | 4 |
| Outrigger span (fully extended) | 5700 mm |
| Control | Floor control |
| Rear Outrigger | Equipped |
| Working Bucket | Equipped |
| Cargo box | CSCTRUCK/O8CB |
| Cargo box Length | 8000 mm |
| Cargo box Side Plate | 3 mm |
| Cargo box Floor Plate | 5 mm |
