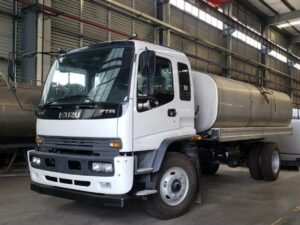

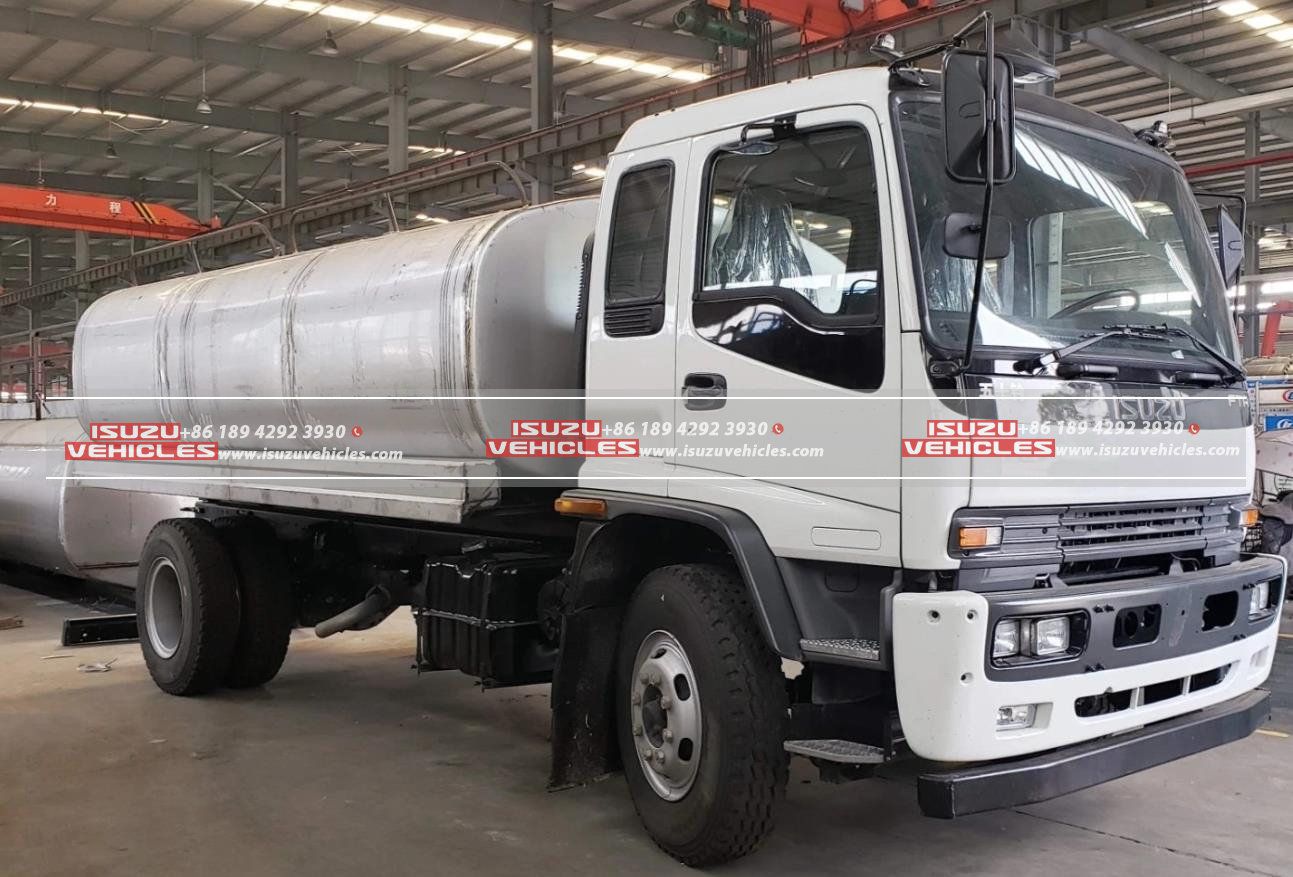

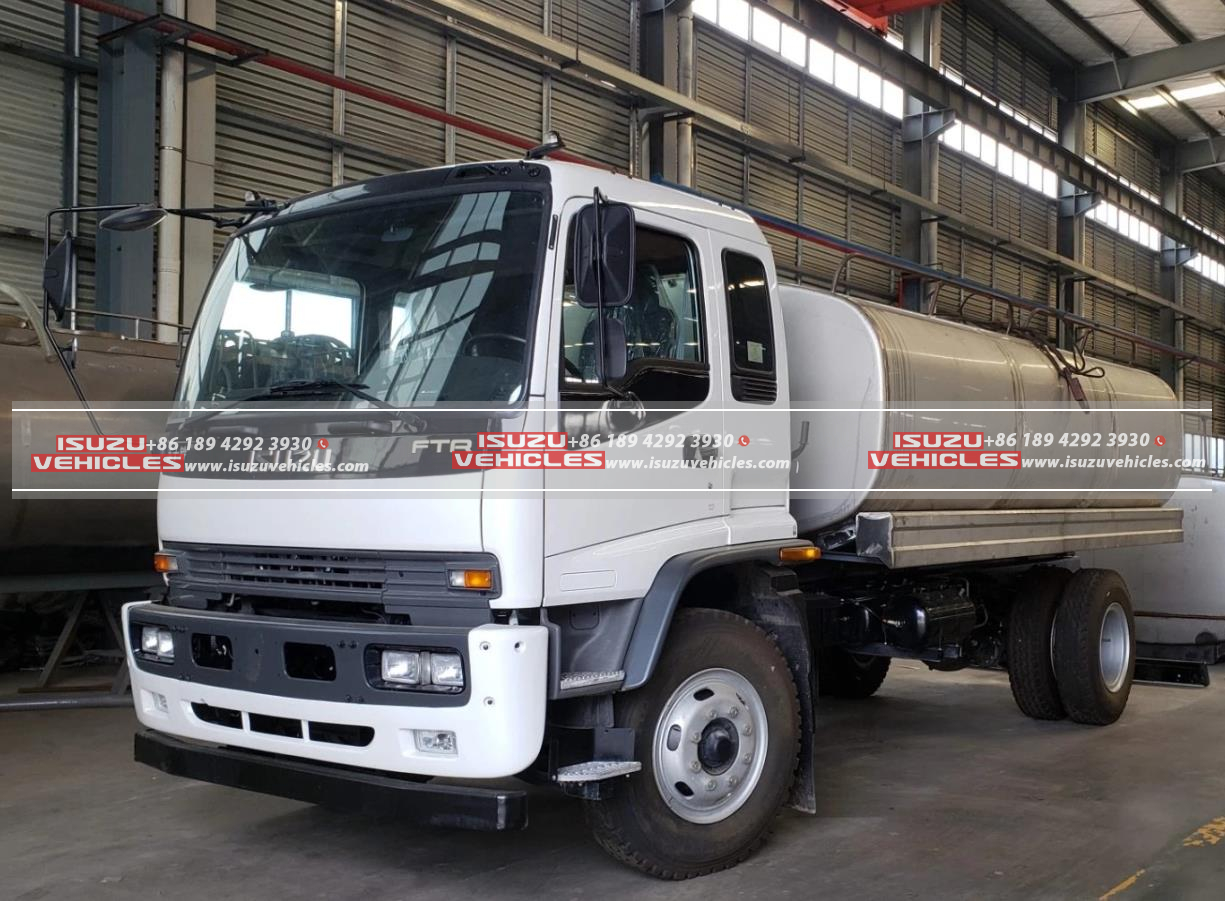

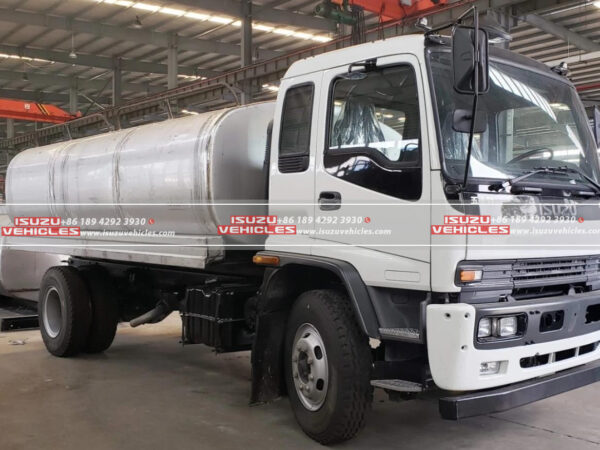

ISUZU 10 CBM Water Tanker Truck

Brief for ISUZU 10 CBM Water Tanker Truck:

The ISUZU 10 CBM Water Tanker Truck is a robust and versatile vehicle designed for the efficient transportation of water and irrigation of forestry territories. Manufactured in 2024, this brand-new tanker truck meets Euro 6 emission standards and operates seamlessly in a wide temperature range of -20°C to 45°C. With a 4×2 drive model and a sturdy ISUZU FTR chassis, it offers reliability and high performance, especially suited for various water supply tasks. This water tanker is built for resilience and practicality, featuring a large 10 cubic meter water tank, making it the ideal choice for municipal, agricultural, and commercial applications.

Key Features:

1. Powerful ISUZU Engine:
   Equipped with a 4HK1-TCG60 turbocharged diesel engine, the ISUZU 10 CBM Water Tanker Truck delivers 205 horsepower and a displacement of 5.193 liters. The engine is designed for durability and high torque, providing 647 N.m at 1600 rpm, which ensures optimal performance even under challenging conditions.
2. Euro 6 Emission Standard Compliance:
   The engine meets Euro 6 standards, making this truck environmentally friendly while reducing harmful emissions and adhering to stringent global regulations.
3. Manual Transmission with Multiple Gears:
   The ISUZU MLD manual transmission provides 6 forward gears and 1 reverse gear, ensuring smooth handling and control for the driver across various terrains and operational needs.
4. Spacious and Functional Tank:
   The water tank, with a capacity of 10 CBM, is made from carbon steel (Q235) and is designed with a square-round shape. It is built with a single compartment and an anti-wave board to ensure water stability during transportation. The tank is inspected via a top manhole and constructed with 5 mm thick steel for enhanced durability.
5. Ergonomically Designed Cabin:
   The ISUZU VC61 cabin is equipped with modern comforts like air conditioning, power steering, electric doors and windows, and a multi-function steering wheel. For added safety and control, the cabin also includes ABS, an air brake system, and a multi-function LCD instrument display.
6. Unloading and Pumping Equipment:
   The tanker is installed with a water pump for efficient irrigation, allowing for both intake and discharge of water. The pump is highly effective in diverse operational settings, such as forestry irrigation or large-scale water transport. Additionally, the truck comes equipped with multiple water hoses with connectors to match the length of the tank.
7. Safety and Additional Equipment:
   Safety is a priority, with a fire extinguisher bucket included (fire extinguisher gas excluded due to customs regulations). The truck also features a tool box for convenient storage and maintenance tools, ensuring operational readiness at all times.
8. Durable Chassis and Wheels:

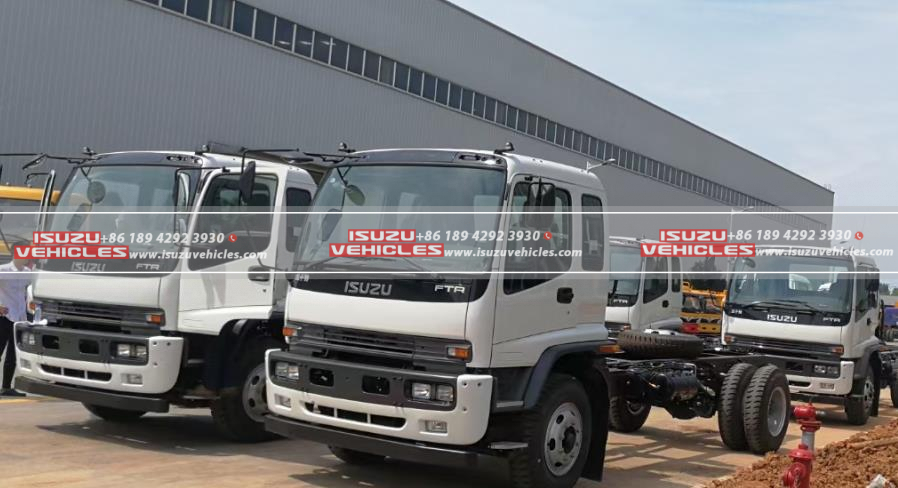

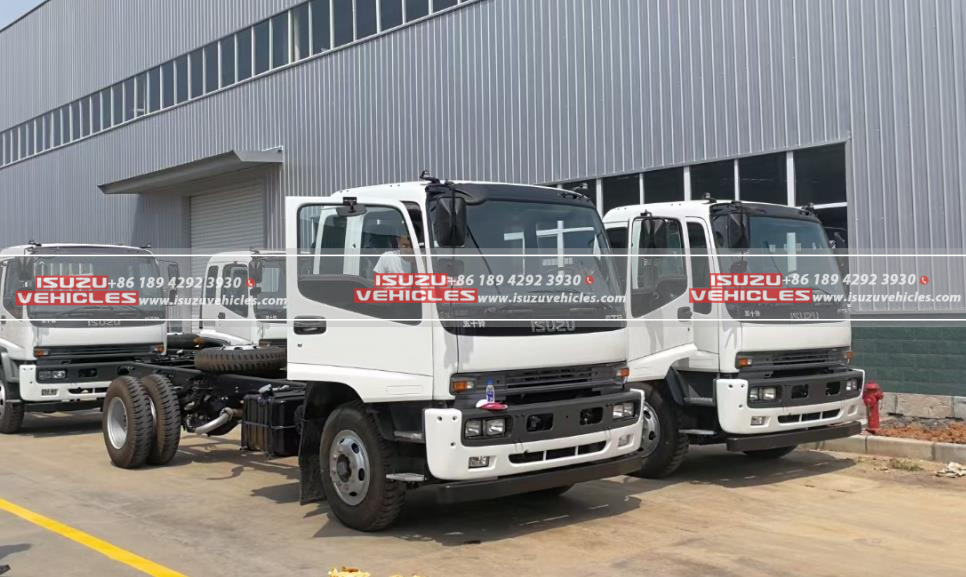

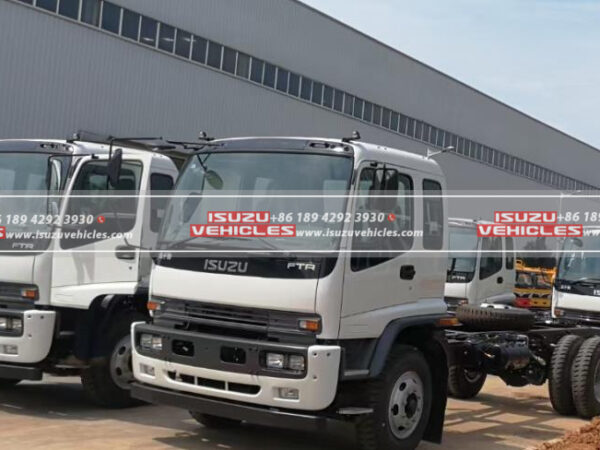

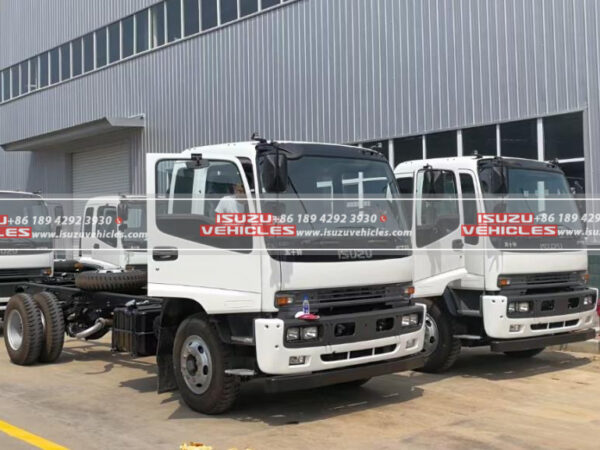

   Supported by a robust ISUZU FTR chassis and heavy-duty 295/80R22.5 18PR tires, the vehicle handles a gross vehicle weight of 19,300 kg, with a curb weight of 9,300 kg and a payload capacity of 10,000 kg. The truck is engineered to withstand heavy loads and long hours of operation.
9. Customization Options:
   The tanker can be painted in various colors with logos as per customer requirements, ensuring that it meets specific branding or visual identity needs.

The ISUZU 10 CBM Water Tanker Truck is a top-tier solution for businesses requiring reliable water transportation and irrigation capabilities. With advanced technology, powerful performance, and excellent durability, it offers long-lasting value and dependable operation.

SPECIFICATIONS:
