BRIEFS:

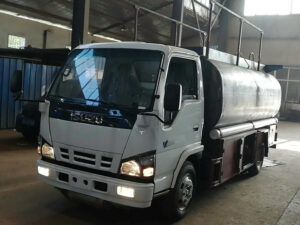

The ISUZU 10 Ton Fuel Oil Diesel Transport Tank Truck is a reliable and efficient vehicle designed for the safe and efficient transportation of fuel and diesel. Built on a sturdy chassis and equipped with a powerful engine, it offers a robust solution for various fuel transport needs. With its spacious fuel tank capacity, advanced safety features, and customizable compartments, this tank truck is an ideal choice for businesses involved in fuel transportation.
FEATURES:
- Drive Model: 4X2 drive model for optimal maneuverability and performance on various road conditions.
- Chassis: Built on a durable EQ1060 chassis to ensure stability and longevity.
- Vehicle Main Dimensions: Offers ample space with dimensions (L x W x H)mm of 5990 x 1960 x 2400.
- Wheelbase: A wheelbase of 3300mm enhances stability and load distribution.
- Overhang (Front/Rear): Features an overhang of 1032mm at the front and 1658mm at the rear for balanced weight distribution.
- Wheel Track (Front/Rear): Front/rear wheel tracks of 1506mm/1466mm provide stability during transport.
- Approach/Departure Angle: Boasts a 18/12-degree approach/departure angle for tackling various terrains.
- Weight: With a curb weight of 3365kg and a Gross Vehicle Weight (GVW) of 6495kg, it offers an ideal balance between payload and vehicle weight.
- Max. Driving Speed: Capable of reaching a maximum driving speed of 80 km/h.
- Engine: Powered by a CY4102-C3F engine, a 4-stroke direct injection, 4-cylinder in-line engine with water cooling, turbo-charging, and inter cooling.
- Horsepower: Generates 95HP, providing ample power for heavy loads.
- Emission Standard: Complies with Euro III emission standards for reduced environmental impact.
- Gearbox: Equipped with a 5-forward & 1-reverse transmission for smooth and efficient gear shifting.
- Clutch: Features a reinforced diaphragm clutch for enhanced durability.
- Steering Gear: Offers power steering with hydraulic assistance for ease of control.
- Fuel Tank Capacity: A spacious 100-liter fuel tank ensures long-distance travel without frequent refueling.
- Tire: Fitted with 7.00-16 tires, including 6 primary tires and 1 spare tire for added reliability.
- Fuel Tank: The upper section includes a fuel tank with a fact cubage of 4-5 for efficient fuel transportation.
- Protective Material: Constructed with Q235 carbon steel for added strength and durability.
- Tank Material: Made of <5mm> carbon steel for safe and secure fuel containment.

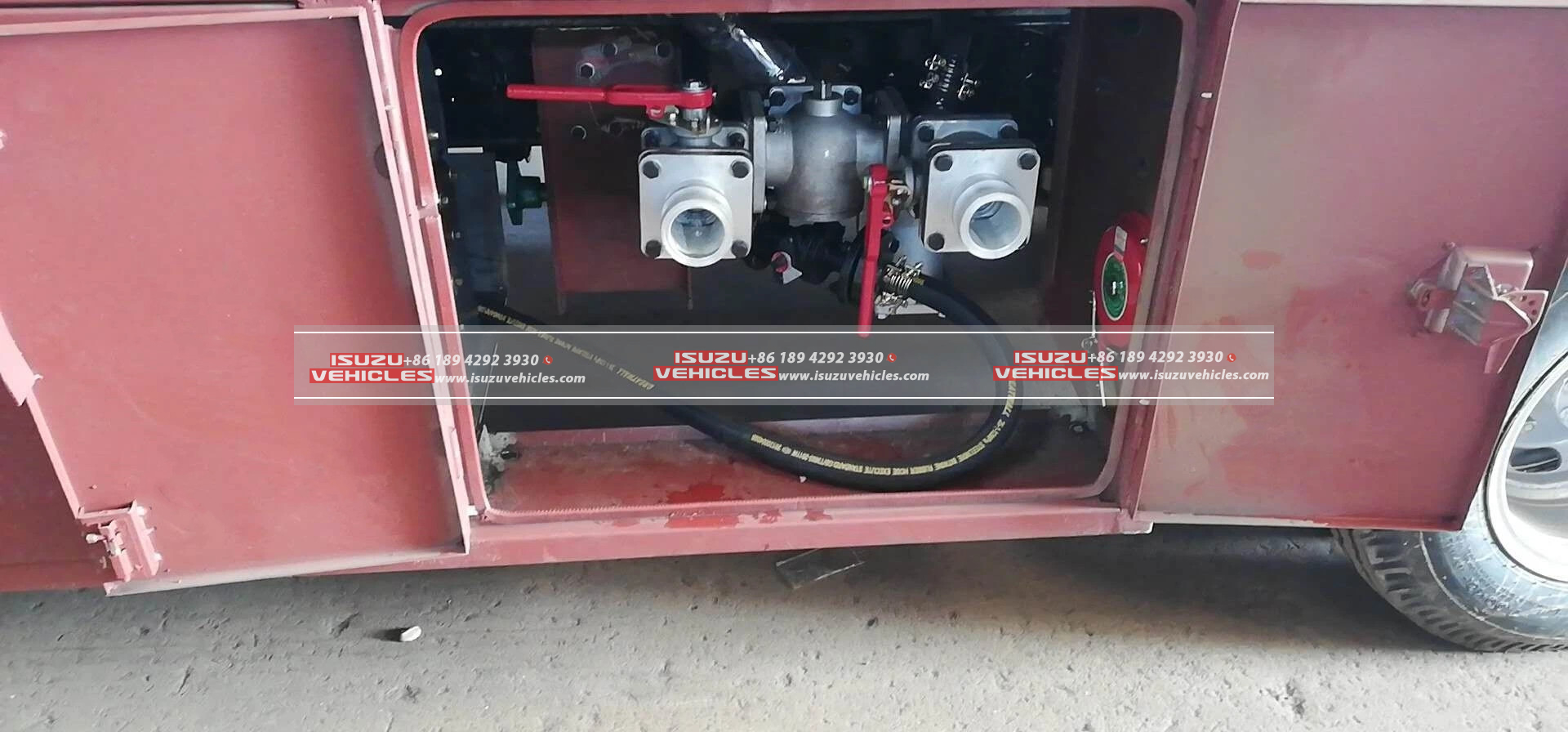

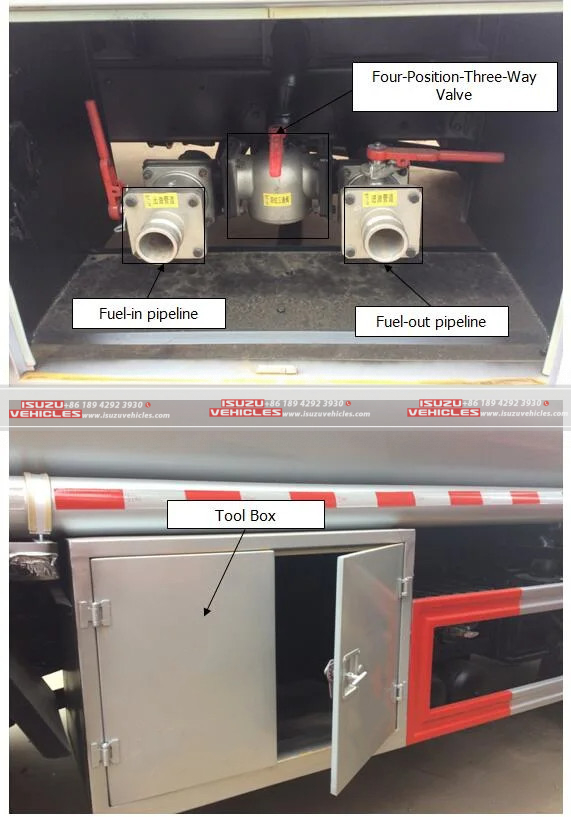

- Equipment: Comes equipped with a CLW pump, valves, and pipes, as well as a fuel dispenser for efficient fuel handling.
- Filling Unit: Includes a fueling truck equipped with a filling unit for easy refueling operations.
- Ladder: Features a ladder on the tank for convenient access and maintenance.
- Customizable Compartments: These can be designed to have several compartments according to specific transport requirements.
- Speed Limiter: Equipped with a speed limiter, ensuring safe driving with a speed limit of 80 km/h.
SPECIFICATIONS:
Description | ISUZU 10 Ton Fuel Oil Diesel Transport Tank Truck |
---|---|
Drive Model | 4X2 |
Chassis | EQ1060 |
Vehicle Main Dimensions | Dimensions (L x W x H)mm: 5990 x 1960 x 2400 |
Wheelbase (mm): 3300 | |
Overhang (front/rear) (mm): 1032/1658 | |
Wheel track (front/rear) (mm): 1506/1466 | |
Approach/Departure angle(°): 18/12 | |
Weight in KGS | Curb Weight: 3365 |
GVW: 6495 | |
Max. Driving Speed(km/h) | Max. Driving Speed: 80 |
Engine | Model: CY4102-C3F |
Type: 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power (HP): 95HP | |
Emission Standard: Euro III | |
Gearbox | Transmission: 5 forwards & 1 reverse |
Clutch | Clutch: Reinforced diaphragm clutch |
Steering Gear | Steering: Power steering, hydraulic steering with power assistance |
Fuel Tank (L) | Fuel Tank Capacity: 100 |
Tire | Tire: 7.00-16 tire, 6 pcs + 1 spare tire |
UPPER | |
Fuel Tank Capacity | Fact Cubage: 4-5 |
Protective Material | Protective Material: Q235 carbon steel |
Tank Material | Tank Material: <5mm> carbon steel |

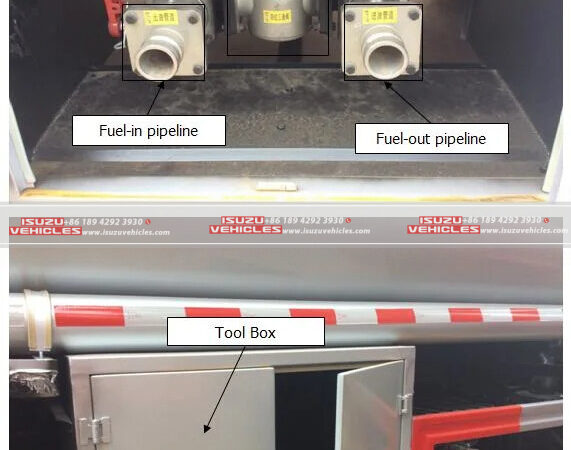

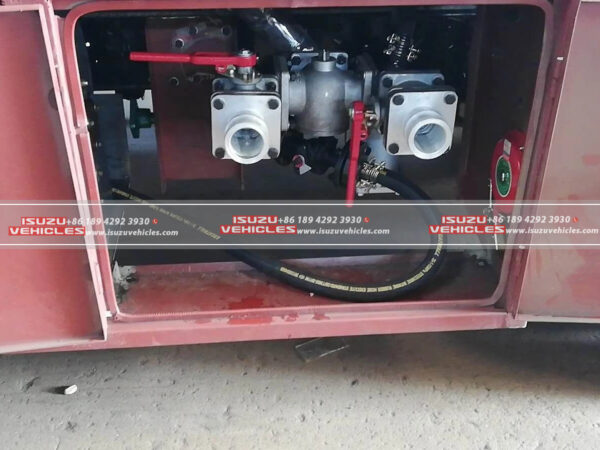

Equipment | 1. Equipped with CLW pump, valves, and pipes, a set of Fuel Dispenser |
2. Fueling truck equipped with a set of filling unit | |
3. Equipped with a ladder on the tank | |
4. Can be designed to have several compartments according to your requirements | |
5. Equipped with a speed limiter. The speed limit is 80 km/h |
