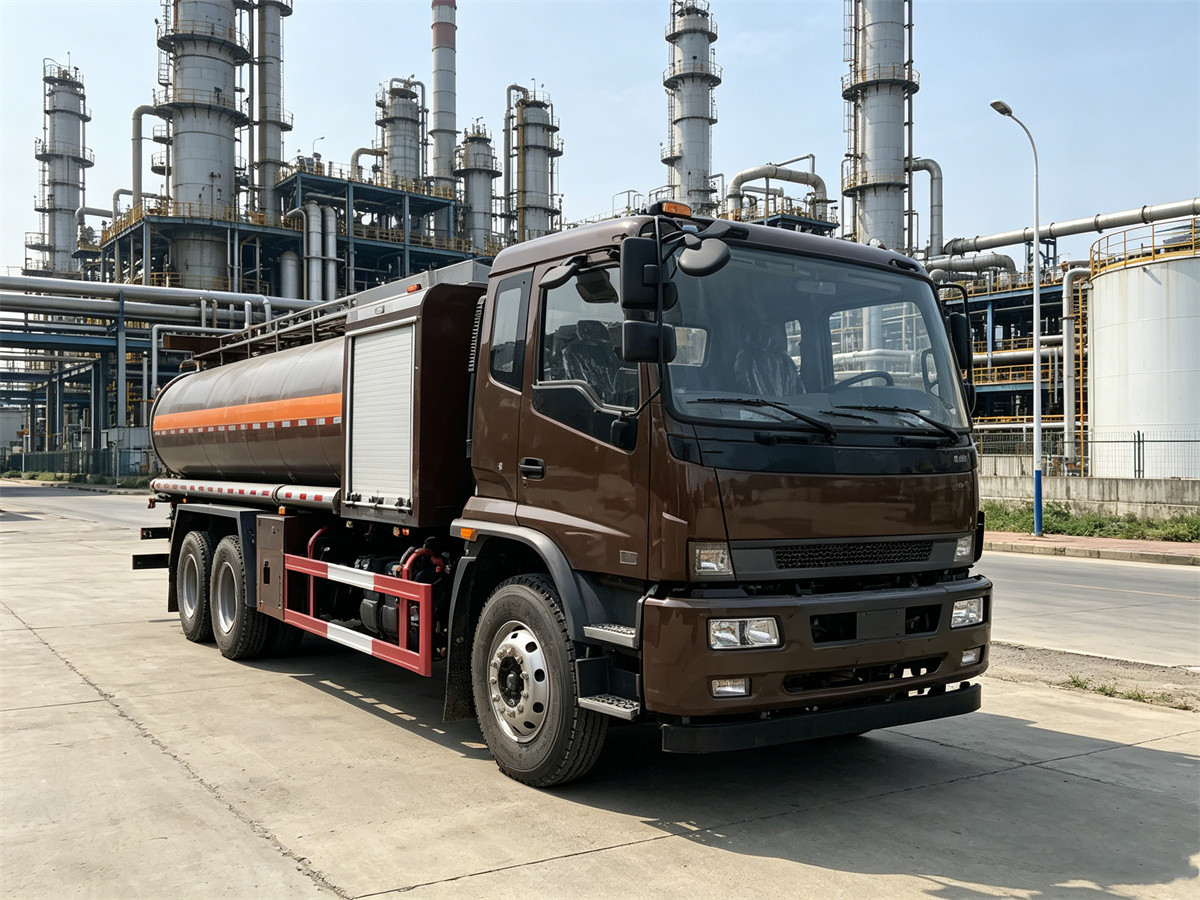

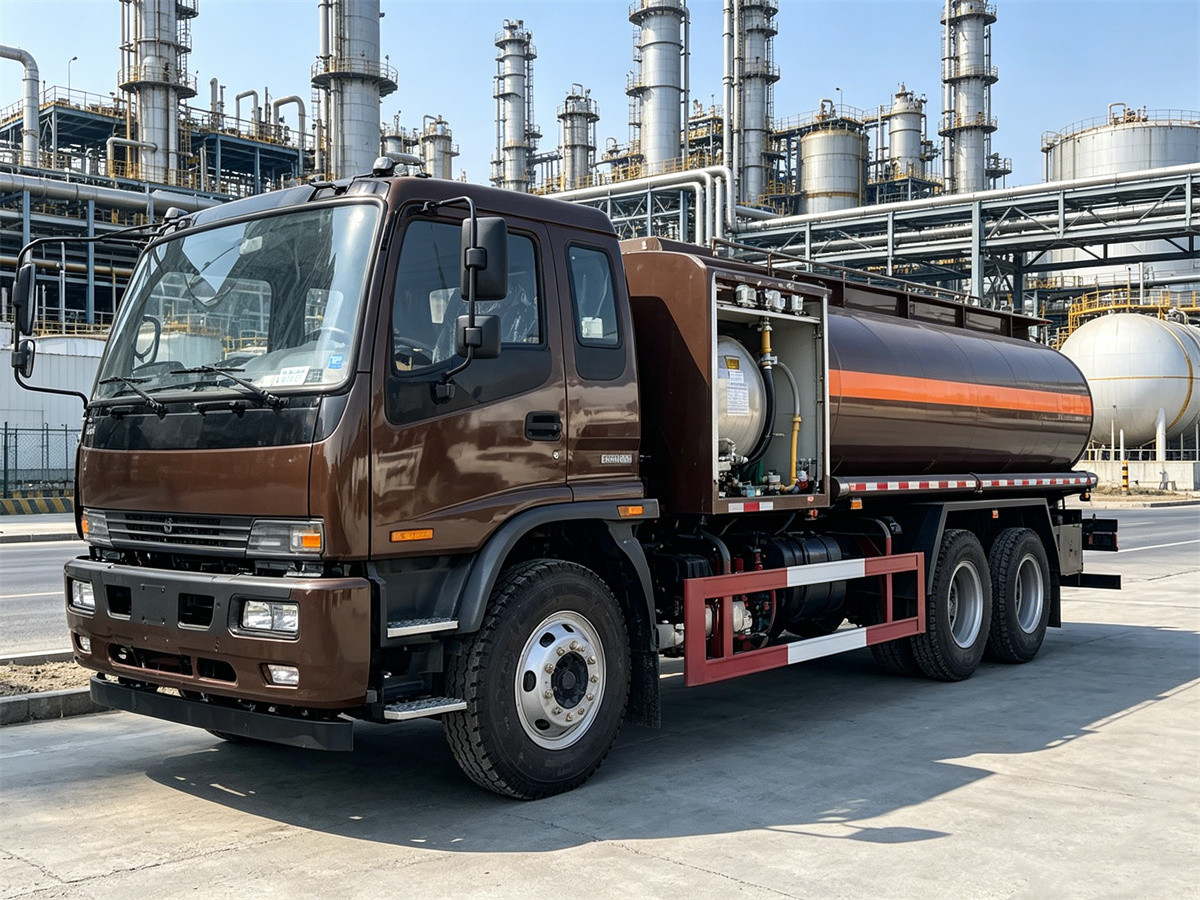

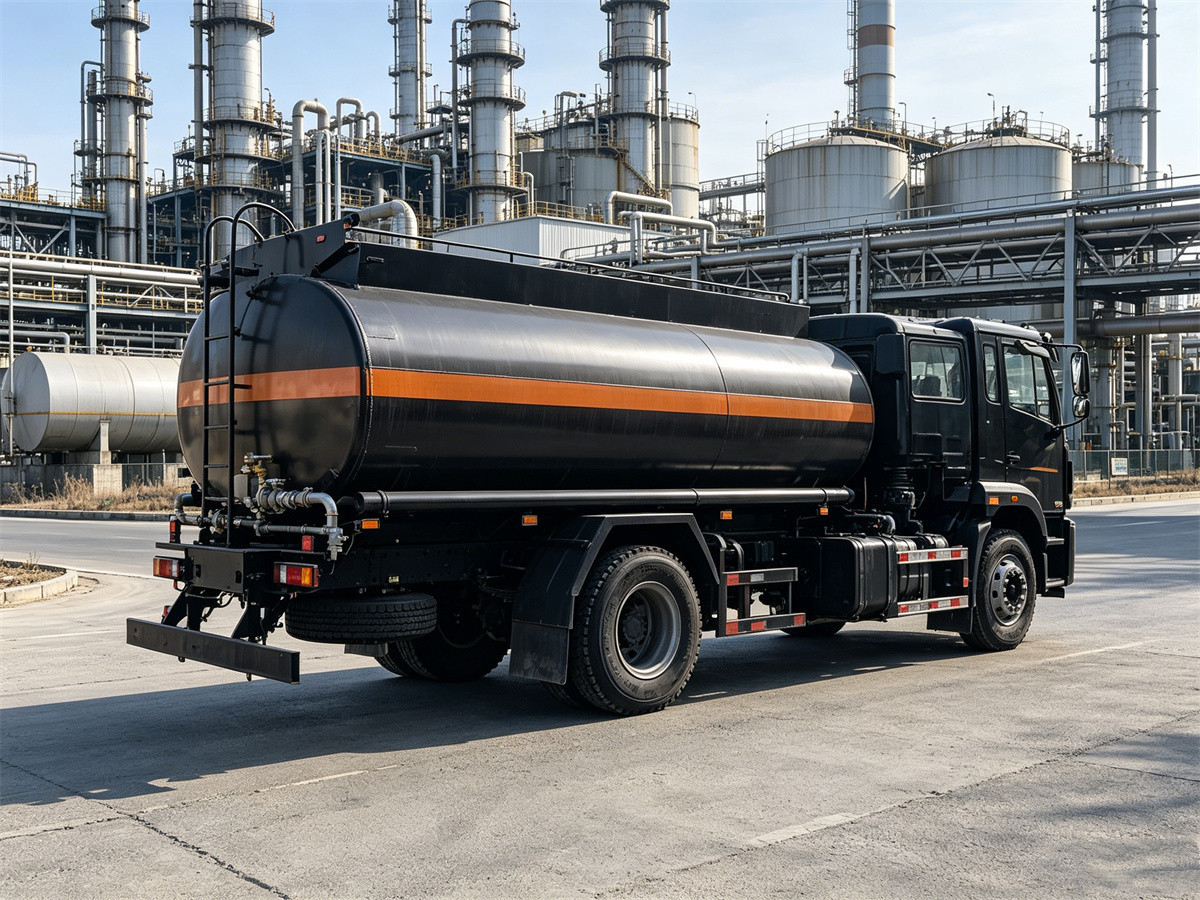

ISUZU 12000L Aircraft Refueler Truck
The ISUZU 12000L Aircraft Refueler Truck is a reliable airport fueling vehicle engineered to provide safe, accurate, and efficient aviation fuel transportation and refueling services. Built on a dependable ISUZU 4×2 chassis with a comfortable sleeper cab, this refueler combines excellent driving performance with advanced fueling equipment, making it an ideal solution for airports, military airbases, aviation maintenance centers, and private aircraft operators.
Equipped with a 12,000-liter fuel tank manufactured from high-quality stainless steel or aluminum alloy, the truck offers outstanding corrosion resistance, extended service life, and secure fuel storage. Powered by a 205 HP Euro V diesel engine and paired with an 8-speed transmission, it delivers dependable performance while maintaining fuel efficiency during daily airport operations.
Features
Powerful ISUZU Chassis Performance
The vehicle adopts an ISUZU 4HK1-TC50 Euro V engine producing 205 HP, matched with an 8-speed manual gearbox for smooth power delivery and reliable operation. The 5,550 mm wheelbase, hydraulic power steering, air braking system, and heavy-duty front and rear axles provide excellent stability, maneuverability, and driving comfort even when carrying a full fuel load.
Large-Capacity Aviation Fuel Tank
Designed with a 12,000-liter single-compartment tank, the upper body is available in stainless steel or aluminum alloy to meet different operational requirements. The robust tank construction offers excellent durability, minimizes maintenance requirements, and ensures safe transportation of aviation fuel under demanding airport working conditions.
Efficient Refueling Operations
The integrated fueling system is engineered for fast, precise, and dependable aircraft refueling. Its optimized pipeline layout and professional refueling components help reduce fueling time while maintaining high operational safety, making the truck suitable for servicing helicopters, business jets, regional aircraft, and commercial airplanes.
Operator-Oriented Design
The spacious ISUZU sleeper cab features air conditioning, ergonomic controls, and excellent visibility for long working hours. Combined with reliable electrical systems, quality suspension, and durable commercial-grade components, the truck delivers dependable performance with low operating costs and easy maintenance throughout its service life.
Specification
| Category & Item | Specification Description |
| 1. Truck Basic Specifications | |
| Truck Model | ISUZUART012 |
| Cab Type | ISUZU cab with one sleeper with A/C |
| Driving Type | 4×2 Left-hand driving |
| Maximum Speed | 100 km/h |
| Overall Dimensions (L×W×H) | 8,840 × 2,450 × 3,000 mm |
| Gross Vehicle Weight (GVW) | 19,000 kg |
| Mass in Working Order (Curb Weight) | 8,900 kg |
| Wheelbase | 5,550 mm |
| Tire Specification | 10.00R20 |
| Clutch Type | Single-plate dry diaphragm spring clutch |
| Steering System | Hydraulic steering with power assistance |
| Gearbox | 8-speed |
| Front Axle Load Capacity | 6,300 kg |
| Rear Axle Load Capacity | 13,000 kg |
| Electric System | 24V |
| 2. Engine Specifications | |
| Engine Model | 4HK1-TC50 / EURO V |
| Fuel Type | Diesel fuel |
| Engine Type | In-line 4-cylinder, inter-cooler turbocharged |
| Maximum Output Power | 205 hp |
| 3. Braking System Specifications | |
| Service Brake | Compressed air brake |
| 4. Upper-Body Specifications | |
| Rated Capacity | 12,000 L |
| Tank Material | Stainless steel, Aluminum Alloy |
