ISUZU 10000 Liter Water Fire Truck
The ISUZU 10000 Liter Water Fire Truck is a heavy-duty emergency response vehicle engineered to deliver reliable firefighting performance, high water carrying capacity, and outstanding operational efficiency for municipal fire departments, industrial safety teams, and emergency rescue units. Built on the robust ISUZU F series chassis, this fire apparatus combines proven Japanese engineering with advanced firefighting systems, creating a dependable solution capable of handling complex fire emergencies and urban rescue operations.
Designed with a 4×2 drive configuration and a 4600 mm wheelbase, the vehicle offers excellent maneuverability and stability even when operating in dense urban areas or narrow streets. With an overall length of 8800 mm, width of 2550 mm, and height of 3550 mm, the truck maintains an optimized balance between large water storage capacity and flexible road performance. The truck’s gross vehicle weight of 20,000 kg and rated payload of 10,000 kg ensure sufficient capacity for the large water tank, firefighting equipment, and crew members without compromising operational safety.
Powering the fire engine is the highly reliable ISUZU 6UZ1-TCG61 diesel engine, a powerful inline six-cylinder turbocharged unit with a displacement of 9.839 liters. This engine delivers 279 kW of maximum power and 380 horsepower, along with a strong torque output of 1300 N·m, ensuring that the vehicle can respond quickly and maintain consistent performance even under heavy load conditions. Paired with a FAST 9JS119 manual transmission featuring nine forward gears, the drivetrain provides smooth gear transitions, excellent fuel efficiency, and reliable torque distribution during emergency response operations.

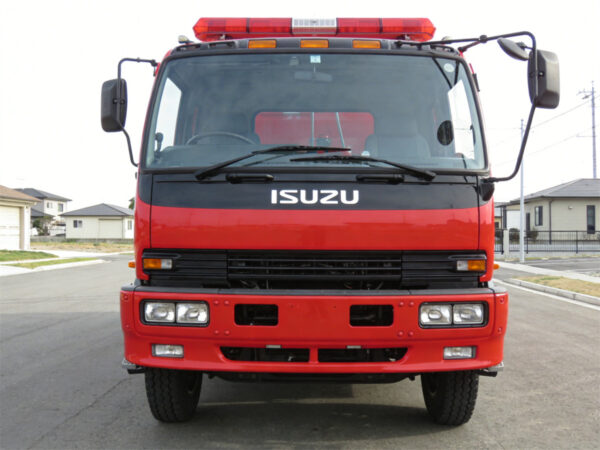

Inside the spacious double-row crew cab, the truck comfortably accommodates six firefighters with a seating configuration of two in the front and four in the rear, allowing the entire response team to travel together while maintaining quick access to essential firefighting equipment. The ergonomic cabin design, combined with modern safety systems and emergency warning equipment, ensures both comfort and operational readiness during urgent dispatches.
Key Features
High-Capacity Water Storage System
One of the core advantages of this vehicle is its 10,000-liter (10 CBM) water tank, which provides a substantial water supply for extended firefighting operations. The tank is constructed from high-quality carbon steel, with optional stainless steel material available for enhanced corrosion resistance and durability in demanding environments.
The tank structure incorporates internal anti-wave plates, which effectively reduce water movement during driving, improving vehicle stability and safety during high-speed responses. With a thickness of 4–5 mm, the tank offers excellent structural strength while maintaining optimal weight balance. The system supports multiple filling methods, including top manhole filling and fire hydrant filling, ensuring flexible water replenishment during active firefighting scenarios.
A visible water level indicator allows firefighters to monitor water capacity in real time, while an integrated overflow protection device prevents overfilling and ensures safe operation during rapid water supply.
Powerful Fire Pump and Water Cannon
Equipped with a professional CB10/40 fire pump, the truck provides reliable high-pressure water delivery for firefighting operations. The pump produces a rated flow of 40 liters per second at a pressure of 1.0 MPa, ensuring strong water discharge capable of tackling medium to large-scale fires.
The pump system features electric vacuum priming, enabling quick water suction with a maximum suction depth of up to 7 meters, which allows firefighters to draw water from natural sources such as ponds, rivers, or reservoirs when hydrants are unavailable. The pump is driven by the vehicle’s power take-off (PTO) system, providing efficient and dependable power transfer from the engine.
Mounted on the top of the truck is a PS40 fire monitor, capable of delivering the same powerful 40 L/s water flow with a spray range of over 60 meters, allowing firefighters to combat flames from a safe distance. The monitor offers 360-degree horizontal rotation and an elevation range from -30° to +70°, ensuring full directional coverage for effective fire suppression.
Efficient Water Pipeline and Pump Control System
The water pipeline system is constructed from durable anti-corrosion steel, designed to withstand high pressure and long-term firefighting operations. The configuration includes a DN125 suction inlet, two DN65 water outlets, a DN40 drain valve, and a DN65 tank filling port, providing flexible connection options for hoses and water sources.
A rear pump control panel integrates essential monitoring instruments such as a pressure gauge, tachometer, and water level indicator, allowing operators to control pumping operations efficiently while maintaining full visibility of system performance. The system is designed with straightforward manual operation controls, enabling quick and reliable deployment even in high-pressure emergency situations.
Heavy-Duty Chassis and Suspension Performance
Built on the durable ISUZU F chassis platform, this fire truck delivers excellent reliability and load-bearing capability for demanding firefighting environments. The chassis features a heavy-duty leaf spring suspension system with a configuration of 9 / 12 + 9, ensuring strong support for the vehicle’s weight while maintaining ride stability.
The front axle capacity of 7000 kg and rear axle capacity of 13,000 kg allow the vehicle to handle the large water tank and firefighting equipment with ease. Combined with 295/80R22.5 steel radial tires, the truck maintains excellent traction, durability, and stability across different road conditions.
Advanced Safety and Emergency Systems
Safety and visibility are critical for emergency response vehicles, and this truck is equipped with a comprehensive emergency lighting and warning system. A LED red and blue strobe light bar mounted on the roof ensures clear visibility during emergency travel, while the 100W electronic siren effectively alerts surrounding traffic.
Additional safety features include a reverse alarm system, rear and side scene lighting, and durable LED working lights that illuminate the operational area during nighttime firefighting operations. The vehicle also incorporates full air brakes, a spring energy parking brake, and an engine exhaust auxiliary braking system, ensuring reliable braking performance under all driving conditions.
Functional Equipment Compartments and Storage

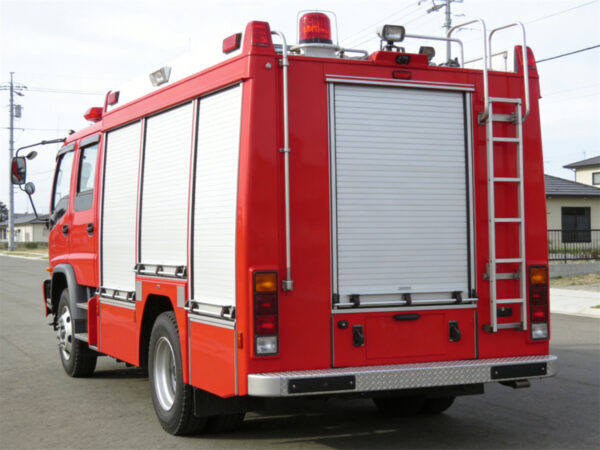

The fire truck is designed with multiple equipment storage compartments featuring aluminum roller shutter doors, providing easy access to firefighting tools and rescue equipment while protecting them from weather and environmental exposure. Integrated LED compartment lighting ensures that firefighters can quickly locate tools during nighttime operations or low-visibility conditions.
A roof-mounted ladder rack allows for convenient storage and rapid deployment of rescue ladders, while dedicated side hose compartments keep firefighting hoses neatly organized and ready for immediate use.
This professionally engineered ISUZU water fire engine integrates powerful firefighting capabilities, a durable chassis platform, and highly efficient operational systems, making it an excellent solution for urban firefighting, industrial fire protection, and emergency response missions requiring reliability, performance, and large-capacity water supply.
SPECIFICATIONS
| Item | Details |
|---|---|
| Chassis Brand | ISUZU |
| Chassis Model | ISUZU F |
| Drive Type | 4×2 |
| Wheelbase | 4600 mm |
| Overall Length | 8800 mm |
| Overall Width | 2550 mm |
| Overall Height | 3550 mm |
| Gross Vehicle Weight | 20000 kg |
| Curb Weight | 9800 kg |
| Rated Payload | 10000 kg |
| Max Speed | 95 km/h |
| Fuel Type | Diesel |
| Emission Standard | Euro VI |
| Cab Type | Double Row Crew Cab (2+4 seats) |
| Engine Brand | ISUZU |
| Engine Model | 6UZ1-TCG61 |
| Engine Type | Inline 6-cylinder, Turbocharged Intercooled Diesel |
| Displacement | 9.839 L |
| Max Power | 279 kW |
| Max Horsepower | 380 HP |
| Max Torque | 1300 N·m |
| Rated Speed | 2000 rpm |
| Fuel Injection | High Pressure Common Rail |
| Transmission Brand | FAST |
| Transmission Model | FAST 9JS119 |
| Transmission Type | Manual |
| Forward Gears | 9 |
| Reverse Gears | 1 |
| Clutch Type | Dry Single Plate |
| Power Take-Off | Equipped for fire pump drive |
| Water Tank Capacity | 10,000 Liters (10 CBM) |
| Tank Material | High Quality Carbon Steel / Optional Stainless Steel |
| Tank Thickness | 4–5 mm |
| Tank Structure | Welded with anti-corrosion coating |
| Tank Shape | Rectangular with internal partitions |
| Internal Anti-wave Plates | Equipped |
| Filling Method | Top Manhole / Fire Hydrant Filling |
| Overflow Protection | Equipped |
| Level Indicator | Visible Water Level Gauge |
| Fire Pump Brand | CB10 Fire Pump |
| Fire Pump Model | CB10/40 |
| Rated Flow | 40 L/s |
| Rated Pressure | 1.0 MPa |
| Pump Installation | Rear Mounted |
| Priming Device | Electric Vacuum Priming |
| Max Suction Depth | 7 m |
| Pump Engagement | PTO Driven |
| Fire Monitor Model | PS40 Fire Monitor |
| Monitor Rated Flow | 40 L/s |
| Monitor Range | ≥ 60 meters |
| Rotation Angle | 360° Horizontal |
| Elevation Angle | -30° to +70° |
| Control Type | Manual |
| Suction Inlet | 1 × DN125 |
| Water Outlet | 2 × DN65 |
| Drain Valve | 1 × DN40 |
| Tank Filling Port | 1 × DN65 |
| Pipe Material | Anti-corrosion Steel |
| Pump Drive | Power Take-Off (PTO) |
| Control Panel | Rear Pump Control Panel |
| Instrumentation | Pressure Gauge / Tachometer / Water Level Indicator |
| Operation Mode | Manual |
| Front Axle Capacity | 7000 kg |
| Rear Axle Capacity | 13000 kg |
| Suspension Type | Heavy Duty Leaf Spring |
| Leaf Spring Configuration | 9 / 12 + 9 |
| Tire Size | 295/80R22.5 |
| Tire Type | Steel Radial |
| Number of Tires | 6 + 1 Spare |
| Fuel Tank Capacity | 300 L |
| Braking System | Full Air Brake |
| Parking Brake | Spring Energy Brake |
| Auxiliary Brake | Engine Exhaust Brake |
| Equipment Compartments | Aluminum Roller Shutter Doors |
| Compartment Lighting | LED Compartment Lights |
| Ladder Mount | Roof Mounted |
| Hose Storage | Side Compartments |
| Warning Lights | LED Red/Blue Strobe Light Bar |
| Siren System | 100W Electronic Siren |
| Reverse Alarm | Equipped |
| Scene Lighting | Rear & Side Working Lights |
| Electrical System | 24V |
