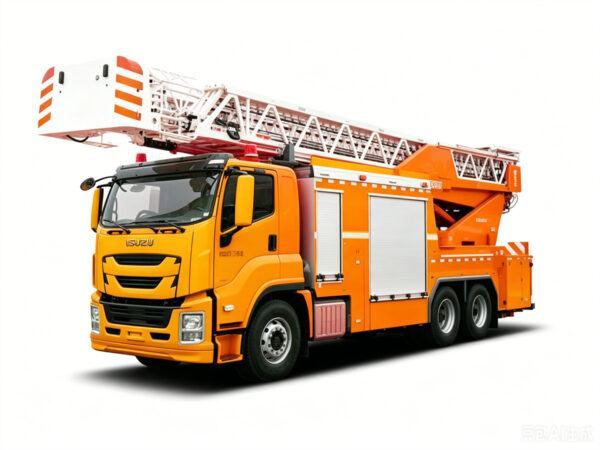

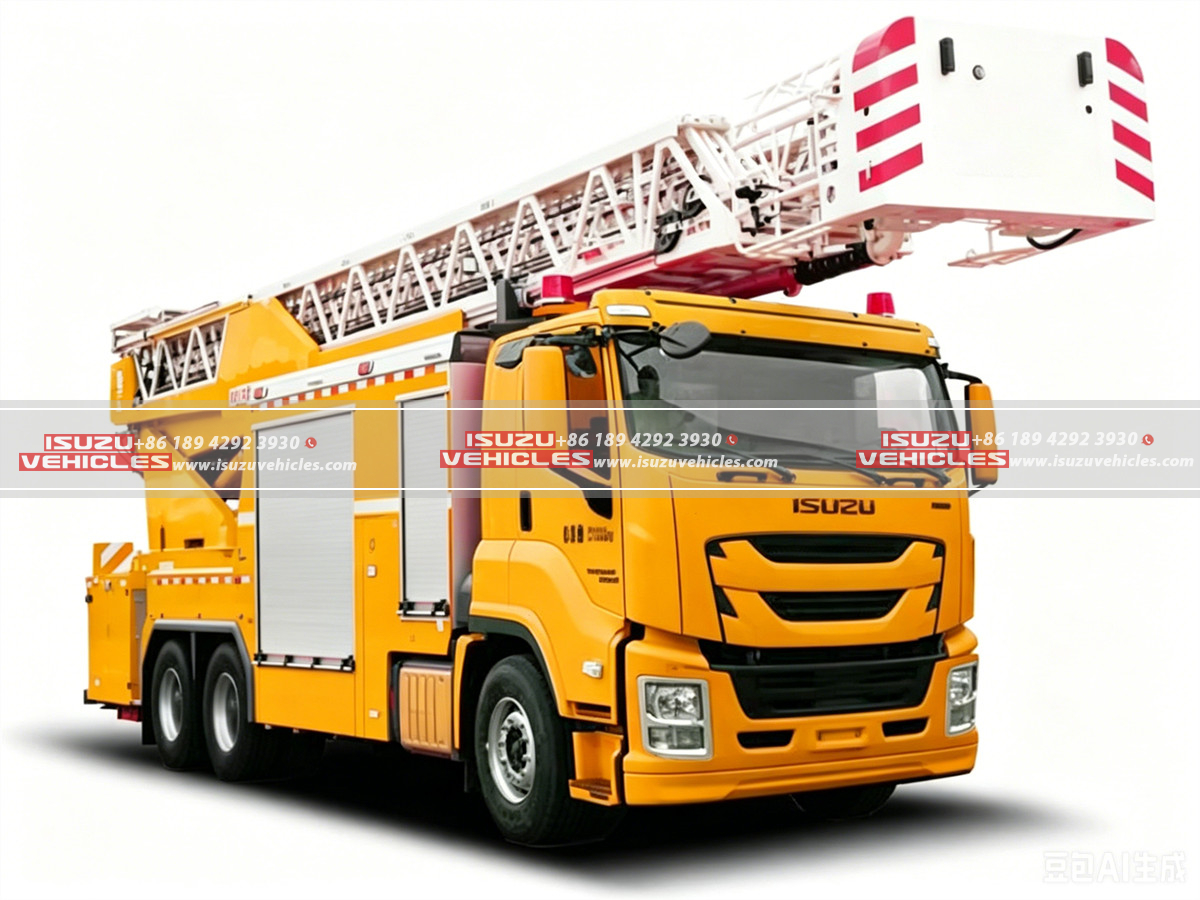

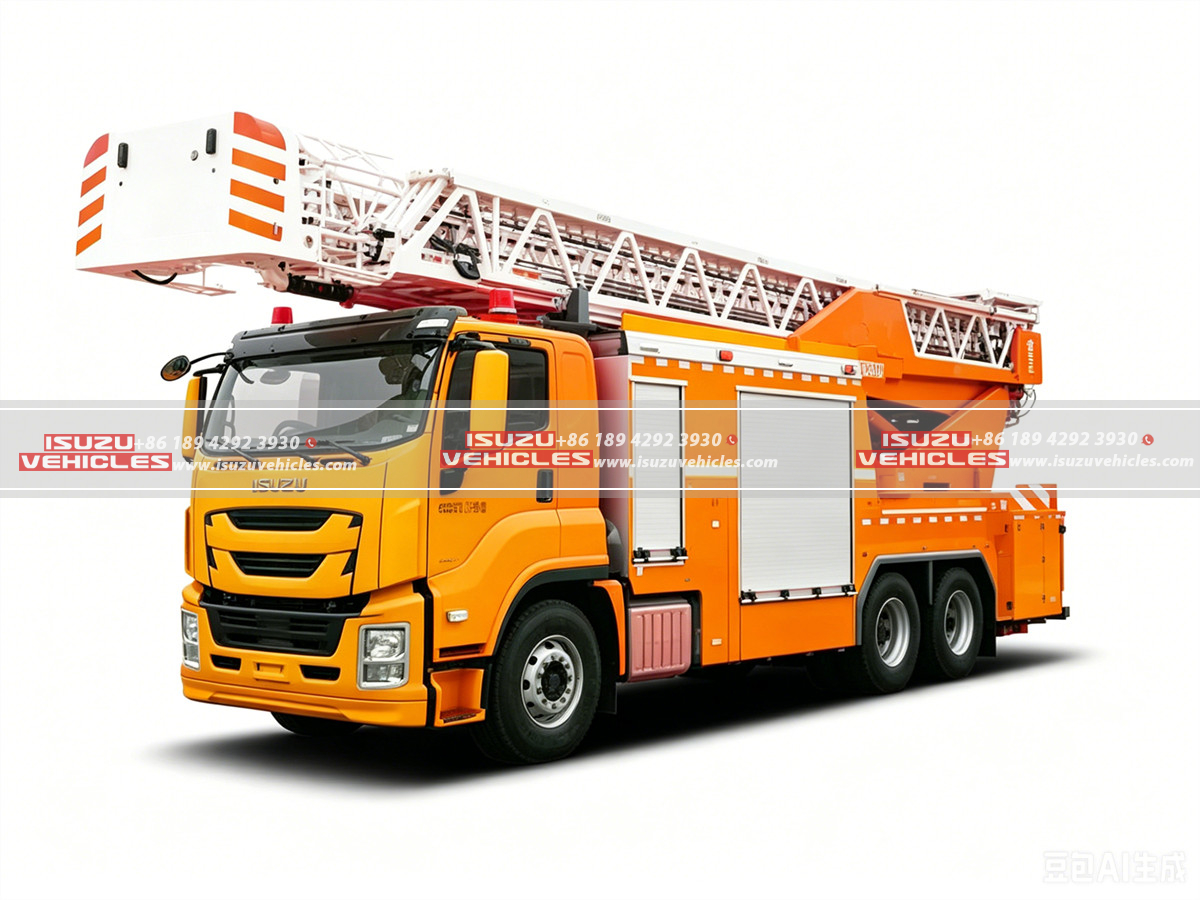

ISUZU 54M Aerial Fire Truck
The ISUZU 54M Aerial Fire Truck is a high-performance multifunctional firefighting and rescue vehicle engineered for modern urban emergency response operations, combining powerful aerial rescue capabilities, advanced hydraulic ladder technology, intelligent electronic control systems, and large-capacity water delivery performance into a highly reliable platform capable of handling high-rise firefighting, emergency evacuation, industrial rescue operations, and complex disaster response missions under demanding working environments.
Built on the heavy-duty ISUZU QL5350THBWISDZY 6×4 chassis, this aerial ladder fire truck integrates German-imported firefighting systems, intelligent CAN bus controls, advanced electro-hydraulic technology, and a six-section telescopic ladder structure that provides exceptional operational stability, safety, and rescue efficiency for municipal fire departments, airport emergency services, petrochemical facilities, industrial fire brigades, and urban disaster management agencies.
Heavy-Duty ISUZU Chassis with Powerful Firefighting Performance
The ISUZU 54M Aerial Fire Truck adopts the robust ISUZU QL5350THBWISDZY 6×4 chassis, which is specifically designed for heavy emergency rescue equipment and high-load firefighting applications, delivering outstanding road stability, high carrying capacity, and excellent maneuverability during emergency response operations in both urban and industrial environments.
Powered by the reliable ISUZU 6WG-1TCG52 inline six-cylinder turbocharged diesel engine, the vehicle generates an impressive 308 kW of power at 1800 rpm together with 2060 N·m of torque, ensuring strong acceleration, stable climbing performance, and dependable operation even while transporting a fully equipped aerial ladder system and large-capacity firefighting equipment.
The vehicle achieves a maximum driving speed of 100 km/h, allowing rapid emergency deployment to fire scenes, rescue operations, and disaster locations where response time is critically important.
Comfortable and Practical Firefighter Cabin
The fire truck is equipped with a professional firefighter cabin featuring a practical seating arrangement for operational crews, while the ergonomic control layout, advanced monitoring systems, and integrated communication equipment help firefighters maintain operational efficiency during extended emergency missions.
The truck complies with Euro V emission standards, combining strong power output with environmentally responsible engine performance suitable for modern municipal emergency fleets.
High-Reach Aerial Rescue Capability
The truck features a maximum working height of 54 meters together with a maximum working outreach of 18 meters, enabling firefighters and rescue operators to safely access high-rise buildings, industrial structures, elevated platforms, and difficult rescue locations that are unreachable by conventional firefighting equipment.
Its advanced six-section telescopic ladder structure is manufactured from special high-strength shaped steel pipes, ensuring excellent rigidity, reduced structural vibration, and long-term durability under heavy operational conditions.
Intelligent Telescopic Ladder Mechanism
The ladder system adopts a sophisticated telescopic mechanism utilizing a winch system combined with imported high-flexibility steel wire ropes and pulley blocks, which enables smooth synchronous ladder extension and retraction while maintaining high operational stability during aerial rescue tasks.
The ladder supports 360-degree continuous rotation, allowing flexible positioning during firefighting and rescue operations without requiring frequent vehicle repositioning, which significantly improves emergency response efficiency in confined urban environments.
Intelligent Rescue Cage System
Advanced Electro-Hydraulic Rescue Platform
The rescue cage is designed with a fully automatic leveling system utilizing an electro-hydraulic intelligent independent leveling mechanism, ensuring stable and safe working conditions for firefighters operating at high elevations during rescue and firefighting tasks.
The rescue cage provides a rated capacity of:
- 300 kg at 18 m outreach
- 200 kg at 19 m outreach
- 100 kg at 20 m outreach
This flexible load capability allows safe transportation of firefighters, rescue victims, firefighting tools, and emergency equipment during elevated operations.
Practical Safety-Oriented Design
The rescue cage includes:
- Automatic flip-over inverted ladder deployment
- Automatic leveling functions
- Integrated working lights
- Safety rope systems
- High-brightness warning lights
- Self-protection water spray system
The platform area reaches 1.29 m², providing sufficient workspace for rescue personnel during firefighting and evacuation operations.
High-Performance Firefighting Waterway System
German-Imported Fire Pump and Monitor System
The ISUZU 54M Aerial Fire Truck is equipped with premium firefighting equipment imported from Germany, including the HALE CB10/100-RSD fire pump and Akron PLKD10/80B-5177 fire monitor, ensuring highly reliable water delivery performance under demanding firefighting conditions.
The fire pump delivers a maximum flow capacity of 5400 L/min, while the fire monitor achieves a maximum flow of 4800 L/min at 0.8 MPa, providing powerful long-distance firefighting capability for high-rise buildings, industrial facilities, warehouses, and petrochemical fire emergencies.
Long-Range Fire Suppression Capability
The fire monitor achieves a rated water spraying reach of up to 65 meters, allowing firefighters to combat fires from safe distances while maintaining effective suppression coverage for large-scale fire incidents.
The fire monitor supports:
- Horizontal rotation
- Adjustable pitch control
- Water curtain operation
This intelligent electric control system improves firefighting flexibility and enhances operational precision during complex rescue missions.
Advanced Hydraulic and Electronic Control Systems
Intelligent CAN Bus Control Technology
The vehicle adopts a modern CAN bus intelligent control system integrating:
- Electronic controllers
- LCD display screens
- Intelligent control programs
- Real-time operational monitoring
The system greatly improves operational precision, simplifies ladder operation procedures, and enhances emergency response safety.
Multi-Position Control Operation
The truck includes multiple operation stations:
- Turntable operating table with seats
- Rescue cage operating table
- Rear vehicle control panel
- High-brightness LCD display systems
These distributed operating systems allow firefighters to monitor and control the aerial ladder system efficiently from different working positions.
Comprehensive Safety Protection System
Multi-Level Operational Protection Functions
The ISUZU Aerial Fire Truck integrates a highly advanced safety protection system designed to maximize operational security for firefighters, rescue personnel, and surrounding civilians during emergency operations.
The protection system includes:
- Cage overload protection
- Cage anti-collision protection
- Cage tilt protection
- Ladder limiting protection
- Rotary buffer protection
- Rotary alignment control
- Outrigger interlock system
- Emergency manual operation system
When the rescue cage exceeds 10% overload, the system automatically alarms and stops dangerous operations, while excessive cage tilt automatically cuts off hazardous movements to prevent operational accidents.
Intelligent Outrigger Protection
The truck adopts H-type outriggers with a horizontal span of 5200 ± 50 mm, ensuring excellent operational stability during high-altitude rescue work.
The outriggers support:
- Automatic unfolding
- Electronic control operation
- Manual emergency operation
- Acousto-optic warning alarms
The interlock system prevents ladder movement before complete outrigger deployment, greatly improving operational safety during rescue missions.
Professional Hydraulic System
High-Efficiency Electro-Hydraulic Technology
The aerial ladder system utilizes an advanced load-sensitive hydraulic system equipped with imported variable pumps and proportional valves, ensuring smooth ladder movement, accurate positioning, and stable rescue operation performance under different working conditions.
The hydraulic system operates with a maximum system pressure of 23 MPa, providing powerful and responsive hydraulic performance for ladder extension, rescue cage operation, and outrigger deployment.
Emergency Backup Operation
To ensure uninterrupted rescue capability during emergency situations, the truck includes:
- Emergency power unit
- Manual emergency operation valves
- Gasoline-engine-driven backup system
- Automatic engine speed adjustment system
These systems guarantee continued ladder recovery and outrigger retraction even in the event of engine or hydraulic pump failure.
Lightweight High-Strength Fire Truck Body
Corrosion-Resistant Aluminum Alloy Structure
The vehicle body adopts a lightweight but highly durable structure manufactured using high-strength aluminum alloy profiles combined with hidden lap joint technology and high-strength structural adhesives, significantly improving corrosion resistance while reducing overall vehicle weight.
The body design provides:
- Excellent load-bearing capacity
- Strong anti-corrosion performance
- Reduced vibration and noise
- Long-term operational durability
Professional Firefighting Exterior Design
The exposed surfaces are coated with professional fire-red paint, while anti-corrosion aluminum alloy tread plates are installed on the upper surfaces of the truck body to improve operational safety and durability during firefighting activities.
The vehicle is additionally equipped with fixed climbing ladders on both sides of the body, improving accessibility for maintenance and operational tasks.
Comprehensive Firefighting Equipment Package
Fully Equipped Emergency Rescue Accessories
The ISUZU 54M Aerial Ladder Truck is supplied with a complete range of professional firefighting and rescue equipment, including:
- Fire hoses
- Water filters
- Fire hydrant wrenches
- Underground hydrant tools
- Safety harnesses
- Outrigger pads
- Fire extinguishers
- Foam suction pipes
- Quick connectors
- Water pipe tools
This comprehensive equipment configuration ensures the vehicle is fully prepared for high-rise firefighting, emergency rescue operations, industrial accident response, and urban disaster management applications requiring rapid deployment and reliable operational performance.
Specification
| Category | Specification Details |
|---|---|
| Brand | ISUZU |
| Outrigger Span (V×H) | 5200+50 mm |
| Max Working Height | 54 m |
| Max Working Outreach | 18 m |
| Cage Rated Capacity | 300 kg |
| Slide Cage Rated Capacity | 180 kg |
| Boom Operating Time | 120 s |
| Slide Cage Speed | 20.8 m/s |
| Outrigger Leveling Time | 530 s |
| Max Allowable Wind Speed | 12.5 m/s (Level 6) |
| Full Load Weight | 32000 kg |
| Cab Seating | 2 seats |
| Emission Standard | National / Euro V |
| Max Water Pump Flow | 5400 L/min |
| Vehicle Pump Flow | 3000 L/[email protected] MPa |
| Max Fire Monitor Flow | 4800 L/[email protected] MPa |
| Vehicle Monitor Flow | 3000 L/[email protected] MPa |
| Water Tank Volume | 2000 L |
| Max Spraying Reach | 65 m |
| Monitor Rotation Angle | -45° ~ +45° |
| Monitor Pitch Angle | -45° ~ +90° |
| Chassis Model | ISUZU QL5350THBWISDZY 6×4 |
| Engine Model | 6WG-1TCG52, Inline 6-cylinder Turbocharged Diesel |
| Engine Power | 308 kW @ 1800 r/min |
| Engine Torque | 2060 N·m @ 830-1400 r/min |
| Max Driving Speed | 100 km/h |
| Wheelbase | 4800 mm + 1370 mm |
| Gearbox Type | Manual |
| Generator | 17 kW / 28 V |
| Battery | 2×12V / 120Ah |
| Fuel Tank Capacity | 2300 L |
| Brake System | Dual-circuit service brake, Spring parking brake, Exhaust auxiliary brake, ABS equipped |
| Tire Specification | 385/65R22.5; 315/80R22.5 |
| Rescue Cage Load | 300kg@18m, 200kg@19m, 100kg@20m |
| Platform Area | 1.29 m² |
| Leveling System | Electro-hydraulic intelligent independent leveling |
| Self-protection Spray Flow | ≥285 L/min |
| Ladder Structure | 6 sections, High-strength special shaped pipe |
| Turntable Rotation | 360° continuous rotation |
| Outrigger Type | H-type |
| Slide Cage Lifting Speed | 20.8 m/s |
| Cage Working Angle | 50° ~ 75° |
| Cage Brake Type | Mechanical friction brake |
| Fire Monitor Model | AKRON PLKD10/80B-5177 (Germany) |
| Water Pump Model | HALE CB10/100-RSD (Germany) |
| Tank Material | High-quality stainless steel |
| Telescopic Pipe Material | High-strength aluminum alloy |
| Water Suction Port | 2 × DN150 |
| Water Inlet | 2 × DN80 |
| Water Outlet | 4 × DN80, 1 × DN65 |
| Foam Suction Port | DN50 |
| Control System | CAN bus intelligent control system |
| Display Device | High-brightness LCD color screen |
| Intercom System | Non-handheld cable intercom |
| Connector Grade | IP67 waterproof imported connector |
| Charging Mode | 220V mains automatic disconnect charging |
| Auxiliary Driving | Reversing camera & alarm system |
| Safety Protection | Overload, tilt, collision, buffer, limit interlock protection |
| Emergency Device | Emergency manual valve & emergency power unit |
| Max Hydraulic System Pressure | 23 MPa |
| Hydraulic Oil Grade | Mobil DTE 20, Mobil DTE 10 Excel 32, Kunlun No.10 aviation hydraulic oil |
| Body Material | High-strength aluminum alloy profile |
| Body Paint | Fire red anti-corrosion coating |
| Standard Accessories | Fire hose, connector, wrench, filter, safety harness, outrigger pad, fire extinguisher, foam pipe etc. |
