ISUZU 16 CBM Waste Compactor Garbage Truck

ISUZU 16 CBM Waste Compactor Garbage Truck

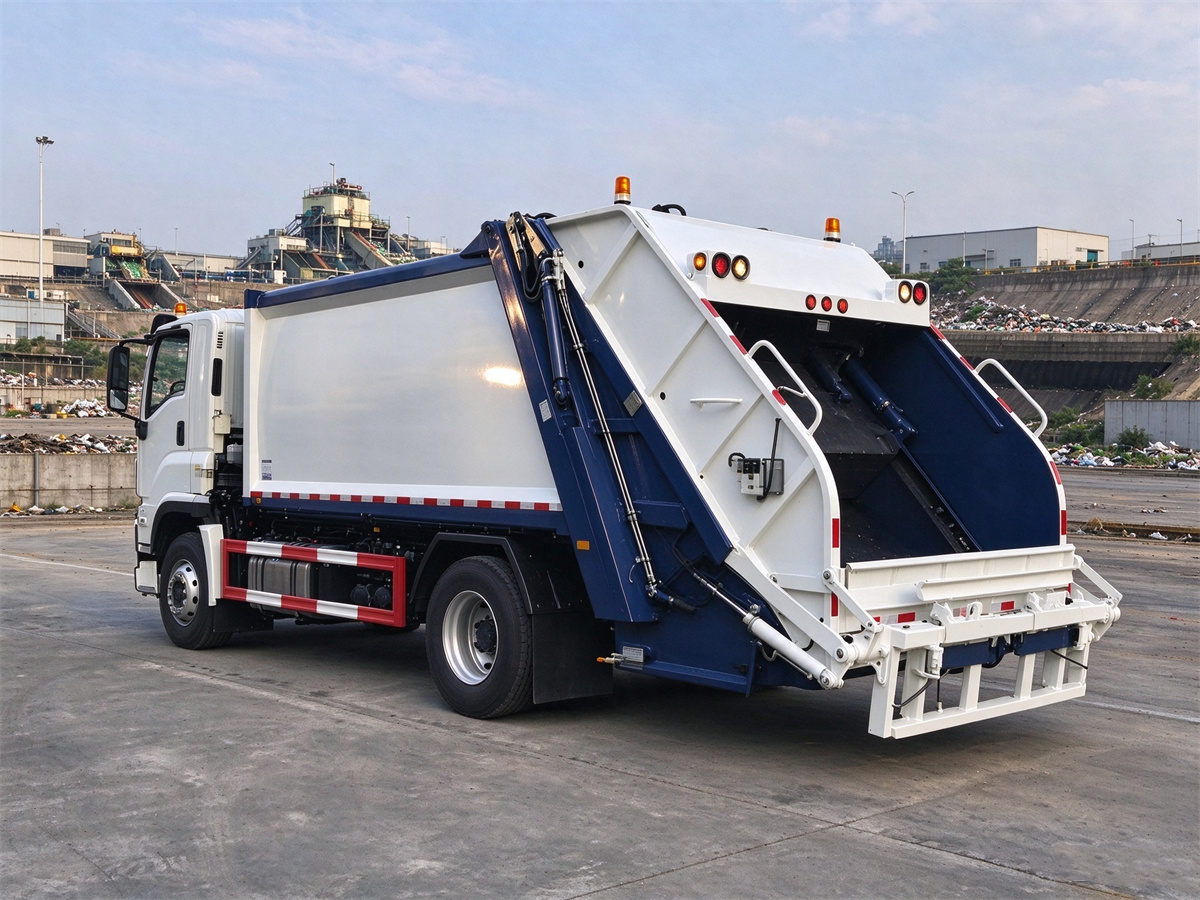

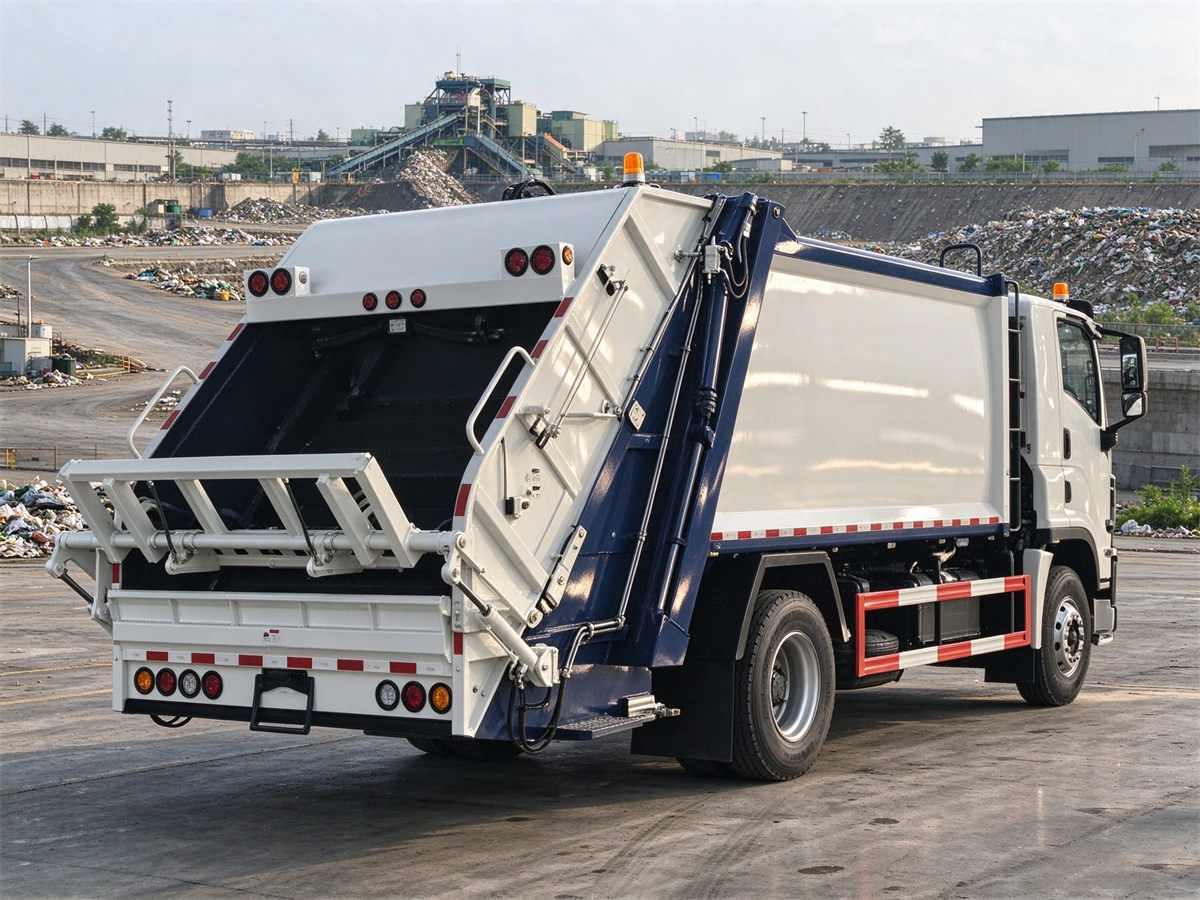

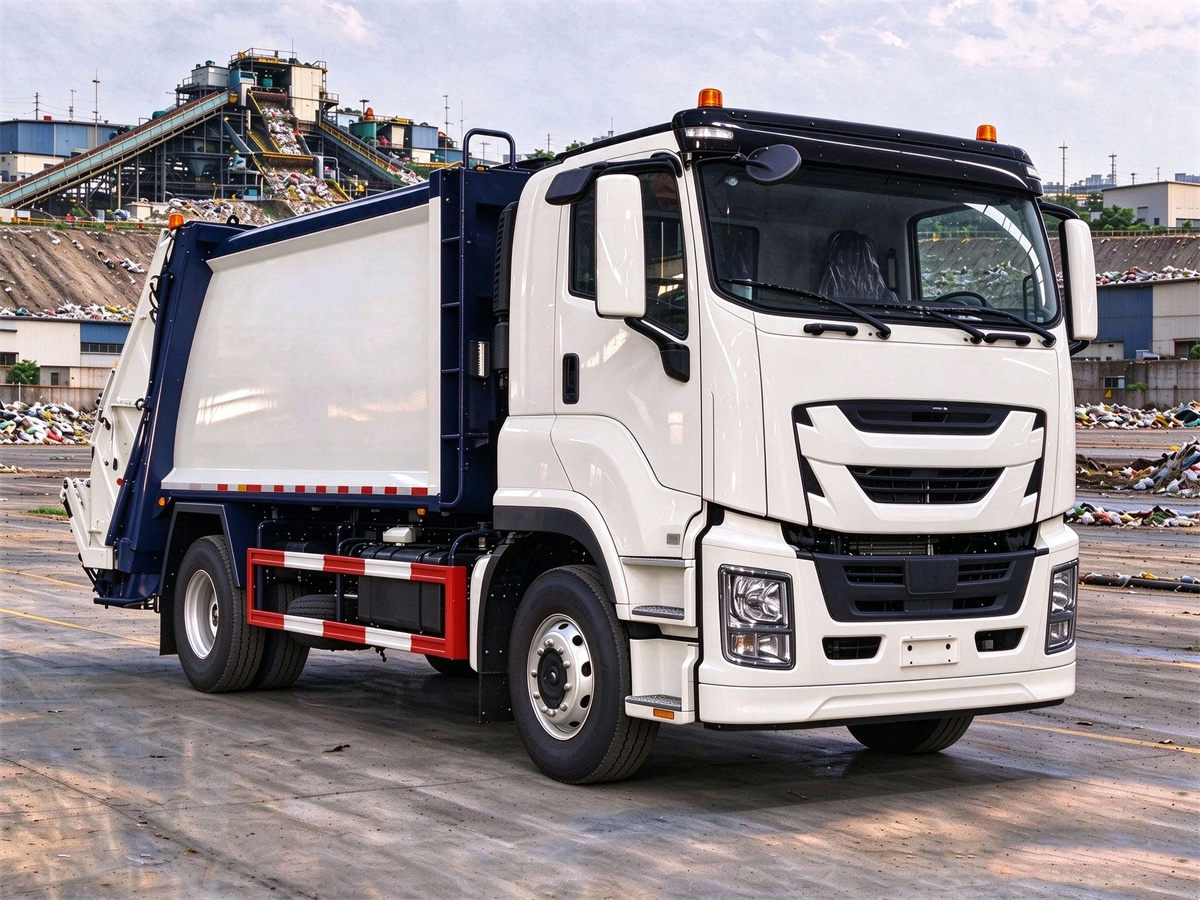

The ISUZU 16 CBM Waste Compactor Garbage Truck is a heavy-duty municipal sanitation vehicle designed for efficient household waste collection, commercial refuse transportation, and large-scale urban waste management. Built on an ISUZU GIGA 5X chassis and equipped with a 16-cubic-meter compactor body, this truck combines a durable refuse container, a powerful diesel engine, and an integrated hydraulic compression system to help sanitation departments and waste management contractors improve daily collection efficiency. With its 4×2 left-hand-drive configuration, practical cab design, and high-capacity loading body, the vehicle is suitable for municipal waste collection routes, residential communities, industrial parks, shopping districts, and other locations where reliable refuse handling is essential.

Power comes from the ISUZU 6HK1-TCG61 diesel engine, which produces 177 kW (240 hp) at 2,400 rpm and delivers a maximum torque of 760 N·m at 1,450 rpm. Featuring a 7,780 ml displacement, water cooling, four-stroke direct injection, and turbocharging, the engine provides the pulling power needed for frequent stops, repeated loading cycles, and transportation of compacted waste. The specified Euro 6 emission standard supports operation in markets requiring lower exhaust emissions, subject to local certification requirements. An eight-speed manual gearbox with one reverse gear allows the driver to select appropriate ratios for urban streets, collection routes, and transfers to waste treatment facilities, while hydraulic power-assisted steering helps make the vehicle easier to handle during routine operations.

The truck measures approximately 8,600 × 2,500 × 3,600 mm, with a 3,900 mm wheelbase and a gross vehicle weight of 18,000 kg. Its upper body is constructed from T420 steel, with 4 mm side panels and a 5 mm bottom plate, providing a robust structure for demanding waste collection work. The 16 CBM compactor body incorporates a hydraulic system rated at 16 MPa, supporting the coordinated movement of the flap, lifting mechanism, scraper, skateboard, and push plate. With a specified filling time of 8–10 seconds, a filling cycle of 50–60 seconds, and a dumping time of 30–40 seconds, the vehicle is designed to maintain a consistent working rhythm during repeated collection and unloading operations.

For convenient daily operation, the truck combines manual and electrical controls, allowing operators to manage the principal compaction functions through the installed control system. A 200-liter dirty-water collection tank helps capture wastewater generated during refuse handling, while a 500-liter filler volume is specified for the filling system. The discharge mechanism supports both flat-pushing and dumping operations, providing practical flexibility for waste unloading. Organizations comparing municipal refuse vehicles can also explore our garbage collection trucks, which cover different chassis configurations and waste-handling capacities for a wide range of sanitation requirements.

Features

1. Powerful ISUZU GIGA 5X Chassis

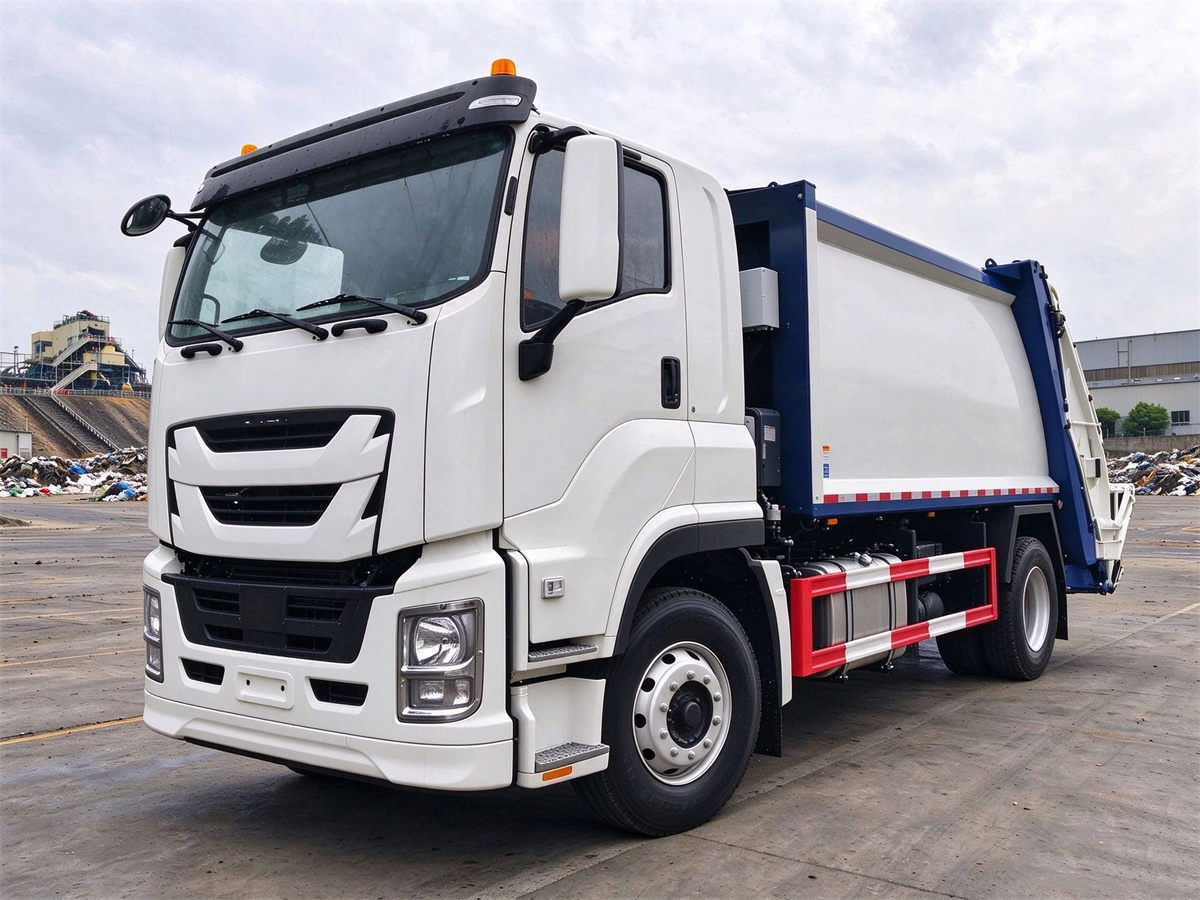

The ISUZU GIGA 5X chassis provides the foundation for this 16 CBM waste compactor, combining a robust commercial vehicle platform with a cab designed for practical daily use. The cab features one-and-a-half-row seating and a radio with a USB connector, giving the driver and crew a functional working environment. The vehicle has a specified maximum speed of 99 km/h, a 3,900 mm wheelbase, and a 4×2 left-hand-drive configuration, making it suitable for municipal collection routes and inter-site transportation. A single-plate dry diaphragm spring clutch, hydraulic power-assisted steering, and eight-speed manual gearbox contribute to practical vehicle control under varying road and operating conditions.

2. High-Capacity 16 CBM Compactor Body

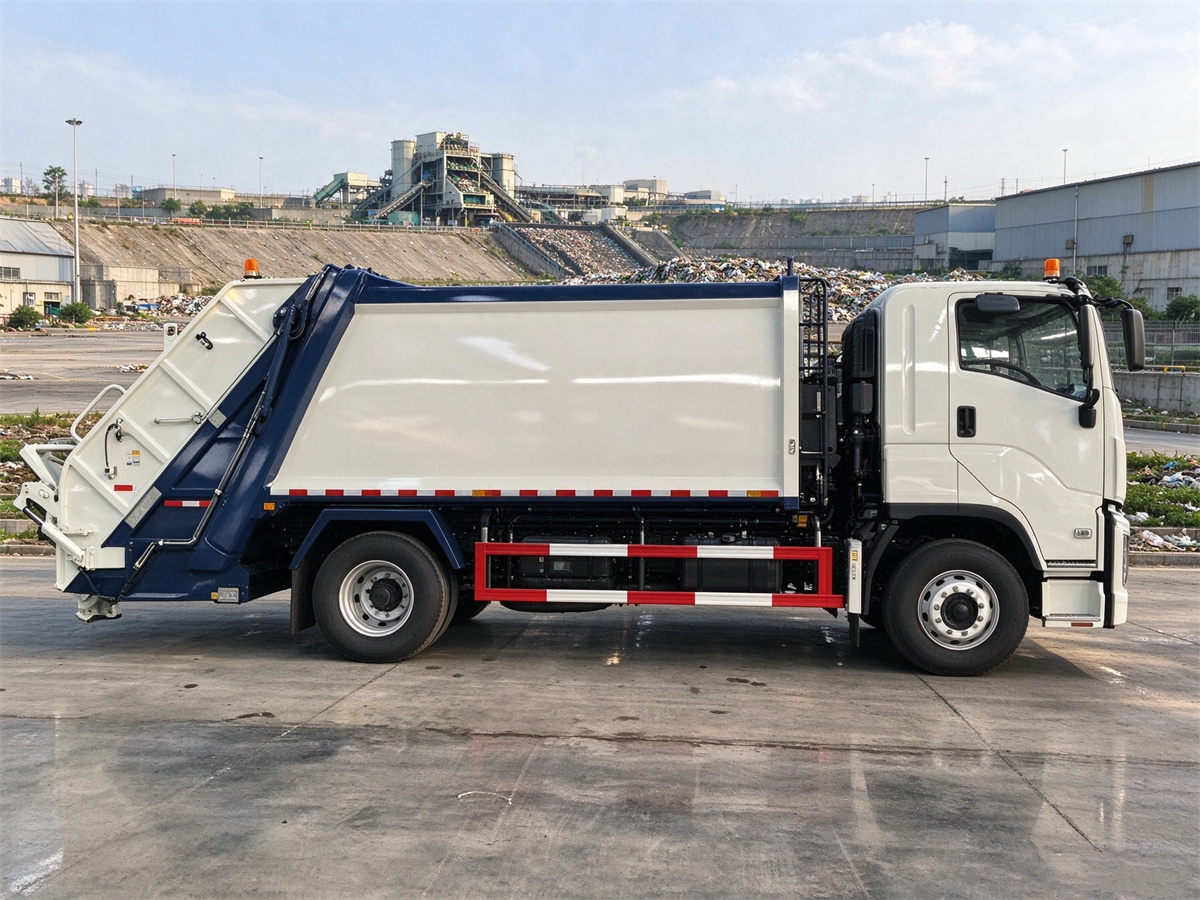

The 16-cubic-meter refuse container is designed for sanitation operations that require substantial loading capacity and efficient waste transportation. Manufactured from T420 steel, the body uses 4 mm side panels and a 5 mm bottom plate to provide structural strength for repeated loading, compression, and discharge cycles. Its large capacity makes the truck suitable for collecting refuse from residential neighborhoods, commercial centers, public facilities, industrial compounds, and municipal collection points. By compressing waste before transportation, the vehicle can make better use of the available container volume and potentially reduce the number of trips required to deliver refuse to disposal or treatment facilities.

3. Integrated Hydraulic Compression Mechanism

The hydraulic system coordinates several cylinders to control the major working components throughout the waste collection process. The specified configuration includes two flap cylinders, two lifting cylinders, two scraper cylinders, two skateboard cylinders, and one push plate cylinder. A 532-model hydraulic pump supplies hydraulic power, while a DL-15B-6 multi-way valve manages fluid distribution to the working mechanisms. With a rated hydraulic pressure of 16 MPa, the system is designed to support the repeated movements required for waste loading, compression, and discharge. Proper hydraulic maintenance, including inspection of hoses, seals, cylinders, and oil condition, helps maintain reliable performance during long-term operation.

4. Efficient Filling and Discharge Performance

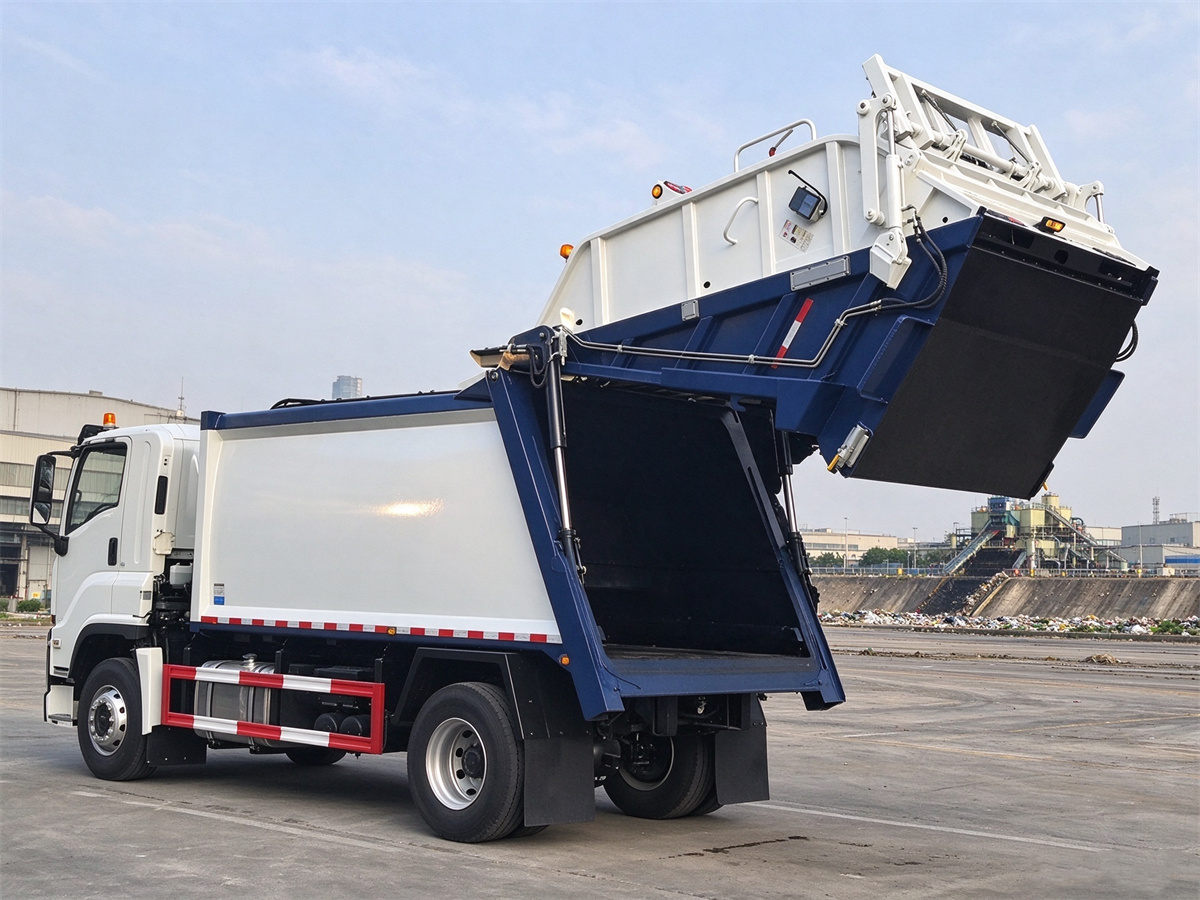

The compactor is designed to support continuous refuse collection through a specified filling time of 8–10 seconds and a filling cycle time of approximately 50–60 seconds per cycle. These figures provide useful reference points when planning collection routes and evaluating operating productivity, although actual performance depends on waste composition, loading conditions, operator procedures, and site requirements. For unloading, the vehicle uses a flat-pushing and dumping arrangement, with a specified dumping time of 30–40 seconds. This configuration helps streamline refuse transfer at disposal sites and waste treatment facilities, reducing the time spent on routine unloading when site conditions are suitable.

5. Practical Wastewater Collection and Control

Wastewater management is an important consideration in refuse transportation, particularly when collecting wet household waste and mixed commercial refuse. This truck is specified with a 200-liter dirty-water collection tank to help capture liquid generated during waste handling, supporting cleaner operation around the loading and transportation process. The 500-liter filler volume is also included in the upper-body specifications. The truck uses electromagnetic valves rated at UZCT-115/24V, with two units specified, and combines manual and electrical control methods to facilitate operation of the compaction equipment. Regular inspection and cleaning of the wastewater tank, drainage components, and sealing points are recommended to help prevent leakage and maintain hygienic working conditions.

6. Reliable Engine and Braking Configuration

The 6HK1-TCG61 engine delivers 240 hp and 760 N·m of maximum torque, providing the power required for a loaded refuse truck operating under frequent stop-and-go conditions. Its turbocharged, water-cooled diesel configuration is designed for dependable commercial service, while the specified Euro 6 emission standard addresses the needs of markets with stringent emission requirements. The vehicle uses a compressed-air service braking system, a spring-energy parking brake, and an engine exhaust brake as an auxiliary braking system. Together, these systems provide the principal braking functions required for routine road operation, with vehicle performance depending on correct maintenance, load distribution, and compliance with local operating regulations.

7. Suitable for Municipal and Commercial Sanitation Fleets

With an 18,000 kg gross vehicle weight, a 16 CBM refuse body, and a dedicated hydraulic compaction system, the ISUZU 16 CBM Waste Compactor Garbage Truck is a practical option for organizations managing medium- to high-volume waste collection operations. Its combination of loading capacity, engine torque, and controlled discharge makes it suitable for municipal sanitation departments, waste collection contractors, industrial facilities, and commercial property operators. Buyers requiring complementary sanitation equipment can also review our road sweeping trucks for road-cleaning operations and vacuum suction trucks for liquid waste collection and sewer maintenance, allowing fleets to select equipment according to their specific municipal service requirements.

Specifications
