ISUZU 10 CBM Rear Loader Garbage Truck

ISUZU 10 CBM Rear Loader Garbage Truck

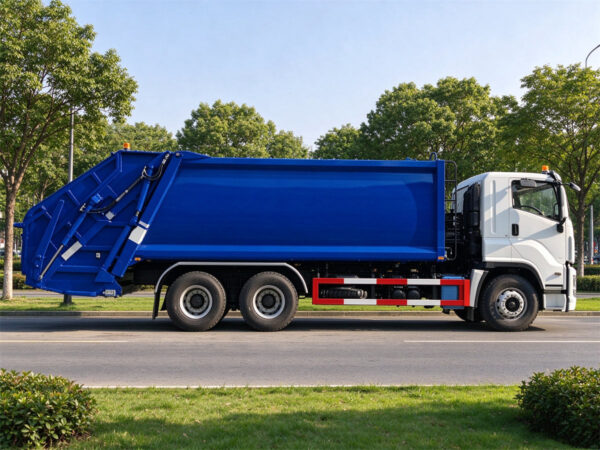

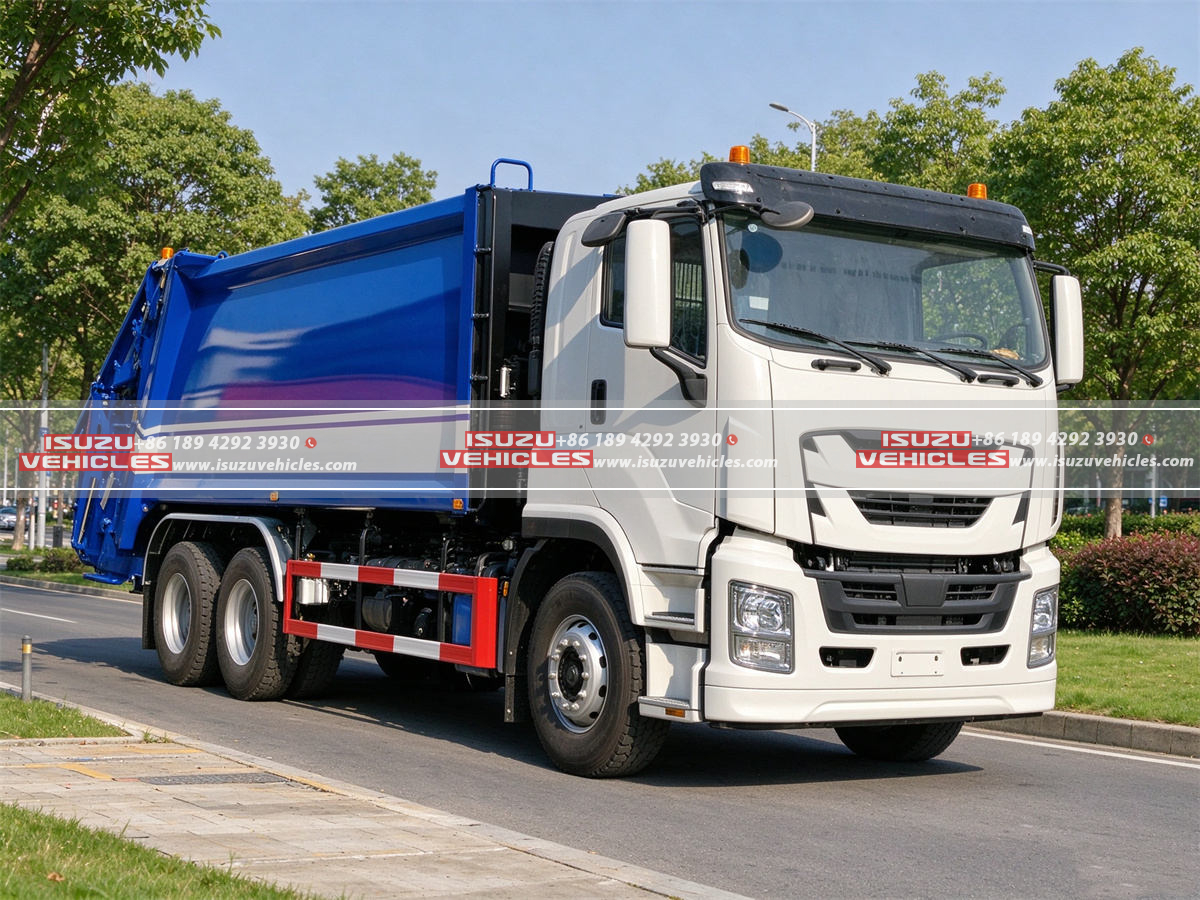

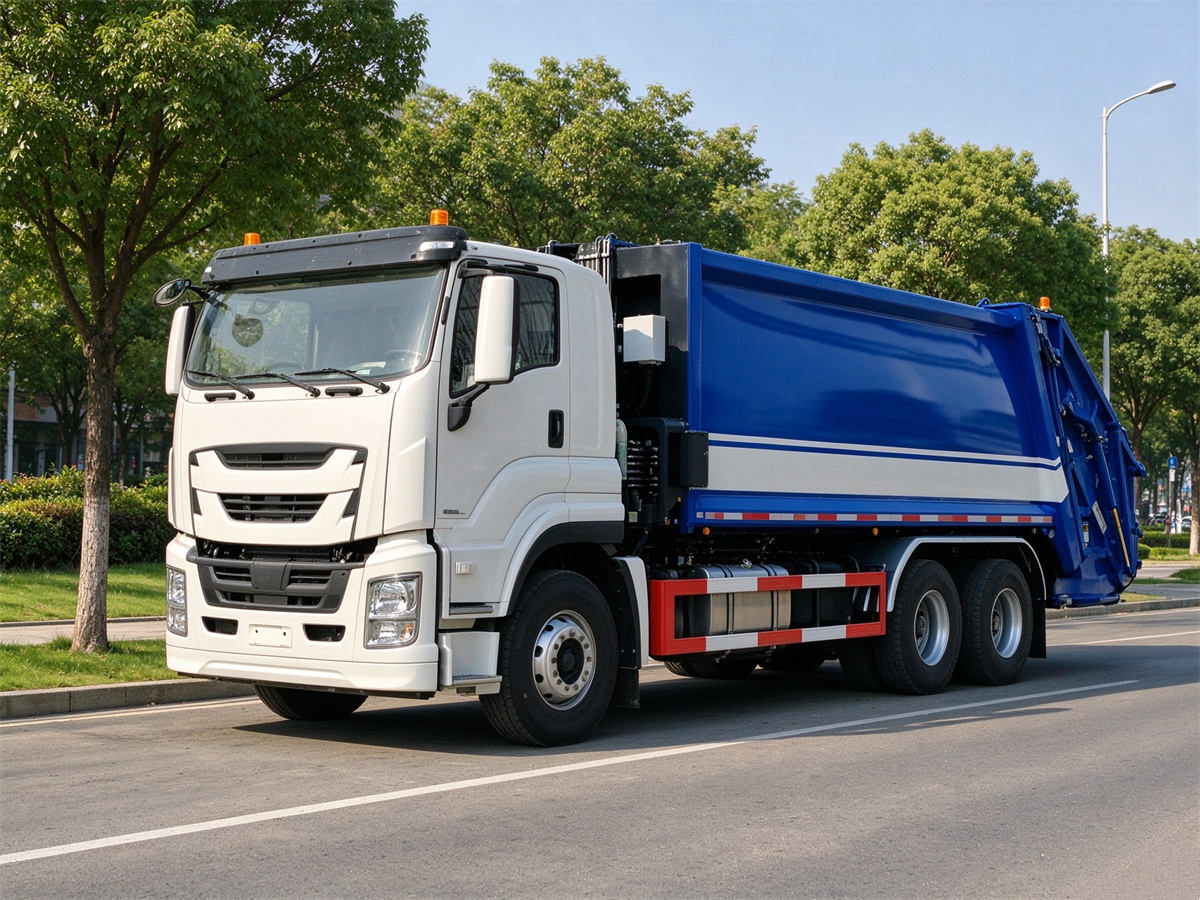

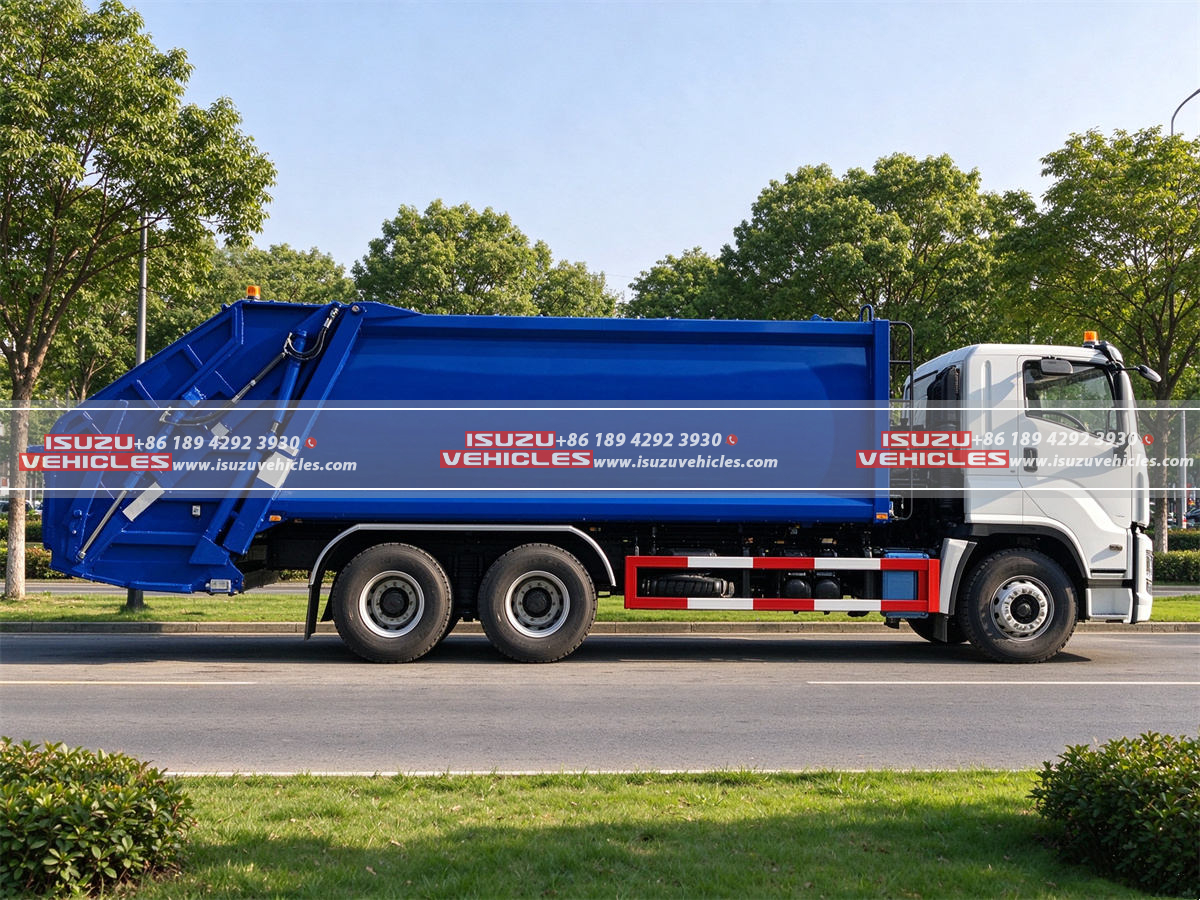

The ISUZU 10 CBM Rear Loader Garbage Truck is a heavy-duty sanitation vehicle designed for efficient municipal waste collection, garbage transfer, and urban environmental maintenance. Built on a robust ISUZU 6×4 left-hand-drive chassis, this truck combines a powerful diesel engine, a durable refuse compaction system, and a practical rear-loading structure to support demanding waste management operations in cities, residential communities, commercial districts, industrial parks, and public facilities. With overall dimensions of 10610 × 2550 × 3450 mm and a gross vehicle weight of 35,000 kg, it provides a stable platform for frequent collection cycles and heavy daily workloads.

Powered by the ISUZU 6WG1-TCG60 six-cylinder inline diesel engine, which delivers 420 HP (309 kW) and a maximum torque of 2250 N·m, the truck offers the power needed to handle urban collection routes and transport compacted waste to disposal or transfer stations. The engine has a displacement of 15,681 ml and meets the specified Euro VI emission standard, while the FAST 12-speed manual transmission with two reverse gears provides a broad range of gear ratios for different road and operating conditions. Its 4800 + 1370 mm wheelbase, three-axle configuration, and 315/80R22.5 tires are designed to support heavy-duty road use and stable vehicle operation.

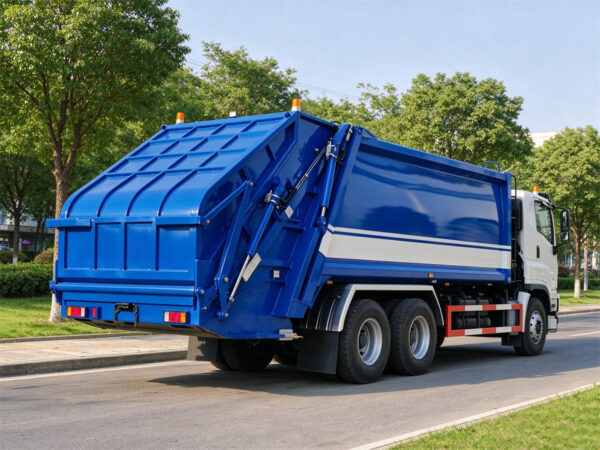

The rear-loading superstructure features a stated 20 m³ garbage body and a 2.4 m³ filling hopper, allowing the truck to collect substantial quantities of refuse during repeated loading cycles. Its electrically controlled hydraulic system supports the loading and compaction process, while a separate manual hydraulic control mode provides an additional operating option. A 200-liter sewage tank helps collect liquid generated during waste handling, and the horizontal ejection discharge system assists in unloading collected garbage at designated disposal facilities. For buyers comparing different sanitation configurations, explore our municipal waste collection trucks, vacuum waste removal vehicles, and road sweeping and cleaning trucks to find equipment suited to their operational requirements.

Features

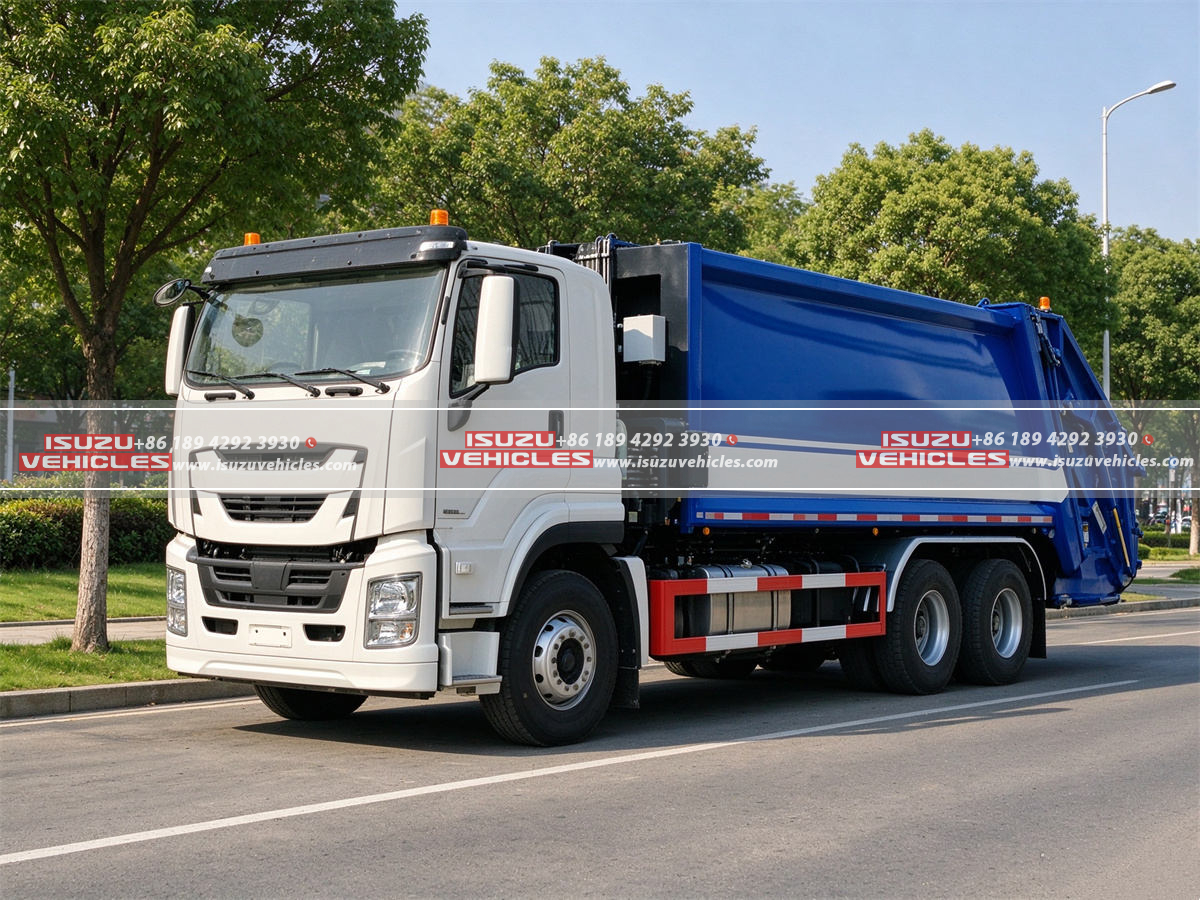

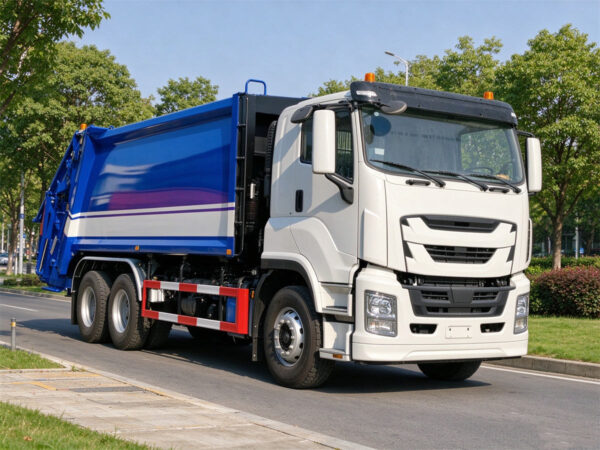

1. Heavy-Duty ISUZU 6×4 Chassis

The ISUZU chassis is configured with a 6×4 left-hand-drive layout and three axles, providing a heavy-duty foundation for the refuse collection body and hydraulic compaction equipment. With a gross vehicle weight of 35,000 kg and a listed kerb weight of 10,500 kg, the vehicle is designed for demanding sanitation applications where durability and dependable operation are important. The three-person cab includes a heating and cooling air-conditioning system, helping the driver and crew work more comfortably across different seasons and climates.

2. Powerful 420 HP Diesel Engine

The ISUZU 6WG1-TCG60 engine produces 420 HP and 309 kW, with maximum torque rated at 2250 N·m between 900 and 1300 rpm. Its six-cylinder inline, four-stroke diesel configuration is suited to heavy-duty transport and repeated stop-and-start collection work. The FAST 12-speed manual transmission, equipped with two reverse gears, gives the driver flexibility when maneuvering through collection areas and positioning the truck at loading or unloading points. The specified maximum speed is 95 km/h, although actual operating speed should always be adjusted to road conditions, vehicle load, and local regulations.

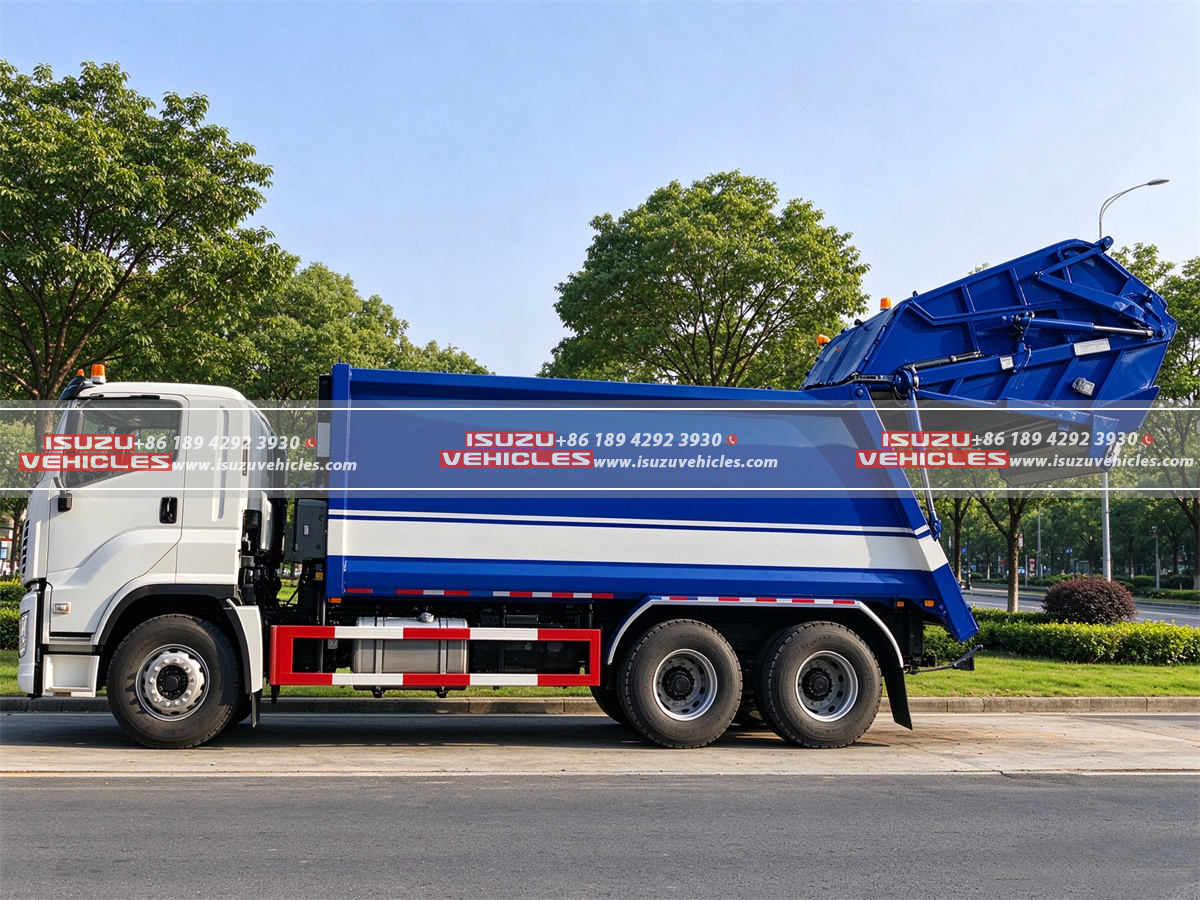

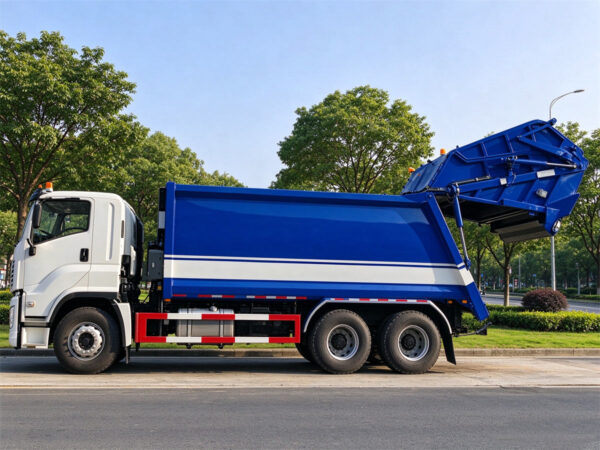

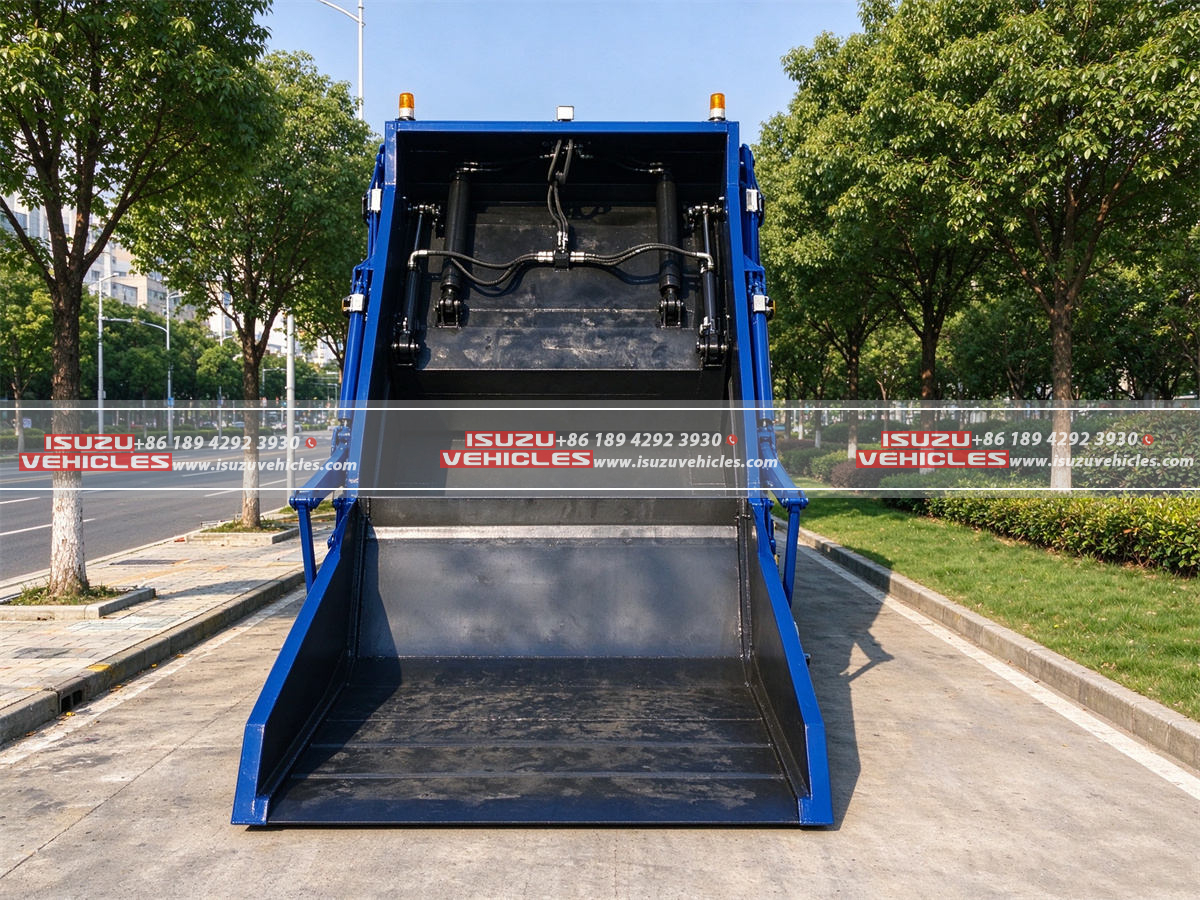

3. Large-Capacity Garbage Body and Loading Hopper

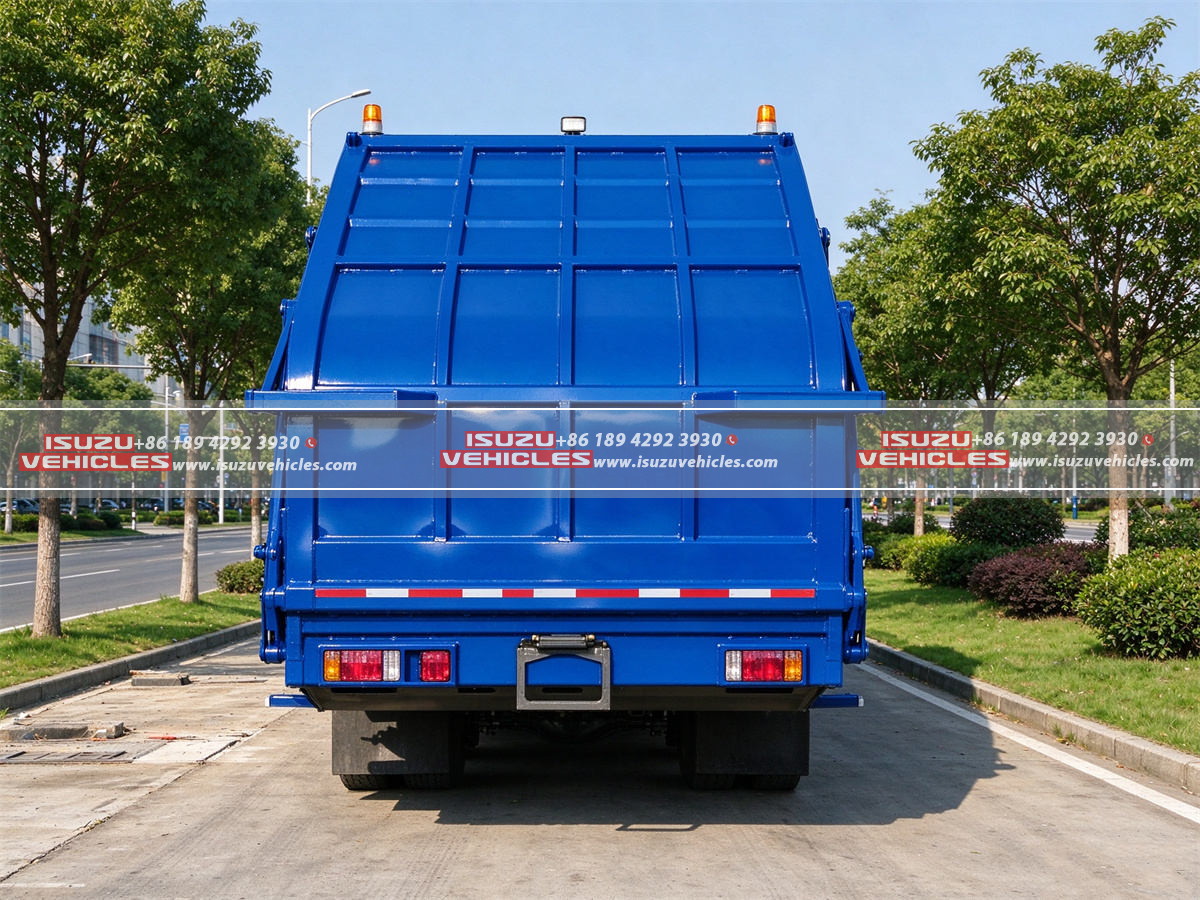

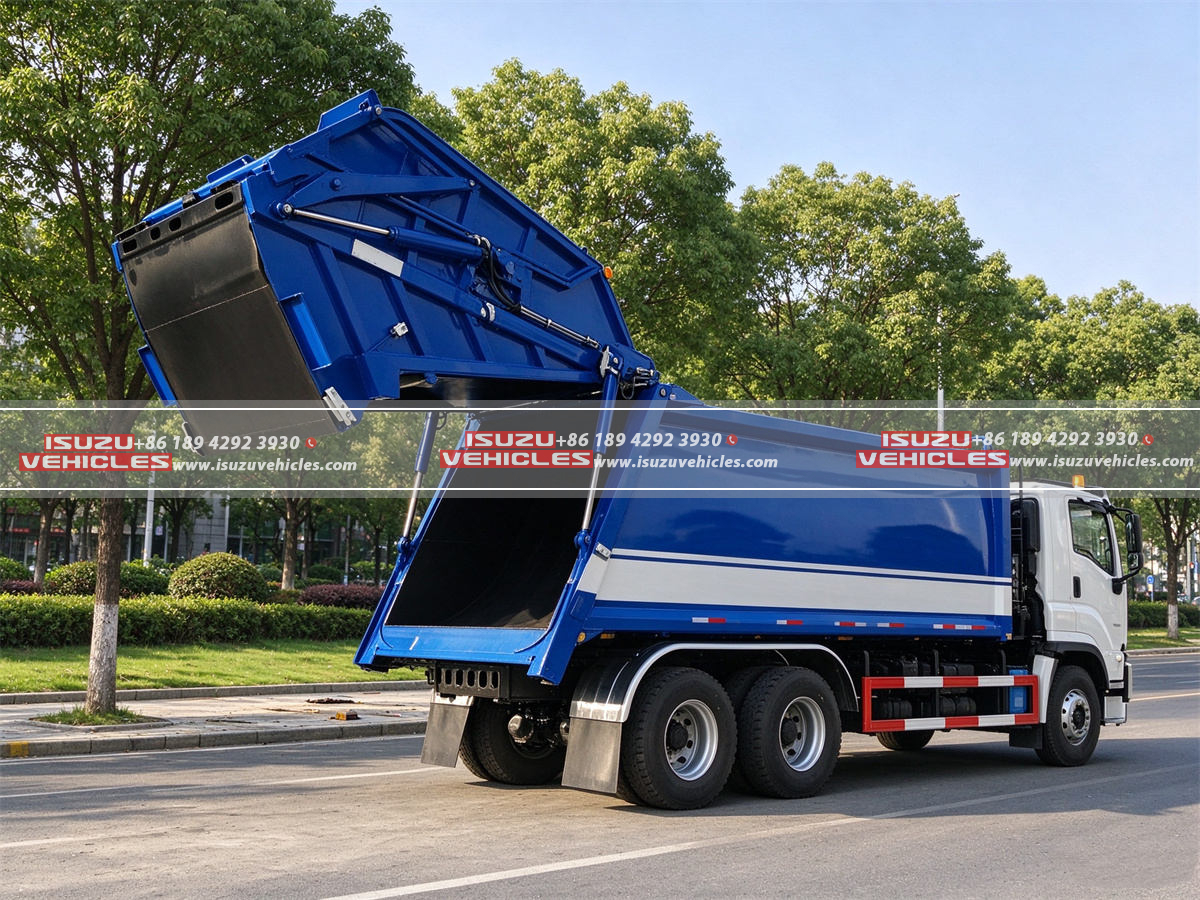

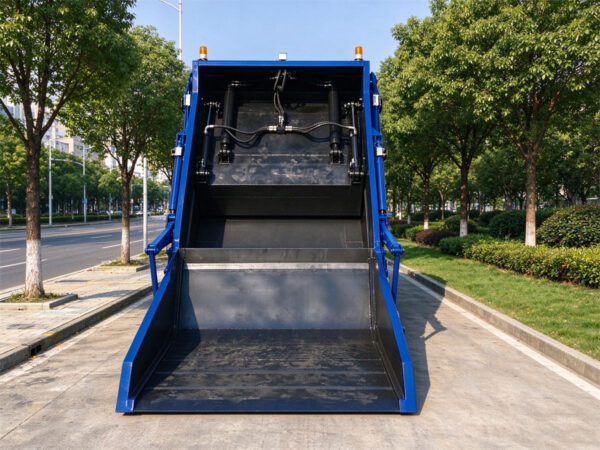

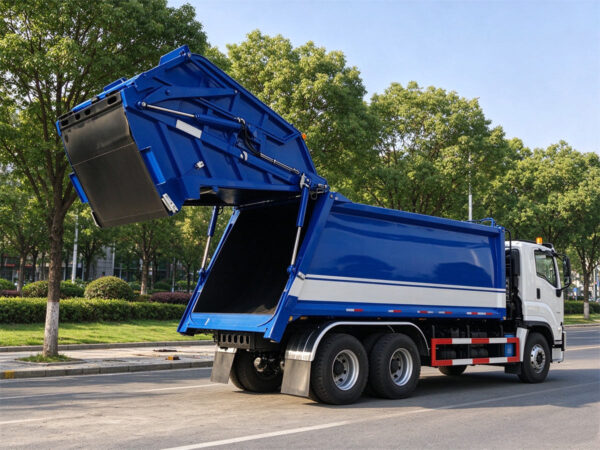

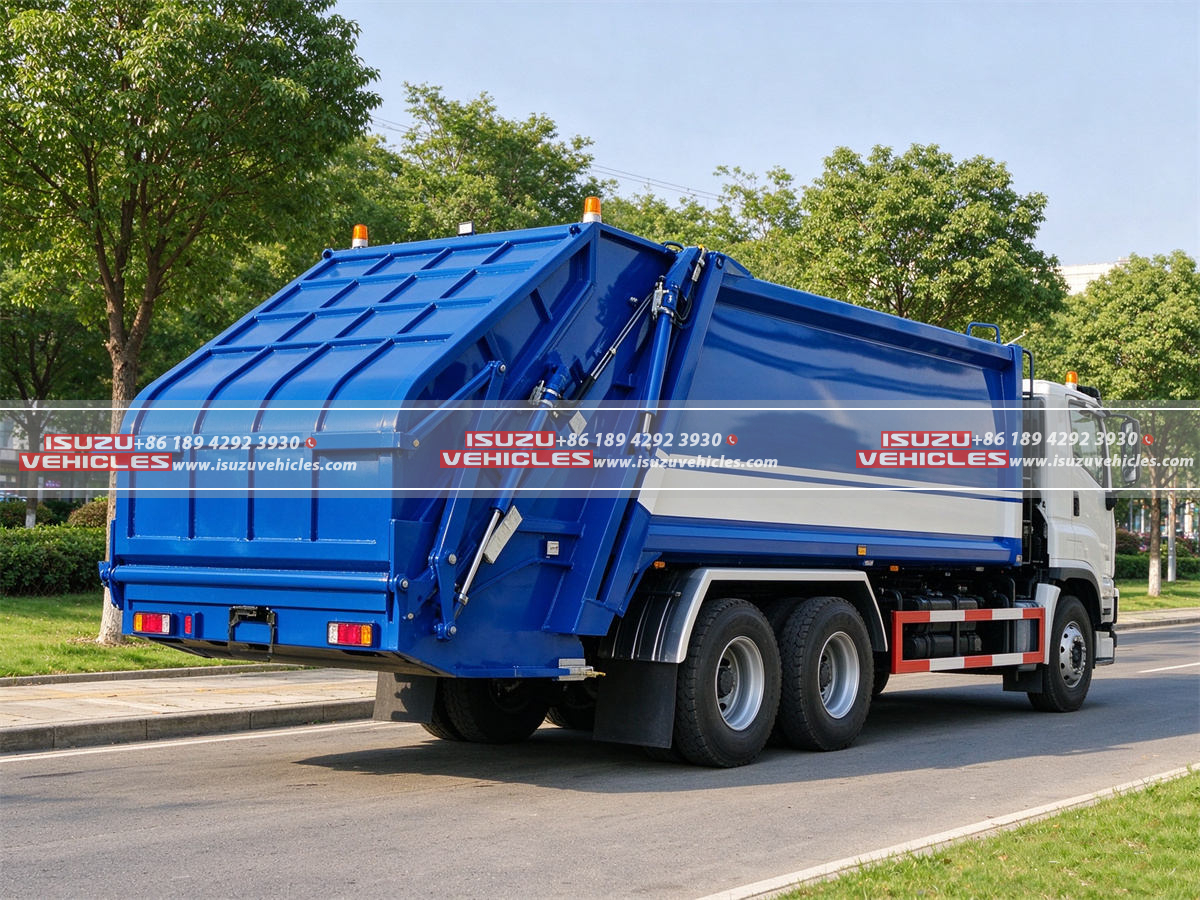

The superstructure is listed with a 20 m³ garbage body capacity and a 2.4 m³ loading hopper, providing space for collecting waste from residential neighborhoods, shopping areas, office complexes, and municipal service locations. The rear-loading arrangement allows refuse to be gathered at the back of the vehicle, where the hydraulic mechanism supports the loading and compaction process before the waste is transported to a transfer station or disposal site. The body is finished with metallic paint, providing a professional appearance suitable for municipal fleets and commercial sanitation contractors.

4. Hydraulic Compaction and Horizontal Ejection

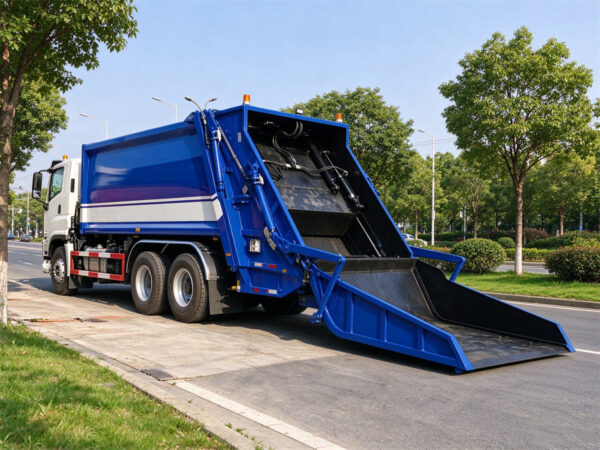

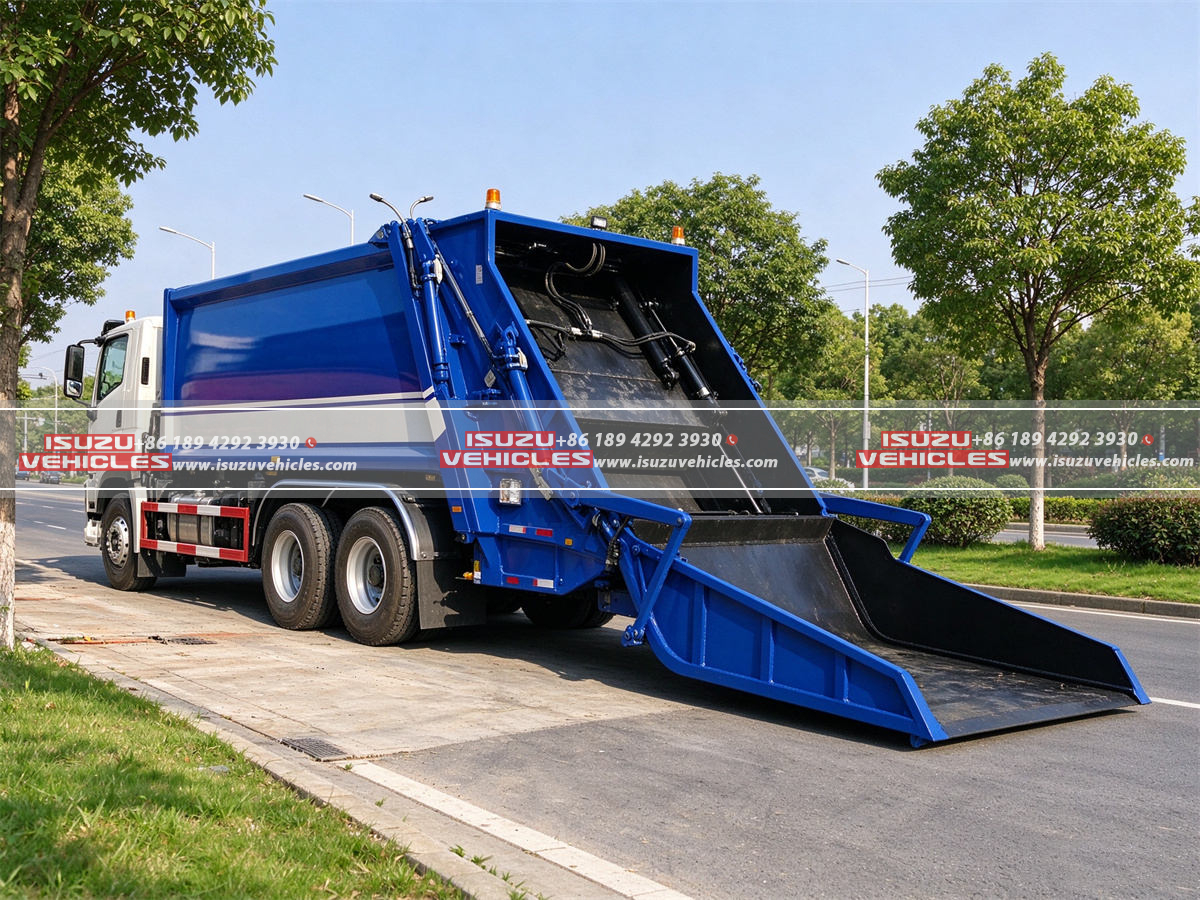

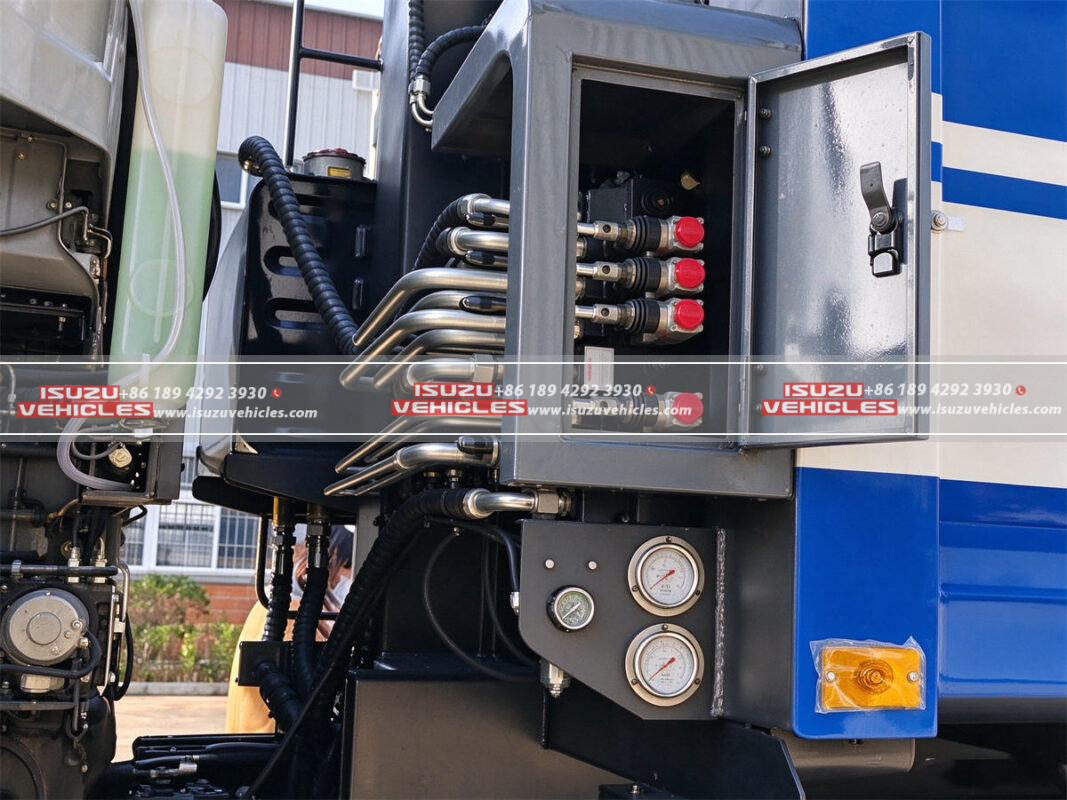

The electrically controlled hydraulic system coordinates the truck’s loading and compaction functions, helping reduce the volume of collected waste and make productive use of the available body space. Manual hydraulic control is also specified, giving operators an alternative control method according to the vehicle configuration. When the truck reaches the designated unloading point, the horizontal ejection discharge system pushes the collected waste out of the body, supporting a practical unloading process. The stated filling work cycle time is approximately 20–25 seconds; actual cycle performance may vary depending on the waste material, loading conditions, and operating procedure.

5. Sewage Collection and Operator Controls

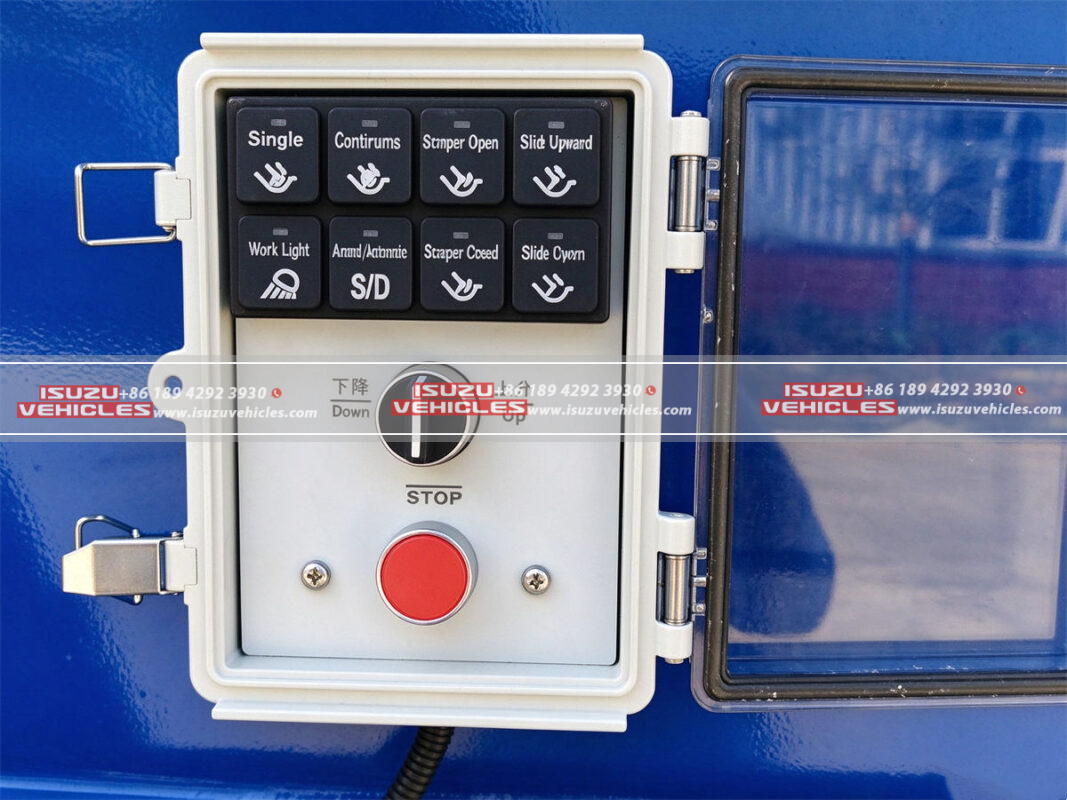

A 200-liter sewage tank is provided to collect liquid associated with garbage handling, helping reduce leakage during collection and transportation when the system is operated and maintained correctly. The control panel can be supplied in English or another requested language, making the truck adaptable for international customers and local sanitation teams. Clear control labeling and appropriate operator training are important for ensuring that the loading, compaction, and discharge functions are used safely and consistently throughout daily operations.

6. Practical Standard Accessories

The truck can be equipped with a range of standard accessories intended to support daily sanitation work, including a garbage bin lifter, access ladder, warning lights, emergency stop button, handrail, fire extinguisher, basic tool kit, and English-language operation manual. These items help operators carry out routine collection tasks, access relevant service areas, and respond appropriately to operating situations. The final accessory configuration and control-panel language can be confirmed when placing an order to suit the customer’s fleet requirements and local operating standards.

7. Applications in Municipal and Commercial Sanitation

With its heavy-duty chassis, high-output diesel engine, rear-loading compaction equipment, and horizontal ejection system, the ISUZU rear loader is suitable for municipal waste collection services, residential garbage removal, commercial refuse collection, and sanitation operations serving industrial facilities and public institutions. It can be incorporated into scheduled collection routes where reliable loading performance and efficient waste transportation are essential. Before production, buyers should confirm the required garbage body volume, as the supplied product name specifies 10 CBM while the superstructure data lists a 20 m³ capacity, along with the final chassis configuration, emissions requirements, control language, and accessory package.
