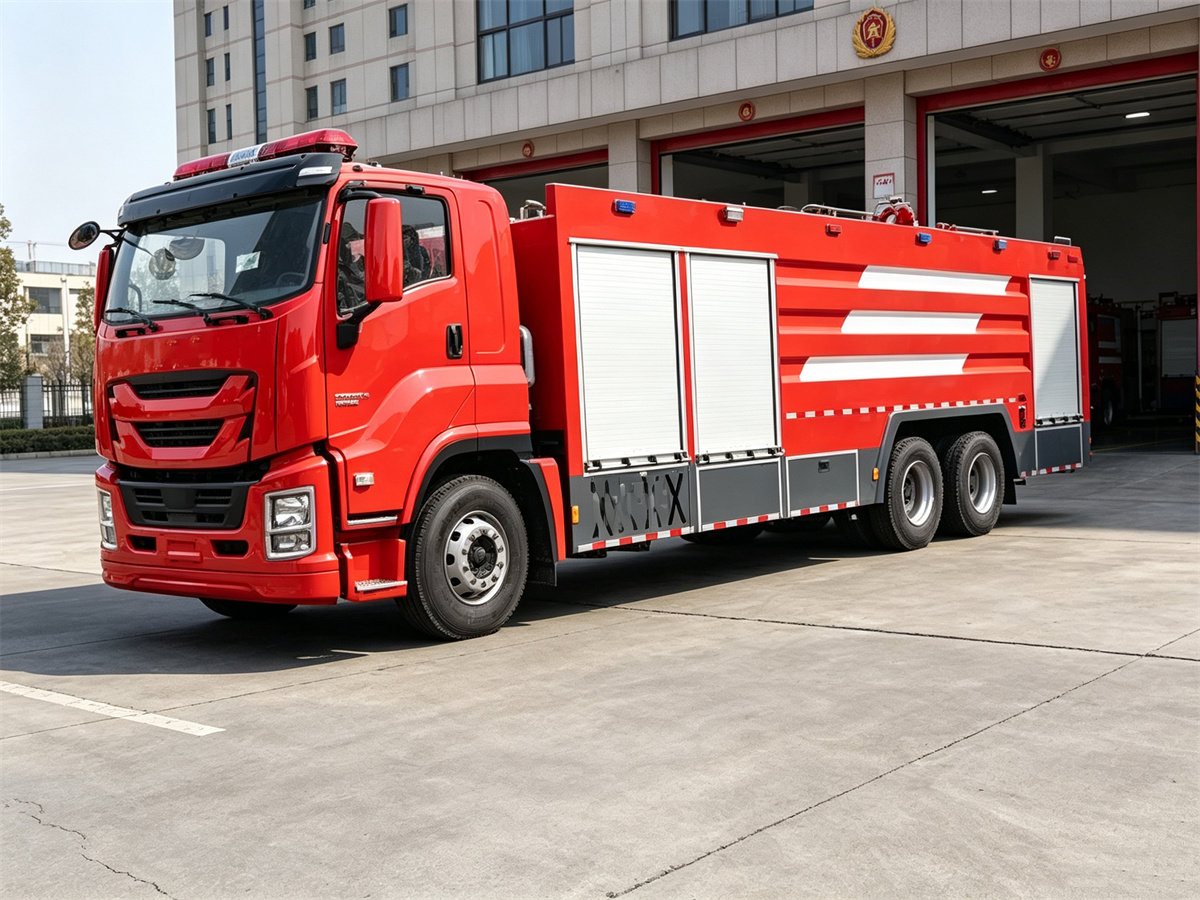

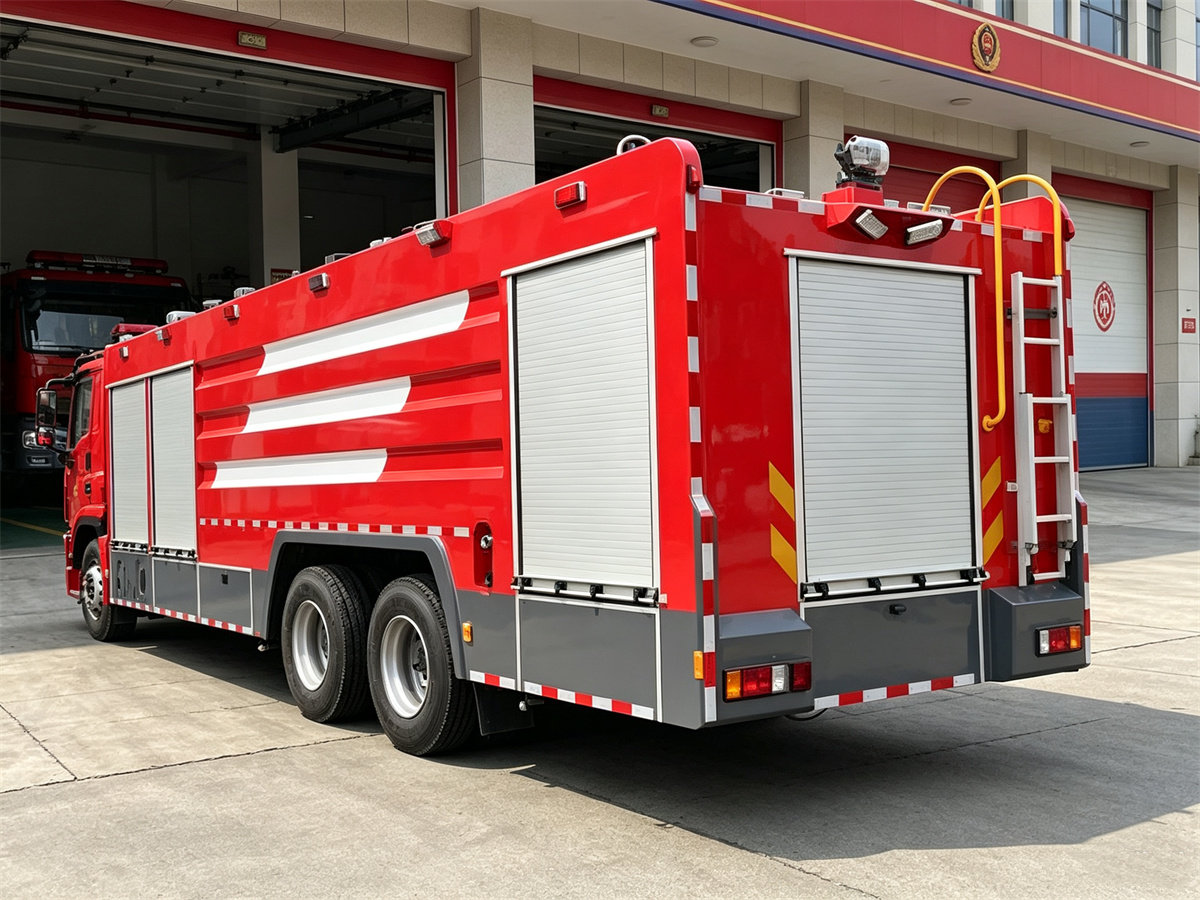

ISUZU GIGA Water Foam Fire Truck

ISUZU GIGA Water Foam Fire Truck

The ISUZU GIGA Water Foam Fire Truck is a heavy-duty firefighting vehicle designed for large-scale fire suppression, industrial firefighting, municipal emergency response, and other demanding rescue operations where a substantial onboard supply of water and foam is required. Built with an overall dimension of 12,000×2,540×3,720mm and a GVW of approximately 31,000kg, the vehicle provides a stable and spacious platform for its high-capacity firefighting equipment while maintaining a maximum road speed of approximately 85km/h for rapid emergency deployment.

The firefighting body is configured with a 12,000L water tank, a 3,000L foam tank, and a 2,000kg dry powder tank, giving the truck the ability to handle different fire scenarios using water, foam, and dry chemical extinguishing media. The water and foam tanks are manufactured from high-quality carbon steel plates with internal anti-rust treatment, while the dry powder tank uses Q345R material for reliable pressure-bearing performance.

At the heart of the firefighting system is a CB10/120 fire pump with a rated flow of 120L/s and a working pressure of 1.0MPa, providing a powerful water supply for the main fire monitor and hose systems. The vehicle is also equipped with a PL100 fire monitor capable of delivering up to 100L/s, with a working pressure of up to 0.9MPa and a firefighting range of at least 85 meters, allowing firefighters to attack flames from a relatively safe distance.

Features

1. Heavy-Duty GIGA Firefighting Platform

The ISUZU GIGA chassis provides a strong foundation for this large-capacity firefighting vehicle, with overall dimensions of approximately 12,000mm in length, 2,540mm in width, and 3,720mm in height. With a GVW of approximately 31,000kg, a kerb weight of around 17,300kg, and a rated payload of approximately 13,550kg, the truck is designed to carry substantial firefighting media and specialized equipment without compromising operational stability.

The maximum driving speed of approximately 85km/h allows the vehicle to travel efficiently between fire stations, industrial facilities, highways, warehouses, ports, and other emergency locations.

2. 12,000L High-Capacity Water Tank

The truck is fitted with a 12,000L water tank, providing a substantial onboard water reserve for continuous firefighting operations before an external water source becomes available.

The tank is manufactured from high-quality carbon steel plate and receives internal anti-rust treatment, helping improve durability when the vehicle is repeatedly exposed to water and demanding operating conditions. The large capacity is particularly suitable for industrial areas, large commercial buildings, warehouses, logistics centers, and other locations where significant water demand may be required.

3. 3,000L Foam Tank

A separate 3,000L foam tank allows the vehicle to carry a substantial quantity of firefighting foam for applications where water alone is less effective, particularly when dealing with flammable liquids, fuel, oil, and other combustible materials.

Like the water tank, the foam tank uses high-quality carbon steel plate with internal anti-rust treatment, providing a practical combination of structural strength and corrosion resistance for long-term firefighting service.

4. 2,000kg Dry Powder Tank

In addition to water and foam, the truck incorporates a 2,000kg dry powder tank made from Q345R material, giving the vehicle a third extinguishing medium for specialized fire situations.

The combination of water, foam, and dry powder enables the ISUZU GIGA fire truck to provide a more versatile response to different categories of fires, making it particularly useful for industrial emergency services and large-scale firefighting operations.

5. High-Flow CB10/120 Fire Pump

The firefighting system uses a CB10/120 normal-pressure fire pump, which provides a rated flow of approximately 120L/s and a working pressure of 1.0MPa.

With this high flow capacity, the pump can supply large volumes of firefighting water to the main monitor and hose outlets, helping firefighters maintain a strong and continuous stream during intensive fire suppression. The pump also has a specified suction depth of approximately 7 meters and requires a rated shift power of at least 140kW.

6. Long-Range PL100 Fire Monitor

The fire truck is equipped with a PL100 fire monitor designed for high-volume water and foam discharge. It provides a flow rate of approximately 100L/s and operates at a working pressure of up to 0.9MPa.

With a specified firefighting range of at least 85 meters and a 360° rotation capability, the monitor allows operators to direct water or foam across a broad area without constantly repositioning the entire truck. This configuration is especially valuable when fighting large fires in open industrial areas, storage yards, warehouses, and other locations where a long-range firefighting stream is advantageous.

7. 30-Meter Hose Reel

A 30-meter reel hose is included as part of the firefighting equipment, providing firefighters with a flexible method of delivering water or firefighting media during situations where the main monitor is not the most convenient option.

The hose reel can be used for localized firefighting, equipment cooling, suppression of secondary fire sources, and other operations where personnel need to work closer to the fire scene while maintaining a controlled firefighting supply.

8. Integrated Water, Foam, and Dry Powder Firefighting Capability

The main strength of this configuration is its multi-medium firefighting capability, combining a large water reserve, dedicated foam capacity, and dry powder storage on one heavy-duty platform.

The 12,000L water tank can support conventional firefighting, the 3,000L foam tank provides additional capability for flammable-liquid and high-risk fires, while the 2,000kg dry powder tank offers another extinguishing option for specialized emergency situations. This makes the vehicle suitable for fire brigades and industrial emergency teams that require a versatile firefighting platform rather than a water-only tanker.

9. High-Performance Emergency Response Configuration

With its substantial tank capacity, high-flow fire pump, long-range monitor, hose reel, and multi-medium extinguishing system, the ISUZU GIGA Water Foam Fire Truck is designed for demanding firefighting environments where sustained water and foam delivery is essential.

Its large-capacity configuration makes it particularly suitable for petrochemical facilities, oil depots, warehouses, factories, ports, airports, logistics parks, power facilities, and municipal fire departments, where rapid response, high extinguishing capacity, and extended firefighting endurance are important operational requirements.

Specifications

ITEM	VALUE
Overall Dimension	12,000×2,540×3,720mm
GVW	31,000kg
Kerb weight	17,300kg
Rated Payload	13,550kg
Max Speed	85km/h
Water Tank – Volume	12,000L
Water Tank – Material	High quality carbon steel plate, anti-rust treatment inside
Foam Tank – Volume	3,000L
Foam Tank – Material	High quality carbon steel plate, anti-rust treatment inside
Dry Power Tank – Volume	2,000kg
Dry Power Tank – Material	Q345R
Reel hose – Length	30m
Reel hose – Type	Normal pressure fire pump
Reel hose – Model	CB10/120
Reel hose – Pressure	1.0Mpa
Fire pump – FLOW	120L/s, 7200L/h
Fire pump – Suction depth	27m
Fire pump – Rated Shift power	≥140kw
Fire monitor – Type	PL100
Fire monitor – Flow	100L/S
Fire monitor – Working pressure	<=0.9Mpa
Fire monitor – Range	≥ 85m
Fire monitor – Rotation angle	360°
