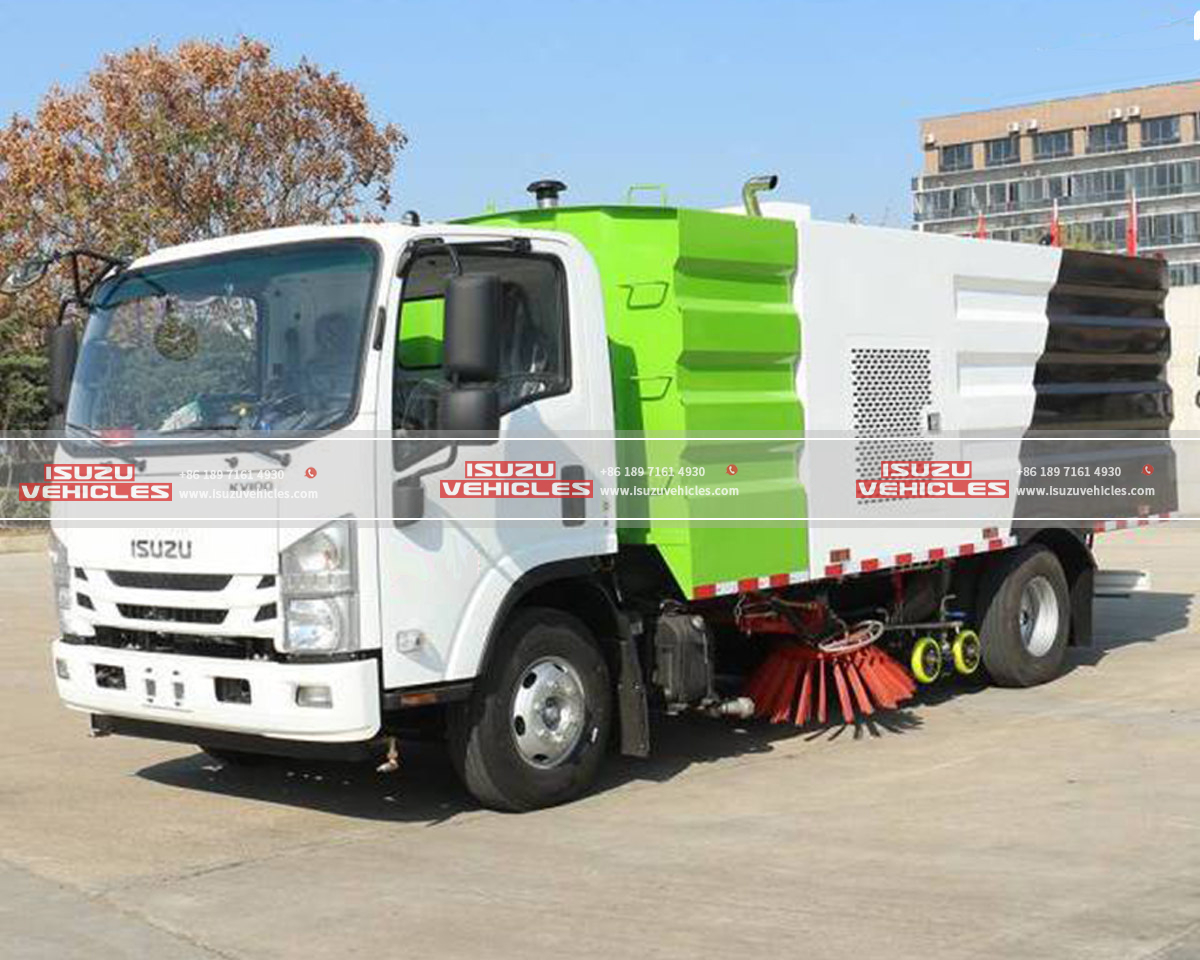

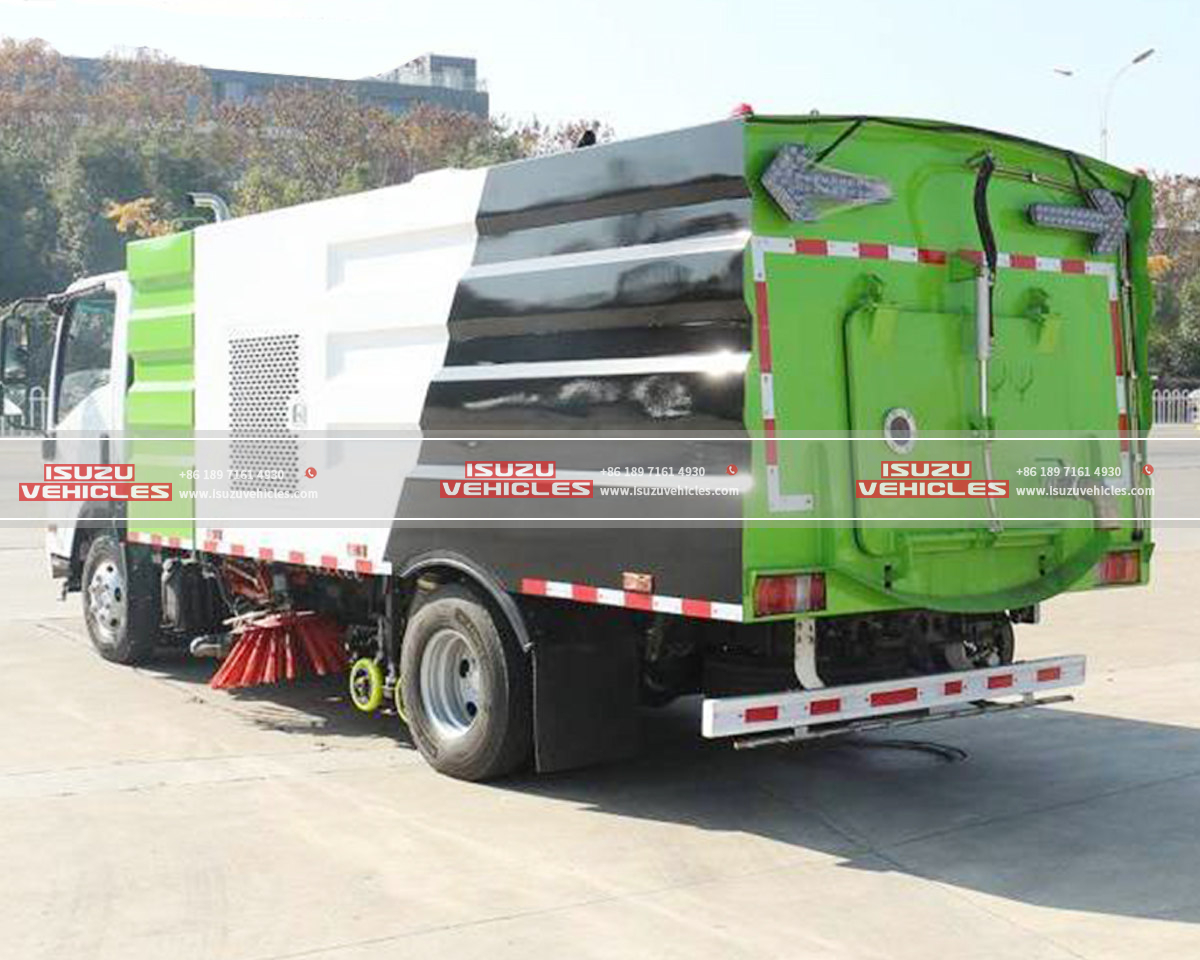

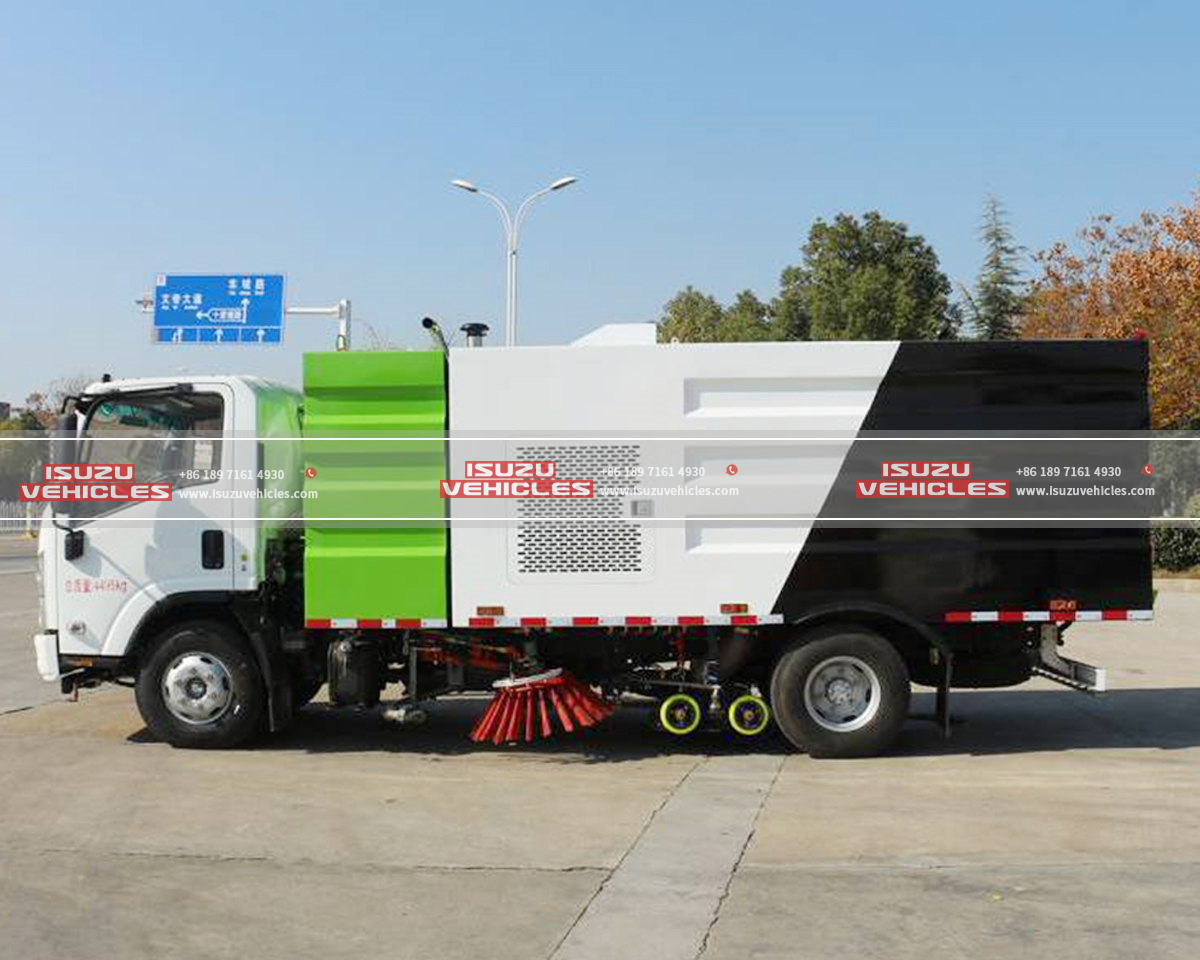

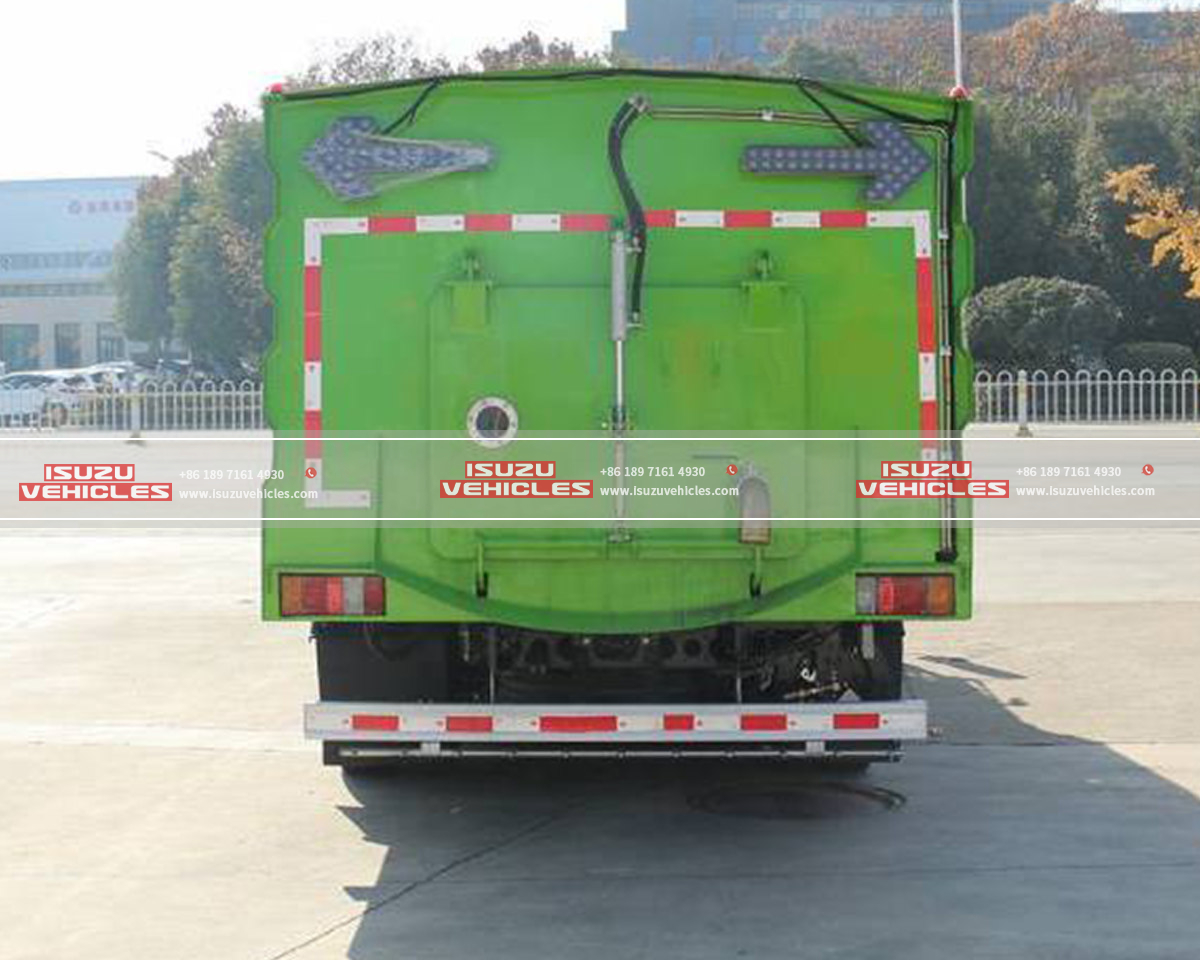

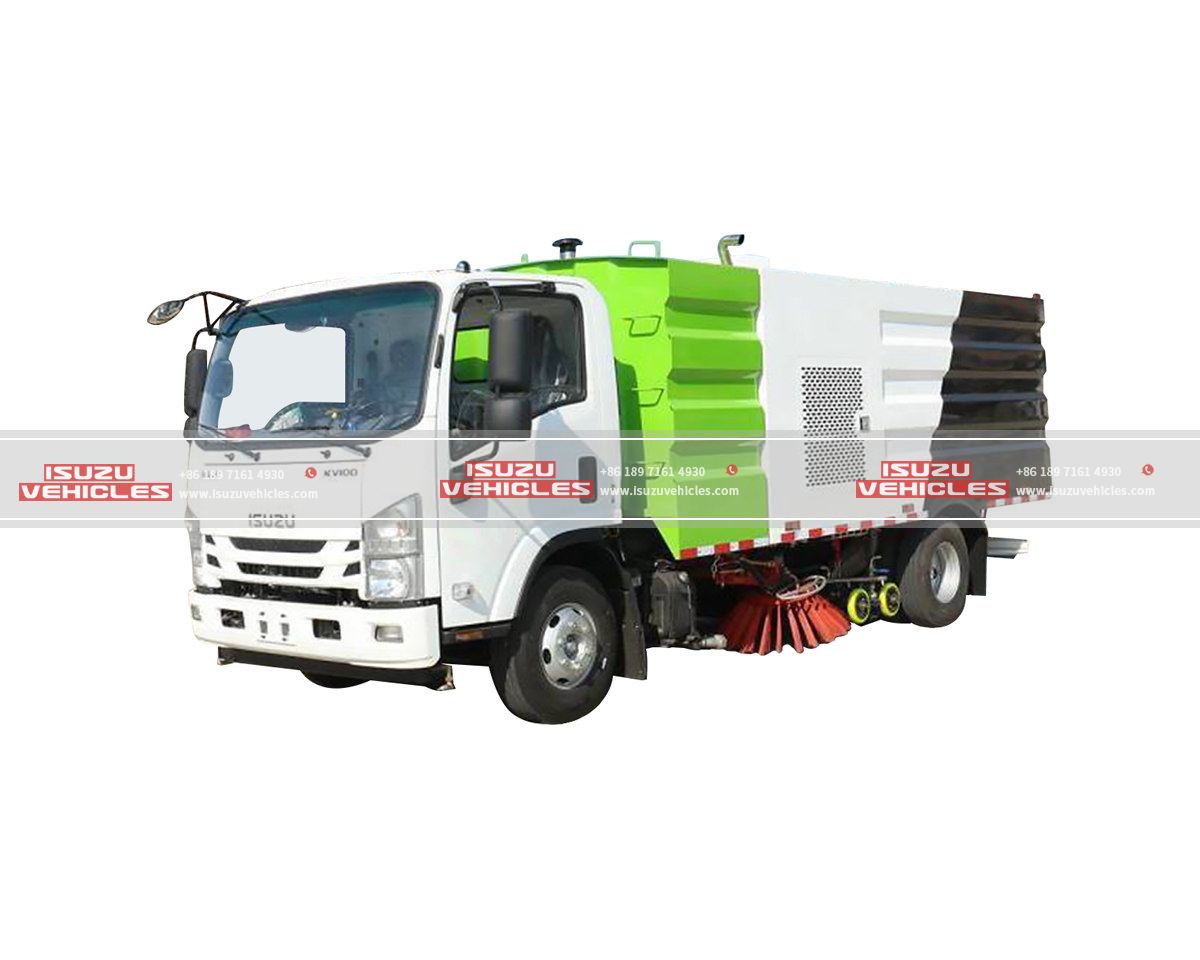

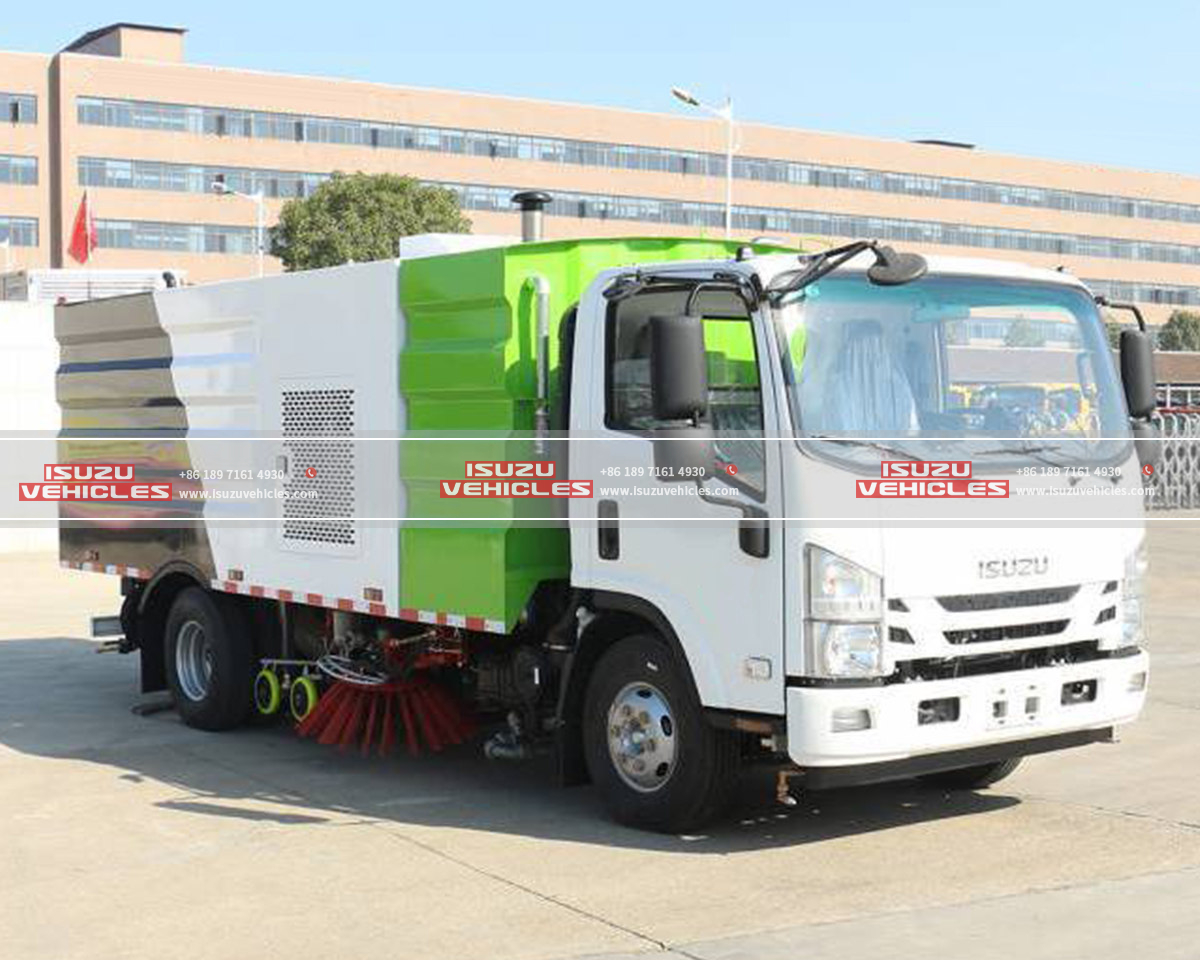

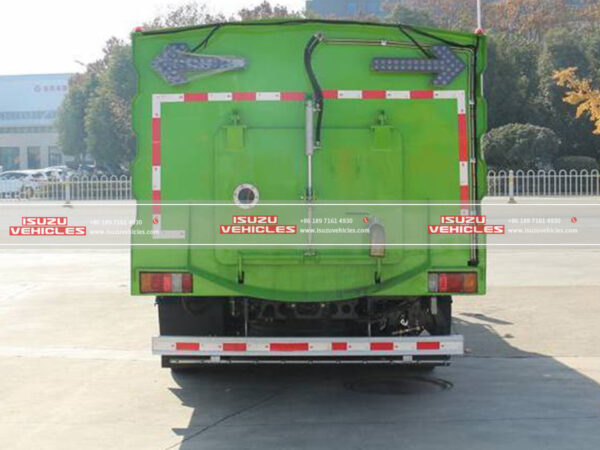

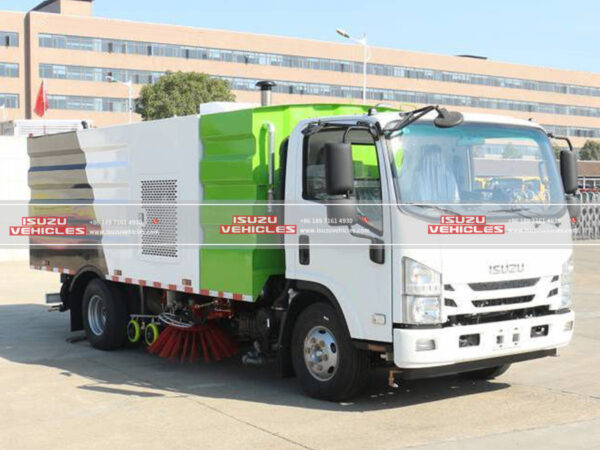

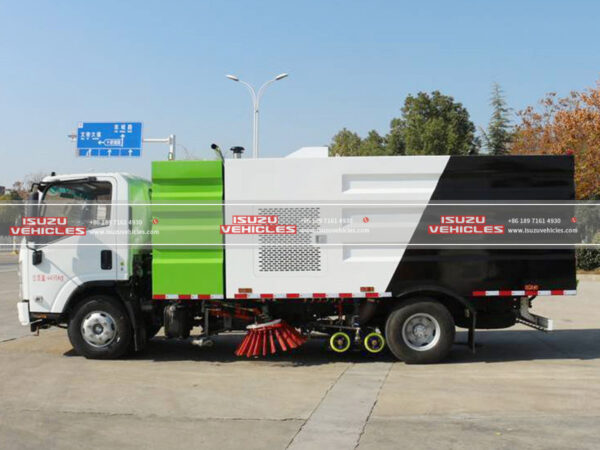

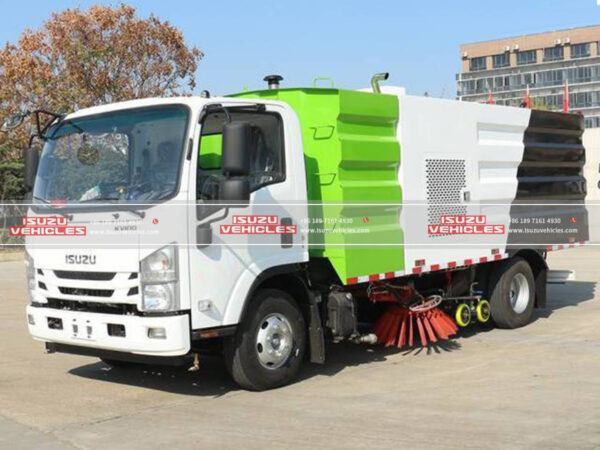

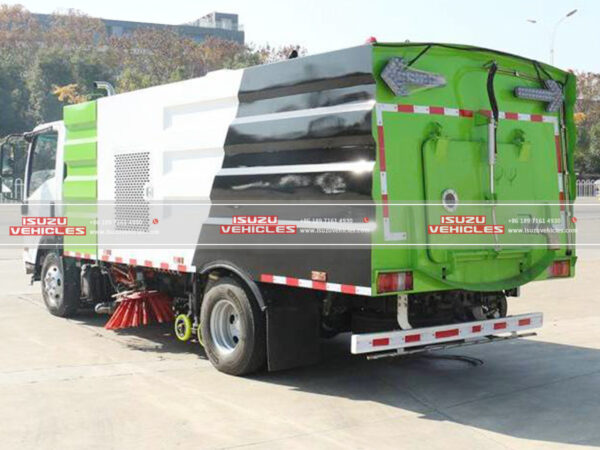

ISUZU 3CBM Wet Sweeper Truck

ISUZU 3CBM Wet Sweeper Truck

100P Chassis Compact Design
Built on the agile ISUZU 100P chassis, this ISUZU 3CBM Wet Sweeper Truck is tailored for urban and small-scale cleaning operations. With compact dimensions of 5,180×2,000×2,470mm and a 3,360mm wheelbase, it achieves a gross vehicle weight of 4,495kg while maintaining a curb weight of 2,200kg for efficient maneuverability. The 4+2 drive wheel configuration with 7.00R16 tires ensures stability on narrow streets and uneven surfaces.

Euro 5-Compliant Powertrain
Powered by the ISUZU 4KH1CN5LS engine, the ISUZU sweeper truck generates 98HP (72kW) @ 3,400rpm and a peak torque of 220N·m @ 1,700rpm, optimized for low-emission, high-efficiency urban cleaning. The intercooled turbocharged design and ISUZU/MSB manual transmission (5F+1R) ensure smooth operation in stop-and-go environments.

Operator-Focused Cabin
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, featuring ergonomic controls and enhanced visibility for precision in congested areas.

Part 2: Features

3CBM Dual-Function Tank System
Integrated with a 3CBM stainless steel 304 tank, the system combines a 1m³ garbage compartment and a 2,000L water reservoir for simultaneous debris collection and dust suppression. The corrosion-resistant construction ensures durability in harsh weather and chemical exposure.

High-Efficiency Sweeping & Suction
Four motor-driven disc brooms (900mm diameter) achieve a sweeping width of 2.6–3.2m and a max cleaning capacity of 60,000 m²/h. The full-floating suction nozzle with a 200mm hydraulic port captures debris ≥100mm, while the centrifugal blower (2,600–2,900r/min) ensures debris-free surfaces.

Multi-Mode Washing Systems
A 20m high-pressure flushing reel delivers 115L/min water flow at 3–20km/h speeds for targeted stain removal. The low-pressure system supplements with 40m³/h flow capacity and 50m projection range, enabling rapid large-area rinsing and dust control.

Durability & Adaptability
JMC 75HP auxiliary engine powers ancillary systems for uninterrupted operation, while Euro 5 compliance reduces environmental impact. The modular body design (compaction plate, slide-out hopper) simplifies maintenance and waste discharge.

Operational Safety
Anti-slip hydraulic controls and reinforced tire configurations enhance stability during high-speed sweeping (3–20km/h) and debris handling.
