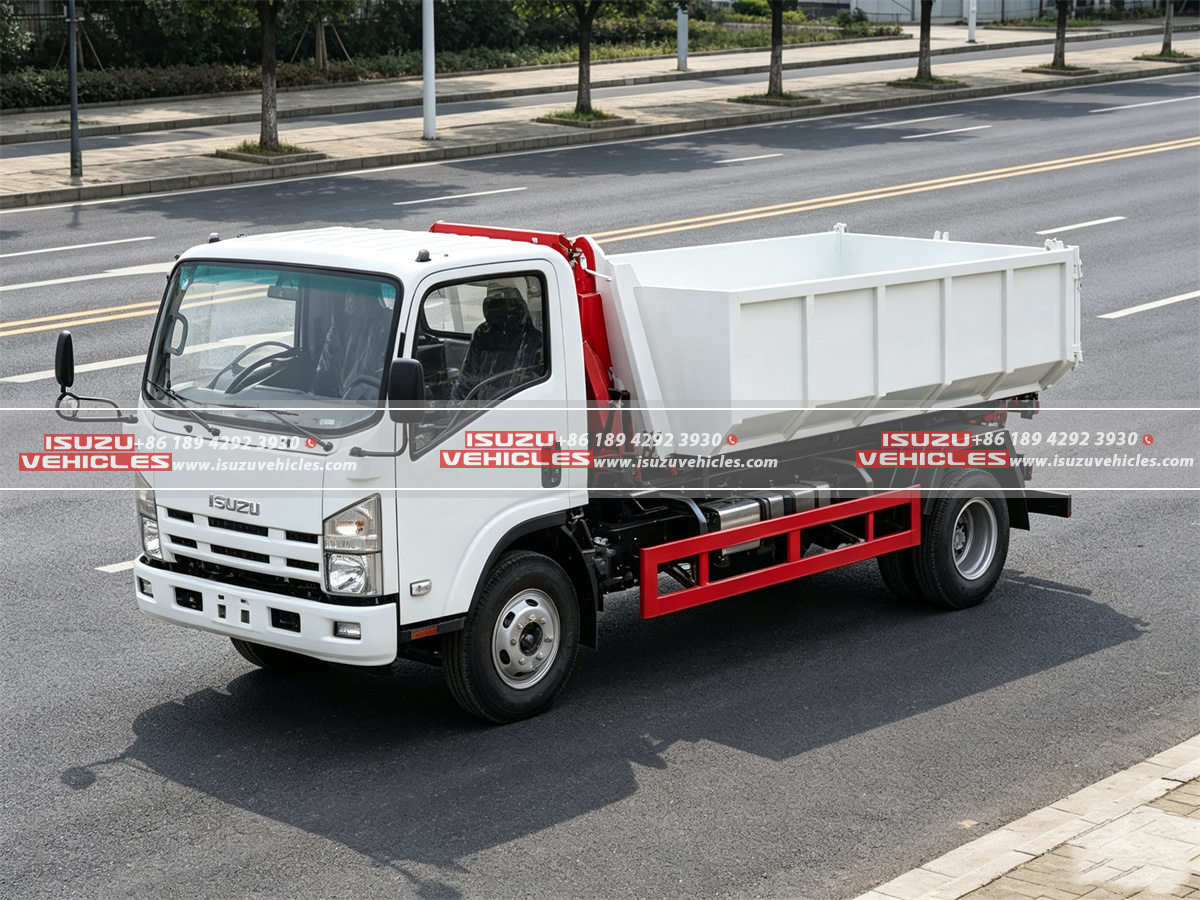

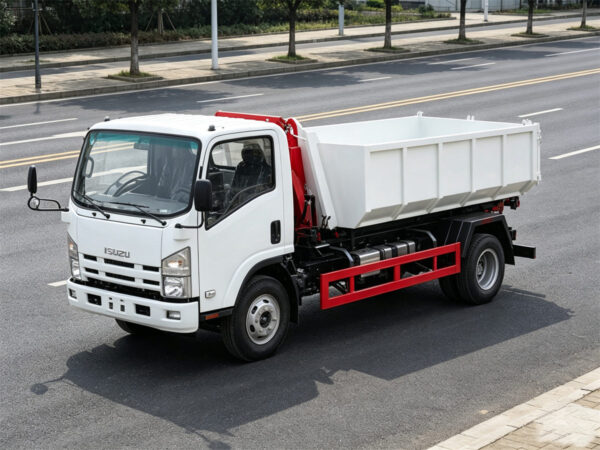

ISUZU 6 Ton Hook Loader Garbage Truck
The ISUZU 6 Ton Hook Loader Garbage Truck is a versatile container-handling vehicle designed for municipal waste collection, industrial waste transportation, construction debris removal, commercial waste management, and other applications where detachable containers need to be collected and transported efficiently. Built on a reliable ISUZU 4×2 chassis, the truck combines a compact vehicle structure with a high-strength hydraulic hooklift system, allowing operators to load, transport, tip, and unload containers using the truck’s own hydraulic equipment.
The vehicle has overall dimensions of 6,030×2,150×2,480mm, a wheelbase of 3,815mm, and a gross vehicle weight of approximately 11,200kg. The 4-ton front axle and 7-ton rear axle provide a strong foundation for the hooklift system, while 235/75R17.5 tires in a 6+1 configuration offer suitable road stability and load-bearing capability during container transportation.
Power is supplied by an ISUZU 4HK1-TCG61 diesel engine producing approximately 190HP, with an emission configuration ranging from Euro 4 to Euro 6 according to the selected chassis specification. The engine is matched with an ISUZU MLD6 manual transmission featuring six forward gears and one reverse gear, providing dependable power delivery for urban waste collection and container transportation.
The hooklift system has a rated lifting and tipping capacity of 6 tons, with a maximum hydraulic pressure of 25MPa and a hook height of 935mm. The center-to-center distance between the hook and roller is approximately 2,780mm, while the system can achieve a tipping angle of up to 49°, allowing efficient container loading and unloading.
With a hydraulic system weight of approximately 700kg and compatibility with containers in the specified 2.9-3.5m range, the ISUZU 6 Ton Hook Loader provides a practical balance of lifting capacity, compact dimensions, and operational flexibility for modern waste management systems.
Features
1. Reliable ISUZU 4×2 Chassis
The ISUZU 4×2 chassis provides a robust and maneuverable platform for containerized waste transportation, with overall dimensions of 6,030×2,150×2,480mm and a 3,815mm wheelbase. Its relatively compact dimensions allow the truck to operate effectively in urban streets, industrial compounds, transfer stations, and construction sites while maintaining sufficient structural strength for heavy-duty container handling.
The 4-ton front axle and 7-ton rear axle provide appropriate load distribution, while the 235/75R17.5 tires, configured as six working tires plus one spare, offer dependable support for frequent transportation operations.
2. Powerful 190HP ISUZU Engine
The vehicle is equipped with an ISUZU 4HK1-TCG61 diesel engine delivering approximately 190HP, providing sufficient power for both road transportation and hydraulic container-handling operations.
The engine is paired with an ISUZU MLD6 six-speed manual transmission, featuring six forward gears and one reverse gear. This configuration provides smooth power management and allows the driver to select appropriate gears according to traffic conditions, road gradients, and container weight.

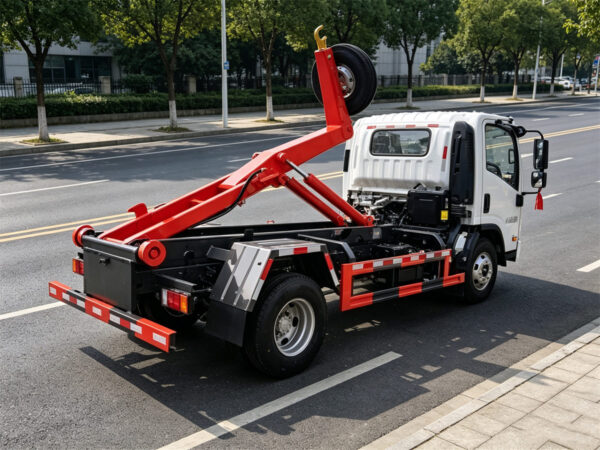

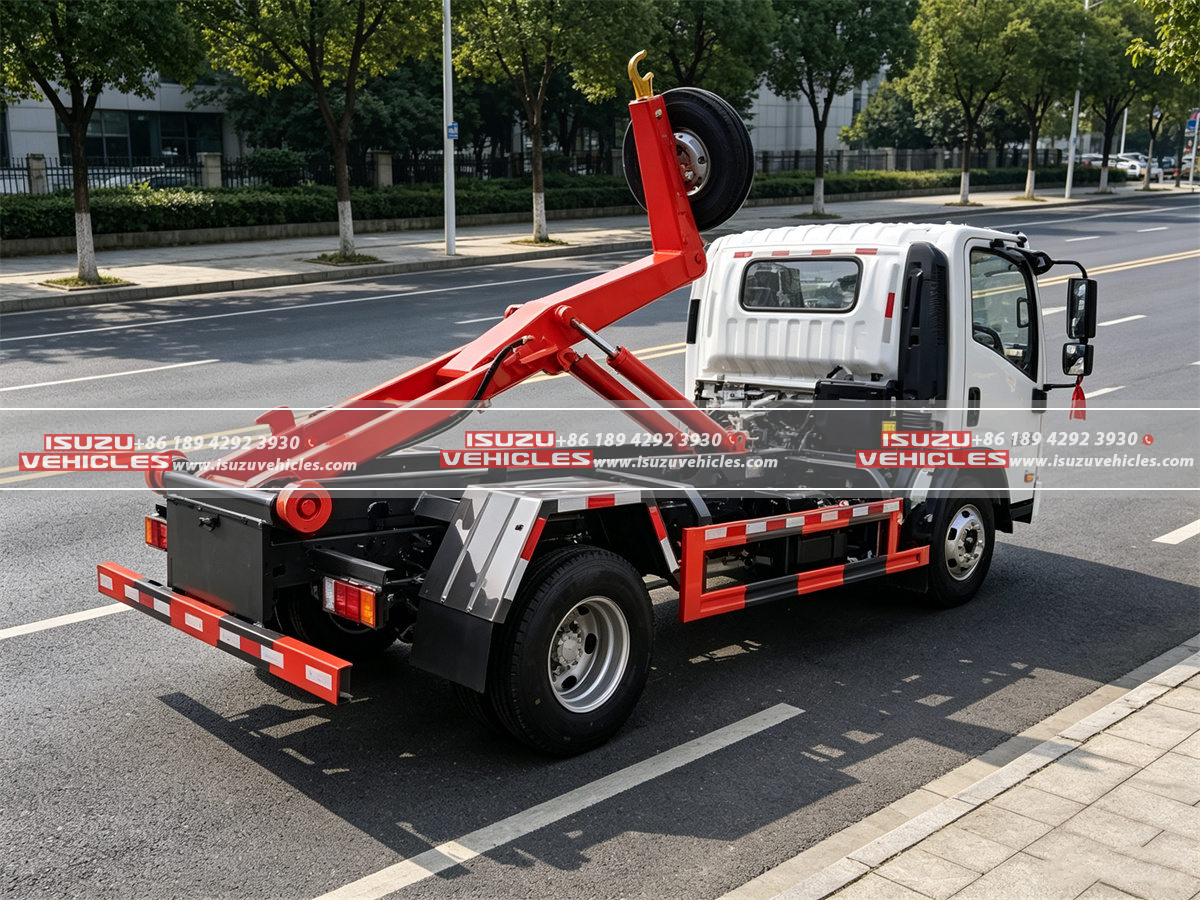

3. 6-Ton Hydraulic Hooklift System
The main working equipment is a 6-ton hooklift system designed to lift and transport compatible detachable waste containers. With a rated lifting and tipping capacity of 6 tons, the system is suitable for handling substantial quantities of municipal garbage, construction debris, industrial waste, and other solid materials.
The hooklift allows containers to be collected from ground level and secured onto the chassis for transportation, while the hydraulic system provides controlled movement during loading and unloading without requiring an external crane.
4. High-Pressure Hydraulic System
The hooklift hydraulic system operates at a maximum pressure of approximately 25MPa, providing the hydraulic force necessary to handle heavy containers safely and efficiently.
The system has an approximate weight of 700kg and is integrated with the truck chassis to provide a dedicated power source for the lifting mechanism. The hydraulic configuration is designed for repeated loading and unloading cycles, making the vehicle suitable for professional waste collection fleets.
5. 935mm Hook Height
The hook mechanism has a specified hook height of 935mm, providing a suitable connection point for compatible detachable containers. The center-to-center distance between the hook and roller is approximately 2,780mm, allowing the lifting mechanism to accommodate containers within its specified dimensional range.
This standardized configuration helps ensure stable engagement between the truck and container while the hydraulic system pulls the container onto the chassis.

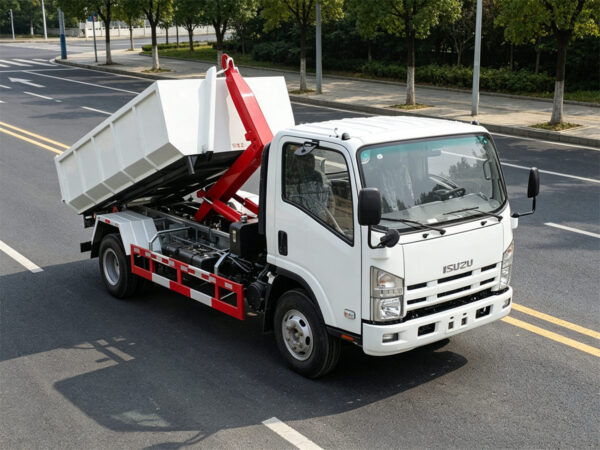

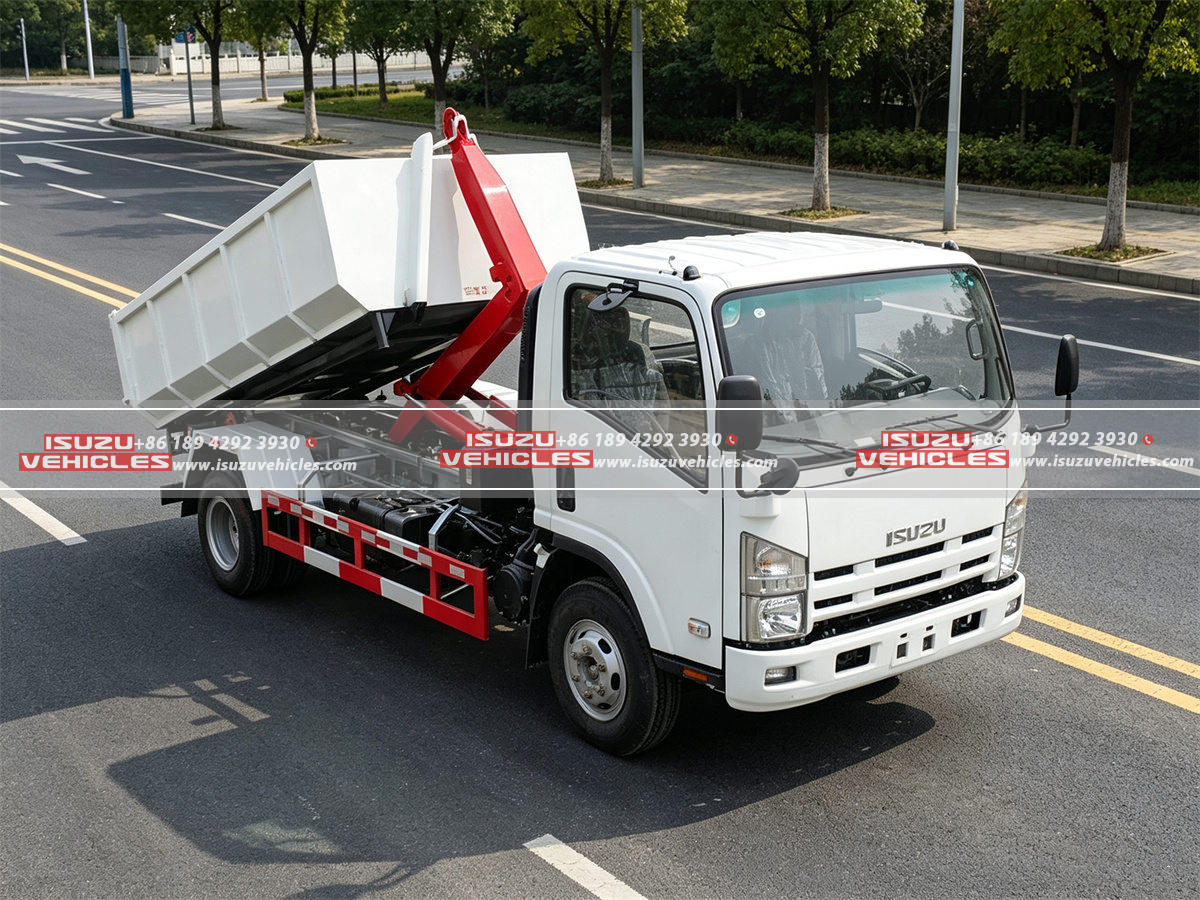

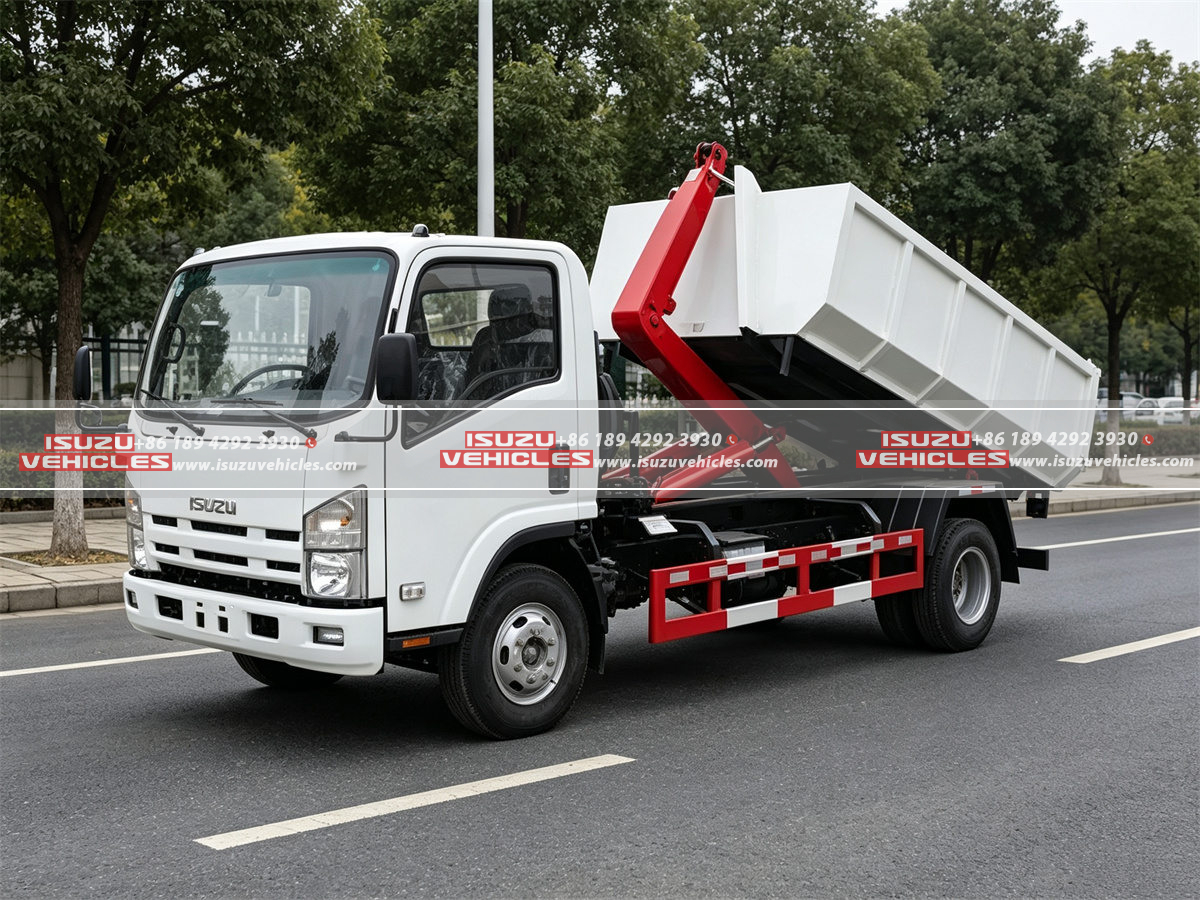

6. Efficient 49° Tipping Function
The hooklift can achieve a maximum tipping angle of approximately 49°, allowing the container to be raised significantly during unloading. This makes it easier to discharge garbage and other solid materials at transfer stations, disposal facilities, recycling yards, and construction sites.
The hydraulic tipping mechanism provides controlled lifting and lowering, helping operators complete unloading operations without manually removing the waste from the container.
7. Flexible Container Compatibility
The truck is designed to work with detachable containers within the specified 2.9-3.5m range, allowing waste management operators to use different container configurations according to their collection requirements.
This containerized operating concept provides greater flexibility than fixed-body garbage trucks because containers can be placed at different waste-generation locations and collected when full, allowing the truck to serve multiple sites efficiently.
8. Practical Three-Person ISUZU Cab
The ISUZU cab is configured for three passengers, providing practical space for the driver and sanitation or site personnel. The 4×2 chassis configuration, power-assisted steering, and manual six-speed transmission make the vehicle suitable for frequent urban transportation and maneuvering between waste collection points.
The combination of a compact chassis, powerful ISUZU engine, 6-ton hydraulic hooklift, 25MPa hydraulic system, and 49° tipping capability makes the ISUZU 6 Ton Hook Loader Garbage Truck a versatile solution for municipal, industrial, commercial, and construction waste transportation.
Specifications
| ITEM | VALUE |
|---|---|
| Chassis | |
| Size | 6,030×2,150×2,480 mm |
| GvW/Curb Weight | 11,200/4,020 kg |
| Wheelbase | 3,815 mm |
| Front/Rear Axle | 4T/7T |
| Tire | 235/75R17.5, 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | ISUZU /4HK1-TCG61/ 190hp/ Euro 4-6 |
| Transmission | |
| Model | ISUZU/MLD6 |
| Gears | 6F+1R |
| Operation | Manual |
| Driving | 4×2 |
| Cabin | |
| Type | ISUZU |
| Passenger No. | 3 |
| Hooklift | |
| Lifting and Tipping capacity(t) | 6 |
| Max. Pressure (MPa) | 25 |
| Hook Height (mm) | 935 |
| Length of center of hook to center of roller(mm) | 2,780 |
| Tipping Angle(°) | 49 |
| System Weight (kg) | 700 |
| Max. Weight of Container | 2.9-3.5 |
