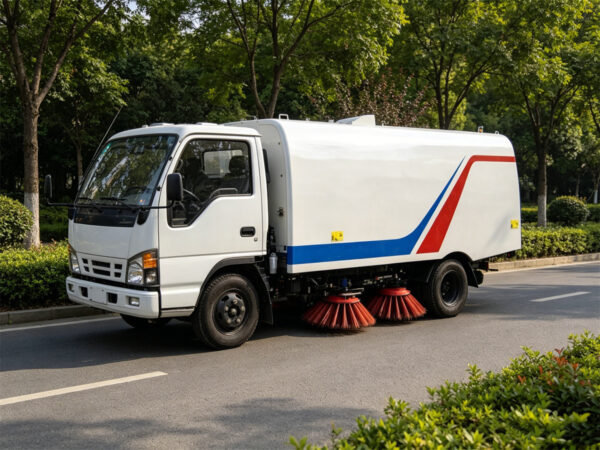

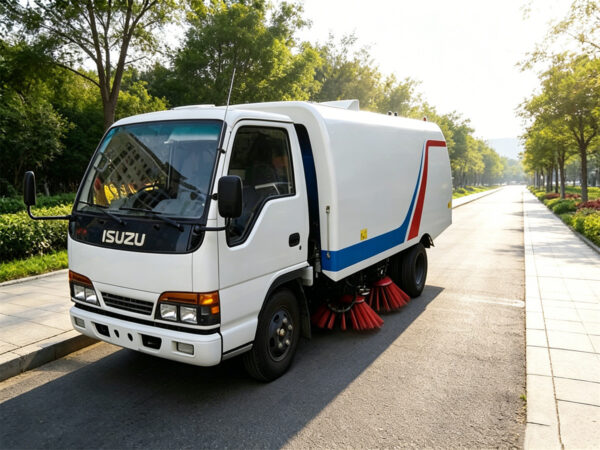

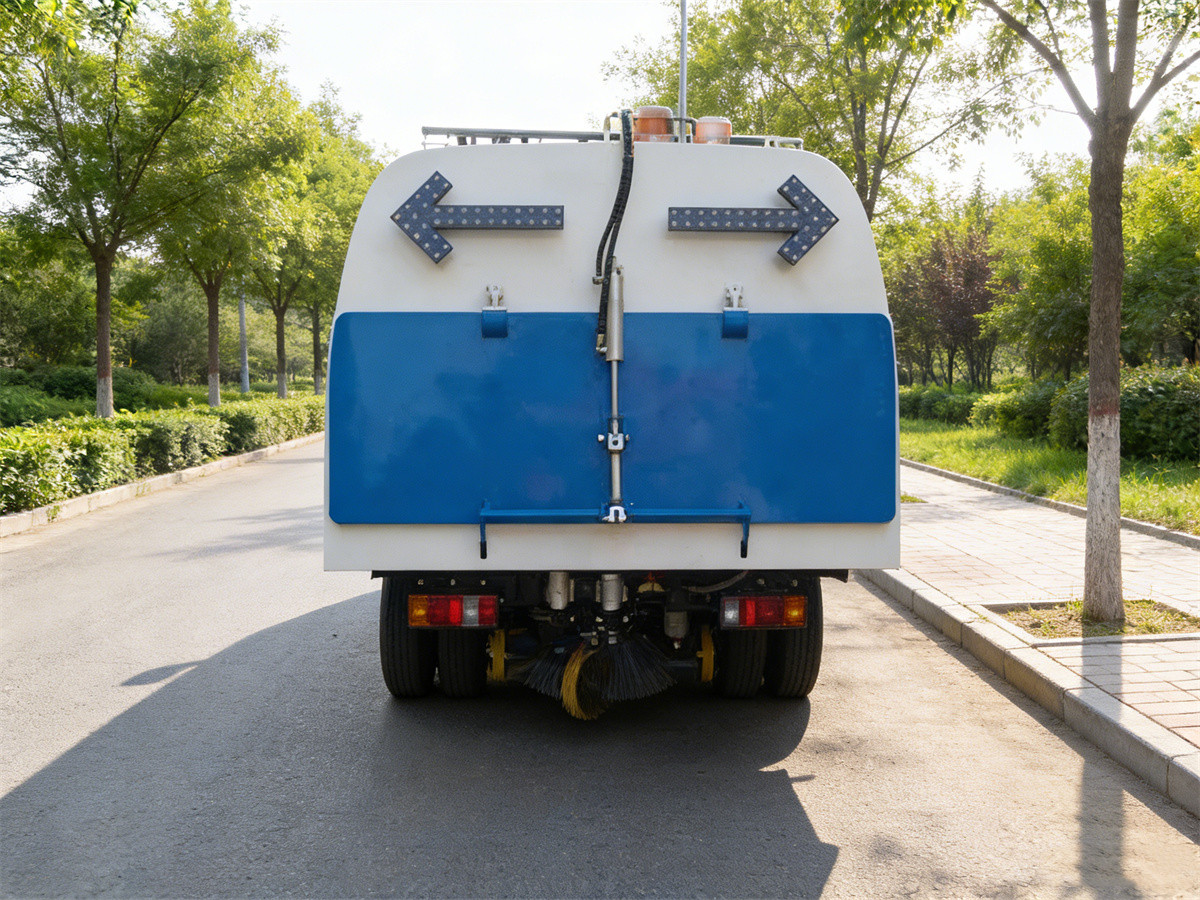

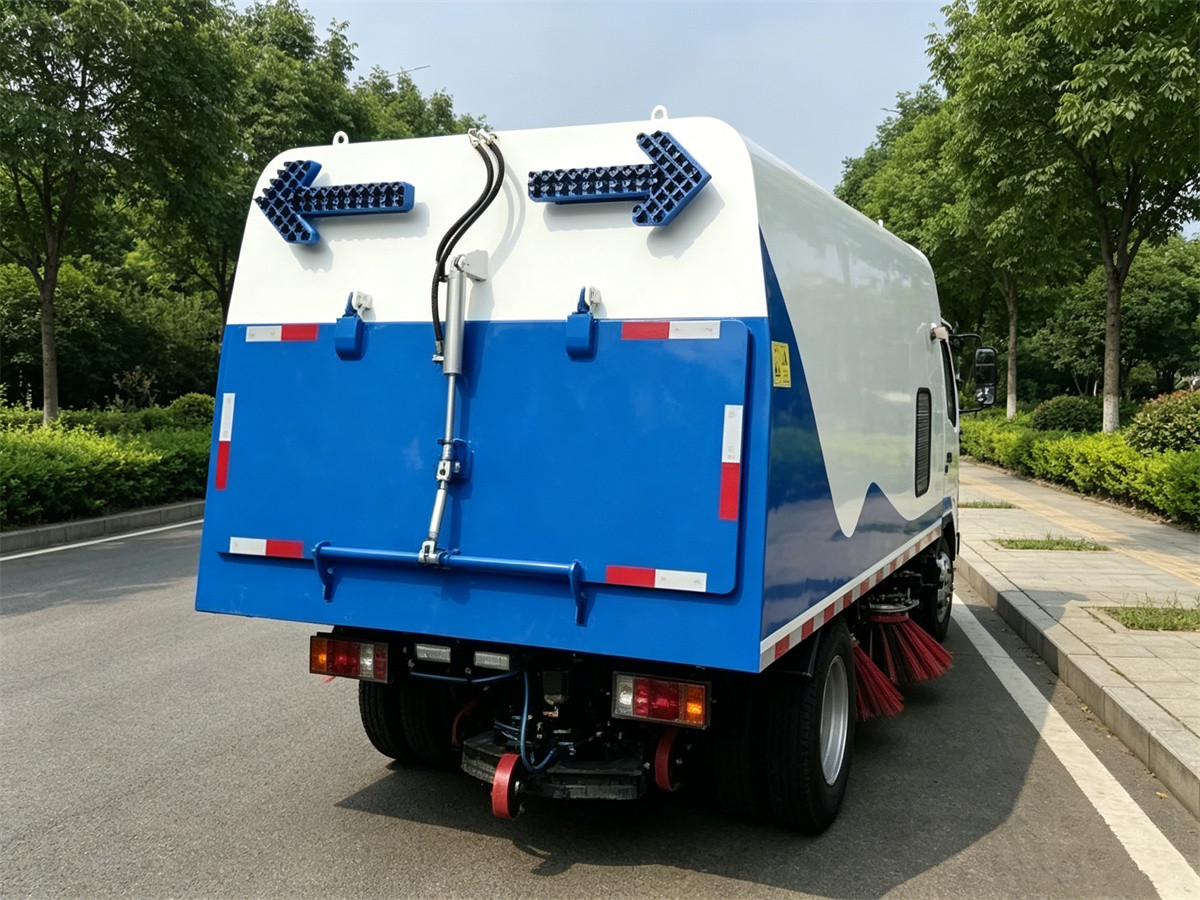

ISUZU 8 CBM Street Sweeper Truck
The ISUZU 8 CBM Street Sweeper Truck is a versatile and high-efficiency road cleaning vehicle designed to meet the demanding requirements of municipal sanitation departments, industrial parks, airports, highways, ports, residential communities, and commercial districts. Built on the dependable ISUZU QL1041 chassis, this sweeper combines advanced sweeping, vacuum suction, and high-pressure washing technologies into a single integrated solution, delivering exceptional road cleaning performance under a wide range of operating conditions.
Equipped with a 5 CBM dust collection tank and a 3 CBM water tank, the vehicle provides long-duration cleaning capability while effectively controlling dust emissions. The combination of sweeping brushes, high-pressure water jets, and powerful vacuum suction allows the truck to efficiently remove dust, sand, leaves, gravel, and other roadway debris, helping maintain cleaner and safer public environments.
Powered by the reliable ISUZU 4KH1-TCG40 diesel engine and supported by an auxiliary engine for sweeping operations, the truck offers stable performance, excellent fuel economy, and dependable operation throughout extended working hours. Its compact dimensions and excellent maneuverability make it particularly suitable for both urban streets and confined working areas.
Features
Integrated Sweeping, Washing, and Vacuum Cleaning System
The truck combines road sweeping, high-pressure washing, and vacuum suction into one highly efficient cleaning platform. This integrated design enables operators to perform multiple cleaning functions simultaneously, significantly improving operational efficiency and reducing cleaning time.
With a cleaning width of 3 meters, the vehicle can effectively cover large road surfaces while maintaining excellent cleaning quality across various pavement conditions.
Large-Capacity Dust and Water Tanks
The sweeper is equipped with a 5 CBM dust collection tank and a 3 CBM clean water tank, allowing extended cleaning operations without frequent unloading or water refilling.
The dust collection system efficiently captures fine dust and larger debris, while the water tank supports continuous dust suppression and high-pressure washing functions, helping improve environmental cleanliness and reduce airborne particles during operation.
Powerful High-Pressure Cleaning Performance
The vehicle features a professional high-pressure water cleaning system utilizing a Germany PT36 water pump, delivering reliable cleaning performance for stubborn dirt, mud, and accumulated road debris.
Key performance advantages include:
- Water pressure: 12 MPa
- Water pump flow rate: 115 L/min
- System operating pressure: 10 MPa
- Hydraulic pressure ball valve control
- High-pressure washing nozzles
This system provides excellent cleaning capability for urban roads, sidewalks, industrial zones, and heavily trafficked areas.
High-Efficiency Vacuum Suction System
The double-suction vacuum system utilizes hydraulic control and spring suspension technology to maintain consistent ground contact and superior debris collection performance.
The suction system offers:
- Maximum suction particle size: 110 mm
- Suction plate width: 1,800 mm
- Suction pipe diameter: 180 mm
- Maximum cleaning capacity: 60,000 m²/h
These features enable the truck to efficiently remove both fine dust and larger debris from road surfaces.
Advanced Sweeping Brush Arrangement
The sweeping system utilizes two centrally mounted hydraulic-driven brushes designed to provide comprehensive road coverage and efficient debris gathering.
Each brush features:
- 850 mm brush diameter
- Independent front-right brush control
- Automatic obstacle avoidance function
- Adjustable tilt angles for optimized sweeping performance
This configuration improves cleaning efficiency while minimizing brush wear and reducing maintenance requirements.
Reliable ISUZU Chassis and Powertrain
The truck is built on the durable ISUZU QL1041 chassis with a wheelbase of 3,360 mm, providing excellent maneuverability and operational stability.
The primary power source is the proven ISUZU 4KH1-TCG40 diesel engine, producing 95 HP with a displacement of 3,856 cc, while the auxiliary engine supplies additional power for sweeping operations.
Additional chassis advantages include:
- Maximum speed: 103 km/h
- Maximum gradeability: 30%
- Euro 4/5 emission compliance
- Power-assisted steering
- 24V electrical system
These features ensure dependable performance across both urban and rural operating environments.
Durable Hydraulic and Electrical Systems
The hydraulic system adopts an electrically controlled open-loop design utilizing premium components including hydraulic motors, cylinders, gear pumps, and solenoid valves.
Key specifications include:
- Hydraulic system pressure: 16 MPa
- Hydraulic oil tank capacity: 60 L
- 24V DC electrical system
- Reliable electronic controls for sweeping and cleaning functions
This robust design ensures smooth operation, precise control, and long service life.
Operator-Friendly Design
Designed with productivity and comfort in mind, the truck provides intuitive controls and efficient operational management. The combination of hydraulic controls, automatic brush functions, and integrated cleaning systems allows operators to focus on maintaining consistent cleaning quality while reducing workload.
The compact overall dimensions of 5,750 × 2,200 × 2,350 mm further enhance maneuverability in congested urban environments and narrow roadways.
Comprehensive Standard Equipment
The standard configuration includes:
- Four-function sweeping and cleaning system
- High-pressure water washing system
- Double suction vacuum assembly
- Hydraulic sweeping brushes
- Water spray suppression system
- Dust collection tank
- Clean water tank
- Hydraulic control system
- Electrical control system
- Auxiliary engine
- High-performance filtration system
Optional equipment such as surveillance systems and additional rolling brushes can be installed to meet specific customer requirements.
The ISUZU 8 CBM Street Sweeper Truck delivers an excellent balance of cleaning efficiency, operational reliability, and low maintenance costs, making it an ideal solution for modern municipal and commercial road cleaning applications.
Specification
| Category & Item | Specification Description |
| 1. Basic Vehicle Information | |
| Truck Model | ISUZU 8 CBM Street cleaner |
| Chassis Model | QL1041 |
| Wheelbase | 3,360mm |
| Emission Standard | Euro 4/5 stage |
| External Accelerating Noise | ≤84dB(A) |
| Max Speed | 103 km/h |
| Max Upgrade Angle | 30% |
| 2. Engine Parameters | |
| Chassis Engine Model | 4KH1-TCG40 |
| Chassis Engine Spec | 70kW, 3,856cc, 95hp |
| Spare Engine Model | JE493-G3 |
| Spare Engine Rated Power | 57kW |
| 3. Weight Specifications | |
| Curb Weight | 2,870 kg |
| Gross Vehicle Weight | 4,100 kg |
| 4. Dimension Specifications | |
| Overall Dimensions (L×W×H) | 5,750×2,200×2,350mm |
| Minimum Ground Clearance | 250 mm |
| 5. Cleaning & Suction Performance | |
| Clean Speed Range | 3~20 Km/h |
| Clean Width | 3 m |
| Cleaning Efficiency | ≥98% |
| Maximum Suction Particle Size | 110 mm |
| Clean & Suction Width | 3 m |
| Max Cleaning Capacity | 60,000 m²/h |
| Disc Brush Overall Width | 2400 mm |
| Clean & Suction Operating Speed | 3-20 km/h |
| 6. Water Tank & Dust Tank | |
| Water Tank Volume | 3 m³ |
| Dust Tank Volume | 5 m³ |
| Dump Bin Tilting Angle | 46° |
| Discharge Door Opening Angle | ≥85° |
| 7. High Pressure Water System | |
| Water Working Pressure | 12 MPa |
| Water Pump Flow Rate | 115 L/min |
| Water Pump Brand & Model | Germany PT36 |
| Pump Rotating Speed | 1150 r/min |
| System Working Pressure | 10 MPa |
| Water Valve Type | Hydraulic pressure ball valve |
| Water Valve Working Pressure | 7 MPa |
| Spray Nozzle Type | High-pressure washing type |
| Water Filter Type | Mesh type |
| 8. Hydraulic System | |
| Control Mode | Open type, electrical control |
| Main Components | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
| System Pressure | 16 MPa |
| Hydraulic Oil Tank Capacity | 60L |
| 9. Electrical System | |
| System Model | DC24V |
| Rated Voltage | 24V |
| Battery Voltage | 24V |
| 10. Water Spray System | |
| Main Components | Electric diaphragm pumps, water filters, nozzles, etc |
| 11. Sweeping Disc Brush Device | |
| Brush Layout & Drive | Center 2 swabs, hydraulic motor driven; front right brush with independent control & obstacle avoidance function |
| Brush Diameter | 850 mm |
| Brush Tilt Angle Forward | 4-6 degrees |
| Brush Side Tilt Angle | 4-7 degrees |
| 12. Suction Plate Assembly | |
| Structure Type | Double suction design, hydraulic control, spring suspension |
| Suction Pipe Diameter | 180 mm |
| Suction Plate Working Width | 1,800mm |
| Fan Installation Type | Post-pump type |
