ISUZU 6000L Water Fire Truck

ISUZU 6000L Water Fire Truck

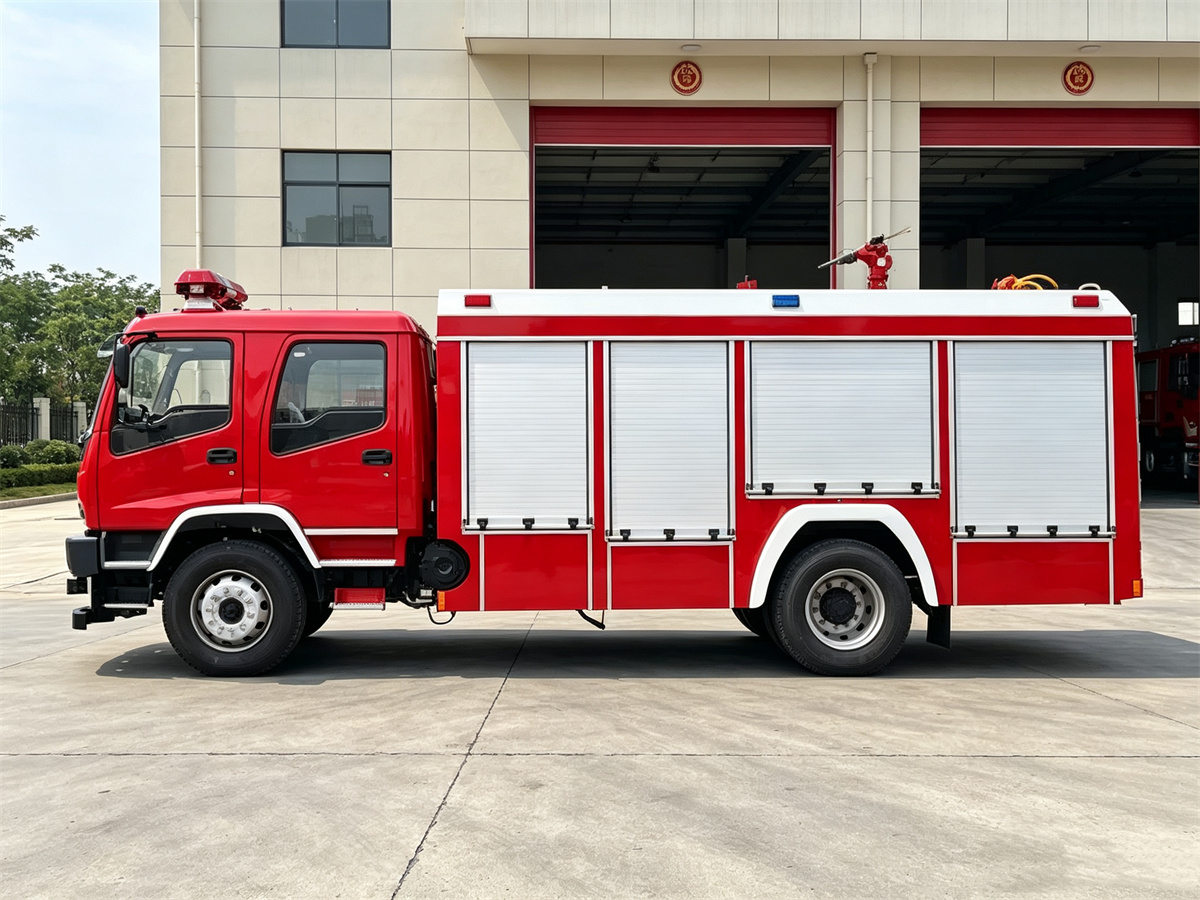

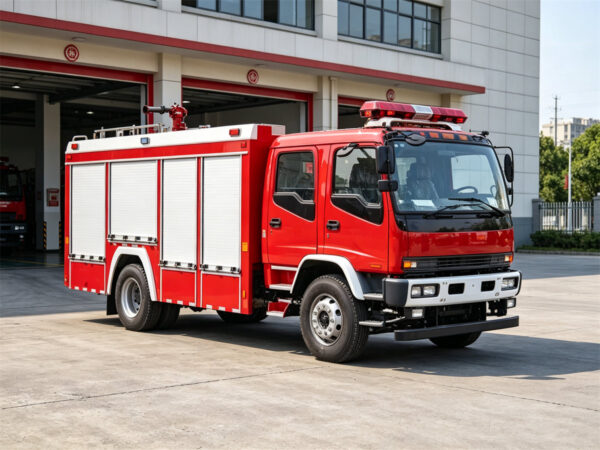

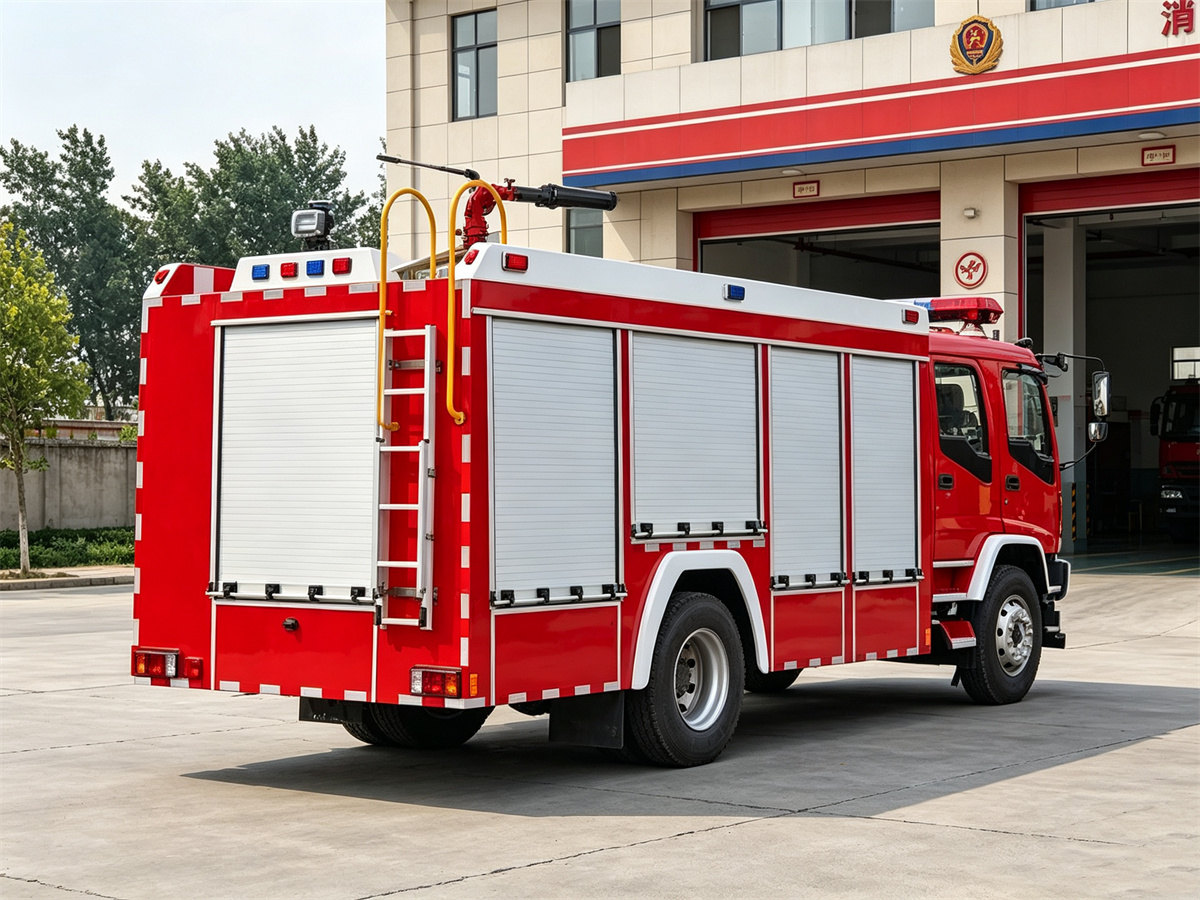

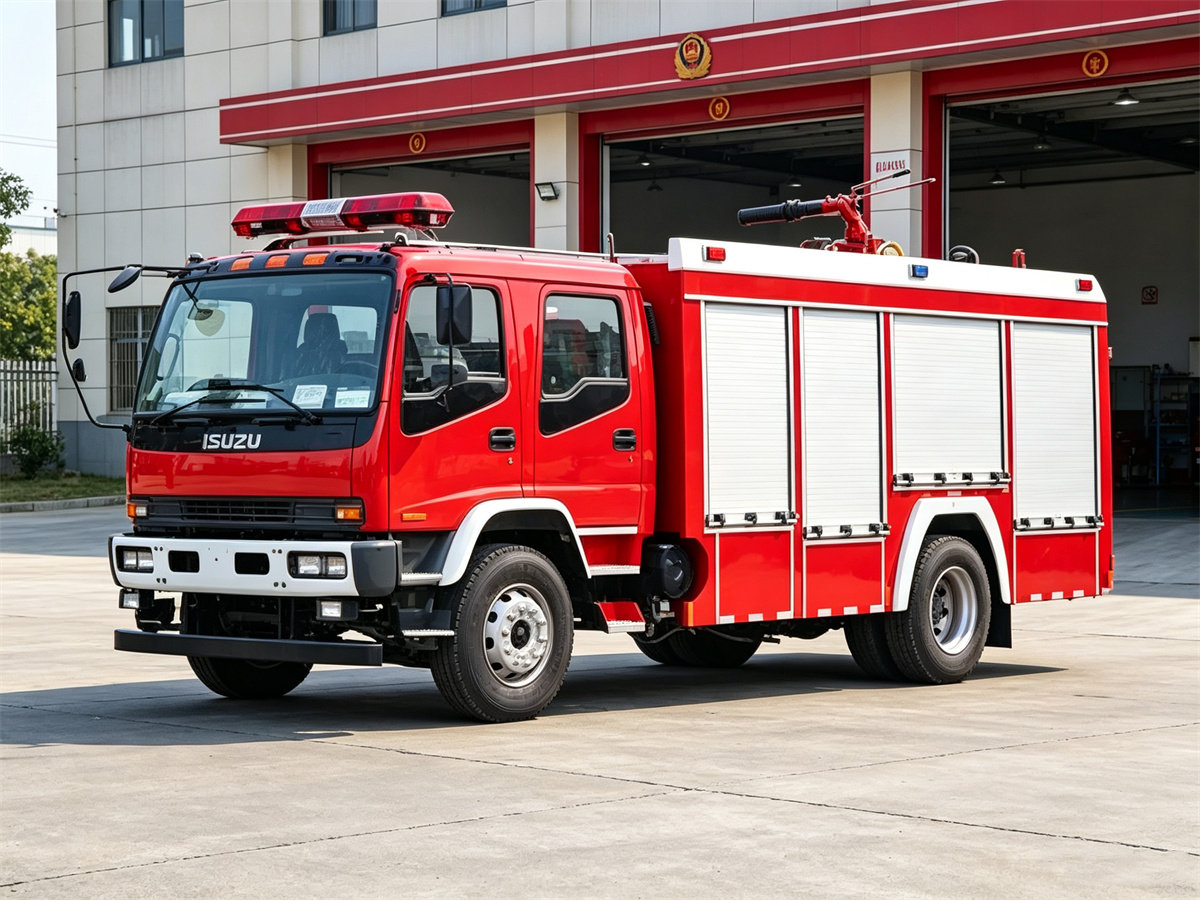

The ISUZU 6000L Water Fire Truck is a professional firefighting vehicle designed to provide rapid and dependable water-based fire suppression for municipal fire departments, industrial facilities, warehouses, workshops, construction sites, commercial properties, and other emergency-response applications. Built on the reliable ISUZU FTR chassis, this truck combines a 6,000-liter water tank with a CB10/40 fire pump and PS40 fire monitor, creating a practical firefighting platform that balances substantial water capacity, strong pumping performance, and good road mobility.

With overall dimensions of approximately 8,060×2,500×3,510mm, a 4,600mm wheelbase, and a GVW of approximately 18,000kg, the vehicle provides a stable foundation for its firefighting equipment while remaining suitable for regular road transportation. The 4×2 drive configuration and 18°/18° approach and departure angles allow the truck to operate effectively across urban roads, industrial compounds, fire stations, and emergency sites.

The truck is powered by an ISUZU 4HK1-TC50 diesel engine producing approximately 190HP and meeting the Euro 5 emission standard. With a specified maximum speed of approximately 100km/h, the vehicle can respond quickly to emergency locations while carrying its onboard firefighting water supply and equipment.

The firefighting system includes a CB10/40 fire pump with a rated capacity of 40L/s at 1.0MPa and a PS40 fire monitor with a specified range of more than 50 meters. The crew cab configuration provides seating for two front-line crew members and four rear-line crew members, allowing a complete firefighting team to travel with the vehicle.

Features of ISUZU 6000L Water Fire Truck

1. Reliable ISUZU FTR Chassis

The truck is built on an ISUZU FTR chassis, featuring a 4×2 drive configuration, a 4,600mm wheelbase, and a GVW of approximately 18,000kg, providing a strong and stable platform for the 6,000-liter water tank and firefighting equipment.

The chassis is designed for practical emergency transportation, while its 18° approach angle and 18° departure angle provide useful ground clearance and maneuverability when operating around fire scenes, industrial facilities, and municipal roads.

2. 6,000L High-Capacity Water Tank

The vehicle is equipped with a 6,000L water tank, providing a substantial onboard water reserve that allows firefighters to begin suppression immediately after arriving at an emergency location.

This capacity is particularly suitable for municipal fire departments, factories, warehouses, workshops, construction sites, and commercial properties where an external water source may not be immediately available. By carrying a significant quantity of water directly to the incident, the truck can reduce dependence on hydrants during the initial stage of firefighting.

3. 190HP ISUZU Diesel Engine

Power is provided by an ISUZU 4HK1-TC50 engine with approximately 190HP and a Euro 5 emission classification, delivering the power required for emergency transportation and operation with a substantial firefighting payload.

The diesel-powered configuration is suitable for repeated daily use as well as emergency deployment, while the 4×2 drivetrain provides a practical balance between road performance, operating efficiency, and vehicle maintenance.

4. CB10/40 Fire Pump

The truck uses a CB10/40 fire pump with a rated capacity of 40L/s at 1.0MPa, providing a strong water supply from the onboard tank to the fire monitor and hose system.

The high-flow pump allows the crew to deliver a continuous stream of water during active firefighting, making it suitable for both initial fire attack and sustained suppression operations.

5. PS40 Long-Range Fire Monitor

A PS40 fire monitor is installed as the primary high-volume water discharge device, allowing firefighters to direct water toward the fire from a safer working position.

The specified fire range is more than 50 meters, giving the vehicle useful reach when dealing with building fires, warehouse incidents, industrial fires, and other situations where maintaining distance from the fire is important.

6. Six-Person Crew Configuration

The vehicle features a practical crew arrangement with 2 front-line crew members and 4 rear-line crew members, allowing up to six firefighters to travel with the truck.

This configuration enables the firefighting team to arrive together with the vehicle and its equipment, helping reduce preparation time at the emergency scene and allowing personnel to quickly establish hoses, operate the pump, and control the fire monitor.

7. Fast Emergency Response

The ISUZU 6000L Water Fire Truck has a specified maximum speed of approximately 100km/h, allowing it to travel quickly from the fire station to emergency locations.

The combination of the ISUZU FTR chassis, 190HP engine, 4×2 drivetrain, and heavy-duty firefighting body provides a practical balance between emergency response speed and water-carrying capacity, making the truck suitable for both urban and industrial firefighting duties.

8. Essential Firefighting Accessories

The truck is supplied with a range of basic firefighting accessories, including suction hoses, water hoses, direct spray nozzles, and fire extinguishers, providing the crew with additional equipment for localized fire suppression and water delivery.

These accessories complement the main pump and monitor system, allowing firefighters to select an appropriate method according to the size and location of the fire.

9. ABS and Heavy-Duty Tire Configuration

The chassis is equipped with ABS, providing additional braking control during emergency transportation, while the 11.00-20 tire configuration is designed to support the vehicle’s substantial operating weight.

The combination of ABS, heavy-duty tires, power from the ISUZU engine, and the stable FTR chassis provides a dependable platform for emergency response under demanding operating conditions.

10. Complete Documentation Package

The ISUZU 6000L Water Fire Truck is supplied with a comprehensive set of documentation, including the chassis operation manual, chassis maintenance manual, chassis guarantee, chassis certification, tool kit list, engine number, VIN number, fire truck manual, accessories list, fire truck certification, service card, and receipt list.

This documentation provides operators and fleet managers with the information required for proper vehicle operation, scheduled maintenance, equipment management, and long-term service support.

11. Suitable for Municipal and Industrial Firefighting

Combining a 6,000L water capacity, 40L/s fire pump, PS40 fire monitor, 190HP ISUZU engine, and six-person crew configuration, the ISUZU 6000L Water Fire Truck offers a versatile solution for organizations requiring a dependable water fire engine with professional firefighting equipment.

It is particularly well suited to municipal fire departments, factories, warehouses, workshops, logistics facilities, construction sites, commercial buildings, and industrial properties, where fast response, reliable water delivery, and practical firefighting capability are essential.

Specifications

ITEM	VALUE
Chassis Model Line	FTR
Chassis Manufacture	ISUZU
Overall Size	806025003510mm
Water Tank Capacity	6000L
GVW	18000KG
Wheelbase	4600mm
Cabin	Day Cab
Approach/Departure Angle	18°/18°
Front line Crew	2nos
Rear Line Crew	4nos
ABS	Equipped
Fire Monitor	PS40
Fire Pump	CB10/40
Tire Nos.	11.00-20
Fire Range	>50m
Pump Capacity	40L/S @1.0Mpa
Engine – Model Number	4HK1-TC50
Engine – Make	ISUZU
Engine – Emission Class Level	Euro 5
Engine – Drive Mode	4×2
Engine – Fuel Type	Diesel
Chassis Truck – Model Number	QL1180VMFRY
Chassis Truck – Axle Numbers	2
Chassis Truck – Tire Size	11.00-20
Chassis Truck – Max.Speed	100km/h
Chassis Truck – Wheelbase	4600mm
Chassis Truck – Manufacture	ISUZU
Chassis Truck – Engine Power	190hp
Chassis Truck – GVW	18000kg
Documents	Chassis Operation Manual, Chassis Maintenance Manual, Chassis Guarantee, Chassis Certification, Tool Kits List, Engine Number, VIN Number, Fire Truck Manual, Fire Truck Accessories List, Fire Truck Certification, Service Card, Receipt list
Accessories – Suction Hose
Accessories – Water Hose
Accessories – Direct Spray Nozzle
Accessories – Extinguishers
