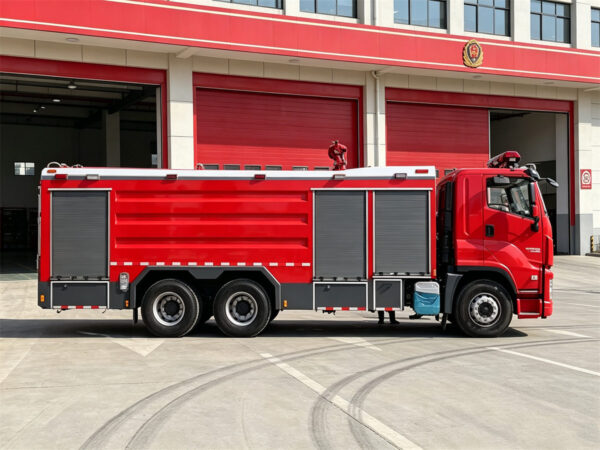

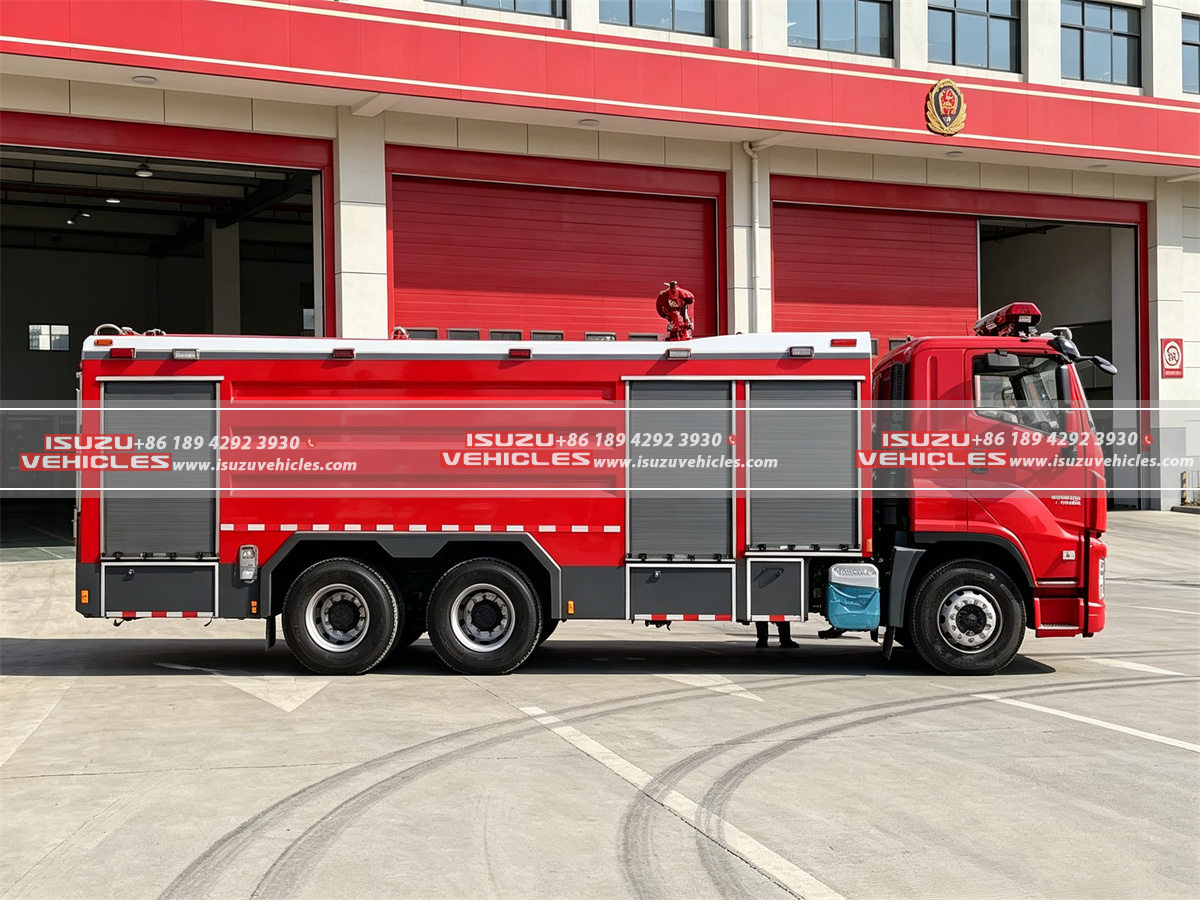

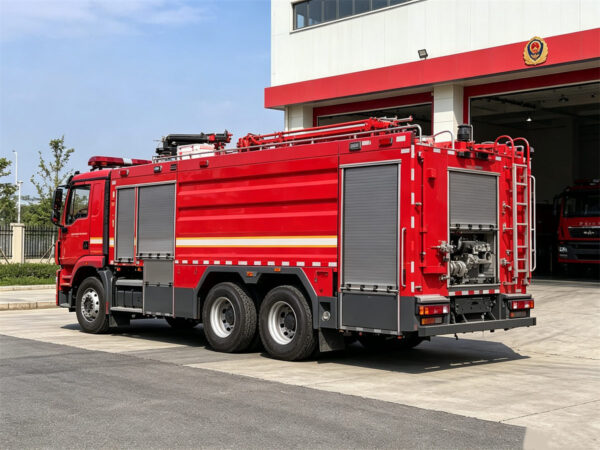

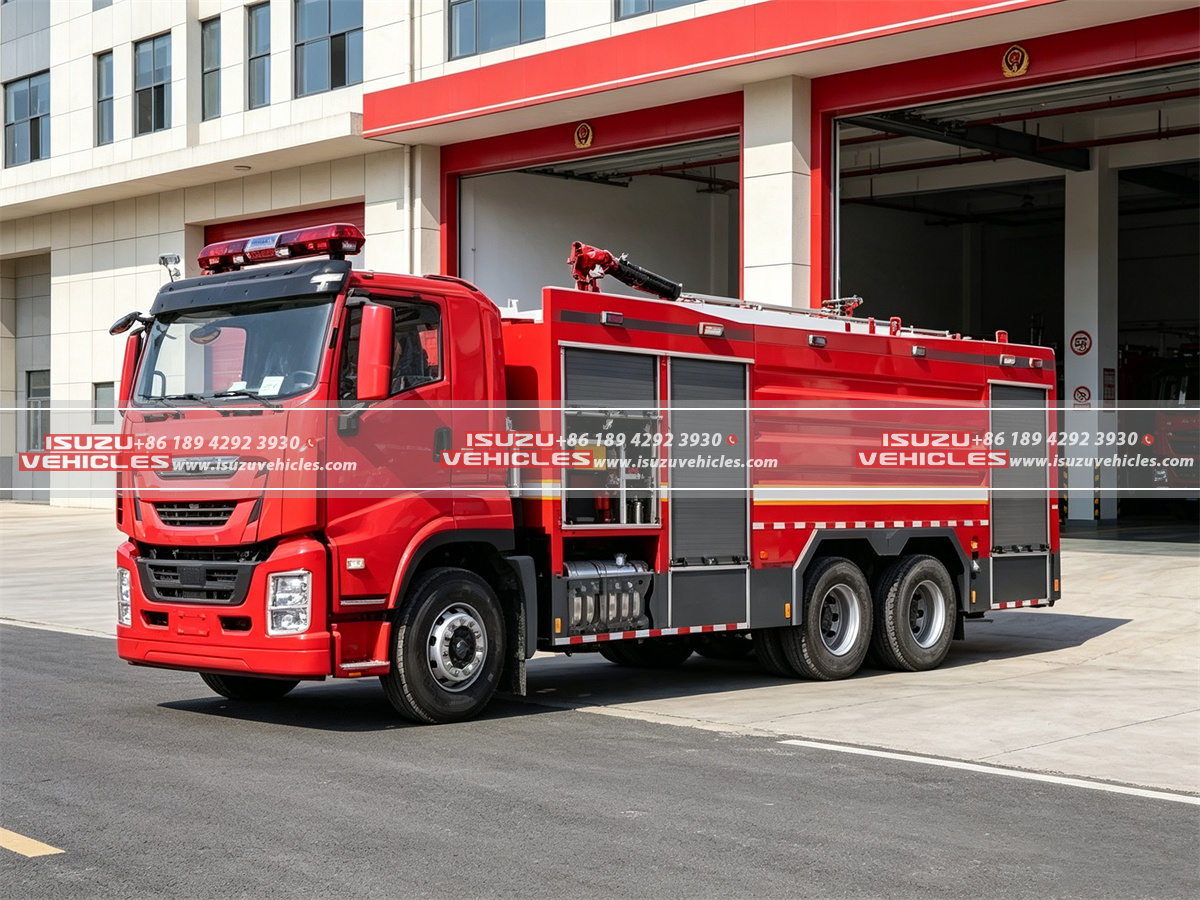

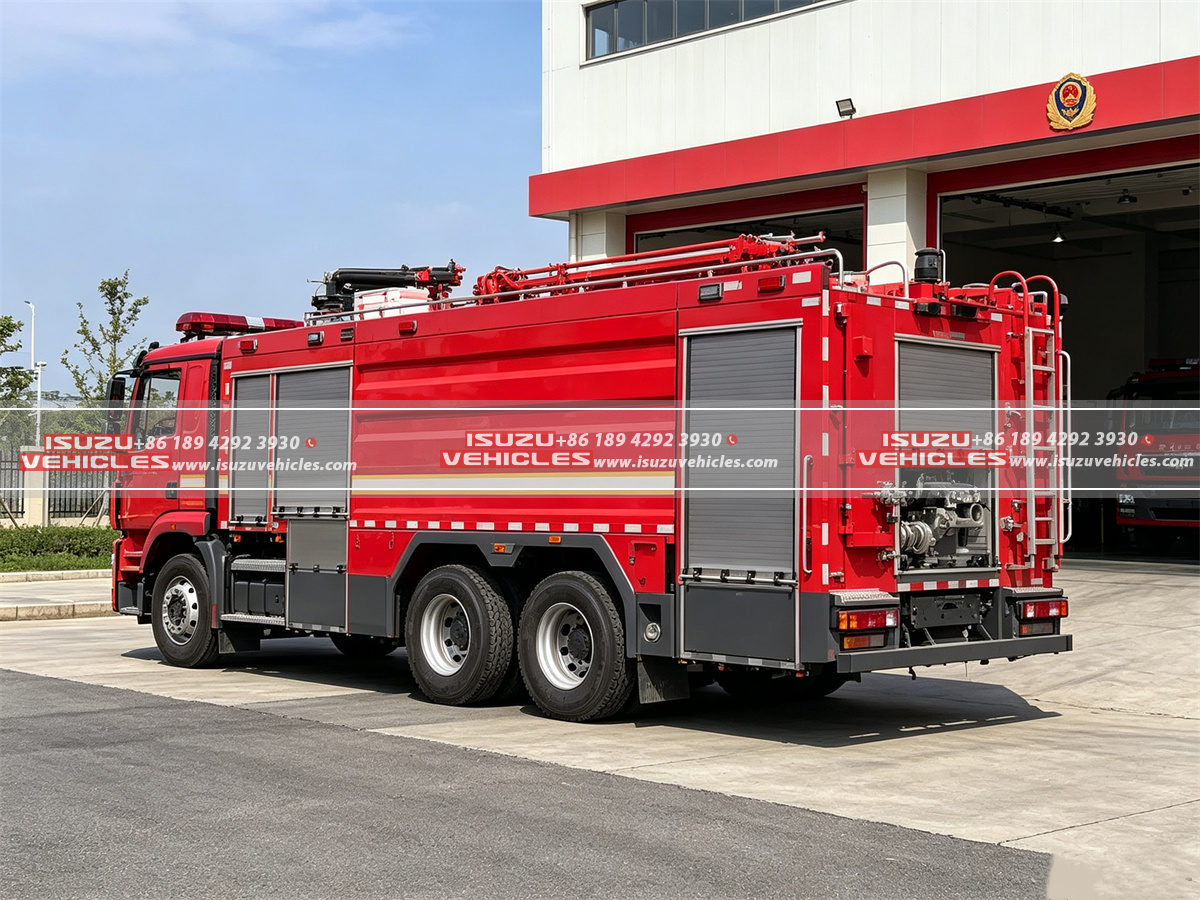

ISUZU 16000L GIGA Water Fire Truck

ISUZU 16000L GIGA Water Fire Truck

The ISUZU 16000L GIGA Water Fire Truck is a heavy-duty firefighting vehicle developed for municipal fire departments, industrial facilities, warehouses, logistics parks, large construction sites, and other applications where a high-capacity water supply and powerful long-range firefighting performance are required. Built on the robust ISUZU GIGA 6×4 chassis, the truck combines a 16,000-liter water tank with a professional fire pump and monitor system, providing strong water delivery capability while maintaining the road performance and structural stability expected from a heavy-duty emergency vehicle.

The vehicle measures approximately 9,760×2,500×3,550mm, with a wheelbase of 4,560+1,370mm and a GVW of approximately 34,000kg. Its three-axle 6×4 configuration, 10 tires plus a spare configuration, ABS, and 18°/18° approach and departure angles provide a solid foundation for carrying the large water tank and operating reliably at emergency scenes.

Power comes from an ISUZU 6UZ1-TCG50 diesel engine producing approximately 380HP and meeting Euro 5 emission requirements. With a maximum driving speed of approximately 105km/h, the truck can travel quickly between the fire station and emergency locations, while its crew cab provides seating for firefighting personnel, including two crew members in the front and four additional crew members in the rear.

The firefighting system features a CB10/60 fire pump with a rated capacity of 60L/s and a PS50 fire monitor capable of achieving a firefighting range of more than 60 meters. Together with the 16,000L water capacity, this configuration provides firefighters with a substantial water reserve and a powerful continuous stream for suppressing fires over a considerable working distance.

Features

1. Heavy-Duty ISUZU GIGA 6×4 Chassis

The truck is built on an ISUZU GIGA QL5340GXFU2SDZY chassis, featuring a 6×4 drive configuration and three axles, making it well suited to the high operating weight associated with a 16,000-liter water tank and professional firefighting equipment.

With a GVW of approximately 34,000kg, a 4,560+1,370mm wheelbase, and 10 tires in 11.00-20 specification, the chassis provides the load-bearing capacity and road stability required for large-scale firefighting operations. ABS is also equipped to provide additional braking control during emergency driving.

2. 16,000L High-Capacity Water Tank

The truck’s most prominent feature is its 16,000L water tank, which provides a large onboard water reserve for extended firefighting operations, particularly in areas where hydrants or other external water sources may be limited or unavailable.

The large tank capacity allows the vehicle to maintain firefighting operations for longer periods before refilling, making it especially suitable for industrial plants, warehouses, fuel storage areas, ports, logistics centers, and large commercial facilities where substantial quantities of water may be required.

3. Powerful 380HP ISUZU Engine

The vehicle is powered by an ISUZU 6UZ1-TCG50 engine with approximately 380HP and a Euro 5 emission classification, providing the substantial output required to move the fully equipped firefighting vehicle while maintaining practical emergency-response performance.

The diesel powertrain is particularly suitable for heavy-duty applications where the vehicle may need to travel long distances, climb gradients, carry a high payload, and operate repeatedly under demanding emergency conditions.

4. CB10/60 High-Flow Fire Pump

The firefighting system uses a CB10/60 fire pump with a rated capacity of approximately 60L/s, providing a strong and continuous water supply to the firefighting monitor and associated water delivery equipment.

The high-flow pump is designed to support intensive firefighting operations by transferring large quantities of water from the tank to the discharge system, allowing the crew to maintain an effective firefighting stream during extended emergency response.

5. PS50 Long-Range Fire Monitor

A PS50 fire monitor is installed on the vehicle to provide long-distance water delivery during firefighting operations, with a specified firefighting range of more than 60 meters.

The monitor allows firefighters to attack flames from a safer distance while maintaining a concentrated water stream, making it particularly useful for large open-area fires, industrial fires, warehouse incidents, and other situations where personnel may need to remain away from the immediate fire front.

6. Six-Person Crew Cab

The ISUZU vehicle is equipped with a practical ISUZU GIGA crew cab designed to transport the firefighting team together with the equipment required for emergency operations. The configuration provides space for two front-line crew members and four rear-line crew members, allowing up to six firefighters to travel on the vehicle.

This arrangement reduces the need for a separate personnel vehicle in many standard response situations and enables the crew to arrive at the incident together with the main firefighting equipment.

7. High-Speed Emergency Response

Despite its large water capacity and heavy-duty configuration, the truck has a specified maximum driving speed of approximately 105km/h, allowing it to respond quickly to emergencies across urban roads, highways, industrial areas, and other locations.

The combination of the 6×4 chassis, 380HP engine, ABS, and heavy-duty tire configuration provides a balanced platform for emergency transportation while carrying a substantial quantity of firefighting water.

8. Professional Firefighting Accessories

In addition to the main pump and monitor system, the truck is supplied with a range of practical firefighting accessories, including suction hoses, water hoses, direct spray nozzles, and fire extinguishers, allowing the crew to select appropriate equipment according to the specific requirements of the incident.

The supplied equipment can support both the main monitor operation and localized firefighting tasks, giving the crew greater flexibility when dealing with different fire conditions.

9. Complete Documentation and Service Support

The vehicle is supplied with a comprehensive documentation package covering both the chassis and firefighting equipment, including the chassis operation manual, chassis maintenance manual, chassis guarantee, chassis certification, engine number and VIN information, as well as the fire truck manual, accessories list, fire truck certification, and service card.

This documentation helps operators understand the vehicle’s operating procedures, maintenance requirements, equipment configuration, and service information, supporting more systematic management throughout the truck’s working life.

10. Designed for Large-Scale Firefighting Operations

With its combination of a 16,000L water capacity, 60L/s fire pump, more-than-60-meter monitor range, 380HP ISUZU engine, and 6×4 heavy-duty chassis, the ISUZU 16000L GIGA Water Fire Truck provides a strong solution for firefighting departments that need high-capacity water transportation together with professional fire suppression equipment.

The vehicle is particularly well suited to municipal fire departments, industrial firefighting teams, petrochemical facilities, warehouses, ports, logistics parks, factories, and large commercial properties, where rapid response, substantial water reserves, and reliable long-range firefighting performance are essential.

Specifications

ITEM	VALUE
Description	ISUZU GIGA Water Fire Engine(16000 Liters)
Chassis Model	LineGIGA
Chassis Manufacturer	ISUZU
Overall Size (LxWxH)	9,760×2,500×3,550mm
Water Tank Capacity	16,000L
GvW	34,000kg
Wheelbase	4,560mm+1,370mm
Cabin	Crew Cab
Approach/Departure Angle	18°/18°
ABS	Equipped
Front line Crew	2 nos
Rear Line Crew	4 nos
Fire Pump – Model	CB10/60
Fire Pump – Capacity	60L/S
Fire Monitor	Ps50
Fire Range	>60m
Engine – Model Number	6UZ1-TCG50
Engine – Make	ISUZU
Engine – Emission Class Level	Euro 5
Engine – Fuel Type	Diesel
Drive Mode	6×4
Chassis Truck – Model Number	QL5340GXFU2SDZY
Chassis Truck – Axle Numbers	3
Chassis Truck – Tire Numbers	10(11.00-20)
Chassis Truck – Max. Driving Speed	105km/h
Chassis Truck – Manufacturer	ISUZU
Engine Power	380hp
Documents	Chassis Operation Manual, Chassis Maintenance Manual, Chassis Guarantee, Chassis Certification, Tool Kits List, Engine Number, VIN Number, Fire Truck Manual, Fire Truck Accessories List, Fire Truck Certification, Service Card, Receipt list
Accessories – Suction Hose	pcs
Accessories – Water Hose	set
Accessories – Direct Spray Nozzle	pcs
Accessories – Extinguishers	pcs
