ISUZU Water Fire Emergency Truck
Professional Municipal Firefighting and Emergency Rescue Vehicle
The ISUZU Water Fire Emergency Truck is a compact and highly maneuverable firefighting vehicle specially engineered for rapid emergency response, urban fire suppression, industrial safety operations, residential firefighting, and municipal rescue missions, while combining the legendary durability of ISUZU Vehicles with practical water firefighting systems, reliable rescue equipment storage, and excellent operational flexibility for modern fire departments and emergency rescue teams.
Designed with a practical double-row crew cabin, integrated firefighting equipment compartments, and a high-performance water pumping system, this emergency fire truck is particularly suitable for city streets, residential communities, industrial parks, schools, warehouses, airports, and commercial districts where rapid deployment and reliable firefighting capability are essential. The compact structure visible in the vehicle design allows smooth operation in narrow roads and crowded urban environments while still providing sufficient firefighting equipment and water carrying capacity for first-response emergency operations.
Compact ISUZU Fire Rescue Platform with Excellent Urban Mobility
Built on the reliable ISUZU 4×2 fire rescue chassis, this water fire emergency truck combines compact dimensions with stable handling, making it well-suited for urban firefighting and municipal emergency rescue operations that require fast maneuverability and flexible deployment.

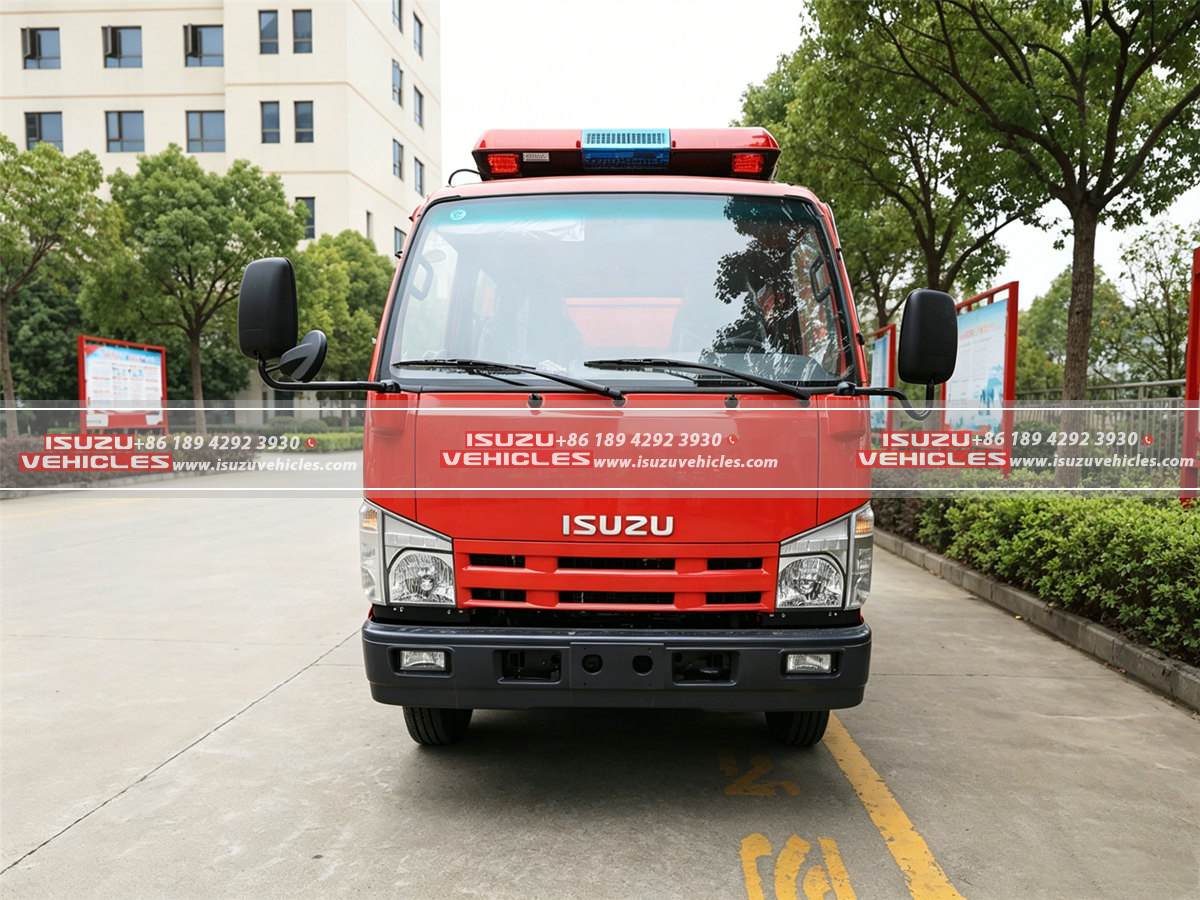

The truck features a practical double-row firefighting cabin that comfortably accommodates firefighters and rescue personnel during emergency dispatch operations, while the large windshield and wide-angle rearview mirrors enhance visibility and operational safety during high-speed emergency response situations.

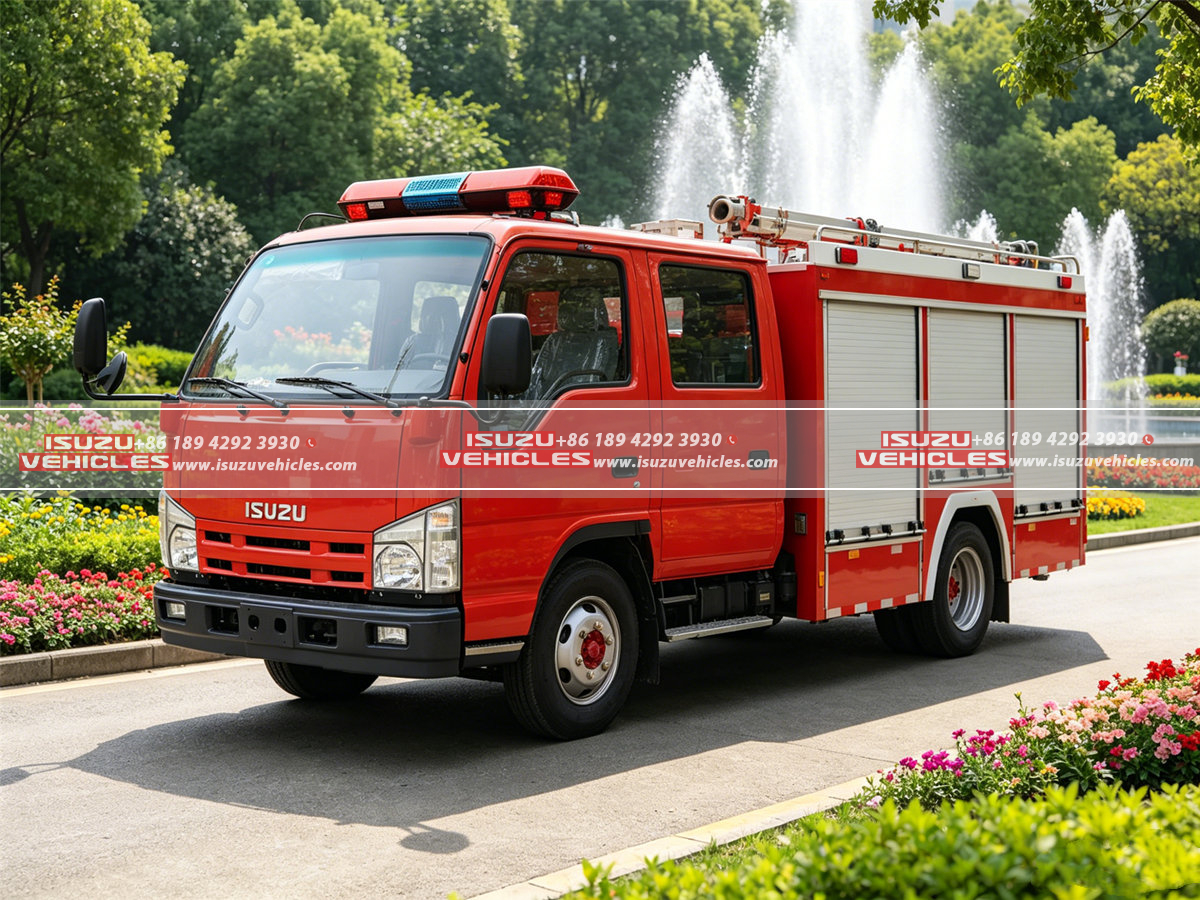

The vehicle exterior features a professional firefighting design finished in bright emergency rescue red paint together with integrated warning lights, emergency sirens, side roller shutter equipment compartments, and roof-mounted firefighting accessories, giving the truck both strong operational practicality and a highly recognizable emergency service appearance.
Reliable ISUZU Diesel Power System
The truck is powered by the dependable ISUZU 4HK1-TCG61 turbocharged diesel engine, delivering stable power output, excellent fuel efficiency, and long-term operational reliability under demanding firefighting conditions.
Combined with an advanced manual transmission system and reinforced chassis suspension, the vehicle ensures smooth driving performance, strong carrying capability, and excellent road stability during emergency rescue deployment.
Technical Specifications
Chassis Specifications
General Vehicle Parameters
| Item | Specification |
|---|---|
| Vehicle Type | ISUZU Water Fire Emergency Truck |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimensions | 6,850 × 2,250 × 3,050 mm |
| Gross Vehicle Weight (GVW) | 9,500 kg |
| Curb Weight | 5,800 kg |
| Wheelbase | 3,815 mm |
| Maximum Speed | 95 km/h |
| Minimum Turning Radius | ≤7.5 m |
| Cabin Type | Double Row Firefighter Cabin |
| Crew Capacity | 2 + 4 persons |
| Tire Specification | 8.25R20 radial tires |
| Tire Quantity | 6 + 1 spare tire |
Engine and Transmission
| Item | Specification |
|---|---|
| Engine Model | ISUZU 4HK1-TCG61 |
| Engine Type | Inline 4-cylinder turbocharged diesel |
| Horsepower | 190 HP |
| Maximum Power | 139 kW |
| Emission Standard | Euro V |
| Maximum Torque | 510 N·m |
| Transmission | ISUZU MLD 6-speed manual |
| Gearbox Configuration | 6 Forward + 1 Reverse |
| Fuel Tank Capacity | 120 L |
Water Tank and Firefighting System
High-Efficiency Fire Suppression Capability
The ISUZU Water Fire Emergency Truck is equipped with a high-capacity firefighting water system specifically designed for rapid municipal fire suppression and emergency rescue operations, enabling firefighters to respond effectively to residential fires, warehouse incidents, factory emergencies, and commercial building fire hazards.
Water Tank Specifications
| Item | Specification |
|---|---|
| Water Tank Capacity | 3,000 Liters |
| Tank Material | High-quality carbon steel with anti-corrosion coating |
| Internal Structure | Anti-wave baffle design |
| Tank Shape | Integrated rectangular structure |
| Tank Access | Top maintenance manhole |
| Drainage System | Rear quick-drain valve |
The integrated anti-wave structure significantly improves driving stability during emergency movement while minimizing water surge impact during sudden braking or rapid cornering.
Fire Pump System
| Item | Specification |
|---|---|
| Fire Pump Model | CB10/30 Fire Pump |
| Maximum Flow Rate | 30 L/s |
| Rated Working Pressure | 1.0 MPa |
| Suction Depth | 7 m |
| Priming Time | ≤35 seconds |
| Pump Installation | Rear-mounted |
The high-efficiency fire pump delivers stable water pressure and continuous firefighting performance for rapid emergency suppression operations.
Fire Monitor and Waterway System
Long-Distance Water Spraying Performance
The roof-mounted fire monitor provides stable and powerful firefighting capability suitable for urban firefighting, industrial safety operations, and emergency cooling tasks.
| Item | Specification |
|---|---|
| Fire Monitor Model | PS30 Water Monitor |
| Maximum Water Flow | 30 L/s |
| Water Jet Distance | ≥50 m |
| Horizontal Rotation | 360° |
| Pitch Angle | -30° to +70° |
| Operation Type | Manual control |
The monitor system enables firefighters to conduct long-range firefighting operations while maintaining safe working distances from hazardous fire environments.
Waterway Connections
| Item | Specification |
|---|---|
| Water Suction Port | 2 × DN100 |
| Water Inlet | 2 × DN65 |
| Water Outlet | 2 × DN65 |
| Hose Type | High-pressure fire hose |
| Hose Storage | Side compartment storage |
Emergency Rescue and Equipment System
Multi-Functional Rescue Equipment Compartments
The side-mounted aluminum alloy roller shutter compartments provide organized storage space for firefighting tools, rescue equipment, emergency medical kits, hydraulic rescue devices, and protective firefighting accessories.
Standard Firefighting Equipment
The vehicle can be equipped with:
- Fire hoses
- Water nozzles
- Fire extinguishers
- Fire axes
- Safety helmets
- Breathing apparatus
- Emergency lighting
- Hydraulic rescue tools
- Fire hydrant wrenches
- Portable ladders
- Protective firefighting suits
The compartment layout is designed for fast equipment access during emergency rescue operations, significantly improving firefighter working efficiency under critical conditions.
Electrical and Warning System
Advanced Emergency Warning Configuration
The truck is equipped with a professional emergency warning system to improve operational safety and emergency visibility during firefighting deployment.
| Item | Specification |
|---|---|
| Warning Light Bar | LED Red/Blue Emergency Light |
| Alarm System | Electronic siren system |
| Auxiliary Lighting | Side and rear working lights |
| Electrical Voltage | 24V |
| Battery System | 2 × 12V maintenance-free batteries |
| Reverse Camera | Equipped |
| Cabin Air Conditioning | Equipped |
The integrated warning system ensures clear visibility and effective traffic warning capability during both daytime and nighttime emergency operations.
Operational Advantages of the ISUZU Water Fire Emergency Truck
Reliable Solution for Municipal Fire Departments
The ISUZU Water Fire Emergency Truck combines compact dimensions, dependable ISUZU chassis technology, practical firefighting equipment integration, efficient water delivery performance, and flexible rescue capability into a highly practical emergency response vehicle suitable for modern firefighting and municipal rescue applications.
With its reliable diesel powertrain, professional firefighting systems, rapid-response maneuverability, and organized rescue equipment storage design, this fire emergency truck provides municipal fire brigades, industrial emergency teams, airport rescue departments, and community safety organizations with a durable and efficient firefighting solution capable of handling daily emergency rescue missions with confidence and operational efficiency.
