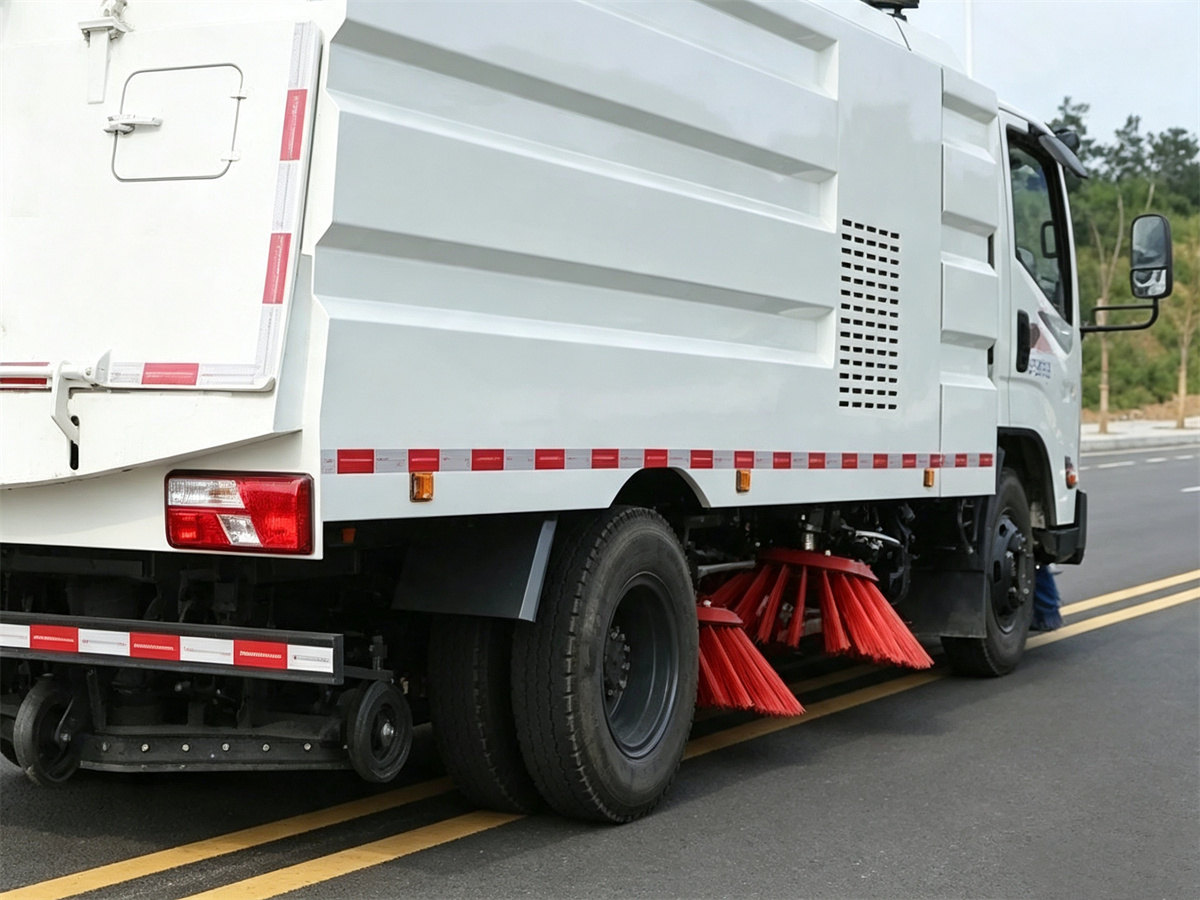

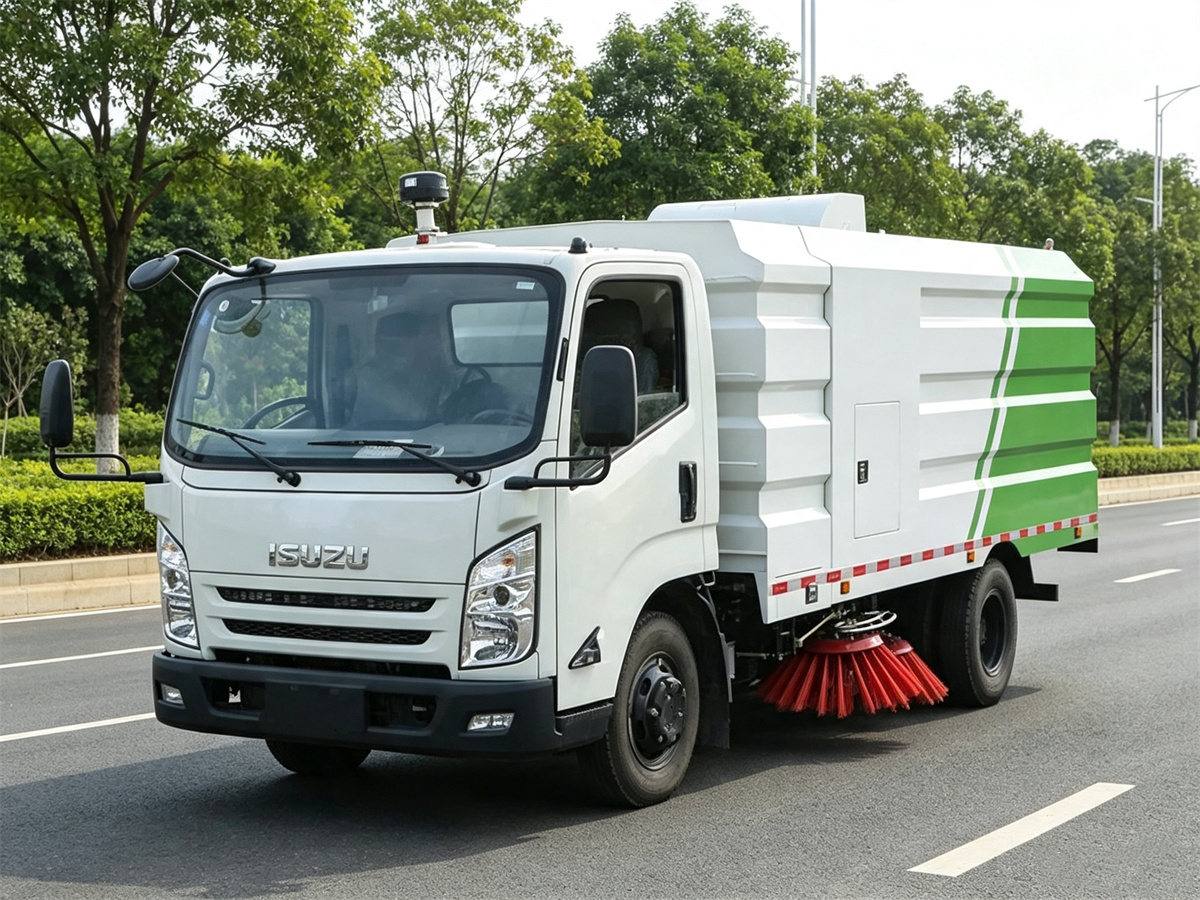

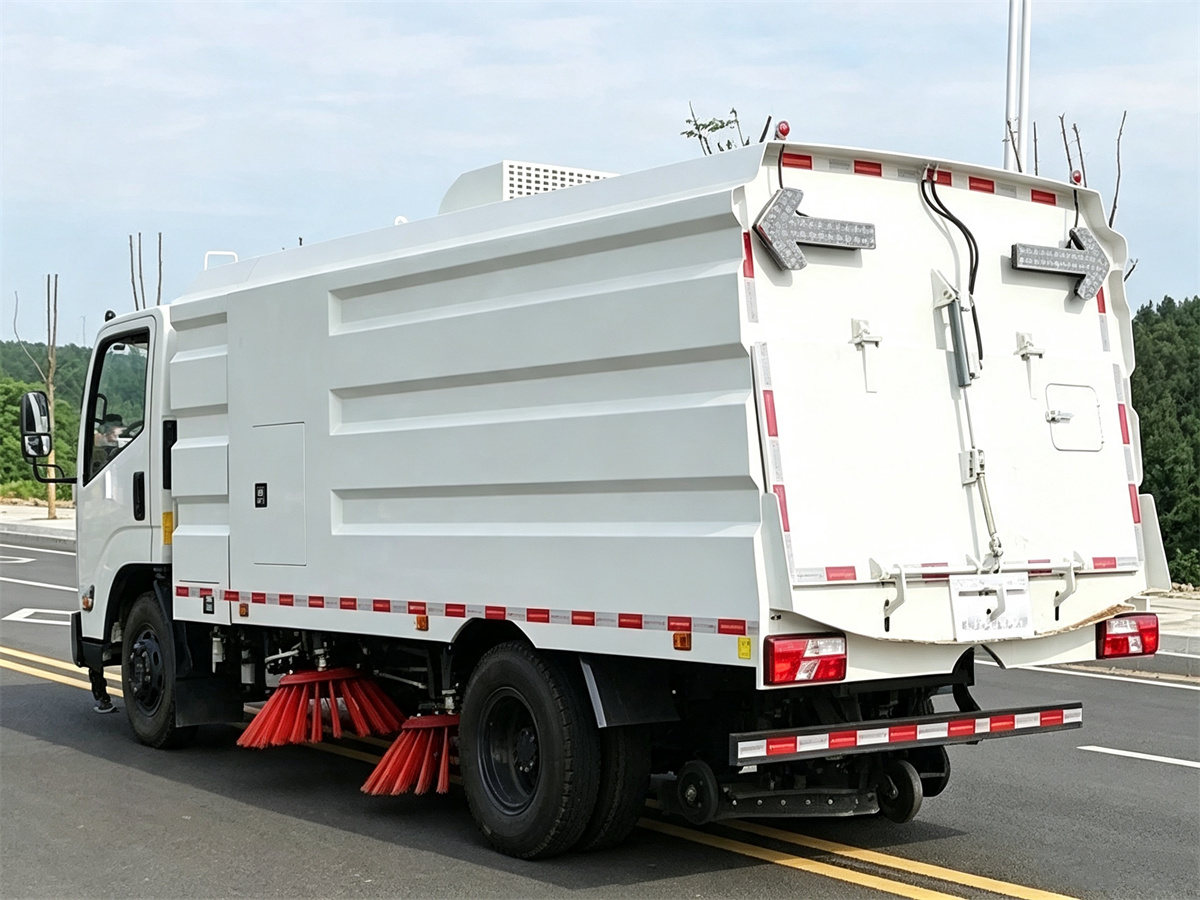

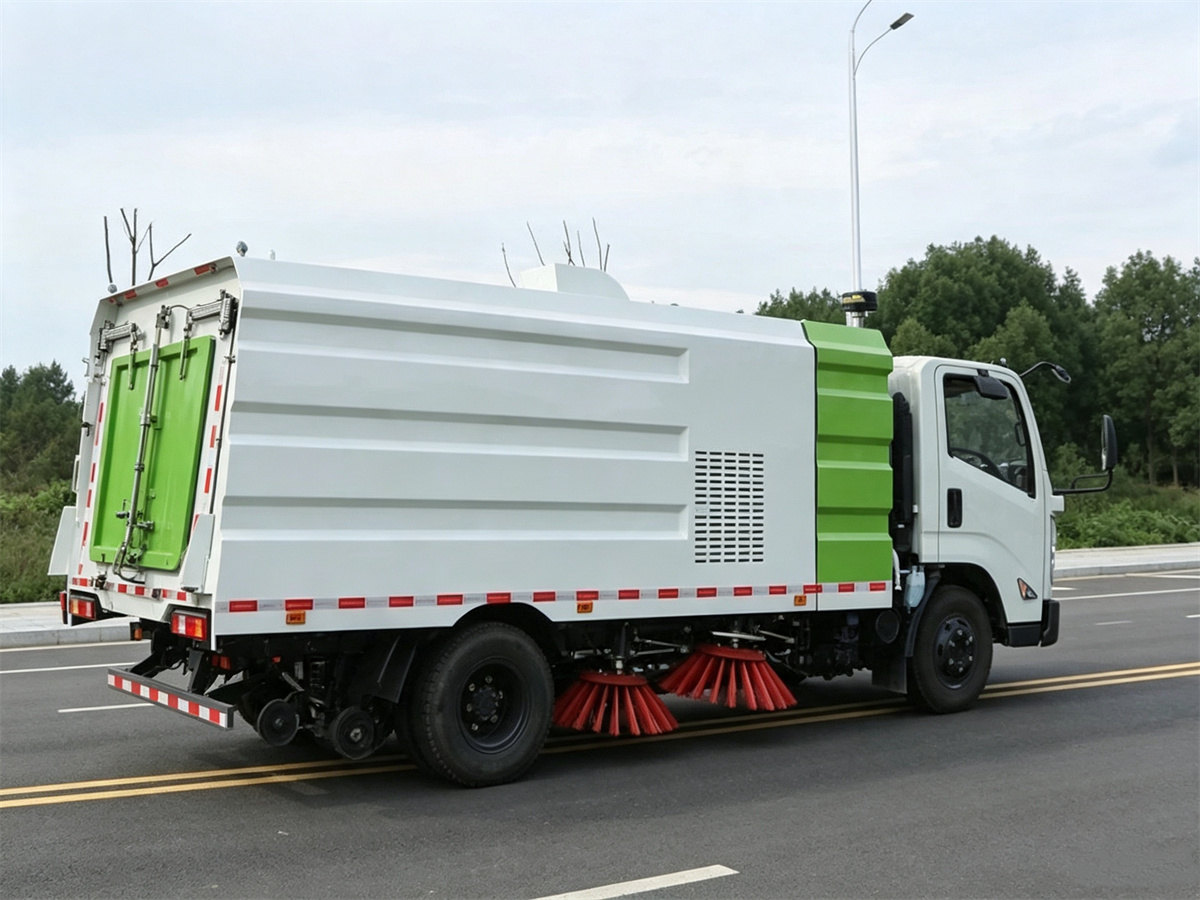

ISUZU 9 CBM Dust Sweeping Truck
The ISUZU 9 CBM Dust Sweeping Truck is a professional road cleaning vehicle designed for efficient urban sanitation, highway maintenance, industrial area cleaning, and environmental protection operations. Built on a durable ISUZU 4×2 chassis, this sweeper truck integrates powerful driving performance, advanced dust collection technology, and large-capacity stainless steel tanks to provide reliable cleaning solutions for various road conditions.
The vehicle adopts an ISUZU 152HP diesel engine featuring a 4-stroke direct injection system, 4-cylinder in-line structure, turbocharging, and intercooler technology, providing strong power output and stable operation. The engine has a displacement of 3,550ml and is matched with a 5-speed forward and 1-speed reverse manual gearbox, ensuring smooth transmission and convenient operation during daily cleaning tasks.
Equipped with a 7 CBM stainless steel 304 dust tank and a 2 CBM stainless steel 304 water tank, the ISUZU street sweeper truck provides excellent cleaning endurance while maintaining high resistance against corrosion and wear. The large dust storage capacity reduces unloading frequency, allowing operators to complete more cleaning tasks efficiently.
With a maximum sweeping width of 3 meters, a maximum cleaning capacity of 40,000 m²/h, and an adjustable sweeping speed of 3-20 km/h, this dust sweeping truck can effectively remove dust, sand, leaves, and road debris from different surfaces. The vehicle is equipped with two sweeping brushes, a powerful suction system, electronic water pump, and maintenance-free centrifugal fan, creating an efficient cleaning process with strong suction performance.
The overall dimensions of the truck are 6,830×2,220×2,650mm, with a gross vehicle weight of 9,000kg and a compact body design that provides excellent maneuverability in urban streets, residential areas, parking lots, and industrial zones. The ISUZU 9 CBM Dust Sweeping Truck is an ideal choice for municipalities, sanitation companies, and contractors looking for a reliable and efficient cleaning vehicle.
Features
1. Reliable ISUZU 4×2 Chassis with ISUZU Power System
The ISUZU chassis provides a strong and stable platform for professional road cleaning applications, featuring excellent durability, easy maintenance, and reliable performance. The truck adopts a 4×2 drive system with a wheelbase of 3,815mm, ensuring good handling performance while maintaining sufficient load capacity.
Powered by an ISUZU 152HP engine, the vehicle delivers dependable power for both transportation and cleaning operations. The turbocharged intercooler diesel engine improves combustion efficiency, while the ABS-equipped braking system and power steering system enhance driving safety and operational comfort.
The cabin features a single-row design with air conditioning and provides seating for two passengers, creating a comfortable working environment for drivers during long cleaning shifts.
2. Large Stainless Steel Dust and Water Tank Configuration
The vehicle is equipped with a 7 CBM stainless steel dust tank and a 2 CBM stainless steel water tank, offering an efficient combination of debris collection and dust suppression functions. The stainless steel 304 material provides excellent corrosion resistance, helping the tanks maintain long-term durability even under frequent exposure to water and collected waste.
The large-capacity dust tank allows the truck to operate for longer periods before unloading, while the water tank supports continuous spraying operations to reduce airborne dust during sweeping. This integrated design improves cleaning efficiency and creates a cleaner working environment.
3. High-Efficiency Sweeping and Suction Performance
The ISUZU 9 CBM Sweeper Truck is equipped with two sweeping brushes positioned on both sides, allowing a maximum sweeping width of 3 meters and improving cleaning coverage during operation. The advanced suction system, rear suction device, vacuum tube, and maintenance-free centrifugal fan work together to collect road debris quickly and effectively.
The vehicle can achieve a maximum cleaning capacity of 40,000 m²/h, making it suitable for large-scale cleaning projects such as city roads, highways, industrial parks, airports, and public areas. The adjustable sweeping speed from 3-20 km/h allows operators to select the proper working mode according to different road conditions.
4. Advanced Auxiliary Engine and Cleaning System
The truck is equipped with an independent ISUZU auxiliary engine rated at 57kW/78HP, which provides dedicated power for the sweeping and suction equipment. This design allows the cleaning system to operate efficiently without placing excessive load on the main engine, improving fuel economy and extending component service life.
The vehicle also features a HIP-SD-7 electromagnetic valve set, continuously variable speed automatic clutch, and electronic water pump system. These components ensure smooth control of sweeping operations, water spraying, and suction functions, improving overall reliability and working efficiency.
5. Intelligent Control and Convenient Operation
The dust sweeping truck adopts high-quality control components, including a German Schneider control switch, hydraulic control system, and electronic operating system, allowing drivers to manage cleaning functions conveniently.
The hydraulic system controls important functions such as the lifting of the control box and opening of the rear door, making maintenance and garbage unloading operations easier. The rear LED arrow lights improve road safety by providing clear warnings during cleaning operations, especially when working on busy roads.
6. Effective Dust Suppression and Environmental Protection Design
The integrated water spraying system uses an electronic water pump and spray nozzles to effectively reduce dust during sweeping operations. The manual pump emergency system provides additional reliability when required, ensuring continuous operation under different working conditions.
By combining sweeping, suction, and water spraying functions, the ISUZU Dust Sweeper Truck helps reduce airborne particles and improve urban air quality, making it suitable for modern environmental sanitation requirements.
7. Flexible Optional Configurations for Different Applications
The standard configuration includes the ISUZU chassis, ISUZU engine, stainless steel dust tank, stainless steel water tank, auxiliary engine, sweeping brushes, centrifugal fan, suction device, hydraulic system, LED warning lights, and operation manual.
To meet different customer requirements, optional equipment is available, including front flushing system, rear sprinkler, side sprayer, dust tank self-cleaning function, hose reel with water gun, fog cannon, reversing image monitoring system, snow shovel, and aerial work platform.
These flexible configurations allow the ISUZU 9 CBM Dust Sweeping Truck to be customized for various applications, including municipal cleaning, road maintenance, winter snow removal, dust control projects, and industrial environmental management.
Specifications
| Parameter | Specification |
|---|---|
| Overall Dimensions (L×W×H) | 6,830 × 2,220 × 2,650 mm |
| Gross Vehicle Weight (GVW) | 9,000 kg |
| Curb Weight | 2,800 kg |
| Chassis Brand | ISUZU |
| Drive Configuration | 4×2 |
| Cabin & Seating | Single row, Left-Hand Drive (LHD), air-conditioned, 2 passengers |
| Main Engine Model | ISUZU |
| Main Engine Power | 112 kW / 152 HP |
| Engine Type | 4-stroke, direct injection, 4-cylinder inline, turbocharged intercooler, equipped with ABS |
| Engine Displacement | 3,550 ml |
| Emission Standard | Euro 3 |
| Fuel Type | Diesel |
| Transmission | 5-speed forward + 1 reverse, manual |
| Steering System | Power-assisted steering |
| Brake System | Oil brake |
| Wheelbase | 3,815 mm |
| Front / Rear Axle Loading | 3,500 kg / 5,000 kg |
| Suspension | Mechanical leaf spring (11 / 9+7 configuration) |
| Tire Specification | 7.50R16 steel wire, 6 tires + 1 spare |
| Sweeping Speed | 3 – 20 km/h |
| Auxiliary Engine Model | ISUZU |
| Auxiliary Engine Power | 57 kW / 78 HP |
| Maximum Sweep Width | 3 m |
| Maximum Cleaning Capacity | 40,000 m²/h |
| Water Tank Volume | 2 m³ |
| Dust Tank Volume | 7 m³ |
| Tank Material | Stainless Steel 304 |
| Standard Configuration | • 2 sweeping brushes per side • Sanyo Motor drive • HIP-SD-7 electromagnetic valve set • Continuously variable speed automatic clutch • German Schneider control switches • Maintenance-free centrifugal fan, vacuum tube & rear suction device • Electronic water pump (dust suppression) + manual pump emergency system • Hydraulic system (control box lift & rear door open) • Rear LED arrow lights • 1× User operation manual |
| Optional Configuration | Front flush system, rear sprinkler, side sprayer, dust tank self-cleaning function, hose reel with water gun, fog cannon, reversing camera, snow plow attachment, aerial work platform, custom exterior paint colors |
