ISUZU 8000L Water Foam Firefighting Truck

ISUZU 8000L Water Foam Firefighting Truck

The ISUZU 8000L Water Foam Firefighting Truck is a heavy-duty emergency response vehicle designed to support municipal fire departments, industrial fire protection teams, fuel storage facilities, warehouses, logistics centers, and other sites where a reliable supply of firefighting water and foam is essential. Built on the ISUZU GIGA 4×2 chassis, this proposed configuration combines a high-output diesel engine, a large-capacity liquid storage system, and a dedicated firefighting pump to provide an integrated solution for emergency fire suppression. The vehicle is equipped with a proposed ISUZU 6UZ1-TCG50 inline six-cylinder turbocharged and intercooled diesel engine with an approximate output of 380 hp, paired with a 12-speed manual transmission, providing the power required for road transport and operation of the firefighting equipment when properly matched to the final chassis and pump configuration.

The vehicle features an 8,000-liter water tank and a 2,000-liter foam tank, offering a combined nominal liquid capacity of 10,000 liters for firefighting operations using water or compatible foam solutions. The reinforced tank structure incorporates anti-surge baffles to help control liquid movement during vehicle acceleration, braking, and cornering, while separate filling connections, independent drainage valves, inspection manholes, and tank-level indicators facilitate routine operation and maintenance. A proposed CB10/60 centrifugal fire pump, rated at 60 L/s and 1.0 MPa, works with a PTO drive system and a roof-mounted PS40 fire monitor or equivalent, providing a configuration for delivering firefighting media toward the target area and supplying connected fire hoses.

The firefighting body is designed with side-mounted equipment compartments, aluminum alloy roller shutters, dedicated hose storage, and accessible pump controls, helping crews organize essential equipment and prepare for emergency operations efficiently. An LED warning light bar, electronic siren, and LED scene lighting support visibility and warning functions during emergency response, while optional equipment such as portable lighting, hydraulic rescue tools, first-aid supplies, and a rear-view camera can be considered according to the customer’s operational requirements. Customers exploring other specialized emergency vehicles can also browse our fire truck range, vacuum truck range for industrial liquid and waste-handling applications, and crane truck range for lifting and material-handling requirements.

Features

1. ISUZU GIGA Chassis and High-Output Diesel Engine

The ISUZU GIGA 4×2 chassis provides the road-going platform for this water foam firefighting vehicle, making the proposed configuration suitable for municipal fire stations, industrial facilities, commercial premises, and other locations with established road access. The proposed 6UZ1-TCG50 engine has a displacement of 9,839 cc and an approximate maximum output of 279 kW (380 hp), while the 12-speed manual transmission provides multiple gear ratios for different driving conditions. Power-assisted steering, an air braking system with ABS, and 315/80R22.5 tires are specified to support vehicle handling and road operation, with the final engine version, transmission, axle ratings, and braking equipment subject to confirmation against the selected chassis specification.

2. Large-Capacity Water and Foam Storage

The vehicle’s main firefighting advantage is its separate 8,000 L water tank and 2,000 L foam tank, which provide substantial onboard supplies for firefighting operations without requiring an immediate external water connection. The water tank is proposed with a corrosion-protected carbon steel structure, with stainless steel available as an option, while the foam tank uses stainless steel or another material compatible with the selected foam concentrate. Internal anti-surge baffles help limit liquid movement while driving, and dedicated filling points, independent drainage valves, inspection openings, and level indicators make it easier for operators to monitor the tank system and perform routine maintenance.

3. High-Flow Fire Pump and Roof-Mounted Monitor

The proposed CB10/60 centrifugal fire pump is rated at 60 L/s under a specified pressure of 1.0 MPa, providing the basis for a high-flow firefighting system intended to supply the roof monitor and connected fire hoses. Driven through the chassis power take-off (PTO), the pump draws mechanical power from the engine, while a vacuum-assisted priming system supports the water-drawing procedure when operating under suitable conditions. The roof-mounted PS40 monitor or equivalent directs the firefighting stream toward the target area, and the final discharge range depends on the selected monitor, nozzle, operating pressure, wind conditions, and installation arrangement.

4. Integrated Foam Proportioning and Discharge System

The foam system is designed to work with compatible proportioning equipment, allowing foam concentrate to be mixed with water at an appropriate ratio before discharge through the designated monitor or foam application equipment. Typical proposed mixing ratios include 3% or 6%, depending on the foam concentrate, the selected proportioning system, and the requirements of the intended firefighting application. This arrangement can support incidents involving flammable-liquid hazards and other situations where compatible firefighting foam is appropriate, provided that the agent is suitable for the specific fuel or material involved and that the completed system meets applicable fire protection standards.

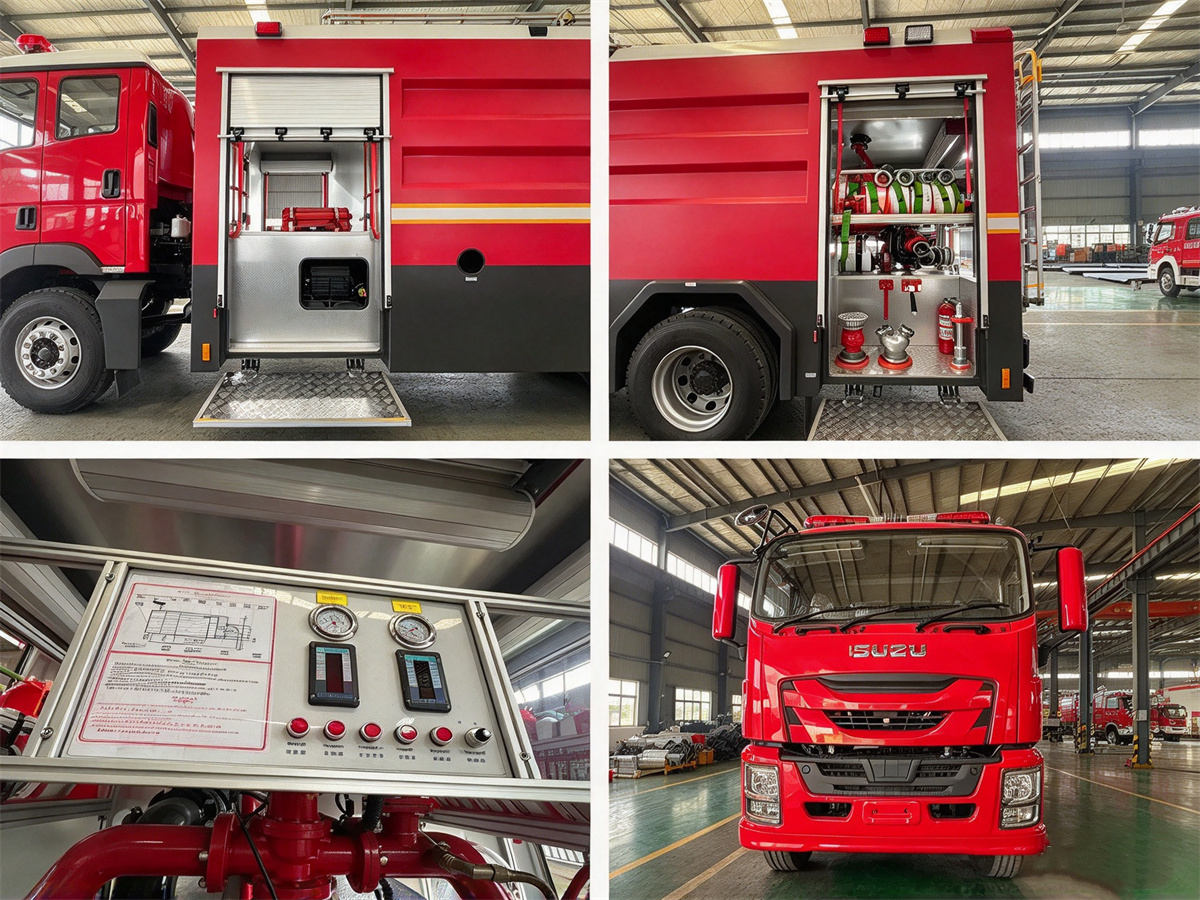

5. Organized Equipment Compartments and Emergency Lighting

The firefighting body incorporates side-mounted equipment compartments fitted with aluminum alloy roller shutters, along with dedicated storage areas for fire hoses, nozzles, suction hoses, foam branch pipes, and other accessories specified by the customer. The compartment arrangement helps crews locate and retrieve equipment efficiently during emergency deployment, while the LED warning light bar and electronic siren provide visual and audible alerts to surrounding road users. LED scene lighting supports work around the vehicle during nighttime incidents, and additional safety equipment, including wheel chocks and reflective markings, can be included according to the final delivery configuration.

6. Flexible Configuration for Municipal and Industrial Fire Protection

The ISUZU 8000L Water Foam Firefighting Truck can be configured for different emergency response environments, including municipal fire services, industrial parks, logistics facilities, warehouses, and fuel storage installations, with the final equipment package tailored to the customer’s operational requirements. Optional additions such as portable lighting, hydraulic rescue tools, first-aid equipment, and a rear-view camera can improve the vehicle’s suitability for particular working environments, while hose couplings, nozzles, foam types, and other firefighting accessories should be selected to match local standards and the intended response procedures. This flexible approach allows customers to specify a firefighting vehicle around their operational priorities rather than relying on a single fixed equipment package.

Engineering note: The figures above describe a proposed configuration and must not be treated as verified factory specifications. An 8,000 L water tank and a 2,000 L foam tank contain approximately 10,000 kg of liquid when both are full, before accounting for the chassis, bodywork, pump, crew, and equipment. Therefore, the stated 18,000 kg gross vehicle weight and the proposed 4×2 axle configuration must be verified carefully, and a chassis with sufficient certified payload and axle capacity must be selected before the tank system and firefighting body are finalized. Engine output, pump performance, overall dimensions, curb weight, and monitor range must also be confirmed against the final engineering design.
