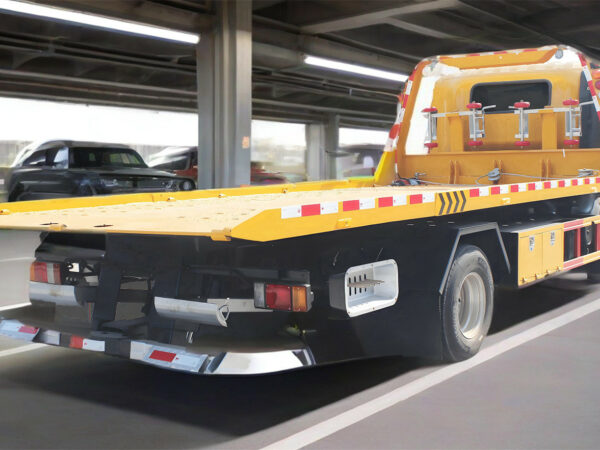

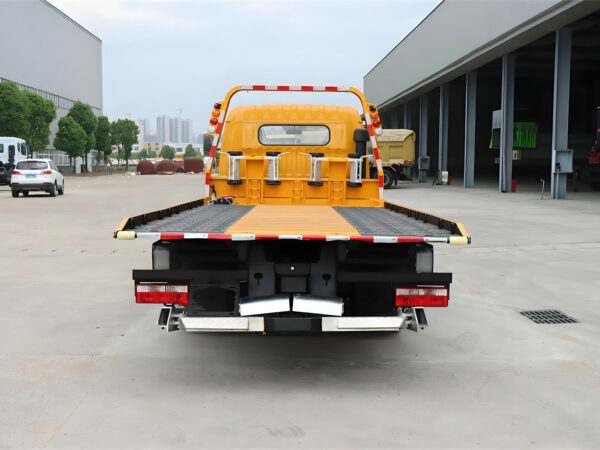

ISUZU 8T Flatbed Wrecker

Built on the robust ISUZU QL1180JQFRY 4×2 chassis, this 8-ton flatbed wrecker combines power and precision for heavy-duty recovery operations. At its core lies the ISUZU 4HK1-TCG60 engine, delivering 205HP (151kW) and 647N·m torque at 1,600 rpm, paired with a 6-speed manual transmission (MLD-6Q) for optimal control. The 4,500mm wheelbase and 255mm ground clearance ensure stability on challenging terrain, while the Euro 6-compliant powertrain meets stringent emission standards.

The wrecker’s FB8U8 body features an 8mm-thick patterned flatbed with an 8-ton load capacity, complemented by an equally capable 8-ton underlift system. A 60KN planetary winch (25m steel cable) and Italian Hyde hydraulic valves provide exceptional recovery power. Key functional additions include:

• L-type automatic tire-lock system for secure vehicle positioning.
• Integrated sub-frame for balanced force distribution during lifts.
• Recovery accessories: 4 lashing belts, chain hooks, trolleys, and boom forks.

With a gross vehicle weight of 19,300kg and 13,000kg rear axle rating, this wrecker is engineered for reliability in professional towing scenarios.

Features

1. Chassis & Cab

• ISUZU VC61 4X sleeper cab with 4-point hydraulic suspension and 2480mm width.
• Driver-centric controls: Adjustable/tiltable seats, multifunction LCD panel, power steering, and air conditioning.
• Safety essentials: ABS, dual-circuit air brakes, and engine exhaust brake.

2. Flatbed & Recovery Systems

• 8-ton capacity platform (6,000×2,480mm) with 9° tilt angle and 3,280mm stroke.
• Underlift system:
  • 8-ton max lift (3-ton at full extension).
  • 2,560mm effective length with ±9.5° tilt range.
• Winch system:
  • 60KN pulling force at 5m/min speed (φ11mm cable).

3. Operational Enhancements

• Full-length subframe with wear pads for durability.
• 7 tie-down points and anti-tilt bed design for load security.
• Hydraulic dock stabilizers and dual illuminated controls for precision.
• LED lights, backup alarm, and optional remote control for safety.

4. Dimensions & Weights

• Overall size: 7,420×2,530×2,810mm (L×W×H).
• Payload capacity: 9,190kg (19,300kg GVW).

SPECIFICATIONS
