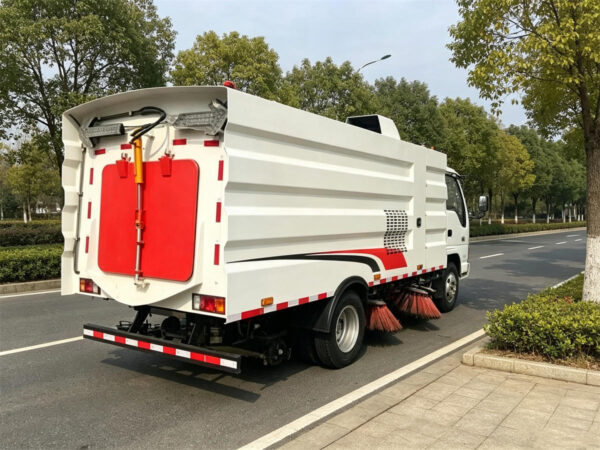

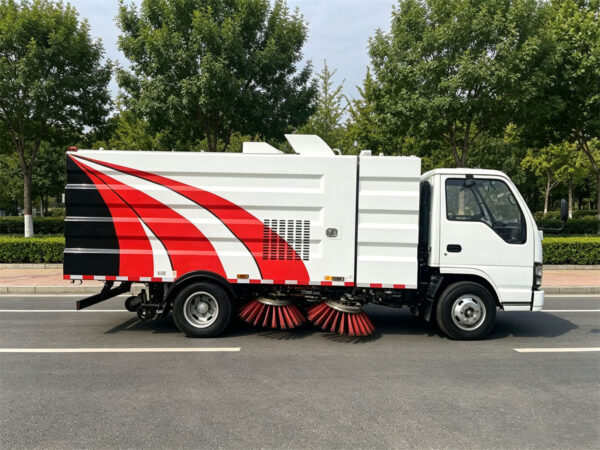

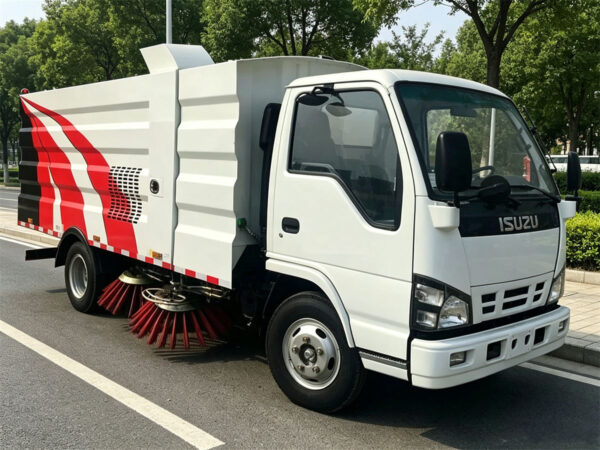

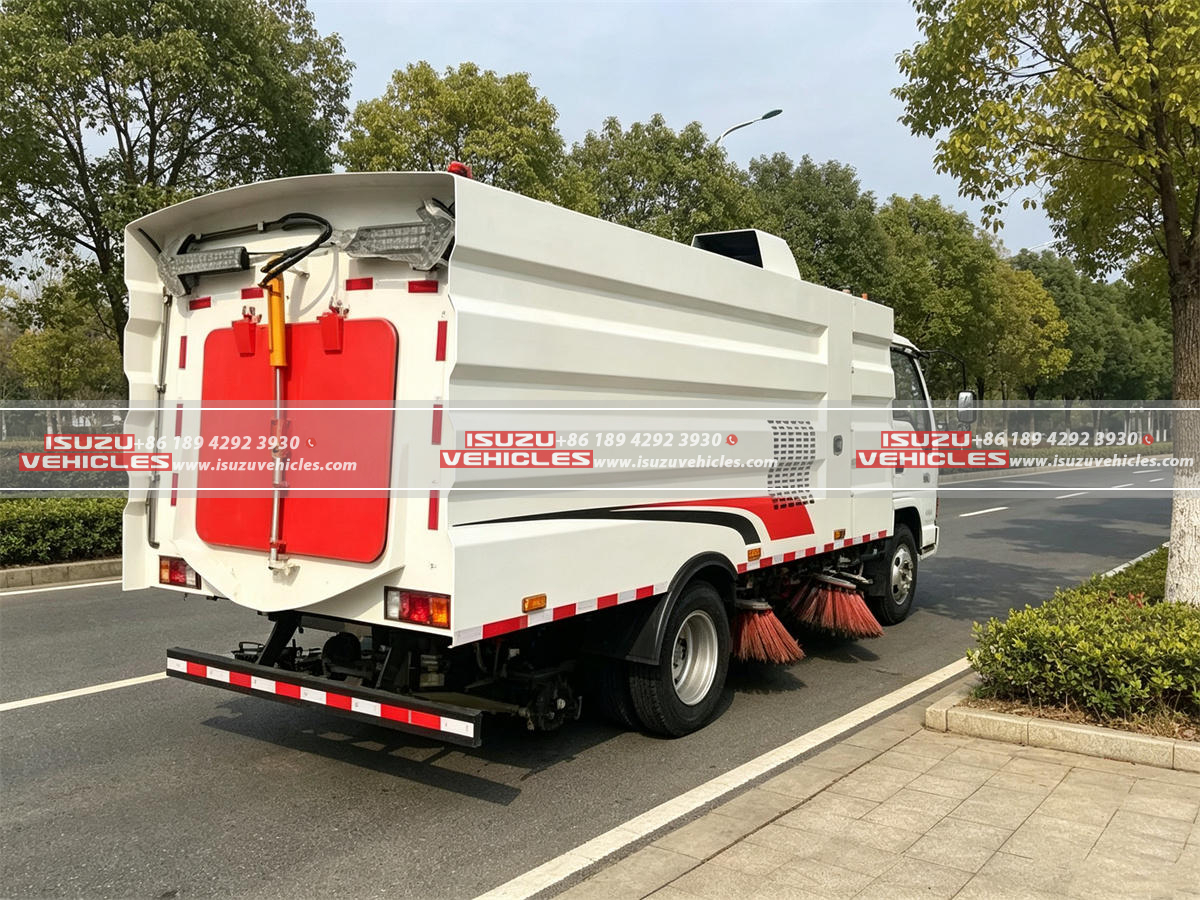

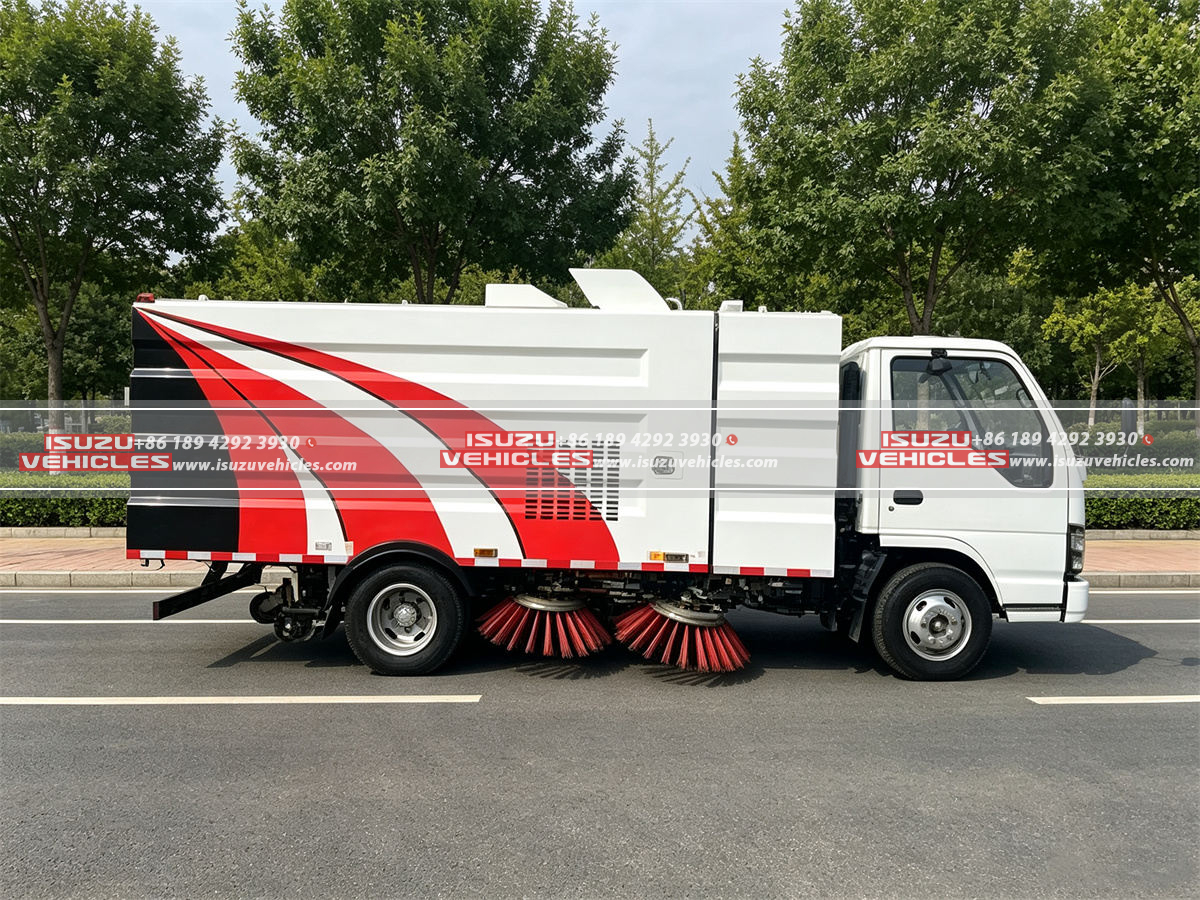

ISUZU 9 CBM Washing Sweeper Truck
The ISUZU 9 CBM Washing Sweeper Truck is a multifunctional municipal sanitation vehicle designed to combine road sweeping, high-pressure washing, dust suppression, and roadside cleaning in one efficient working platform. Built on a reliable ISUZU 4×2 chassis, this vehicle is particularly suitable for urban streets, highways, residential communities, industrial parks, public squares, parking areas, and other locations where both sweeping and intensive road washing are required.
The truck is powered by an ISUZU 4KH1-TCG40 diesel engine with a 4-cylinder, 4-stroke, direct-injection, turbocharged and intercooler configuration, producing 120HP (88kW) from a 2,999ml displacement. The Euro 4 engine is matched with an ISUZU MSB 5-speed forward and 1-speed reverse manual gearbox, providing reliable power transmission and convenient operation for daily municipal cleaning work.
With overall dimensions of 7,160×2,250×2,750mm, a 3,815mm wheelbase, and a 7,300kg gross vehicle weight, the vehicle offers a practical balance between working capacity and urban maneuverability. The single-row left-hand-drive cabin accommodates two passengers and is equipped with air conditioning, while hydraulic power steering, oil braking, and steel-wire tires provide stable driving and comfortable operation.
The upper structure includes a 5 CBM stainless steel 304 dust tank and a 4 CBM stainless steel 304 water tank, giving the vehicle sufficient capacity for extended sweeping and washing operations. A powerful Cummins auxiliary engine rated at 103kW/140HP independently powers the sweeping and cleaning equipment, helping maintain stable working performance during continuous operation.
The sweeping system combines one sweeping brush on each side with a middle suction nozzle, while the high-pressure water system incorporates an imported high-pressure water pump, stainless steel pipelines, multiple spray systems, roadside washing equipment, and an 18-meter high-pressure rinsing reel. With a maximum sweeping width of 3.5 meters and a maximum cleaning capacity of 60,000m²/h, the ISUZU 9 CBM Washing Sweeper Truck provides a highly efficient solution for professional road sanitation and environmental maintenance.
Features
1. Reliable ISUZU Chassis and 120HP Engine
The ISUZU chassis provides a durable foundation for intensive municipal cleaning operations, with a 4×2 drive configuration that offers good maneuverability and stable load-bearing performance. The front and rear axle loading capacities are 2,500kg and 4,800kg respectively, while the 3,815mm wheelbase provides a practical combination of driving stability and turning flexibility.
The vehicle uses the ISUZU 4KH1-TCG40 engine, producing 120HP and 88kW, with turbocharged intercooling technology that supports efficient combustion and stable power output. Combined with the ISUZU MSB manual transmission, power-assisted steering, and oil brake system, the truck can travel reliably between different cleaning locations while maintaining precise control during low-speed sweeping operations.
2. Large-Capacity Stainless Steel Tanks
The vehicle is equipped with a 5 CBM stainless steel 304 dust tank and a 4 CBM stainless steel 304 water tank, providing an effective combination of waste collection and water-assisted cleaning capacity. The stainless steel 304 construction offers excellent resistance to corrosion and wear, which is especially important because the tanks are frequently exposed to water, dust, mud, and collected road debris.
The large water tank supports extended washing and dust suppression operations, while the 5 CBM dust tank provides sufficient space for collected waste, reducing the number of interruptions required for unloading and allowing operators to maintain high productivity throughout the working shift.
3. High-Efficiency Sweeping System
The ISUZU 9 CBM Sweeper Truck features one sweeping brush on each side together with a centrally positioned suction nozzle, creating an efficient sweeping and debris collection system. The maximum sweeping width reaches 3.5 meters, allowing the truck to cover a broad section of road during each pass.
The sweeping speed can be adjusted between 3-20km/h, giving operators the flexibility to select an appropriate working speed according to road conditions and the amount of accumulated debris. With a maximum cleaning capacity of 60,000m²/h, the vehicle is capable of handling large-scale urban and commercial cleaning projects efficiently.
4. Powerful Independent Cummins Auxiliary Engine
The sweeping and washing equipment is powered by an independent Cummins auxiliary engine rated at 103kW/140HP, providing substantial power for continuous operation of the upper-body systems. This independent configuration reduces the workload placed on the main chassis engine and allows the cleaning equipment to maintain stable performance even when the vehicle is working at low road speeds.
The dedicated auxiliary power system is especially beneficial for demanding applications where sweeping, suction, and high-pressure washing functions need to operate continuously for several hours, helping improve equipment reliability and overall working efficiency.
5. Advanced High-Pressure Washing System
One of the key advantages of the ISUZU Washing Sweeper Truck is its integrated high-pressure cleaning system, which uses a German-imported high-pressure water pump together with stainless steel high-pressure pipelines and multiple spray configurations.
The standard configuration supports front flushing, side sprinkling, middle sprinkling, rear spraying, and water-gun operation, allowing the operator to select the appropriate washing method for different road surfaces. A universal high-pressure roadside cleaning system is also provided, while the front flushing function can use a low-pressure pump for broader surface washing.
6. 18-Meter High-Pressure Rinsing Reel
The vehicle is equipped with an 18-meter high-pressure rinsing reel, which significantly expands the cleaning range beyond the normal width of the truck. The reel can be used for manually directed high-pressure cleaning of roadside areas, sidewalks, curbs, corners, walls, public facilities, and other locations that are difficult to reach with the vehicle’s standard sweeping equipment.
This configuration makes the truck more versatile than a conventional road sweeper, allowing one vehicle to perform both large-area road cleaning and detailed spot-cleaning tasks.
7. Intelligent Monitoring and Safety Systems
The ISUZU 9 CBM Road Washing Sweeper incorporates a range of control and monitoring components designed to improve operational safety and convenience. The system uses a Schneider control switch and American sensors, while indoor monitoring is available during reversing and washing operations.
Both the water and dust tanks are equipped with anti-overflow or low-water-level alarm devices, helping prevent improper operation and protecting the working system. Rear LED arrow lights also provide additional visibility and warning information when the truck is operating on public roads.
8. Flexible Configuration for Different Applications
The standard configuration includes the ISUZU chassis, Cummins auxiliary engine, stainless steel dust and water tanks, sweeping brushes, central suction nozzle, high-pressure water pump, multiple sprinkler systems, roadside cleaning system, stainless steel pipelines, Schneider control switch, monitoring system, alarm devices, rear LED arrow lights, and 18-meter high-pressure rinsing reel.
For customers with specialized requirements, optional equipment such as a snow shovel, fog cannon, and aerial work platform can be added, while the vehicle color can also be customized according to customer requirements. This flexible configuration allows the ISUZU 9 CBM Washing Sweeper Truck to serve not only conventional road cleaning projects but also dust suppression, roadside washing, winter maintenance, and other specialized municipal sanitation applications.
Specification
| Parameter | Value |
|---|---|
| General Technical Parameters | |
| Overall Dimension (LxWxH) | 7,160×2,250×2,750 (mm) |
| Gross Vehicle weight | 7,300 (Kg) |
| Curb weight | 2,110 (Kg) |
| Chassis Specification | |
| Chassis Brand | ISUZU |
| Drive model | 4×2 |
| Cabin | Single Row, LHD, with air conditioning |
| Number of Passengers | 2 |
| Engine Model | ISUZU 4KH1-TCG40/120Hp, 4-stroke direct injection, 4-cylinder in-line, turbocharged intercooler, with ABS |
| Engine Power | 88kW/120HP |
| Emission standard | EURO 4 |
| Displacement | 2,999 (ml) |
| Fuel type | Diesel |
| Gearbox | ISUZU MSB, 5Forwards & 1Reverse, manual operation, with power steering |
| Brake System | Oil brake |
| Wheel Base | 3,815 mm |
| Front/Rear Axle Loading | 2,500/4,800 (Kg) |
| Approach/Departure Angle | 24/14 (°) |
| Overhang | Mechanical Suspension, 8/6+5 |
| Tire | 7.00R16 Steel wire tyre, with 1 spare tire |
| Sweeping Speed | 3-20 km/h |
| Upper Structure Specification | |
| Auxiliary Engine Model | Cummins |
| Auxiliary Engine Power | 140HP/103KW |
| Maximum sweep width | 3.5 m |
| Water Tank Material | Stainless steel 304 |
| Water Tank Volume | 4 (CBM) |
| Dust Tank Material | Stainless steel 304 |
| Dust Tank Volume | 5 (CBM) |
| Maximum cleaning capacity | 60,000 m³/h |
| Standard Configuration | |
| Configuration | 1. Equipped with 1 sweeping brush on each side, and middle suction nozzle 2. Equipped with Sanyo Motor 3. Equipped with German imported high pressure water pump (front flush, side sprinkler, middle sprinkler, rear sprayer, water gun, self-cleaning device in dust tank) 4. Equipped with universal high-pressure roadside cleaning, and front flush with low-pressure pump 5. Equipped with stainless steel high-pressure pipeline, Schneider control switch, and American sensor 6. Equipped with anti-overflow or low water level alarm device in both water and dust tanks, rear LED arrow lights 7. Equipped with the indoor monitor in reverse and wash state 8. Equipped with an 18-meter high-pressure rinsing reel 9. User’s operation manual set |
| Optional configuration | Snow shovel, fog gun, aerial work platform, color is optional |
