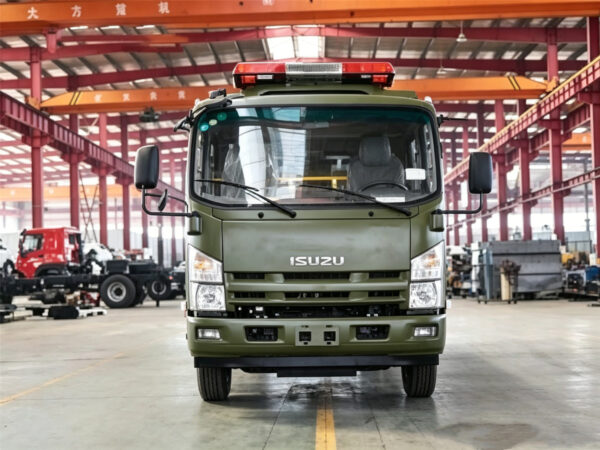

ISUZU Water Tank Fire Truck
The ISUZU Water Tank Fire Truck is a versatile and highly dependable firefighting vehicle designed to meet the demands of urban fire departments, industrial facilities, municipal emergency services, and rescue organizations. Built on the reliable ISUZU 700P firefighting chassis, this vehicle combines powerful firefighting performance, rapid response capability, and excellent operational reliability, making it an ideal solution for both fire suppression and emergency rescue missions.
Equipped with a 4,000-liter water tank, a high-performance CB10/30 fire pump, and a PS30 fire monitor, the truck is capable of delivering large volumes of water quickly and efficiently to control and extinguish fires. Its compact overall dimensions and 4×2 drive configuration provide excellent maneuverability in city streets, residential communities, industrial parks, and other areas where rapid access is critical during emergency situations.
Powered by the proven ISUZU 4HK1-TC51 turbocharged diesel engine, the vehicle delivers strong performance and dependable operation under demanding conditions. The spacious crew cab accommodates up to six firefighters, ensuring that both personnel and equipment can be transported safely and efficiently to the incident scene.
Designed with durability, safety, and firefighting efficiency in mind, the ISUZU Water Tank Fire Truck offers a complete firefighting solution for organizations seeking reliable emergency response equipment with long service life and low operating costs.
Features
Reliable ISUZU Firefighting Chassis
Built on the dedicated ISUZU 700P firefighting chassis, the truck features a wheelbase of 4,175 mm and a gross vehicle weight of 16,000 kg, providing an excellent balance between maneuverability and carrying capacity. The robust chassis structure ensures stability during both transportation and firefighting operations.
The crew cab is designed to accommodate six personnel, including the driver and firefighting team members. Equipped with air-assisted steering, ergonomic controls, and a comfortable seating arrangement, the cab helps firefighters remain prepared and comfortable during emergency deployments.
Powerful ISUZU Engine Performance
At the heart of the vehicle is the dependable ISUZU 4HK1-TC51 diesel engine, a turbocharged and intercooled power unit engineered for continuous heavy-duty operation. The engine produces 141 kW (180 HP) and generates 510 N.m of torque, providing strong acceleration and dependable performance when responding to emergency calls.
The engine utilizes advanced high-pressure common rail fuel injection technology, ensuring efficient fuel consumption, reduced emissions, and reliable power delivery under all operating conditions.
Efficient Firefighting Water System
The truck is equipped with a 4,000-liter water tank designed to provide a substantial onboard water supply for firefighting operations. The tank is integrated with a professional-grade CB10/30 fire pump, delivering stable water pressure and reliable flow performance during emergency response activities.
Multiple inlet and outlet connections allow fast water replenishment and efficient water distribution, helping firefighters maintain continuous operation at fire scenes. The water system also includes overflow protection, drainage outlets, cooling pipelines, level indicators, and inlet line sieves to ensure dependable and safe operation.
High-Performance Fire Monitor
Mounted on the vehicle is a PS30 fire monitor, designed to provide accurate and effective water delivery over long distances. The monitor offers flexible operation with elevation angles up to 70° and depression angles down to -15°, allowing firefighters to target fires at different heights and positions.
With a flow rate of 30 liters per second, the monitor delivers powerful firefighting capability for combating residential, commercial, and industrial fires. The nozzle supports multiple spray patterns including direct stream, fog, and spray modes, enhancing versatility across different firefighting scenarios.
Professional Hose Reel and Pipeline System
The truck features two hose reels equipped with 20-meter long, 3/4-inch hoses, providing firefighters with rapid deployment capability for immediate firefighting action. The well-designed pipeline system includes water filling inlets, pump supply outlets, drainage valves, and surplus water discharge lines, ensuring smooth and efficient water management throughout operations.
The integrated cooling water pipeline also helps protect critical firefighting components and maintains stable system performance during extended firefighting missions.
Durable Suspension, Axles, and Braking System
The vehicle utilizes heavy-duty alloy steel leaf spring suspension systems at both the front and rear, delivering excellent load-carrying capability and road stability. The reinforced axle configuration includes a front axle capacity of 3,350 kg and a rear axle capacity of 6,625 kg, supporting reliable performance under full operational loads.
For enhanced safety, the truck is equipped with an air-over-hydraulic braking system, spring parking brakes, and an engine exhaust brake. Optional ABS technology further improves vehicle control and braking performance under challenging road conditions.
Built for Urban and Emergency Firefighting Operations
Designed specifically for urban firefighting and emergency rescue applications, the ISUZU Water Tank Fire Truck combines compact dimensions, powerful water delivery systems, and dependable chassis performance into one highly capable vehicle.
Whether responding to building fires, industrial incidents, public infrastructure emergencies, or municipal rescue operations, this truck provides firefighting teams with the equipment and reliability needed to perform effectively when every second counts.
Specifications
| ISUZU 700P 1618 Fire Truck Technical Specifications | |
| General & Chassis Model Information | |
| Item | Specification |
| Chassis Model | 700P 1618 |
| Overall Length | 7.330 mm |
| Overall Width | 2.200 mm |
| Overall Height | 3.100 mm |
| Tank Capacity | 4.000 Liters |
| Fire Pump Model | CB10/30 |
| Fire Monitor Model | P530 |
| PTO Type | Sandwich type |
| Product Class | Specific fire engine chassis truck |
| Application & Operation | Fire engine-Urban, For mounting rigid fire engine |
| Drive Mode | 4×2 |
| Wheelbase | 4.175 mm |
| Gross Vehicle Weight | 16,000 kg |
| Engine Specifications | |
| Item | Specification |
| Engine Make/Model | ISUZU 4HK1-TC51 |
| Cylinders | 4 Nos Vertical in line |
| Engine Type | Diesel, 4-cycle, water cooled, 4 stroke |
| Combustion System | Direct injection |
| Air Intake System | Supercharged inter cooler |
| Fuel Injection System | High pressure common rail |
| Bore x Stroke | 115 x 125 mm |
| Displacement | 5.193 L |
| Compression Ratio | 17:1 |
| Net Power Rating | 141 kW (180 ps) |
| Rated Speed | 2600 rpm |
| Maximum Torque | 510 N.m |
| Speed at Maximum Torque | 1600 rpm |
| Cabin & Steering Specifications | |
| Item | Specification |
| Cab Model | ELF 700P short roof |
| Cab Style | Crew cab |
| Maximum Passengers | 6 |
| Seats Configuration | Driver seat and double co-driver seats |
| Steering Type | Recirculating Ball with Power Assisted, Left hand drive |
| Gearbox & Clutch Specifications | |
| Item | Specification |
| Transmission Model | MLD-6Q |
| Transmission Make | ISUZU |
| Transmission Type | Manual |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 1 |
| Clutch Type | Dry Single Plate with cushioning Spring, Hydraulic control with Air Assisted |
| Chassis, Suspension & Axles Specifications | |
| Item | Specification |
| Chassis Type | Ladder Type |
| Chassis Width | 840 mm |
| Sectional Modular | 216 x 70 x 6+3 mm |
| Front Suspension | Semi-elliptical, Alloy Steel Leaf Spring, Double Acting Telescopic shock Absorber, Anti-roll Bar, 8 pcs |
| Front Axle Type | 4T Reverse Elliot ‘I’ Beam |
| Front Axle Rating | 3350 kg |
| Rear Suspension | Semi-elliptical, Alloy Steel Leaf spring 10+6 pcs |
| Rear Axle Type | 7T Banjo, Full Floating Type |
| Rear Axle Rating | 6625 kg |
| Rear Axle Ratio | 4.1 |
| Wheels & Brake System Specifications | |
| Item | Specification |
| Tire Size | 8.25R20 |
| Tire Quantity | 6 + 1 spare tire |
| Service Brake Type | Front & Rear Drum, Air Over Hydraulic, Brake Auto Adjuster |
| Anti-lock Brake System (ABS) | Available as option |
| Parking Brake Type | Spring Brake Actuators Acting on Rear wheels |
| Auxiliary Brake Type | Exhaust Brake, Hill-start-Aid (HSA) |
| Valves & Pipeline Specifications | |
| Item | Specification |
| Water Filling Injection Inlet | 2 nos. DN100 |
| One-way Valve Injection Inlet | 2 Nos. DN100 |
| Overflow Device & Ventilation Outlet | 1 nos. DN80 |
| Lower Outlet for Pump Feeding | 1 nos. DN80 |
| Drainage Outlet Ball Valves | 2 nos. DN40 |
| Surplus Water Discharge Pipeline | For protection of water pump and valves |
| Cooling Water Pipeline | For protection of PTO normal operation |
| Water Level Indicator | 2 nos. |
| Inlet Line Sieve | 1 nos. |
| Hose Reel | 2 nos. 3/4 inch diameter, 20m length |
| Variable Nozzle Type | Perpendicular foggy, spray, foam |
| Nozzle Elevation Angle | 70° |
| Nozzle Depression Angle | -15° |
| Nozzle Flow Rate | 80 L/s |
