ISUZU 20000L Aircraft Refueller Truck

ISUZU 20000L Aircraft Refueller Truck

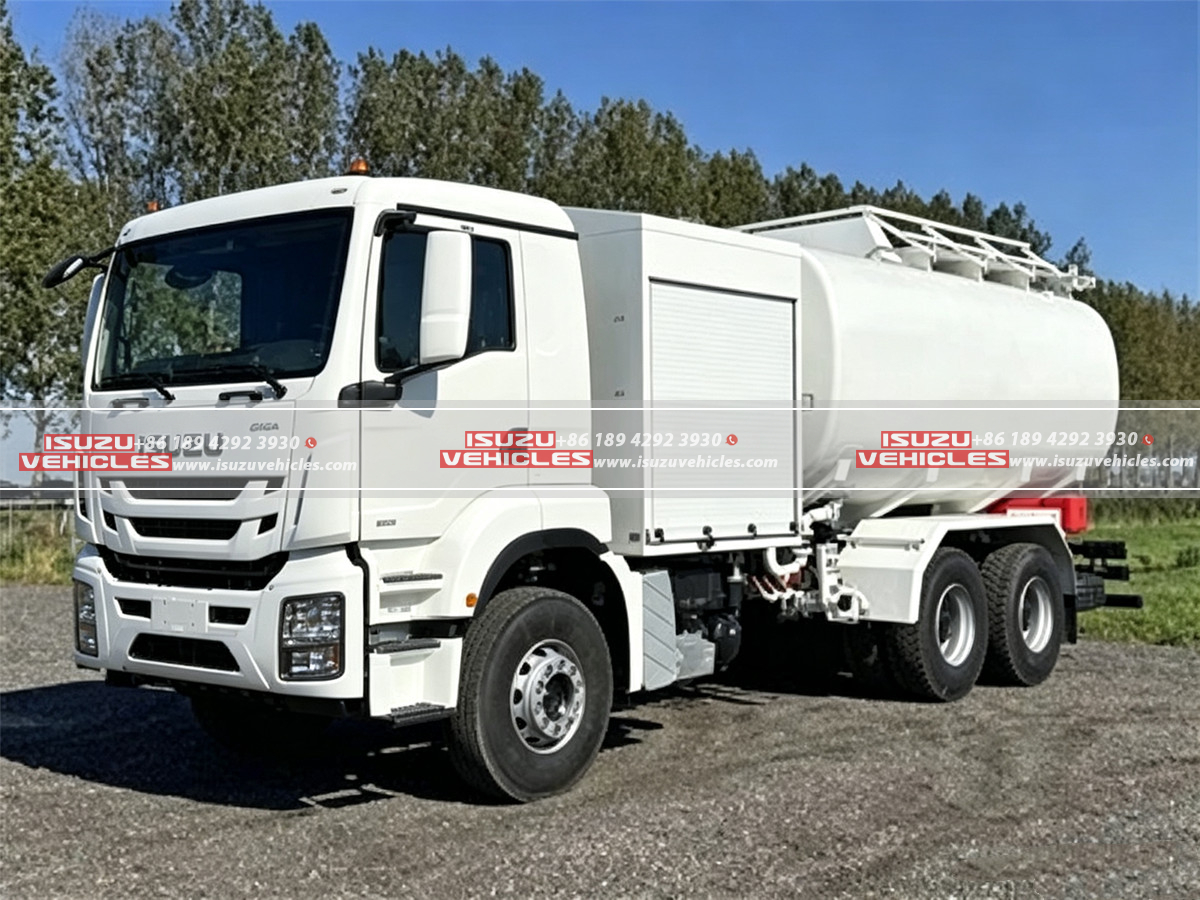

The ISUZU 20000L Aircraft Refueller Truck is a professional aviation fueling solution designed to provide safe, efficient, and reliable fuel transportation and refueling services for airports, military bases, and aviation facilities. Built on a heavy-duty 6×4 chassis platform with a powerful diesel engine, this aircraft refueler combines strong mobility, large fuel capacity, and advanced safety configurations to meet the strict operational requirements of modern aviation ground support.

Powered by a 400 HP diesel engine and equipped with an automatic transmission system, the vehicle delivers stable performance even under continuous working conditions, while the 20,000-liter aviation fuel tank provides sufficient capacity for large aircraft fueling operations. The truck adopts a robust chassis structure with spring suspension, heavy-duty axles, and 13R22.5 tires, allowing it to operate smoothly on airport roads, service areas, and other demanding working environments.

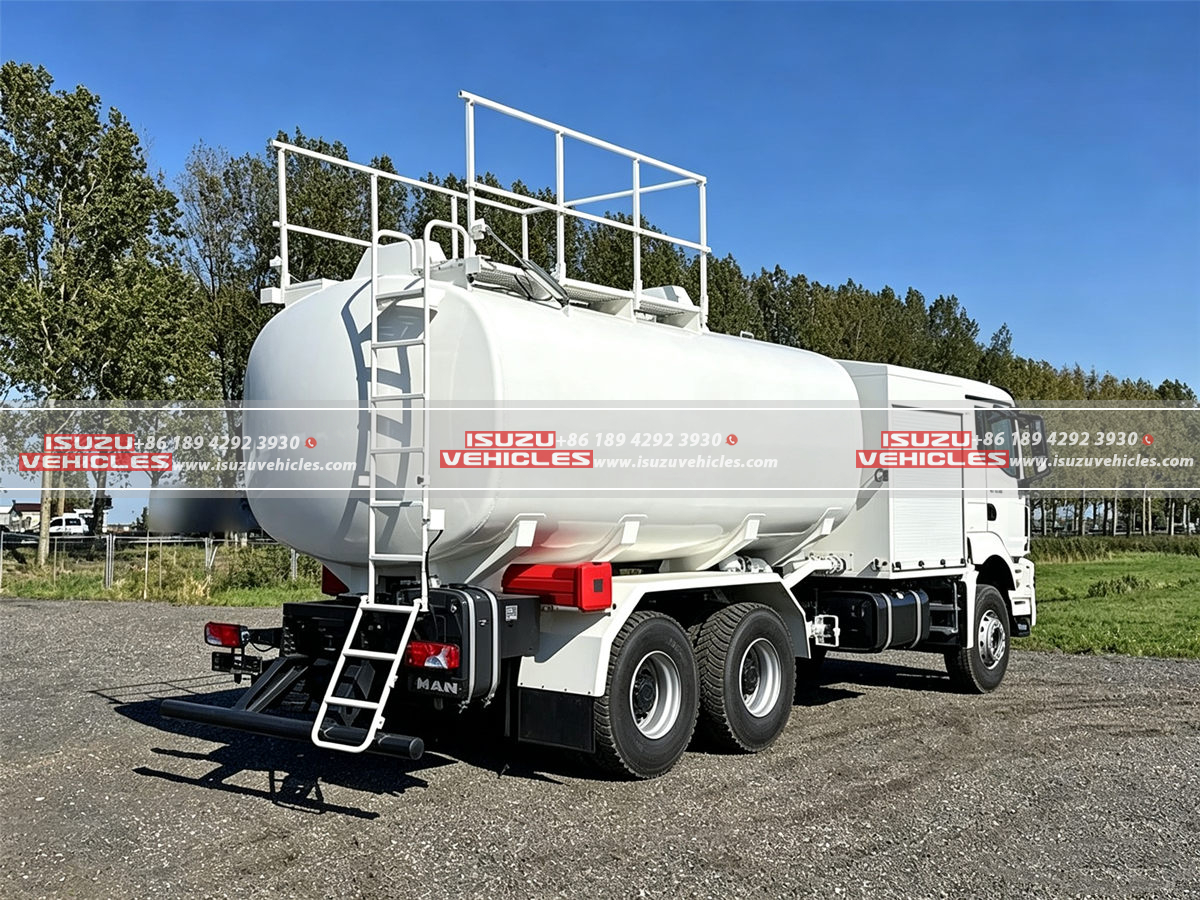

The aviation refueler truck features a specialized aluminum anti-slip catwalk and safety handrails installed on the top of the tank, providing operators with safer access during inspection and maintenance. With optional aviation fueling equipment such as pumps, pressure control systems, and meters, the truck can be customized according to different airport service requirements, making it an ideal choice for professional aviation fuel handling.

Features

Large-Capacity Aviation Fuel Tank System

The vehicle is equipped with a 20,000L aviation fuel tank designed for efficient aircraft refueling operations, reducing the frequency of fuel transportation and improving overall airport service efficiency. The tank structure is specially developed for aviation fuel applications, ensuring reliable storage and transportation performance while maintaining safety during daily operation.

The tank body adopts an aviation refueler design with professional safety considerations, including an aluminum anti-slip working platform and protective handrails on the tank top. These configurations provide operators with a stable working environment when checking equipment, performing maintenance, or monitoring the fueling process.

Powerful ISUZU-Based Chassis Performance

Built on a heavy-duty ISUZU-compatible 6×4 chassis platform, the refueler truck offers excellent load-bearing capability and long-term durability. The vehicle is powered by the MAN D2066LF06 engine, producing 400 HP (294 kW), which provides strong driving performance while carrying a fully loaded fuel tank.

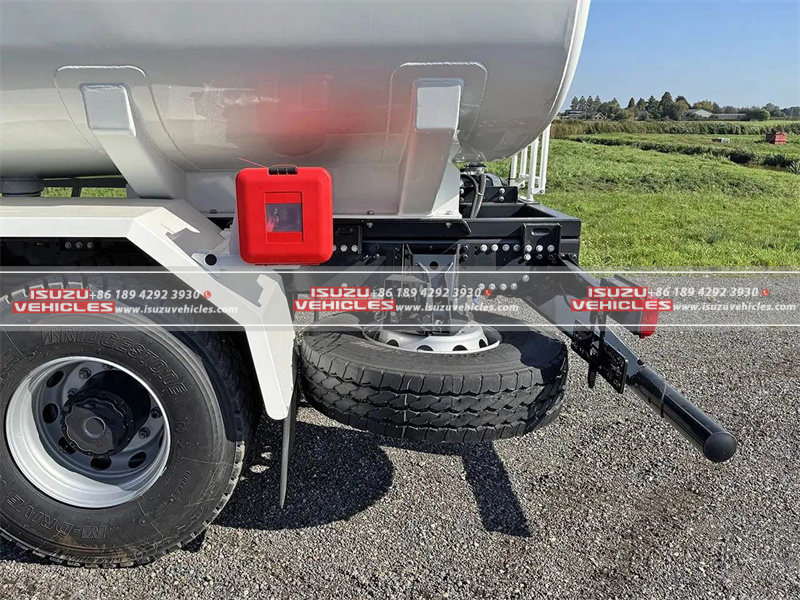

The chassis adopts a 4,500 mm wheelbase design with a three-axle configuration, allowing better weight distribution and improved stability during operation. The steering axle uses single tires with drum brakes, while the driven axles feature double tires and spring suspension systems, providing reliable support for heavy-duty airport transportation tasks.

Efficient Fuel Transfer and Refueling Operation

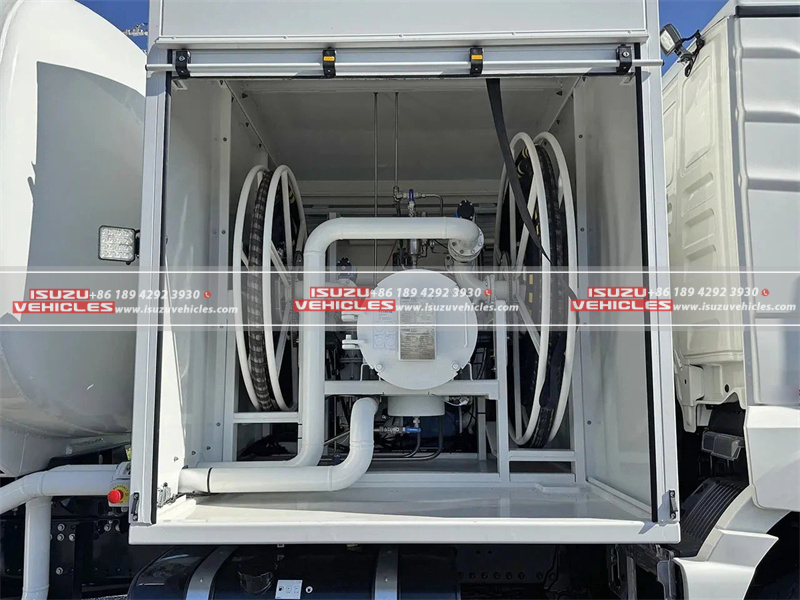

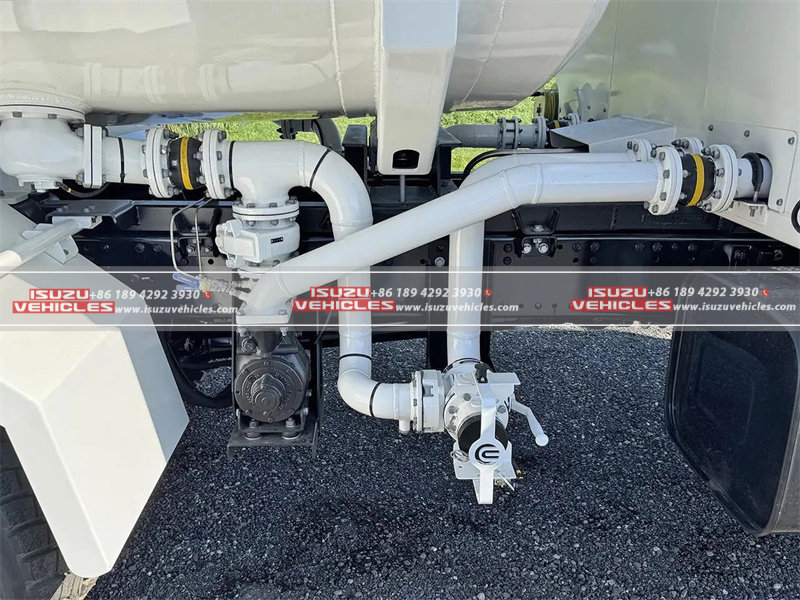

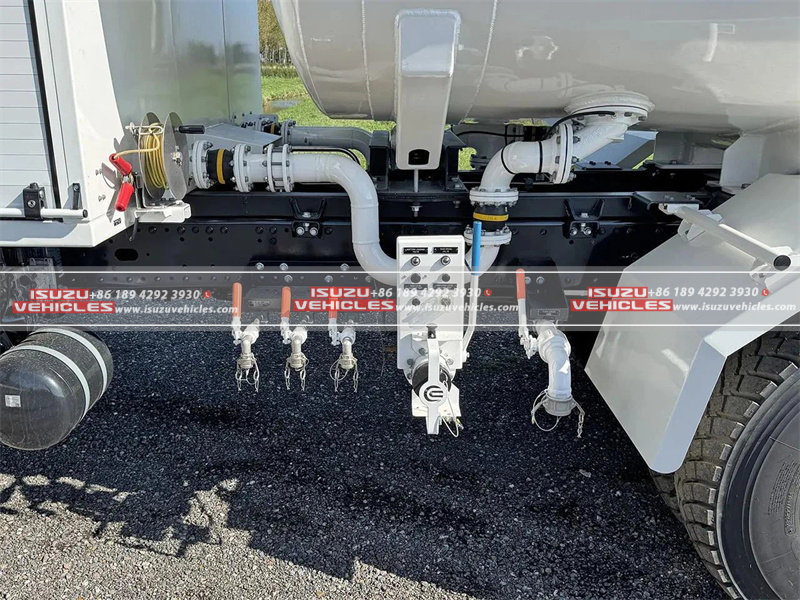

The aircraft refueller truck is designed to support professional aviation fueling processes with optional pump and pressure control systems. The hydraulic-driven pump system can provide a flow rate of up to 1,200 L/min, enabling fast and efficient fuel delivery for different types of aircraft.

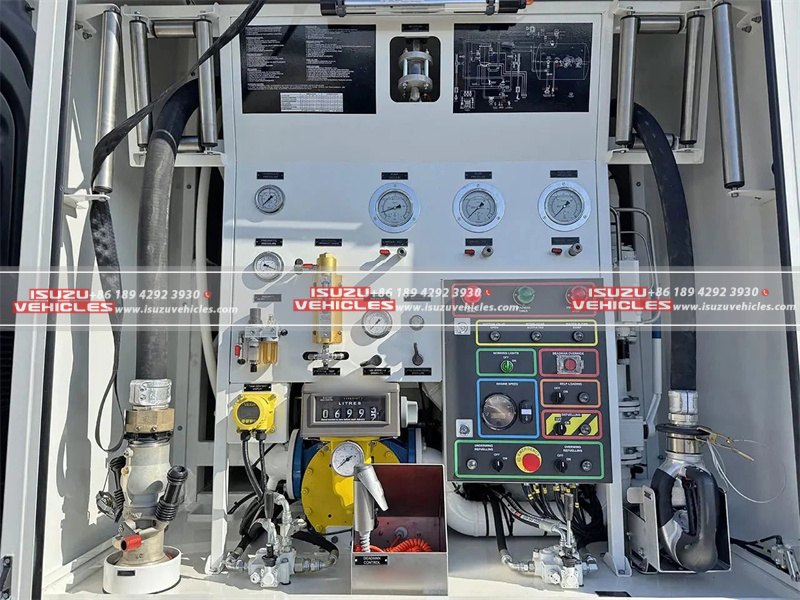

The hydraulic pump drive system ensures smooth operation and reduces the workload on operators, while optional metering equipment allows accurate fuel measurement during refueling. These systems help improve operational efficiency while maintaining the precision and safety standards required in aviation applications.

Safety-Oriented Design for Airport Operations

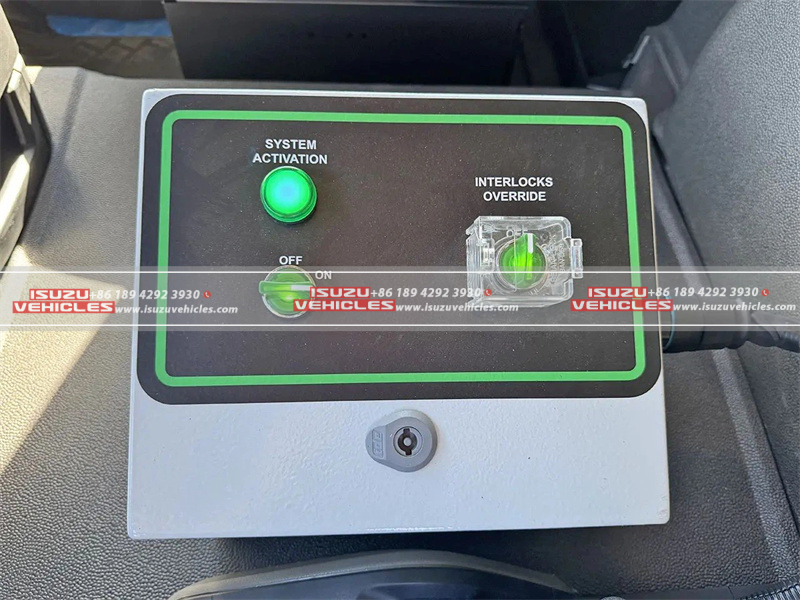

Safety is one of the most important aspects of aviation fuel transportation, and this ISUZU refueler truck includes multiple protective configurations to support secure operation. The vehicle is equipped with an ADR EXII configuration, a battery emergency stop switch, and aviation-specific safety structures to reduce operational risks.

The aluminum safety catwalk and top-mounted handrail system allow technicians to access the tank area safely, while the vehicle’s stable chassis design and reliable braking system provide additional protection during movement. The combination of strong mechanical performance and safety-focused equipment makes this truck suitable for demanding airport environments.

Comfortable Driving Environment and Reliable Mobility

The truck is equipped with a day cabin design featuring air conditioning, providing a comfortable working environment for drivers during long operating hours. The left-hand-drive configuration, automatic transmission, and power-assisted steering system make the vehicle easier to operate in busy airport service areas.

With a 300L aluminum fuel tank, durable suspension system, and heavy-duty 13R22.5 tires, the ISUZU 20000L Aircraft Refueller Truck offers excellent endurance and reliability for continuous aviation fueling missions. It is a practical solution for airports and aviation service companies requiring dependable fuel supply equipment with professional performance and safety features.
