ISUZU 6 CBM Compactor Garbage Truck
The ISUZU 6 CBM Compactor Garbage Truck is a compact and practical municipal waste collection vehicle designed for efficient rear-loading, garbage compression, sealed transportation, and hydraulic discharge. Built on a reliable ISUZU 4×2 chassis, the truck is particularly suitable for residential communities, narrow urban streets, commercial areas, schools, factories, and other locations where regular household waste collection requires a maneuverable vehicle with good compression performance.
The vehicle measures 6,450×2,050×2,570mm and features a 3,360mm wheelbase, allowing it to maintain good stability while remaining compact enough for operation in relatively narrow streets and densely populated areas. The left-hand-drive cabin accommodates up to three passengers and is equipped with air conditioning, radio, and ABS, providing a practical and comfortable working environment for the driver and sanitation crew.
Power is supplied by an ISUZU 4JB1CN diesel engine, featuring a 4-cylinder, 4-stroke configuration, mechanical engine pump, 2,771ml displacement, and approximately 98HP output. The Euro 4 engine is matched with a 5-speed forward and 1-speed reverse manual gearbox, providing dependable power for frequent stop-and-go waste collection operations while allowing a maximum driving speed of approximately 90km/h.

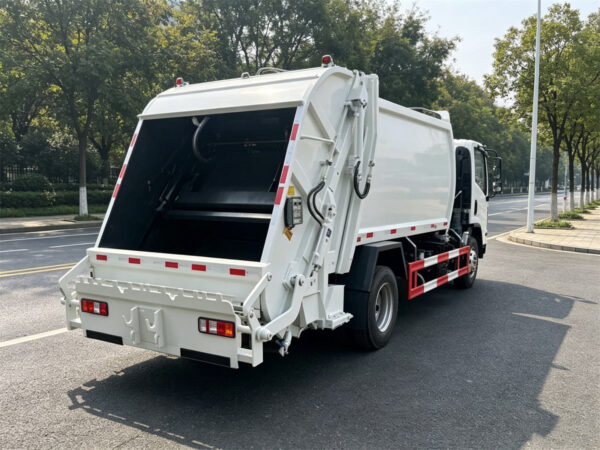

The truck is equipped with a 6 CBM garbage compactor body manufactured from 4mm carbon steel and designed with a leakage-proof structure. Its rear-loading configuration allows waste to be loaded directly into the hopper, after which the hydraulic compaction system compresses the garbage to a ratio of approximately 1:3-1:4, substantially reducing its volume and improving the effective transportation capacity.
A dedicated sewage collection tank captures liquid released from household waste, while the airtight dustbin and sealed structure help minimize leakage, odor, and secondary pollution during transportation. With automatic loading, compression, and discharge functions that can be operated by one person, together with a 14-18 second compression cycle, the ISUZU 6 CBM Compactor Garbage Truck provides an efficient and practical solution for daily municipal sanitation work.
Features
1. Compact ISUZU Chassis for Urban Waste Collection

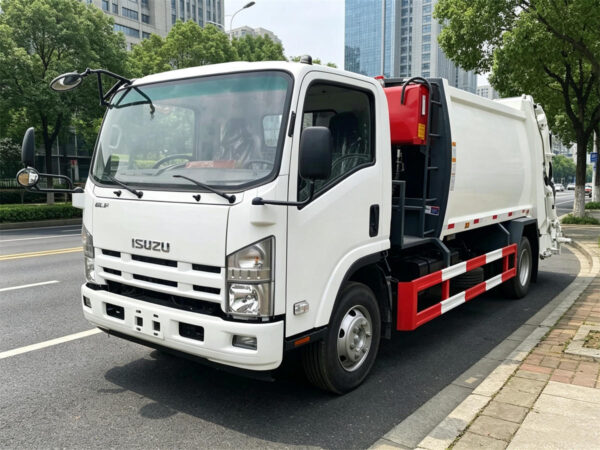

The ISUZU chassis provides a dependable foundation for daily municipal waste transportation, combining a compact body with a 3,360mm wheelbase and a 4×2 drive configuration. With overall dimensions of 6,450×2,050×2,570mm, the truck can operate effectively in residential streets, commercial districts, factory areas, and other locations where larger garbage trucks may have difficulty maneuvering.
The front and rear axle capacities are 2,500kg and 4,800kg respectively, providing a suitable load-bearing structure for the compactor body and collected waste. The 7.00-15 tires, six standard wheels plus one spare tire, further support dependable operation during frequent collection routes.
2. Reliable 98HP ISUZU Diesel Engine
The truck uses an ISUZU 4JB1CN engine with four cylinders, four-stroke operation, mechanical engine pump, and a displacement of 2,771ml, producing approximately 98HP. The Euro 4 engine is designed to provide reliable power for urban garbage collection, where the vehicle frequently accelerates, stops, reverses, and operates at low speeds.
The 5-speed manual gearbox with one reverse gear provides straightforward power management, while the 100-liter fuel tank supports extended daily operation without frequent refueling interruptions.
3. Durable 6 CBM Garbage Compactor Body

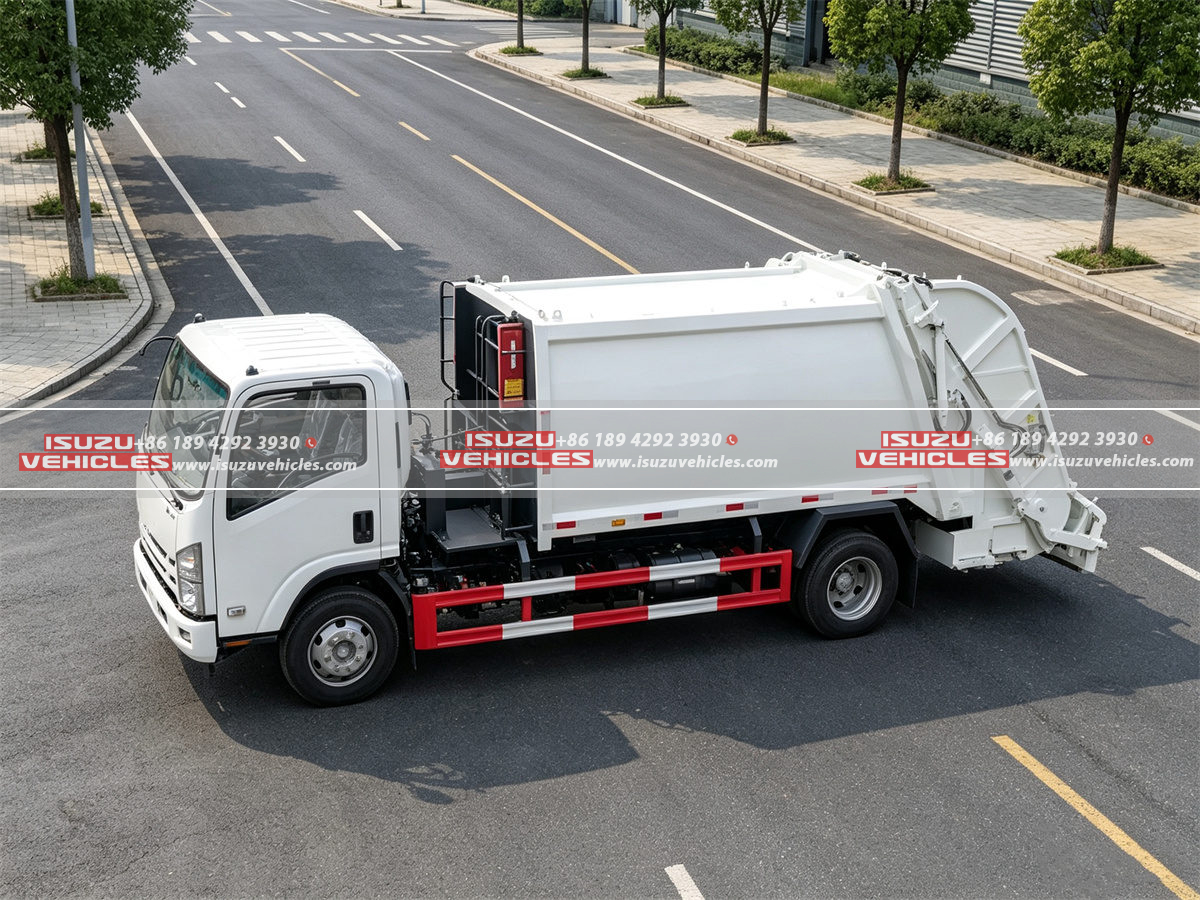

The 6 CBM garbage body is manufactured from 4mm carbon steel, providing a strong structure capable of withstanding repeated loading, compression, transportation, and unloading operations. The entire body adopts a leakage-proof design to help prevent waste and liquid from escaping during collection and transportation.

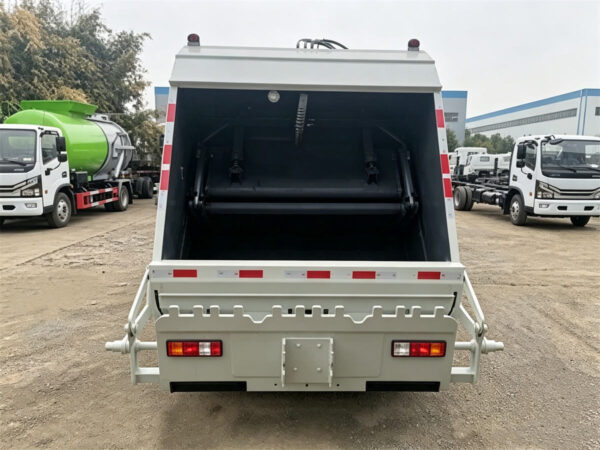

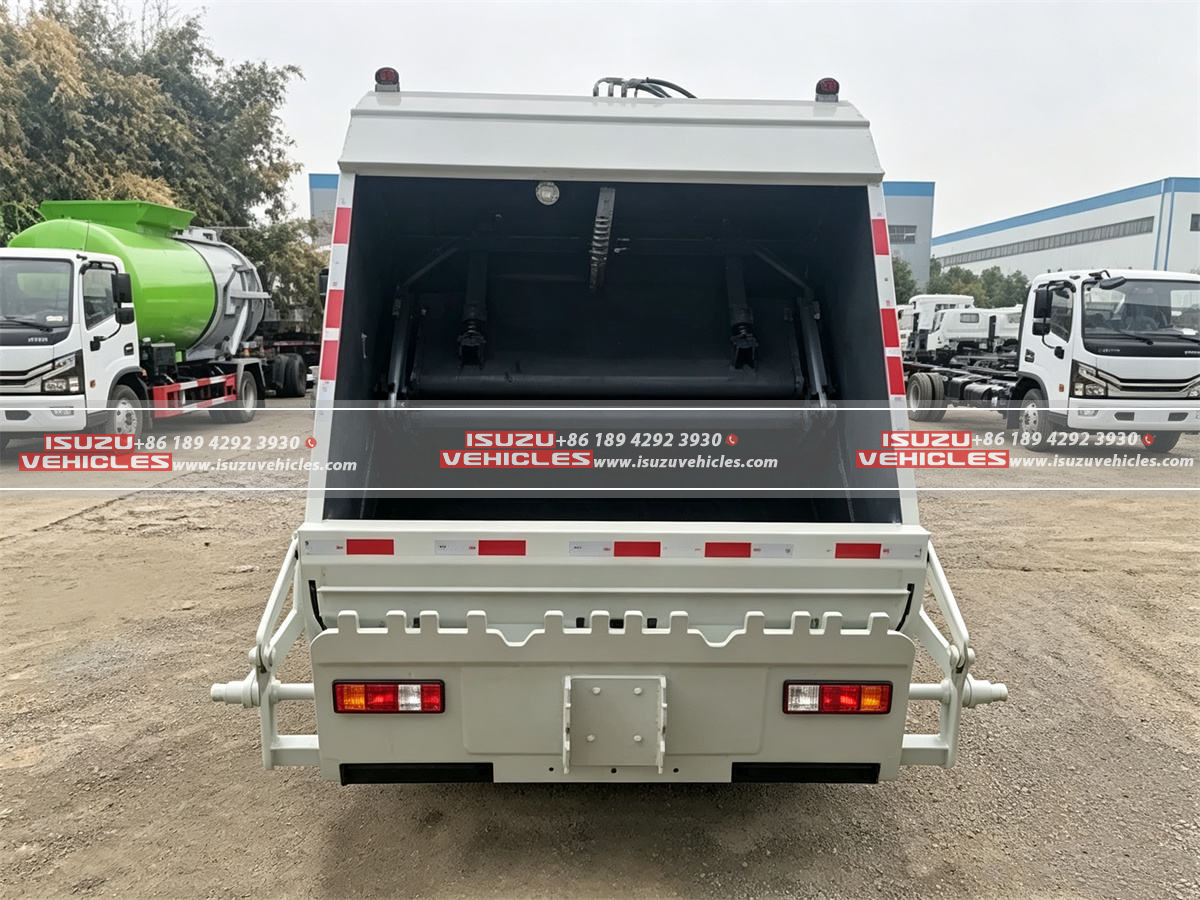

The rear-loading structure is suitable for centralized household waste collection, while an optional bucket lifting system can be installed when customers require compatibility with standardized garbage bins.
4. High-Efficiency Garbage Compression
The hydraulic compaction mechanism compresses loose household waste at a ratio of approximately 1:3-1:4, significantly reducing the volume occupied by garbage inside the container. This allows the 6 CBM body to carry a greater effective quantity of waste than an equivalent uncompressed collection body.
The compression cycle takes approximately 14-18 seconds, enabling the truck to complete repeated collection operations quickly and minimize waiting time at individual garbage collection points. The system is therefore particularly suitable for high-frequency urban waste collection routes.
5. Automatic Loading, Compression, and Discharge
The ISUZU Compactor Garbage Truck integrates loading, compression, and discharge into one hydraulic operating system, allowing these major functions to be completed efficiently by a single operator. This reduces dependence on additional labor and can help sanitation companies lower their daily operating costs.
The rear loading mechanism transfers garbage into the compactor body, where it is compressed before transportation, while the hydraulic discharge system pushes the compacted waste out when the truck reaches the disposal site.
6. Effective Sewage Collection and Leakage Prevention
Household waste often contains liquid that can escape during loading and compression, so this vehicle incorporates a dedicated sewage water collection tank to capture wastewater generated during garbage handling. This design helps prevent dirty water from flowing onto roads and reduces secondary environmental pollution.
The airtight garbage body and leakage-proof construction further improve transportation hygiene, making the truck suitable for densely populated residential areas where controlling wastewater, odors, and scattered waste is especially important.
7. Convenient Dual Control System
The truck is equipped with two control locations, including one control panel at the rear of the vehicle and another control system positioned behind the cabin. This arrangement allows operators to manage the compaction system from a convenient location depending on the particular loading or unloading operation.
The electrical control panel provides straightforward access to the main compaction functions, while the hydraulic operating system delivers the pressure required for loading, compression, and discharge.
8. Practical Crew and Safety Configuration
The left-hand-drive cabin accommodates three passengers and includes air conditioning, radio, and ABS, providing a comfortable and safer operating environment for municipal sanitation crews. Two side platforms are provided for workers, allowing sanitation personnel to accompany the truck during collection routes while maintaining a practical working arrangement.
The combination of ABS, leakage-proof garbage body, sewage collection tank, hydraulic safety system, dual control panels, and automatic compaction functions makes the ISUZU 6 CBM Compactor Garbage Truck a practical choice for efficient and hygienic urban waste collection.
Specifications
| ITEM | VALUE |
|---|---|
| Overall Dimensions (LxWxH) | 6,450×2,050×2,570mm |
| Gross Vehicle Weight | 730kg |
| Loading Weight | 2,000kg |
| Curb weight | 5,170kg |
| Wheelbase | 3,360mm |
| Axles Quantity | 2 Axles |
| Front/Rear Axle | 2,500kg/4,800kg |
| Cabin | Left-hand driving, 3 Passengers Allowed, with Air Conditioner, Radio, with ABS |
| Engine | ISUZU 4/B1CN, 4 Stroke, 4 Cylinder in line, Mechanical Engine Pump |
| Engine horsepower | 98HP, EURO 4 |
| Displacement | 2771ml |
| Max Driving speed | 90km/h |
| Gear Box | 5 Forward Gear, 1 Reverse Gear |
| Fuel Tank | 100 Liter |
| Tire | 7.00-15 (6 pieces with one spare) |
| Capacity | 6 CBM |
| Garbage Bin Material | 4mm Carbon Steel |
| Garbage Bin Design | Whole unit with Leakage Proof Design |
| Ways of Loading | Rear Loading with optional Bucket Lifting System |
| Platform | 2 sides for 2 workers for foot transport |
| Garbage compact Ratio | 1/3-1/4 |
| Control System | One control Panel on the back, One Control system in the back of the Cabin |
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system, and operating system. 2. Automatic loading, compressing, and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling 4. Large Pressure, Good Leakage Proof, convenient Operation. Dependable Security 5. Electrical Control Panel for compacting system. 6. Cycling time <14~18s |
