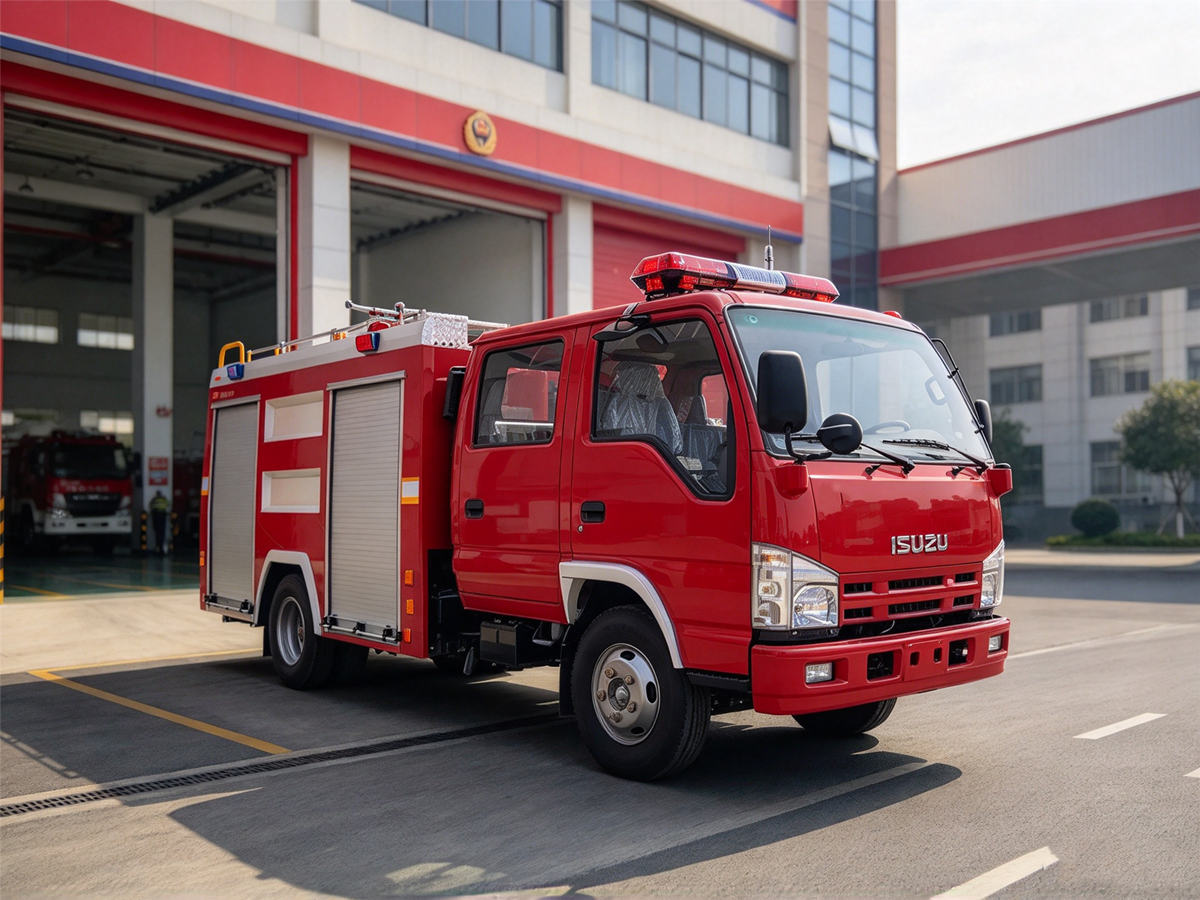

ISUZU 6000L Water Tank Fire Truck

ISUZU 6000L Water Tank Fire Truck

The ISUZU 6000L Water Tank Fire Truck is a multifunctional firefighting and emergency water supply vehicle designed for municipal fire departments, industrial facilities, commercial complexes, warehouses, and other locations where dependable firefighting water delivery is essential. Built on the ISUZU ELF 4×2 chassis, this proposed configuration combines a medium-duty commercial vehicle platform with a large-capacity water tank, a roof-mounted firefighting monitor, and a dedicated pump and sprinkler system, enabling the vehicle to support both emergency fire suppression and selected water-spraying operations. Powered by a proposed ISUZU 4HK1-series turbocharged and intercooled diesel engine with an approximate output of 190–205 hp, the truck is designed to provide practical road mobility and the power required for its firefighting equipment, with the final engine and chassis specifications selected according to the destination market and completed vehicle weight.

The truck carries a 6,000-liter water tank manufactured from corrosion-protected carbon steel, with stainless steel available as an option, and incorporates internal anti-surge baffles to help reduce liquid movement during acceleration, braking, and cornering. With proposed overall dimensions of approximately 7,600 × 2,300 × 2,900 mm and a wheelbase of around 3,815 mm, the vehicle is intended for operation on established urban and industrial road networks, subject to confirmation of the final chassis configuration and permissible axle loads. Its roof-mounted firefighting monitor is designed for directed water discharge, while a dedicated centrifugal sprinkler pump supplies the front, side, and rear sprinkler systems, giving operators additional flexibility for road wetting, dust suppression, and selected emergency water distribution tasks.

The firefighting body features a reinforced tank structure, accessible filling and drainage connections, a water-level gauge, inspection openings, and organized storage for hoses, suction pipes, nozzles, and essential firefighting tools. Standard equipment can include an emergency warning lamp, an electric siren, fire hoses, suction pipes, a fire axe, a fire hook, an extension ladder, and compatible nozzles, helping crews prepare the vehicle for deployment according to their operational requirements. Customers looking for additional specialized vehicles can also explore our fire truck range, water tank truck range, and sprinkler truck range for different firefighting, water transportation, and road-maintenance applications.

Features

1. ISUZU ELF 4×2 Chassis and Diesel Engine

The ISUZU ELF 4×2 chassis provides a practical foundation for this water tank fire truck, combining a road-oriented configuration with the flexibility needed for municipal emergency services, industrial sites, and commercial fire protection duties. The proposed 4HK1-series engine features a displacement of approximately 5,193 cc, turbocharging, and intercooling, with an estimated output of 190–205 hp depending on the selected engine version. A 6-speed manual transmission, power-assisted steering, and a chassis-compatible braking system support routine vehicle operation, while the final tire specification, axle ratings, engine output, and transmission arrangement must be matched to the actual chassis and the weight of the completed firefighting vehicle.

2. 6,000-Liter Water Tank with Reinforced Construction

The vehicle is equipped with a 6,000 L water tank intended to provide an onboard water supply for initial firefighting operations and emergency water delivery. The proposed tank is constructed from corrosion-protected carbon steel, with stainless steel available for customers requiring an alternative tank material, and incorporates anti-surge baffles to help control water movement when the truck is accelerating, braking, or navigating turns. An external filling connection, a dedicated pump supply outlet, a drainage valve positioned at the lowest point, and a water-level gauge support routine filling, water monitoring, and maintenance, while an inspection manhole and service openings provide access for internal inspection and cleaning.

3. Roof-Mounted Firefighting Water Monitor

The roof-mounted firefighting water monitor is designed to direct a concentrated water stream toward the target area, helping operators deliver water from a position above the vehicle when responding to suitable fire incidents. The proposed monitor has an approximately 100 mm inlet, a horizontal rotation range of 360°, and a vertical adjustment range from -30° to +70°, allowing the discharge direction to be adjusted according to the situation. A preliminary target flow of 40 L/s and a water-stream range of at least 65 meters have been specified for this configuration, but the actual flow, operating pressure, and discharge distance depend on the selected monitor, nozzle, and pump performance. The final installation must ensure that the firefighting pump can supply the required flow and pressure under the intended operating conditions.

4. Dedicated Sprinkler Pump and Multi-Directional Water Distribution

The proposed centrifugal sprinkler pump has a rated flow of 60 m³/h (1,000 L/min) and a pump head of 90 meters, with a self-priming height of approximately 6.5 meters subject to the selected pump model and installation conditions. Its main function is to supply the front, side, and rear sprinkler systems, allowing operators to distribute water around the vehicle for road wetting, dust suppression, and other appropriate water-spraying applications. Sectional control valves enable the different sprinkler areas to be operated according to the task, while the water source can be arranged to draw from the onboard tank or an external supply, depending on the final plumbing design. The sprinkler pump and roof monitor must be engineered as a coordinated system, because the specified sprinkler pump alone may not deliver the monitor’s proposed 40 L/s flow requirement.

5. Practical Piping and Firefighting Connections

The proposed pipe system includes up to two Ø125 mm suction inlets, subject to the selected pump arrangement, and two Ø65 mm delivery outlets positioned at the rear of the pump assembly. Corrosion-resistant piping, compatible couplings, and clearly labeled suction, delivery, and drainage valves help organize the water circuit and make the system easier for trained operators to manage. The final arrangement can be adapted to local fire hose coupling standards and the requirements of the intended fire department, with the number and size of connections confirmed during engineering to ensure that the pump, tank, monitor, and sprinkler circuits operate within their rated limits.

6. Complete Firefighting Equipment Package

The vehicle can be supplied with a practical selection of firefighting tools and accessories, including an electric siren, an emergency rotating warning lamp, a fire axe, a fire hook, an extension ladder, a jet-and-spray nozzle, and a straight jet nozzle. The proposed package also includes four Ø65 mm fire hoses measuring 20 meters each, two 4-meter suction pipes, two Ø100 mm metal water filters with guide ropes, two 100 mm suction pipe wrenches, two fire hydrant wrenches, and two 3 kg fire extinguishers. This equipment arrangement provides a useful starting point for emergency deployment, while hose couplings, nozzle types, tool specifications, and other accessories can be adjusted to meet customer requirements and local firefighting standards.

7. Flexible Application for Fire Protection and Water-Spraying Tasks

With its combination of onboard water storage, a roof-mounted monitor, and a multi-directional sprinkler system, the ISUZU 6000L Water Tank Fire Truck can support a range of tasks across municipal and industrial environments. Its primary role is firefighting and emergency water supply, while the sprinkler system can also assist with road wetting and dust suppression when the vehicle is configured for those applications. The final equipment package can be tailored to the intended operating environment, ensuring that the water delivery system, pump controls, hose connections, and storage compartments are arranged to suit the customer’s practical needs.

Engineering note: The specifications describe a proposed configuration rather than confirmed factory-certified data. A full 6,000-liter water load weighs approximately 6,000 kg before adding the chassis, tank body, pump, crew, and equipment, so the selected ISUZU ELF chassis must have sufficient certified payload and axle capacity. In addition, the roof monitor’s proposed 40 L/s flow is substantially higher than the sprinkler pump’s 60 m³/h capacity; a suitable high-flow firefighting pump or a separately engineered pump arrangement is therefore required to achieve the intended monitor performance. Final vehicle weight, tank dimensions, engine specification, pump configuration, monitor range, and overall dimensions must be verified by the vehicle manufacturer before production.
