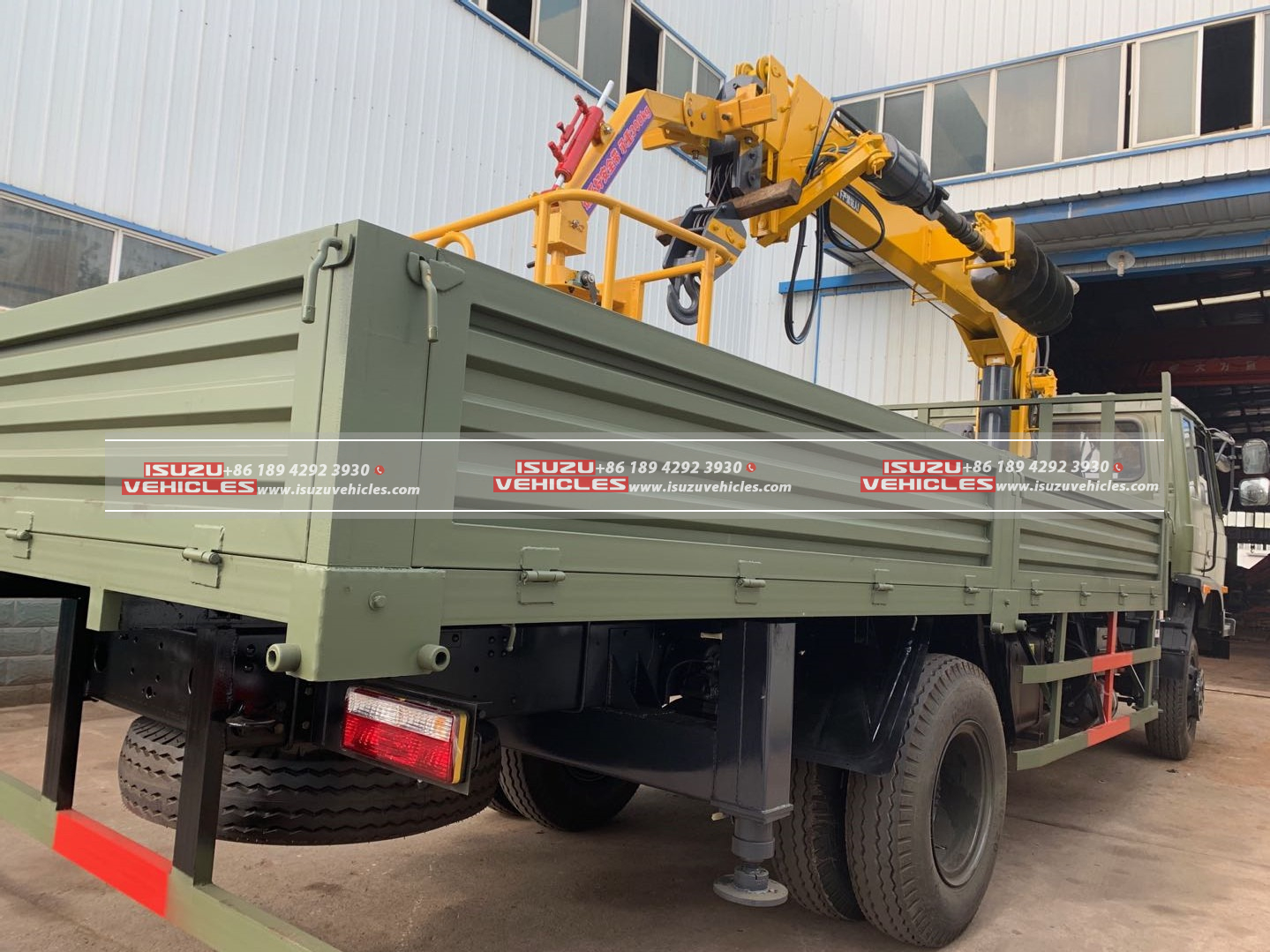

ISUZU 8 TON PALFINGER Telescopic Boom Crane Truck
Built on the reliable ISUZU FVR 5X chassis (Model: QL1180EQFRY/VC61 5X), this heavy-duty truck integrates a 240 HP EURO 6-compliant engine (ISUZU 6HK1-TCG61) with a displacement of 7.79L, delivering 850N·m torque at 1400 rpm for exceptional low-end power. The chassis features a 950/850mm U-profile ladder frame with dual-layer mounting points, paired with a 7/6+8 leaf spring suspension and 4.555 rear axle ratio to ensure stability under extreme loads.
Equipped with a FAST 8-speed manual transmission (8JS95TE-C) and Φ380mm hydraulic-assisted clutch, it optimizes power transfer for off-road versatility. The sleeper cab (2480mm width) accommodates two operators with air-conditioning, multi-function steering wheel, and central locking system, enhancing driver comfort during extended shifts. Safety is prioritized via dual-circuit air brakes, ABS, and an engine exhaust brake, supporting a 19,300kg GVW with a 7,320kg payload capacity.

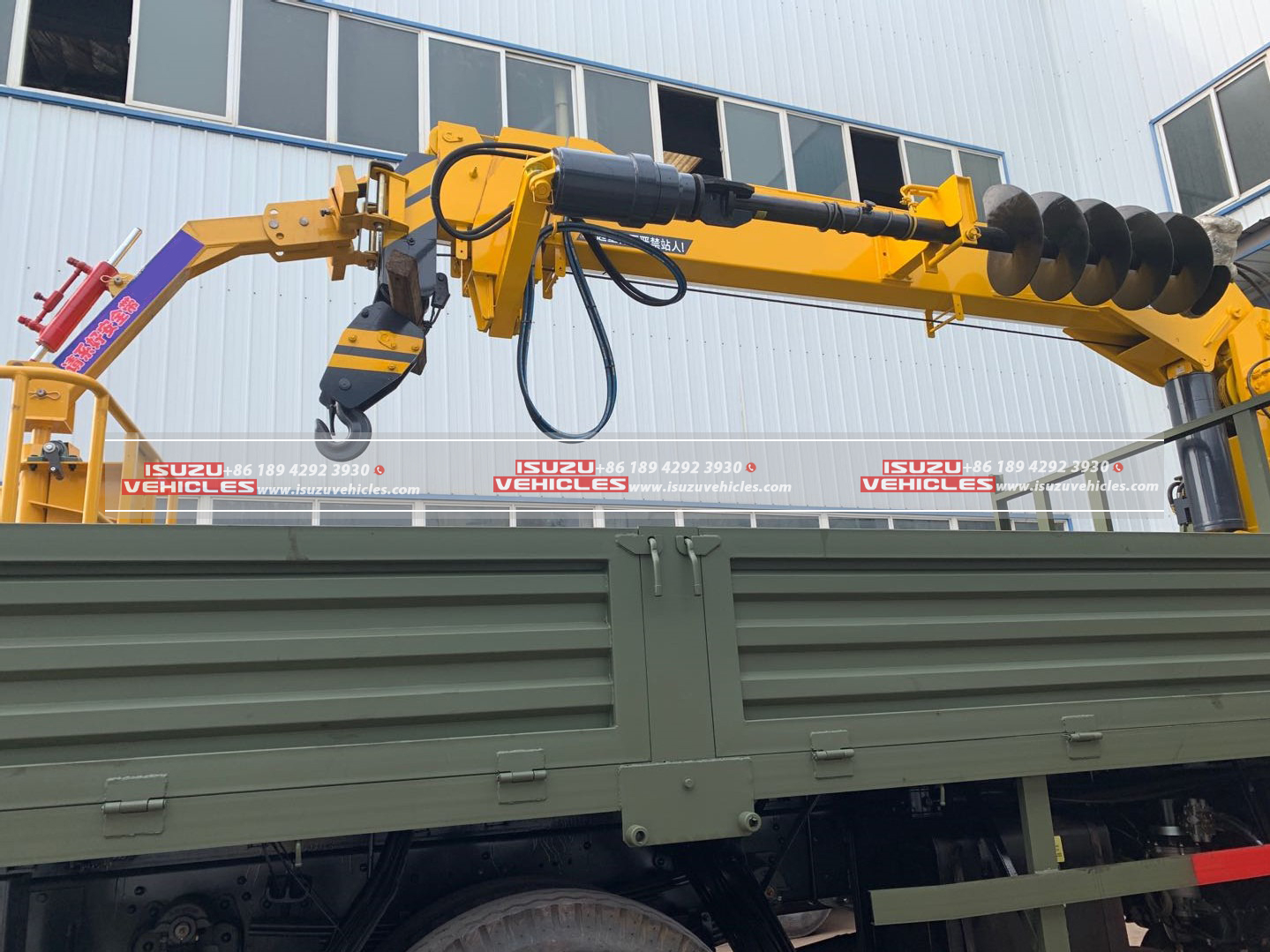

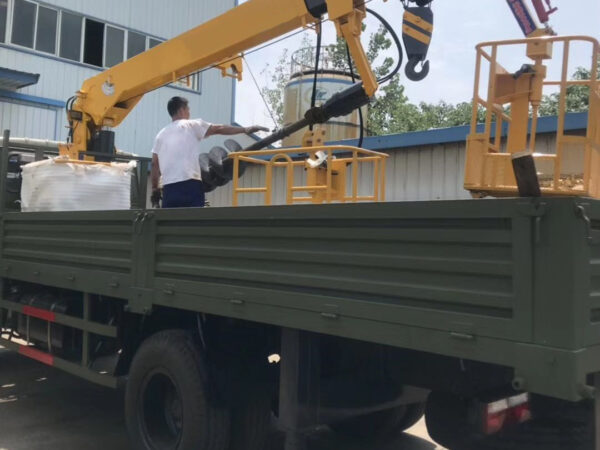

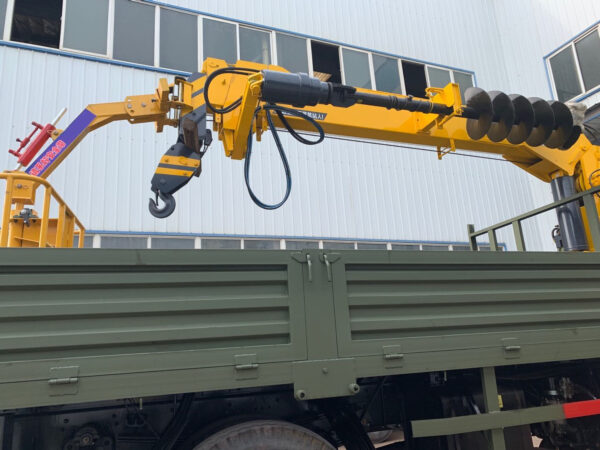

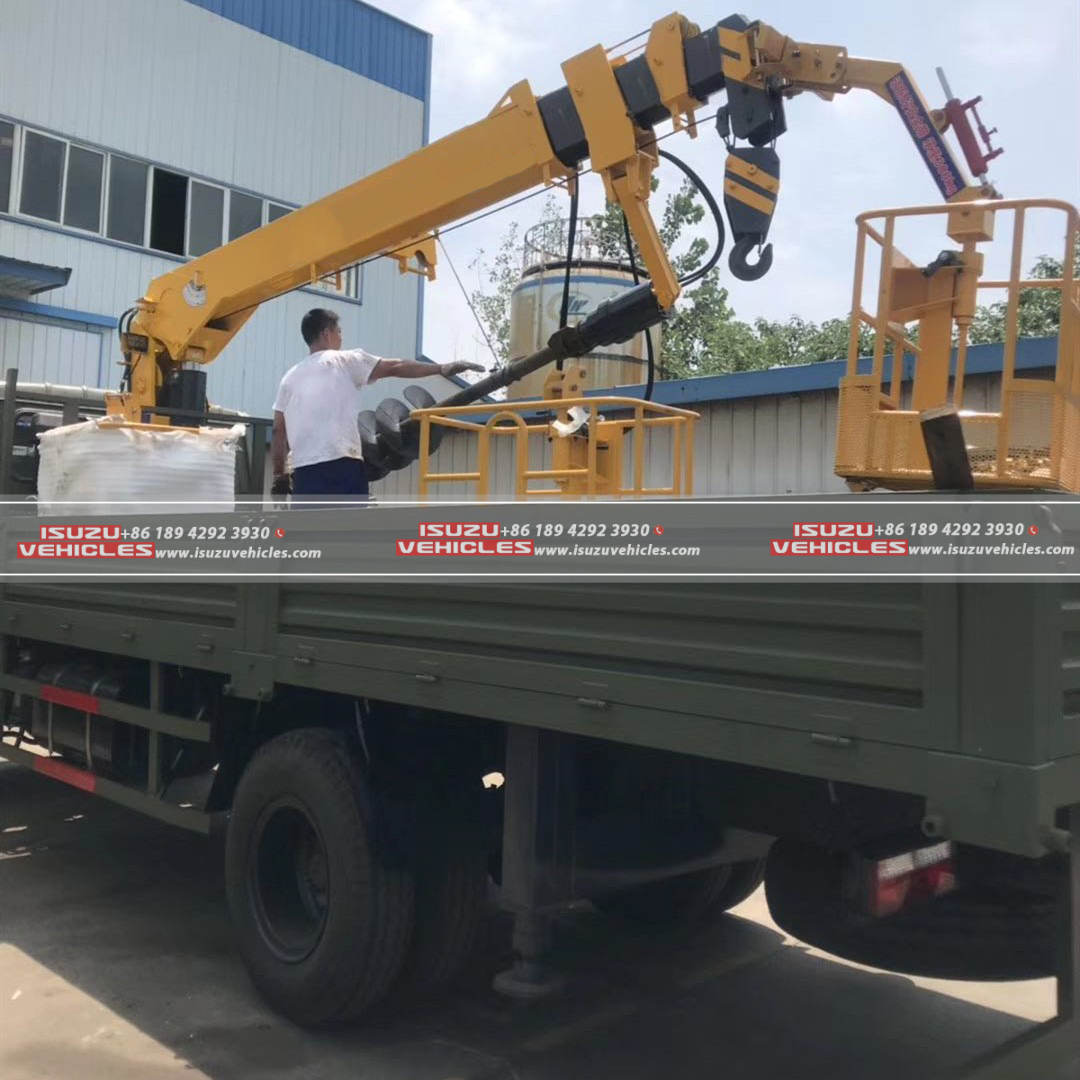

At its core, the PALFINGER SPS17500B-F telescopic boom crane delivers an 8-ton lifting capacity at 2.0m outreach, extending to 13.8m fully extended for high-reach flexibility. An optional hydraulic drilling auger expands functionality, capable of boring 400mm-diameter holes to 2.5m depths for geotechnical or construction tasks.
Key Features
Operational Excellence
- 4WD chassis with 265mm ground clearance for rugged terrain
- 5.6m hydraulic outrigger span for crane stability on uneven surfaces
- 15.3m maximum lifting height with continuous 360° slewing
- 4-line hook system and high-speed boom extension for rapid deployment
Crane-Specific Innovations
- Ergonomic radio remote control enabling precision load placement
- Hydraulic overload safety device and load-holding valves for fail-safe operation
- High-density corrosion-resistant paint protecting critical components
- Hose equipment interfaces supporting augers or other attachments
Operator-Centric Design
- Multi-function LCD instrument panel displaying real-time performance metrics
- Adjustable air-suspension driver’s seat (optional) reducing fatigue
- Top-seat crane control station for optimized visibility
- Integrated stainless steel toolbox and fire extinguisher
SPECIFICATIONS:
| Parameter | Specification |
|---|---|
| Rated lifting moment | 19.8 mt |
| Rated lifting capacity | 8000 kg (at 2.0 m) |
| Max. outreach | 13.5 m |
| Max. lines of the hook | 4 |
| Slewing angle | Continuous |
| Boom raising angle | 0~75° |
| Max. lifting height | 15.3 m |
| Length of the basic boom | 4.8 m |
| Length of fully extended boom | 13.8 m |
| Boom sections | 4 |
| Outrigger span (fully extended) | 5.6 m |
| Recommended volume for system | 70 L/min |
| Operating pressure | 25/28 MPa |
| Recommended oil tank capacity | 100 L |
| Crane moment (dynamic) | 301.1 kNm / 30.7 mt |
| Torsional moment (dynamic) | 19.2 kNm / 2.0 mt |
| Crane weight | 2730 kg |
