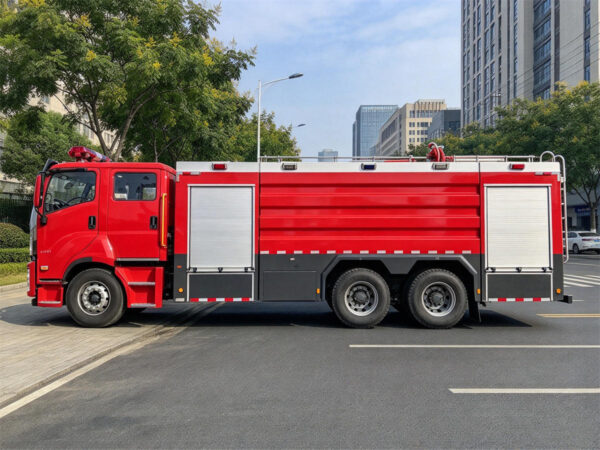

ISUZU 8000L Water Fire Fighting Truck

ISUZU 8000L Water Fire Fighting Truck

The ISUZU 8000L Water Fire Fighting Truck is a heavy-duty emergency response vehicle designed to support firefighting operations in industrial facilities, commercial areas, residential communities, warehouses, infrastructure projects, and locations where a reliable water supply is essential. Equipped with an 8,000-liter water tank, a high-capacity fire pump, and a roof-mounted fire monitor, this truck is configured to deliver a substantial volume of water over considerable distances, helping firefighters respond quickly to developing fires and support sustained suppression operations.

Based on the specifications provided, the vehicle features a heavy-duty 6×4 chassis configuration, an overall dimension of approximately 9,800 × 2,530 × 3,680 mm, and a gross vehicle weight of 25,000 kg. Its proposed powertrain consists of an ISUZU 6UZ1-TCG61 diesel engine with a displacement of 9.839 liters, an output of 380 HP, and maximum torque of 1,900 N·m, paired with a 12-speed forward transmission and two reverse gears. The listed engine performance is intended to provide the power needed to move the fully equipped fire truck while supporting emergency operations across demanding road conditions.

The firefighting system includes a CB10/60 fire pump and a PL8/48 fire monitor, with a listed water flow rate of up to 60 liters per second and a stated water jet distance of at least 55 meters under the specified operating conditions. The monitor can rotate 360 degrees horizontally and adjust vertically from -45 to 70 degrees, giving operators flexibility when directing water toward different fire locations. Additional equipment, including pump connections, discharge outlets, a 30-meter high-pressure hose, an alarm light, and a detachable ladder, supports practical deployment during emergency response.

For customers comparing specialized emergency vehicles, the fire truck range offers a useful starting point for exploring different firefighting configurations. Depending on the application, operators may also consider a water tanker truck for water transportation and supply, or a bucket truck for elevated access during utility maintenance and certain emergency support tasks. The final configuration should be selected according to local firefighting requirements, road regulations, and the availability of compatible chassis and equipment.

Features

1. Heavy-Duty Chassis and High-Power Engine

The proposed 6×4 heavy-duty configuration is suitable for a fire truck carrying a large water tank, firefighting equipment, and operational accessories. With a listed gross vehicle weight of 25,000 kg and a wheelbase of 4,600 + 1,370 mm, the platform is designed around the load-carrying demands of a large emergency response vehicle. The specified 6UZ1-TCG61 diesel engine delivers a proposed output of 380 HP and maximum torque of 1,900 N·m, while the 12-speed forward transmission provides a range of gear ratios for different driving conditions.

The supplied data also lists a maximum speed of 95 km/h and a Euro VI emission standard. These details should be confirmed against the actual chassis documentation and the regulations of the destination market before the vehicle is ordered, particularly because chassis availability and emission certification can vary by region.

2. 8,000-Liter Water Tank

The truck is equipped with an 8,000-liter water tank intended to provide an onboard water supply for firefighting operations where hydrants or other water sources may not be immediately accessible. The tank capacity enables crews to begin suppression work promptly while arranging a supplementary water supply for longer incidents. Its final construction, internal layout, baffles, access openings, and drainage arrangements should be specified according to the manufacturer’s engineering design and the intended operating environment.

With a listed curb weight of 12,500 kg and gross vehicle weight of 25,000 kg, the nominal difference is 12,500 kg for payload and other carried equipment. The actual usable payload must still be confirmed against the completed vehicle’s certified weight, axle ratings, tank structure, pump assembly, hoses, tools, and crew equipment.

3. CB10/60 Fire Pump System

The proposed CB10/60 fire pump is a central component of the truck’s firefighting equipment, supplying pressurized water to the discharge outlets and fire monitor. The supplied specifications list a flow rate of 60 liters per second for both low-pressure and medium-pressure operation. At the stated flow rate, the pump can support high-volume water delivery, although the actual flow and pressure achieved will depend on the pump curve, engine or power take-off operating conditions, pipework, elevation, and nozzle configuration.

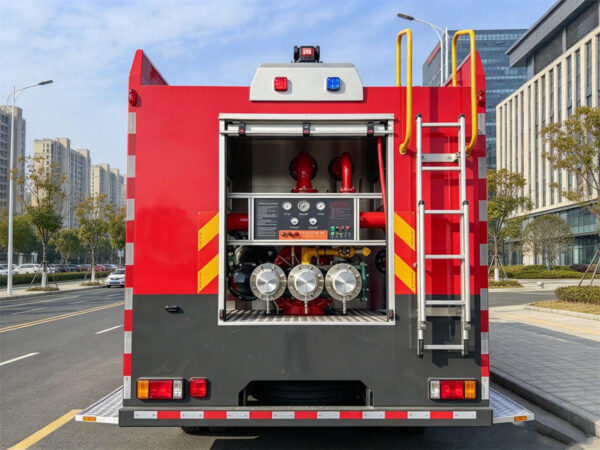

The pump system includes one 100 mm inlet and two 65 mm outlets plus two 85 mm outlets, according to the supplied data. An English-language pump operating panel is specified to help operators understand the controls and manage the system during deployment. Final connection sizes, pressure ratings, and operating procedures should be verified with the pump manufacturer before use.

4. PL8/48 Fire Monitor with Long-Reach Water Jet

The listed PL8/48 fire monitor is designed to direct a concentrated stream of water toward the fire from the truck’s upper structure. The supplied specifications state a working pressure of 1.0 MPa, a flow rate of 60 liters per second, and a water jet distance of at least 55 meters under the specified test conditions. Its 360-degree horizontal rotation and vertical adjustment range from -45 to 70 degrees allow operators to direct the stream toward different areas without constantly repositioning the vehicle.

This arrangement is particularly useful when firefighters need to apply water from a safer distance or reach fire locations that are difficult to approach directly. Actual jet distance and effective coverage will vary with wind, nozzle selection, water pressure, and site conditions, so operators should follow the equipment manufacturer’s operating instructions and local firefighting procedures.

5. Emergency Equipment and Practical Accessories

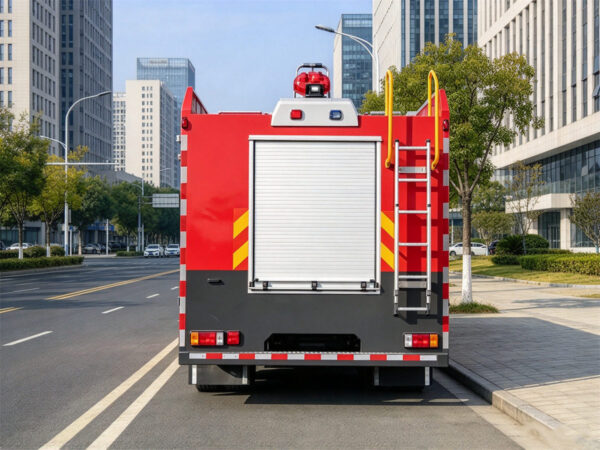

The standard configuration described in the supplied specifications includes an alarm light, a detachable ladder, black fenders, a rear equipment box positioned with an upward tilt of approximately 45 degrees, and a 30-meter roll of black high-pressure hose. The truck’s pump panel is specified in English, while the listed interfaces and accessories use British-standard connections. These connection standards should be confirmed against the equipment used by the local fire department to ensure compatibility with existing hoses, hydrants, and fittings.

The vehicle’s single cab is listed with two seats and amenities including air conditioning, electric windows, and a USB port. An independent cabin or crew compartment is specified for five firefighters, providing additional space for personnel involved in emergency response. The final seating arrangement, crew-compartment safety provisions, and equipment storage layout should be checked against applicable vehicle and fire-service standards.

6. Applications in Municipal and Industrial Fire Protection

The ISUZU 8000L Water Fire Fighting Truck is intended for organizations that require an onboard water supply and a high-capacity firefighting system in one vehicle. Potential applications include municipal fire brigades, industrial parks, logistics centers, warehouses, manufacturing facilities, construction sites, and other properties where large-scale water delivery may be necessary. Its combination of tank capacity, pump equipment, and an adjustable fire monitor supports initial fire suppression and can supplement other emergency response resources.

Before production or purchase, buyers should confirm the exact chassis manufacturer and model, engine configuration, emissions certification, tank construction, pump performance, fire monitor specifications, and local equipment compatibility. The supplied data identifies the chassis model as Howo while describing the vehicle as an ISUZU GIGA fire water truck and listing an ISUZU 6UZ1 engine; these details are not fully consistent and should be reconciled with the manufacturer before the final product description or vehicle quotation is published.

Specifications
