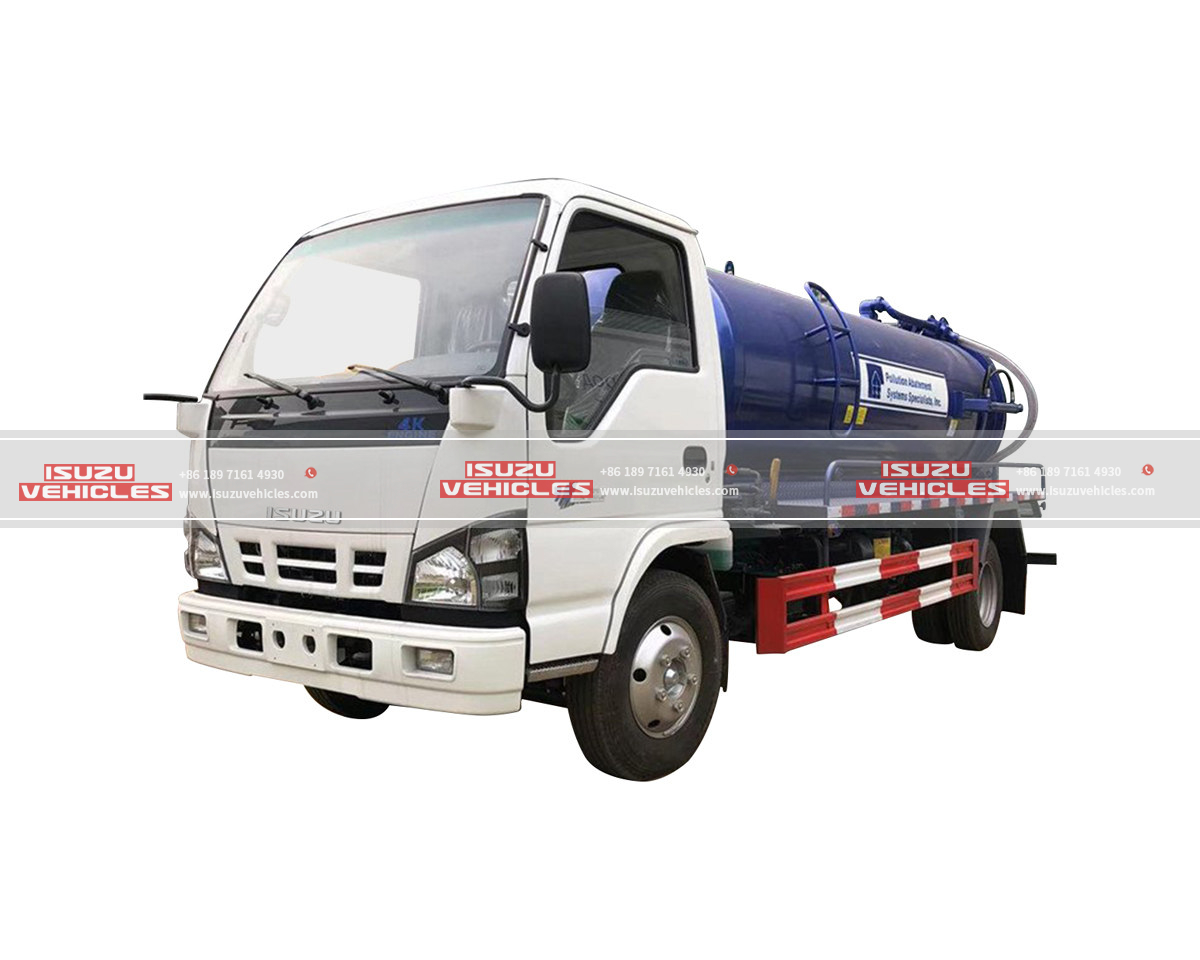

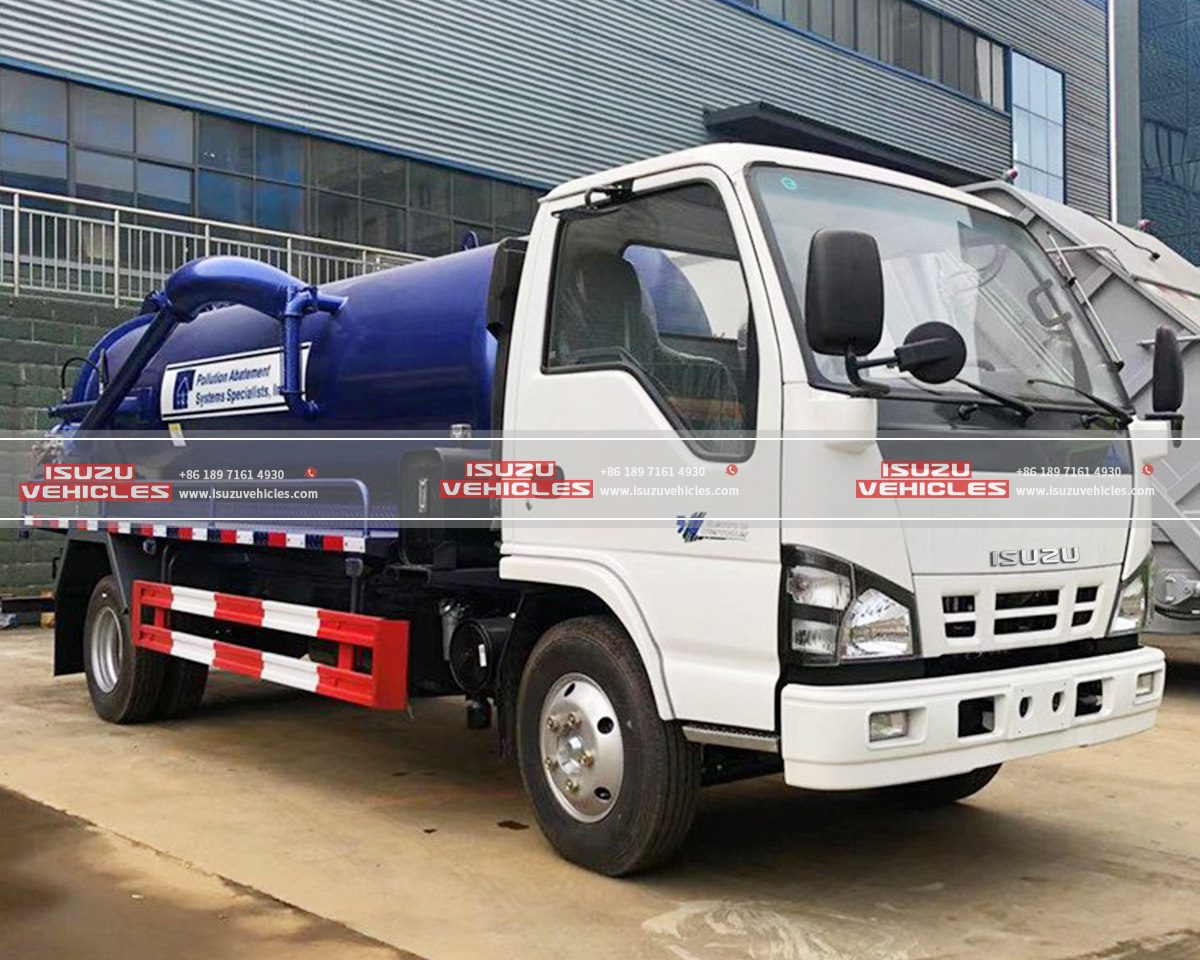

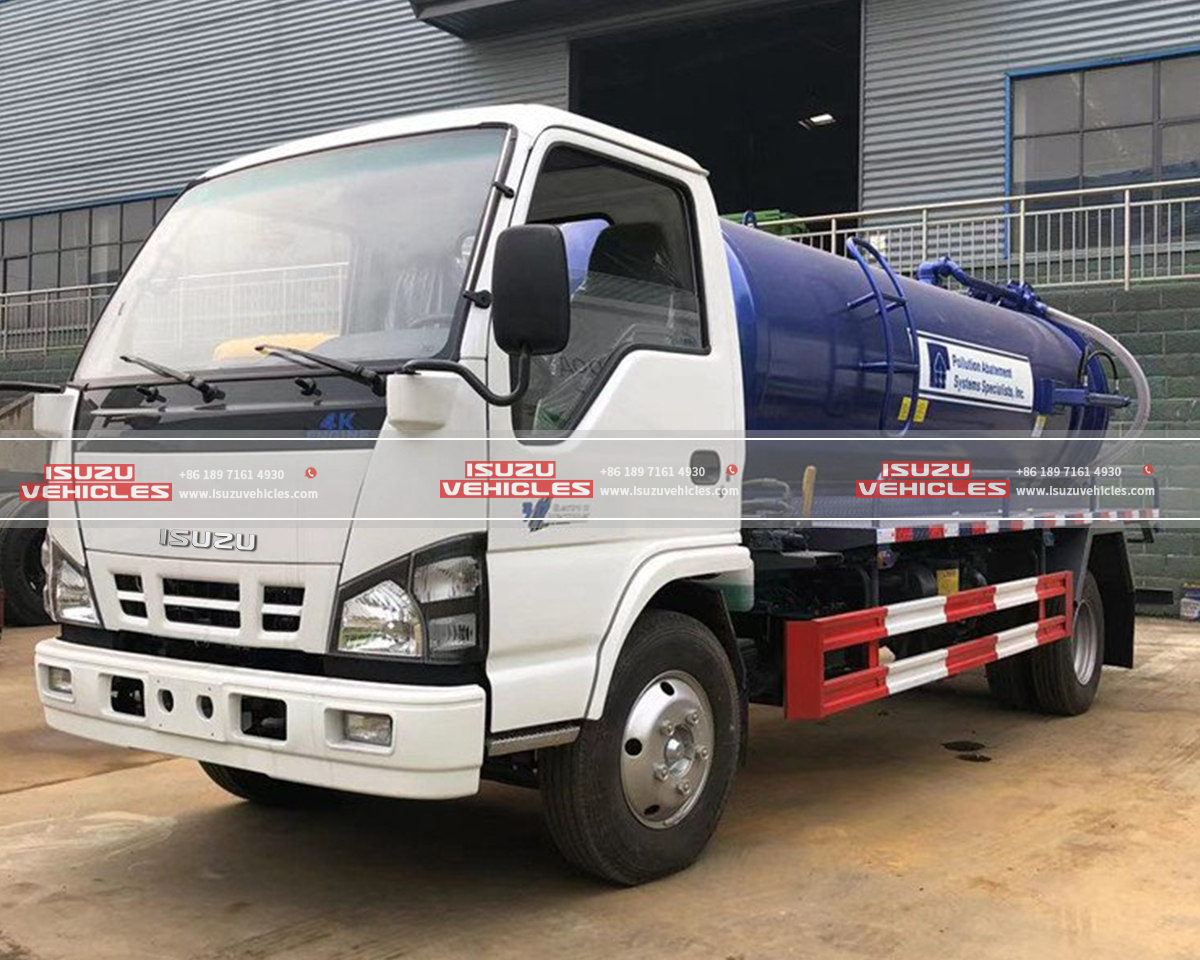

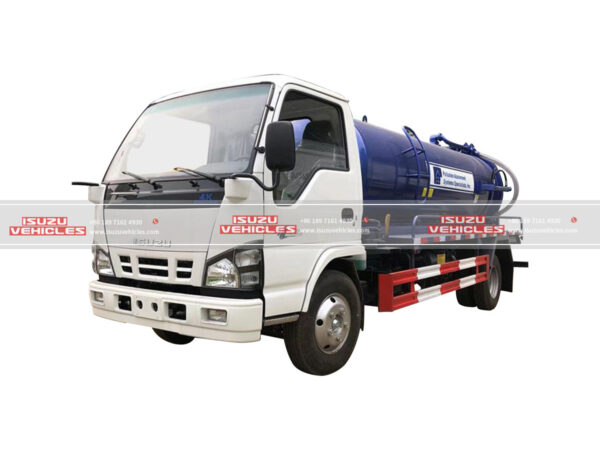

ISUZU Cesspit Emptier Vacuum Truck
600P Chassis Compact Efficiency
Built on the ISUZU 600P chassis, this vacuum truck excels in maneuverability for urban and narrow-space cesspit maintenance. With an overall dimension of 5,995×1,950×2,550mm and a 3,360mm wheelbase, it supports a gross vehicle weight of 7,300kg while maintaining a lightweight curb weight of 4,000kg. The 4+2 drive wheel configuration with 7.00R16 tires ensures stability across uneven terrain.
Euro 5-Compliant Powertrain
Powered by the ISUZU 4KH1CN5HS engine, the ISUZU Cesspit Emptier Vacuum Truck delivers 130HP (96kW) at 3,400rpm and a peak torque of 290N·m at 1,500rpm. The intercooled turbocharged design and ISUZU/MSB manual transmission (5F+1R) optimize fuel efficiency and reliability for continuous operation in waste-handling applications.

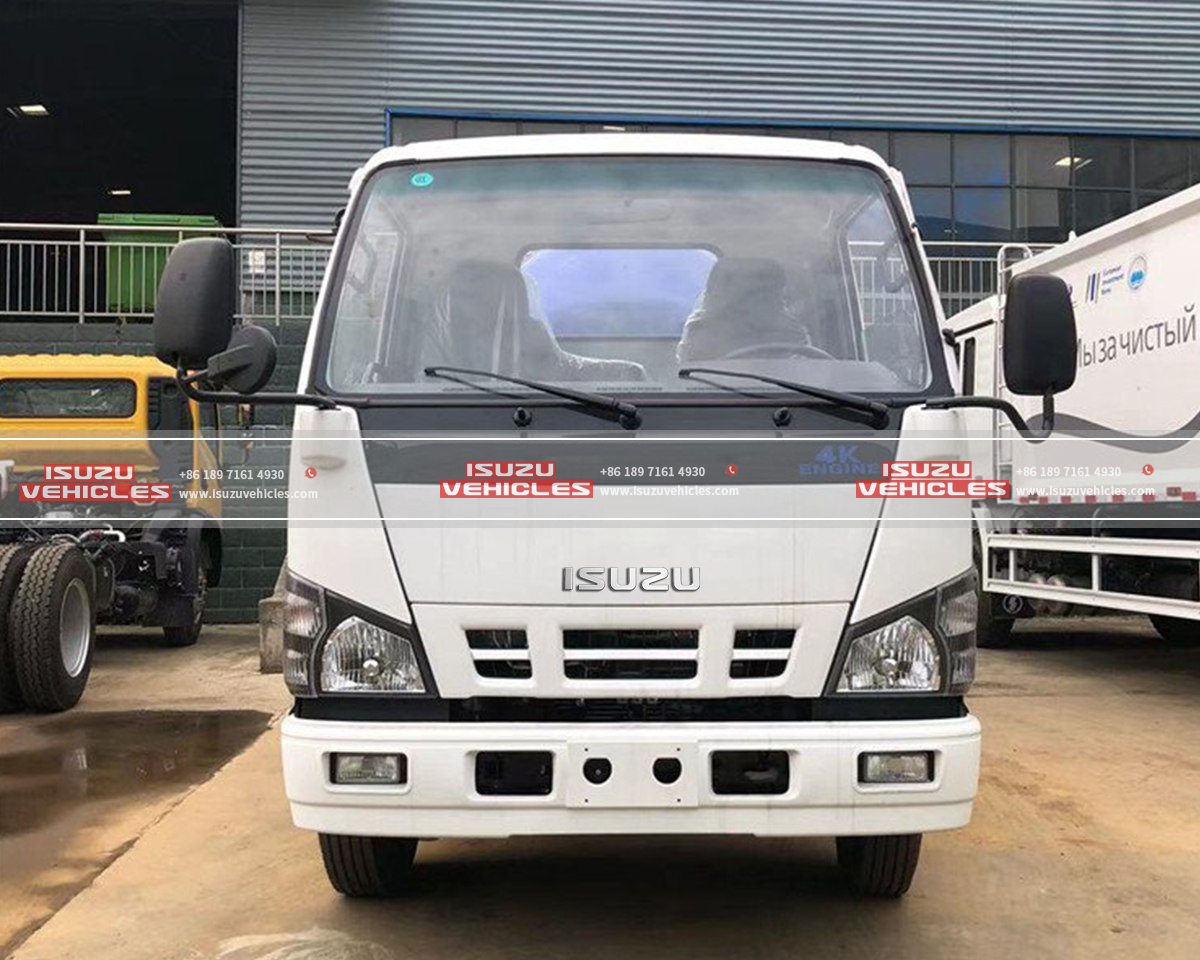

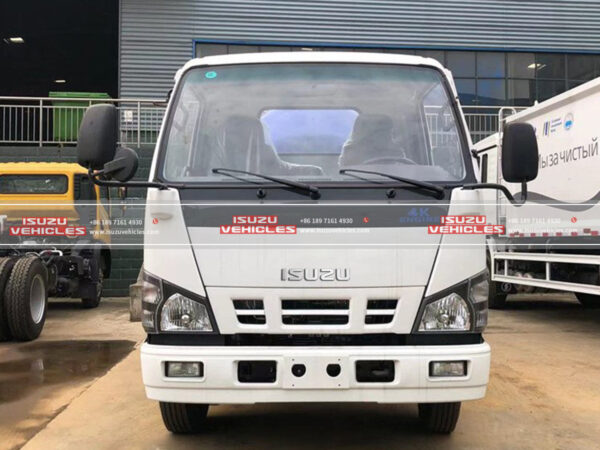

Operator-Centric Cabin
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, prioritizing ergonomic controls and visibility. Its compact layout enhances agility during high-frequency cesspit emptying tasks.
Features
High-Performance Vacuum System
Equipped with the VERYONG/68-7000 pump, the system achieves an 800m³/h flow rate and 93% maximum vacuum efficiency, enabling rapid sludge extraction. The water-cooled, multi-cylinder design ensures durability in continuous-duty operations.

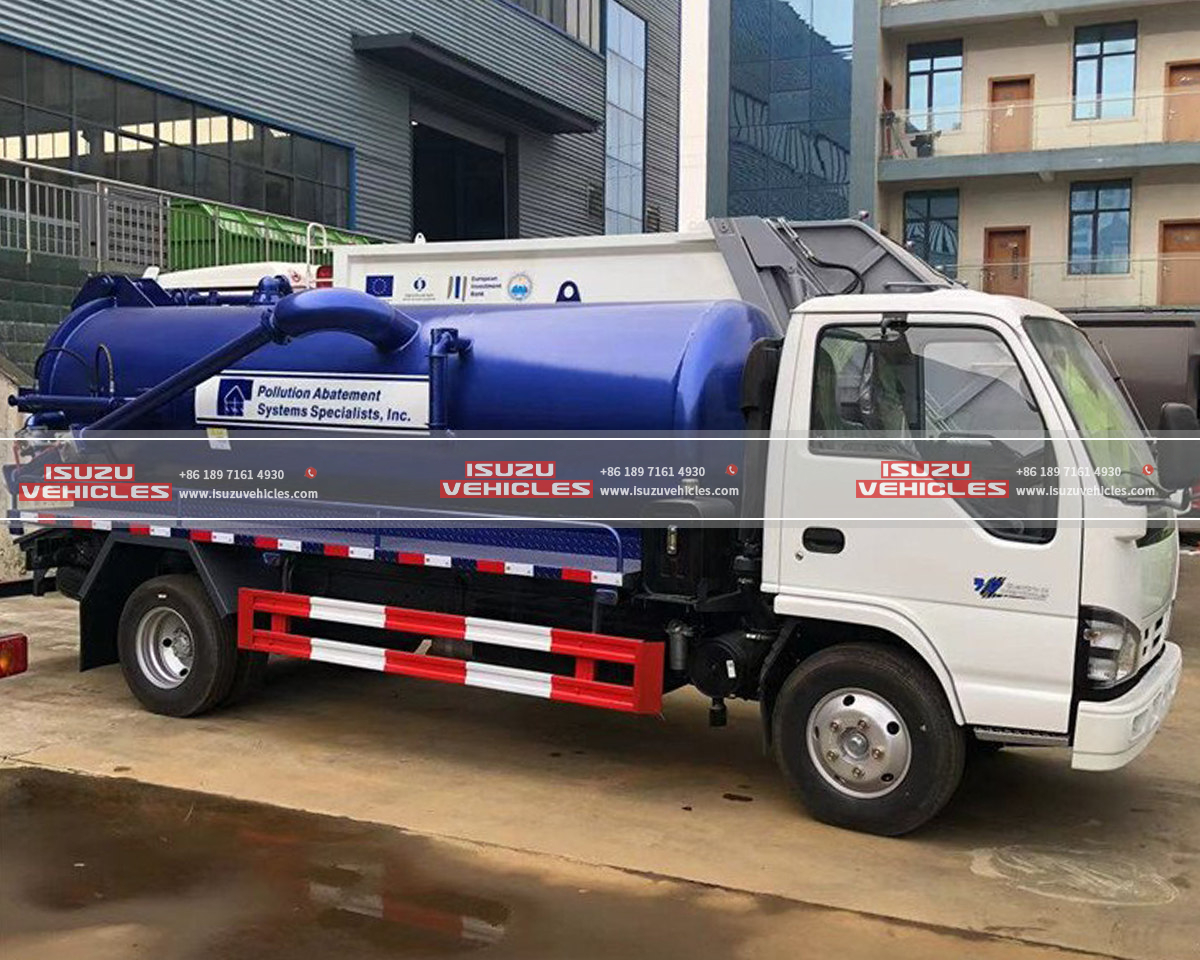

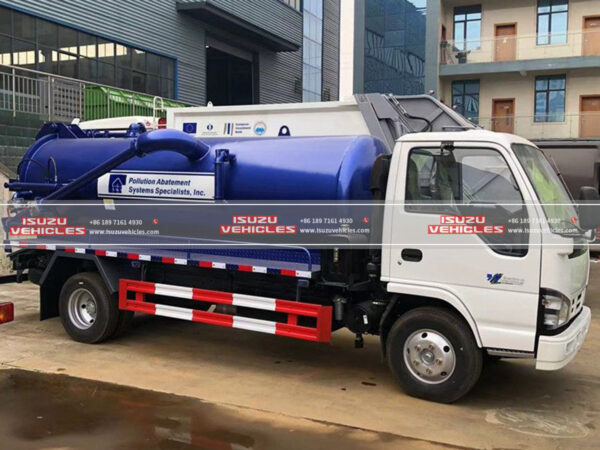

Robust 5,000L Sludge Tank

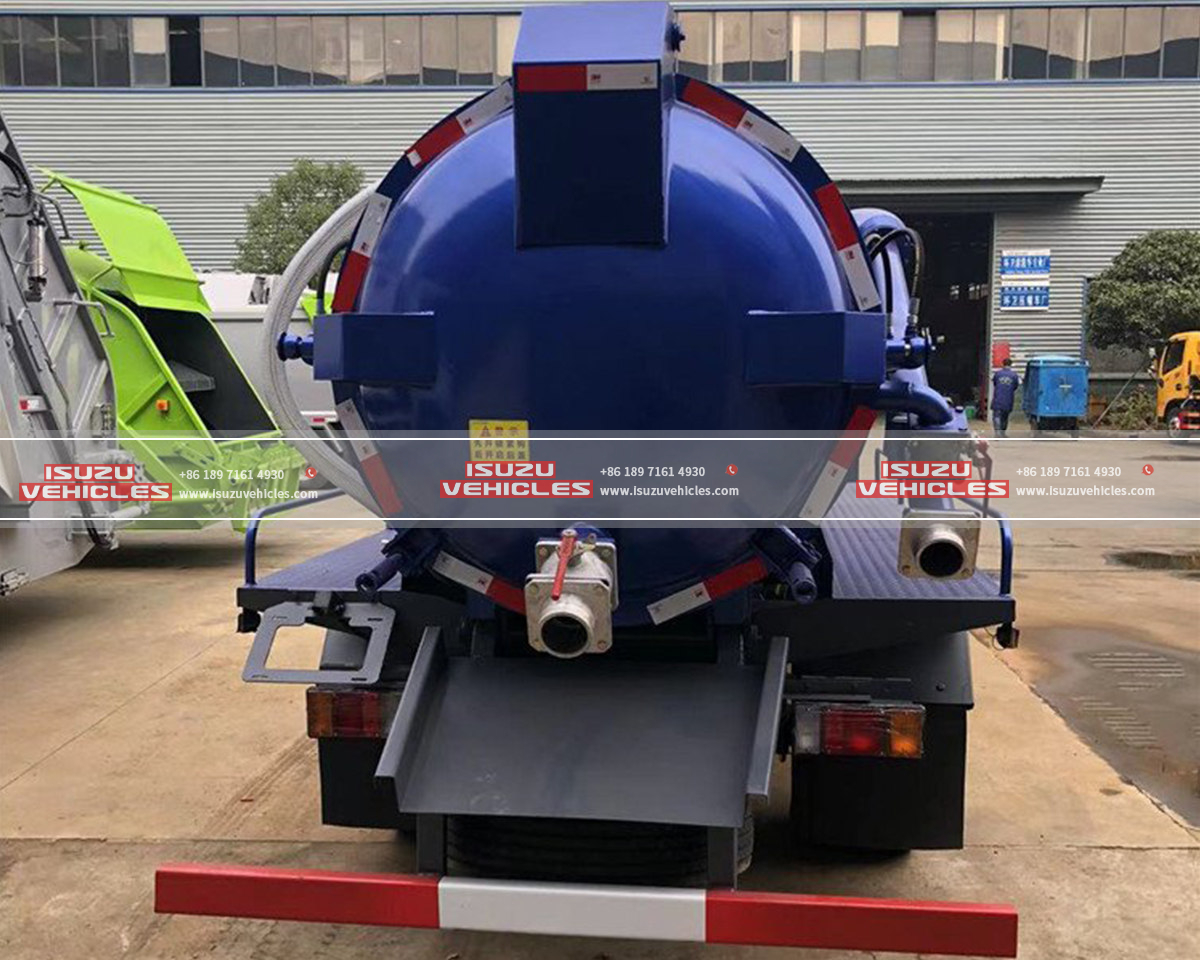

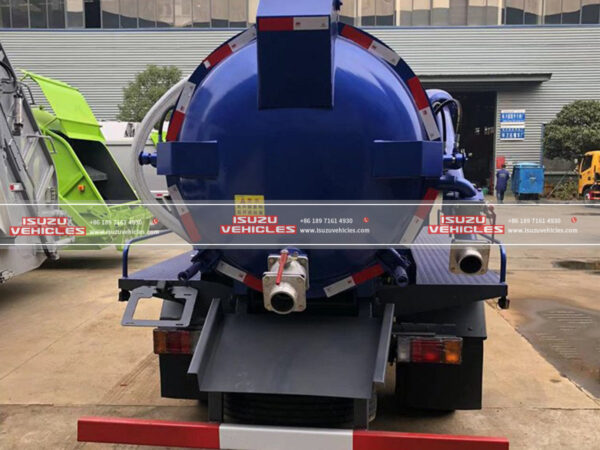

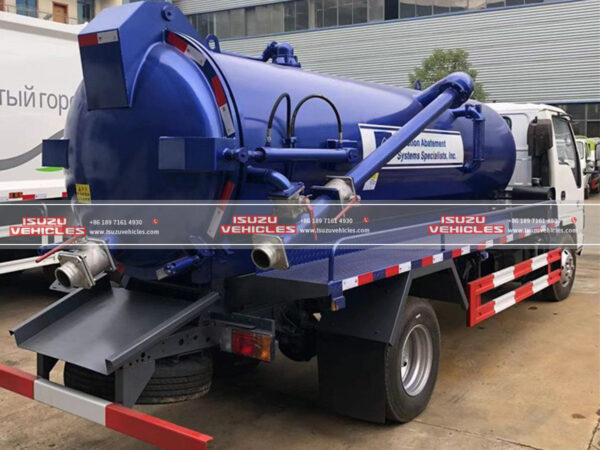

Constructed from 6mm reinforced steel, the single-compartment tank (5,000L capacity) features a reinforced rear door with an 80° tilt angle for efficient unloading. Self-compensating seals and manual latches guarantee leak-proof containment.
Quick-Deployment Suction Hoses
Five heavy-duty spiral hoses (4” diameter, 3m length) include aluminum/galvanized steel quick-connect fittings, enabling rapid setup and compatibility with diverse cesspit configurations.
Anti-Flow Safety Compliance
Integrated anti-flow mechanisms prevent backflow and contamination, aligning with stringent environmental and operational safety standards.
Real-Time Monitoring
Dual transparent acrylic level indicators provide clear visibility of sludge volume, minimizing overfill risks during high-volume operations.
SPECIFICATIONS
| Category | Specification |
|---|---|
| GENERAL | |
| Make/Model | ISUZU / VST05QL130L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension (L×W×H) | 5,995×1,950×2,550mm |
| Gross Vehicle Weight | 7,300kg |
| Curb Weight | 4,000kg |
| Wheelbase | 3,360mm |
| Chassis Designed | ISUZU 600P |
| Cabin | Hydraulic power steering / 1 driver + 2 passengers |
| Drive Wheel (Tires) | 4+2 + 1 spare (7 total) / 7.00R16 |
| ENGINE | |
| Make/Model | ISUZU 4KH1CN5HS |
| Type | 4-cylinder, water-cooled, intercooled turbocharged |
| Displacement | 2.999L |
| Nominal Power | 130HP (96kW) @ 3,400rpm |
| Peak Torque | 290N·m @ 1,500rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make/Model | ISUZU/MSB |
| Operation | Manual (5F+1R) |
| CONSTRUCTION & CAPACITY | |
| Sludge Tank Capacity | 5,000L |
| Tank Thickness | 6mm |
| Compartment | Single sludge/sewage compartment (5,000L) |
| Rear Door | Reinforced, 80° tilt angle / self-compensating seal / manual latches |
| Level Indicators | Transparent acrylic tubing (2 units) |
| VACUUM PUMP | |
| Make/Model | VERYONG/68-7000 |
| Pump Capacity | 800m³/h |
| Maximum Vacuum | 93% |
| Type | Water-cooled, multi-cylinder, continuous-duty |
| HOSE | |
| Spiral Suction Hoses | 5 × 4″ diameter / 3m length / quick-connect fittings/aluminum/galvanized steel |
| SAFETY | |
| Safety Device | Anti-flow mechanisms |
