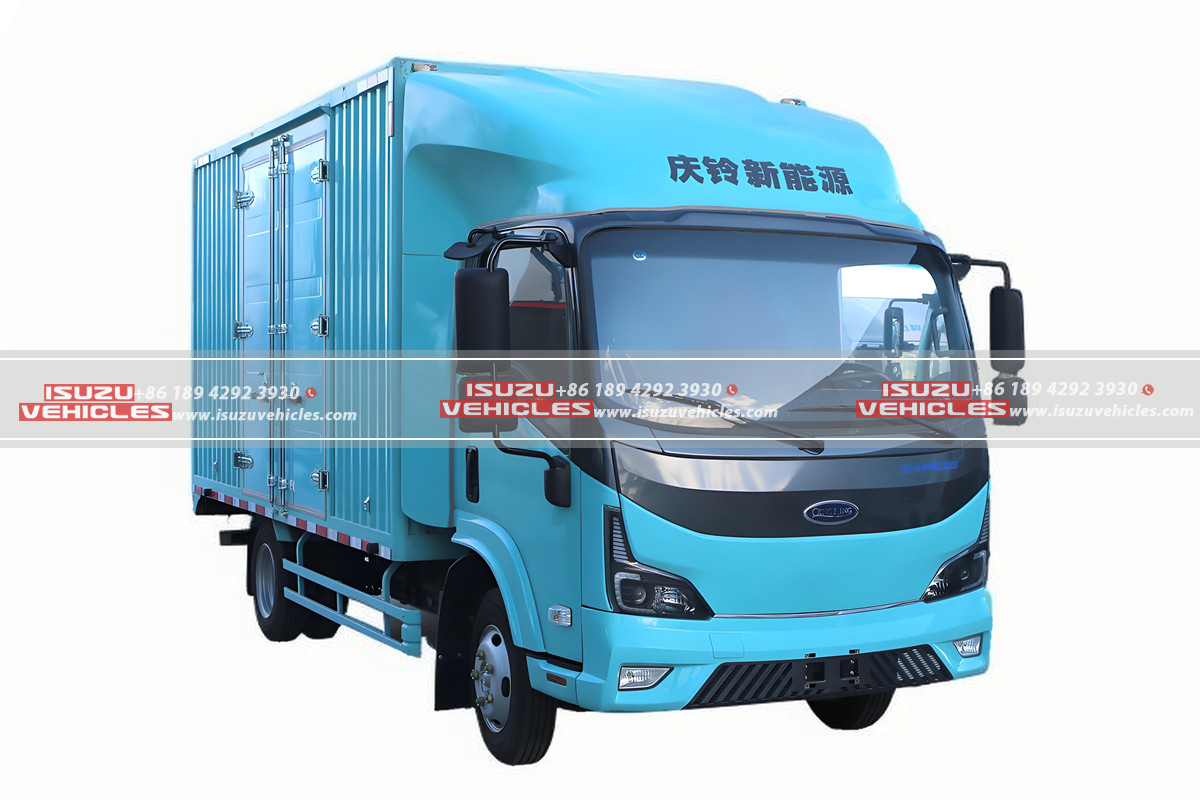

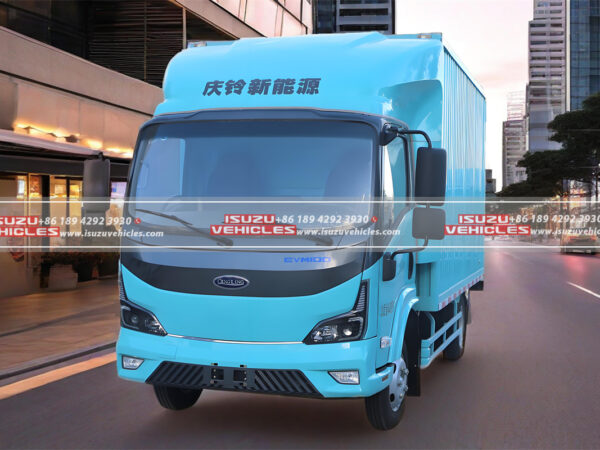

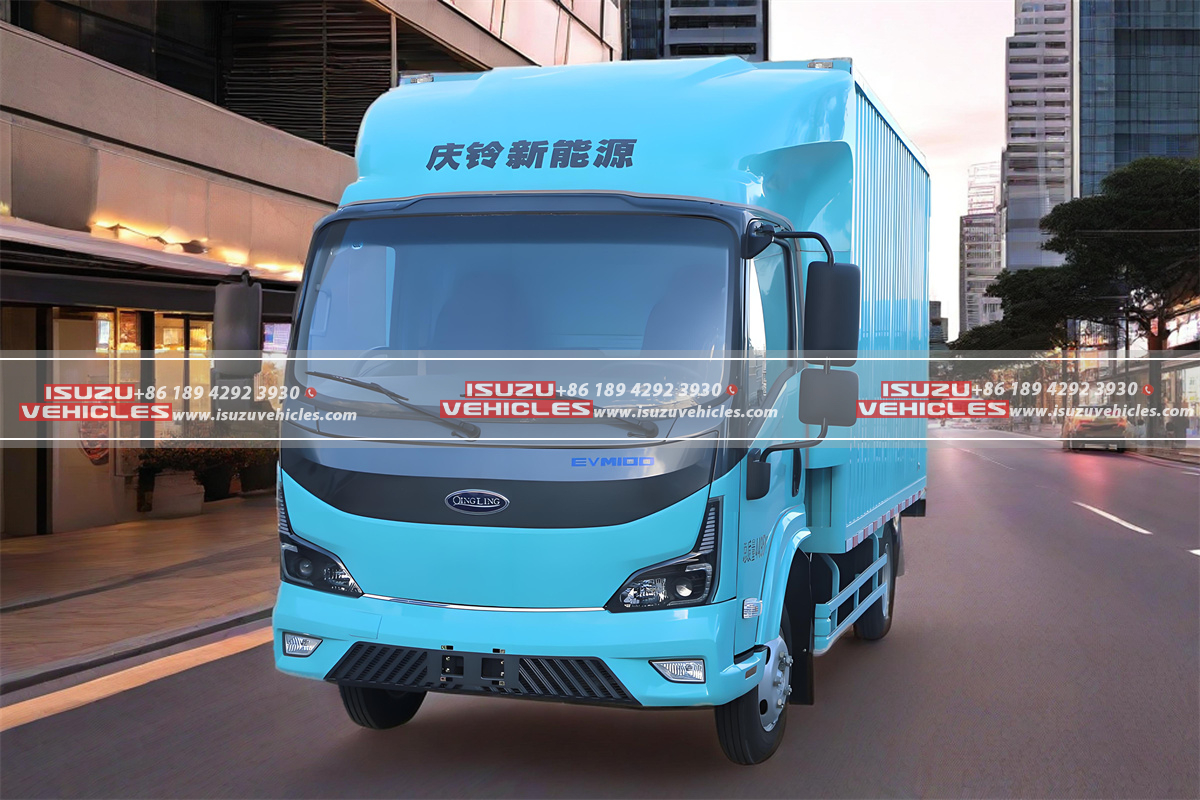

ISUZU EVM100 4.5 T Van Box Truck

ISUZU EVM100 4.5 T Van Box Truck

Designed as the future of urban logistics, the ISUZU EVM100 4.5T Van Box Truck combines Isuzu’s legendary durability with zero-emission efficiency for last-mile delivery excellence. Manufactured in Chongqing, this 4X2 light-duty electric truck features a compact yet highly functional footprint, measuring 5.995 meters in length with a maneuverable 3360mm wheelbase ideal for navigating congested city streets and tight warehouse access points. Engineered for optimal payload performance, it achieves a 4.495-tonne gross vehicle weight (GVW) with a 1.1-tonne rated payload capacity, supported by a lightweight 3.085-tonne curb weight that maximizes cargo efficiency without sacrificing structural integrity. Its pure electric drivetrain delivers a practical 300km CLTC range on a single charge, enabling full-day urban operations while eliminating tailpipe emissions and reducing noise pollution—critical for early-morning residential deliveries. The 4.2-meter insulated van body (internal: 4.13L x 2.1W x 2.1H meters) offers 18.2m³ cargo volume, optimized for parcel delivery, e-commerce logistics, and temperature-sensitive goods transport. With a 100km/h top speed and advanced driver-assist technologies, this van truck redefines reliability and sustainability for modern fleets.

Features

I. Electric Powertrain & Efficiency

• Motor System: Powered by a rear-mounted Jingjin TZ220XSA10 permanent magnet synchronous motor, delivering 65kW continuous power and 140kW peak output for confident acceleration under full load, enhanced by regenerative braking for energy recovery during urban stop-and-go traffic.
• Battery Technology: Equipped with a high-capacity 100.46kWh lithium iron phosphate (LFP) battery from EVE Energy, renowned for thermal stability, extended cycle life (>4,000 cycles), and safety in high-usage scenarios.

II. Cargo & Body Design

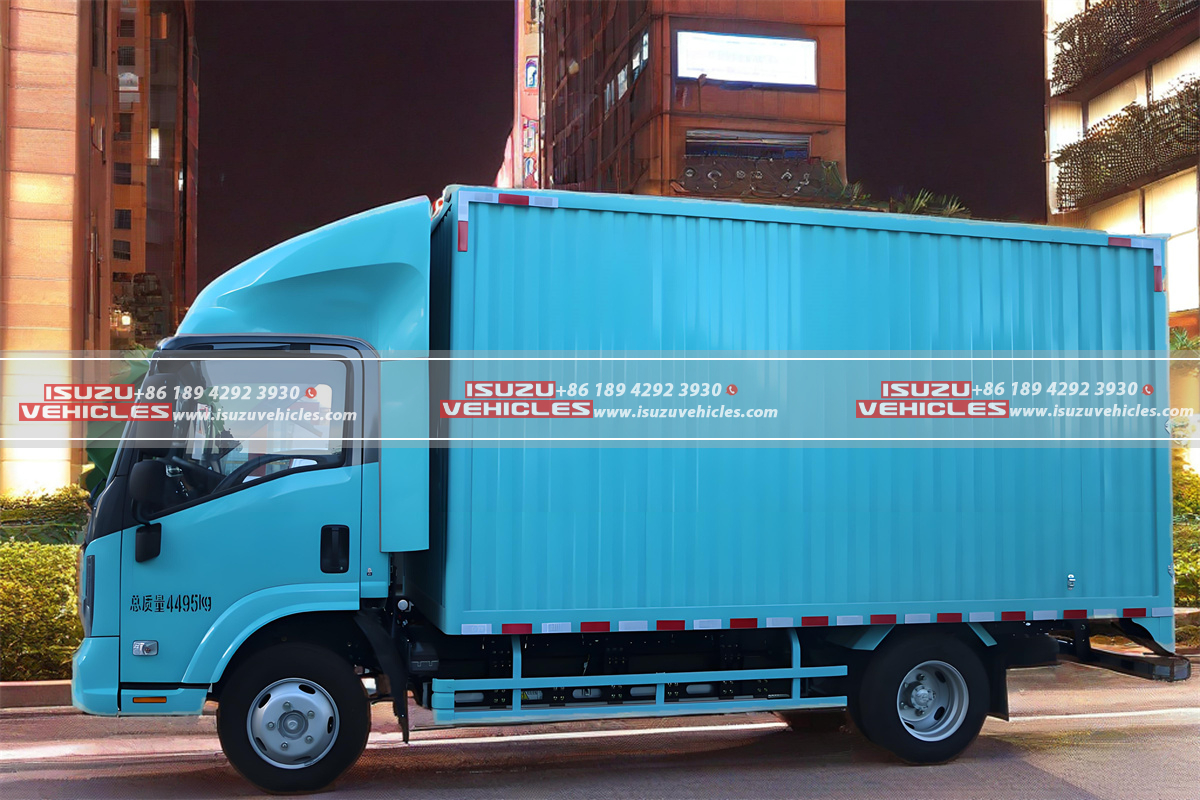

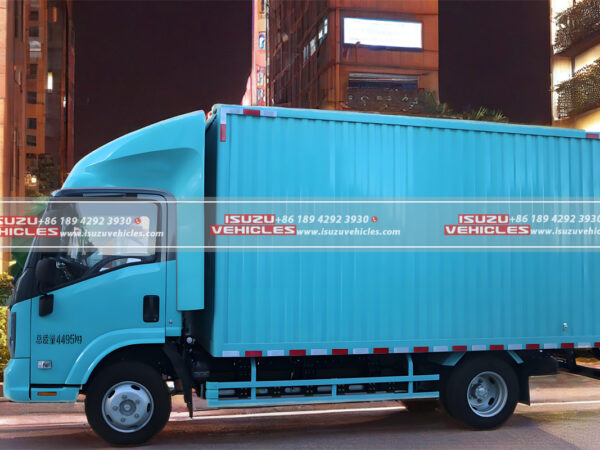

• ISUZU Van Configuration: Fully enclosed box body with reinforced insulation, providing uniform 2.1-meter internal height/width for standardized pallet loading and efficient space utilization.
• Structural Integrity: Reinforced flooring and corrosion-resistant panels ensure longevity under frequent loading cycles, while wide rear doors facilitate rapid goods handling.

III. Chassis & Safety Systems

• Load Management: Robust chassis with 1,805kg front / 2,690kg rear axle load capacity and 3/3+2 leaf spring suspension to maintain stability on uneven urban roads.
• Braking & Traction: Drum brakes (front/rear) with standard ABS and hydraulic braking system, paired with six 7.00R16LT 8PR tires for all-weather grip and puncture resistance.
• Intelligent Safety Suite:
  • AEB Automatic Emergency Braking + Forward Collision Warning
  • Lane Departure Warning + Emergency Brake Assist
  • Standard tire pressure monitoring and dual-front airbags

IV. Driver-Centric Cabin & Connectivity

• Ergonomics: Three-seat single-row cab with manually adjustable steering wheel, electric windows, and central locking for operational convenience.
• Digital Ecosystem:
  • 10-inch touchscreen with Bluetooth, GPS/BeiDou navigation, and fleet telematics
  • Multi-function steering wheel integrating cruise control and infotainment
  • HD reversing camera (optional) with ultrasonic parking sensors
• Climate Control: Manual air conditioning with optimized airflow for driver comfort during extended shifts.

Key Operational Advantages:

• Cost Savings: 30% lower maintenance costs (vs. diesel) and exemption from urban emission fees.
• Compliance-Ready: Meets global ZEV mandates and noise regulations (<72 dB).
• Productivity Boost: Fast-charging capability (30%→80% in 45 mins) minimizes downtime.
