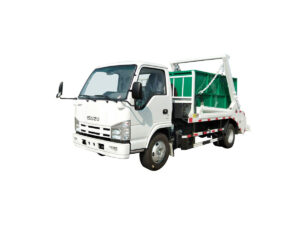

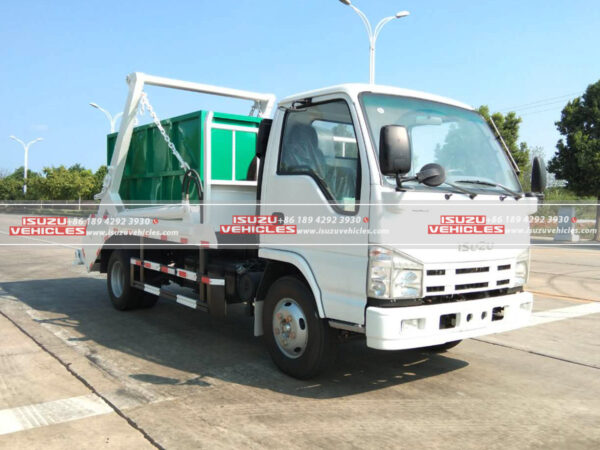

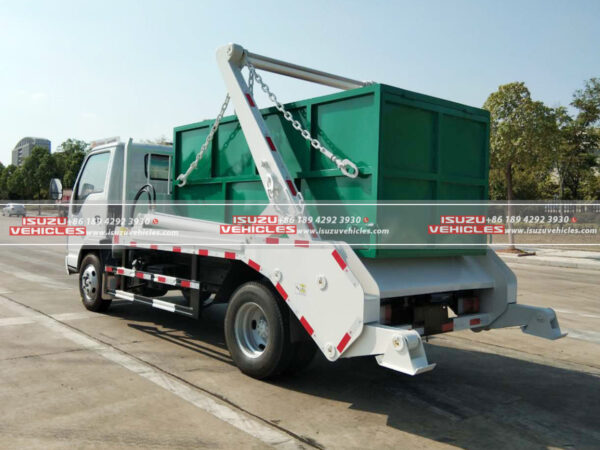

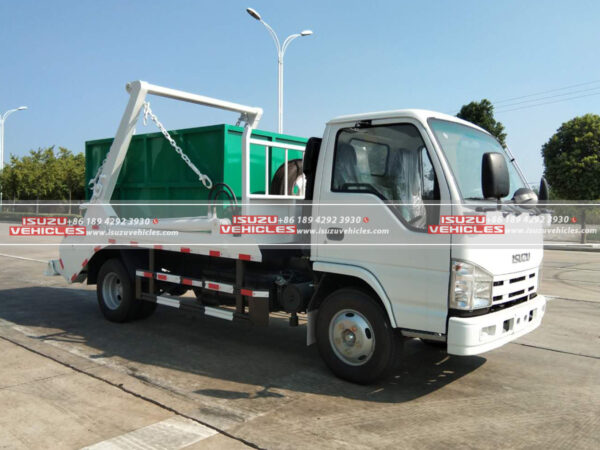

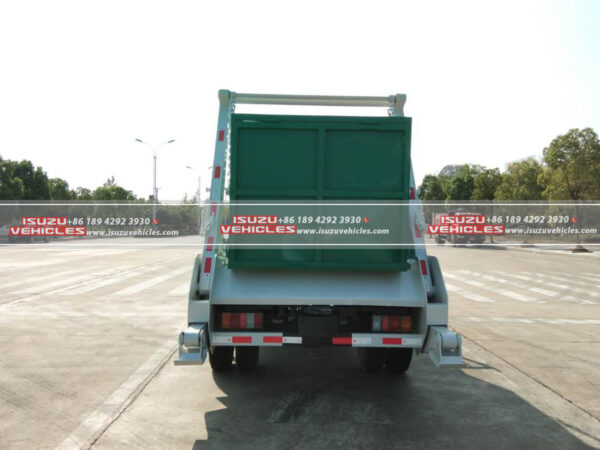

ISUZU Skip Bin Loader Truck
Compact Maneuverability
Based on the ISUZU 100P chassis, this ISUZU Skip Bin Loader Truck features a 4×2 left-hand drive system and an agile 5,180×2,000×2,470mm footprint, ideal for navigating narrow urban streets. With a gross vehicle weight of 4,495kg and curb weight of 2,200kg, it balances payload capacity (3CBM) with lightweight efficiency. The 3,360mm wheelbase and 7.00R16 tires (4+2+1 spare) ensure stability during bin loading and waste transport.
Operator-Focused Design
The hydraulic power steering cabin accommodates 1 driver + 2 passengers and prioritizes ergonomic control. Built for versatility, it supports underground and aboveground bin configurations, while the Euro 5-compliant engine aligns with strict emission standards.
Features
Power & Precision
The ISUZU 4KH1CN5LS engine (4-cylinder intercooled turbocharged) delivers 98HP @ 3,400rpm and 220N·m torque @ 1,700rpm, optimized for low-speed hauling. Paired with an ISUZU/MSB manual transmission (5F+1R), it ensures reliable power delivery across terrains.
Durable Construction

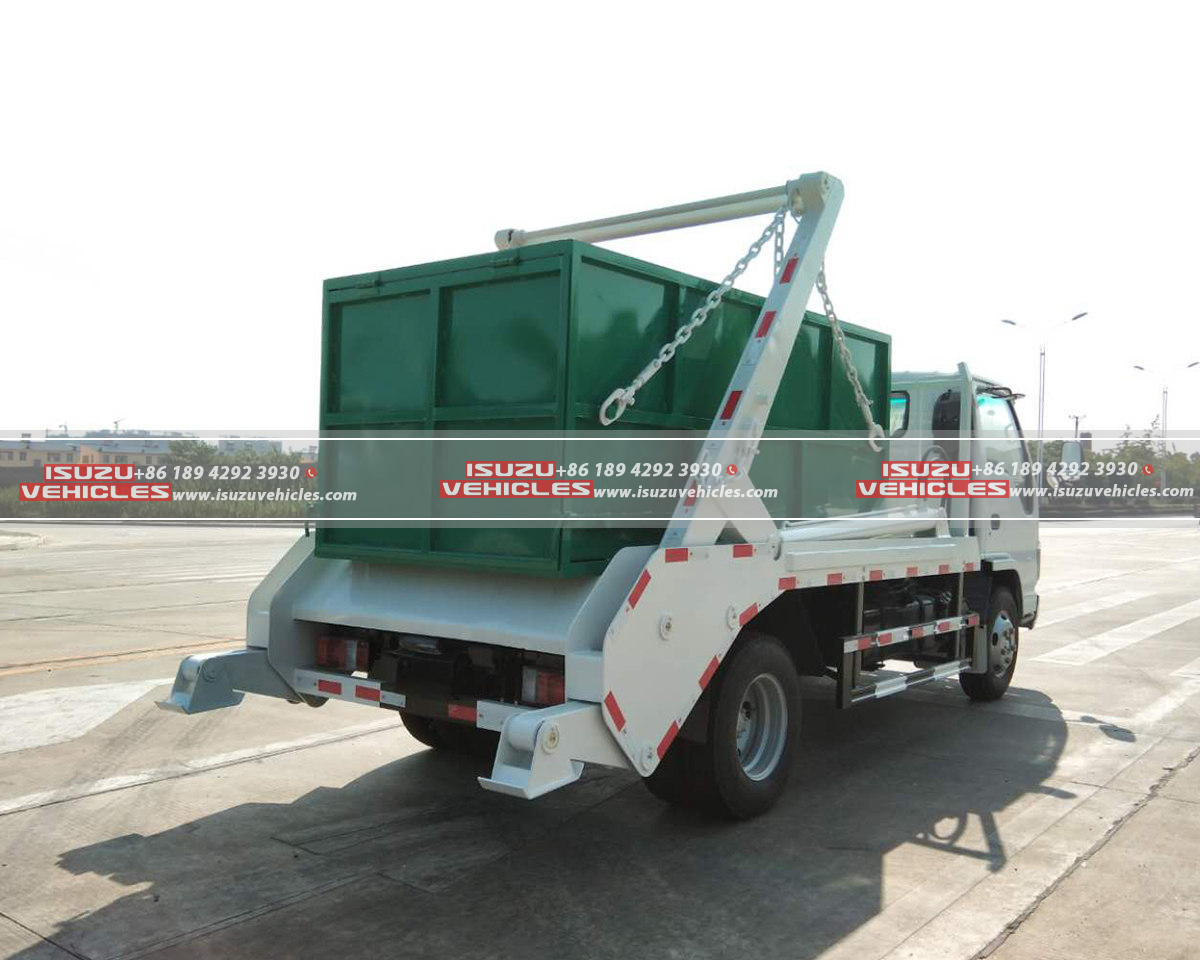

Fabricated from 4mm high-tensile carbon steel (side, top, and bottom panels), the body integrates a tailgate hopper, compaction plate, and slide plate for seamless waste compression. The PTO-driven hydraulic system includes two balance valves, lifting arm cylinders, landing leg cylinders, and locking pins for secure bin handling.
Efficient Bin Management
Designed for rapid operation, the ISUZU garbage truck achieves 30s loading and 50s unloading cycles. Optional upgrades such as stainless steel containers, sealed covers, and multi-container compatibility enhance adaptability for diverse waste streams.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / SL03QL98L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
5,180 x 2,000×2,470 (mm) |
| Gross Vehicle Weight | 4,495kg |
| Curb Weight | 2,200kg |
| Wheelbase | 3,360mm |
| Chassis Designed | ISUZU 100P |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 7.00R16 |
| ENGINE | |
| Make / Model | ISUZU / 4KH1CN5LS |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 2.999L |
| Nominal Power | 98HP (72kw) @ 3,400rpm |
| Peak Torque | 220N.m@1,700rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MSB |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 5F+1R |
| CONSTRUCTION | ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
| CAPACITY | 3CBM |

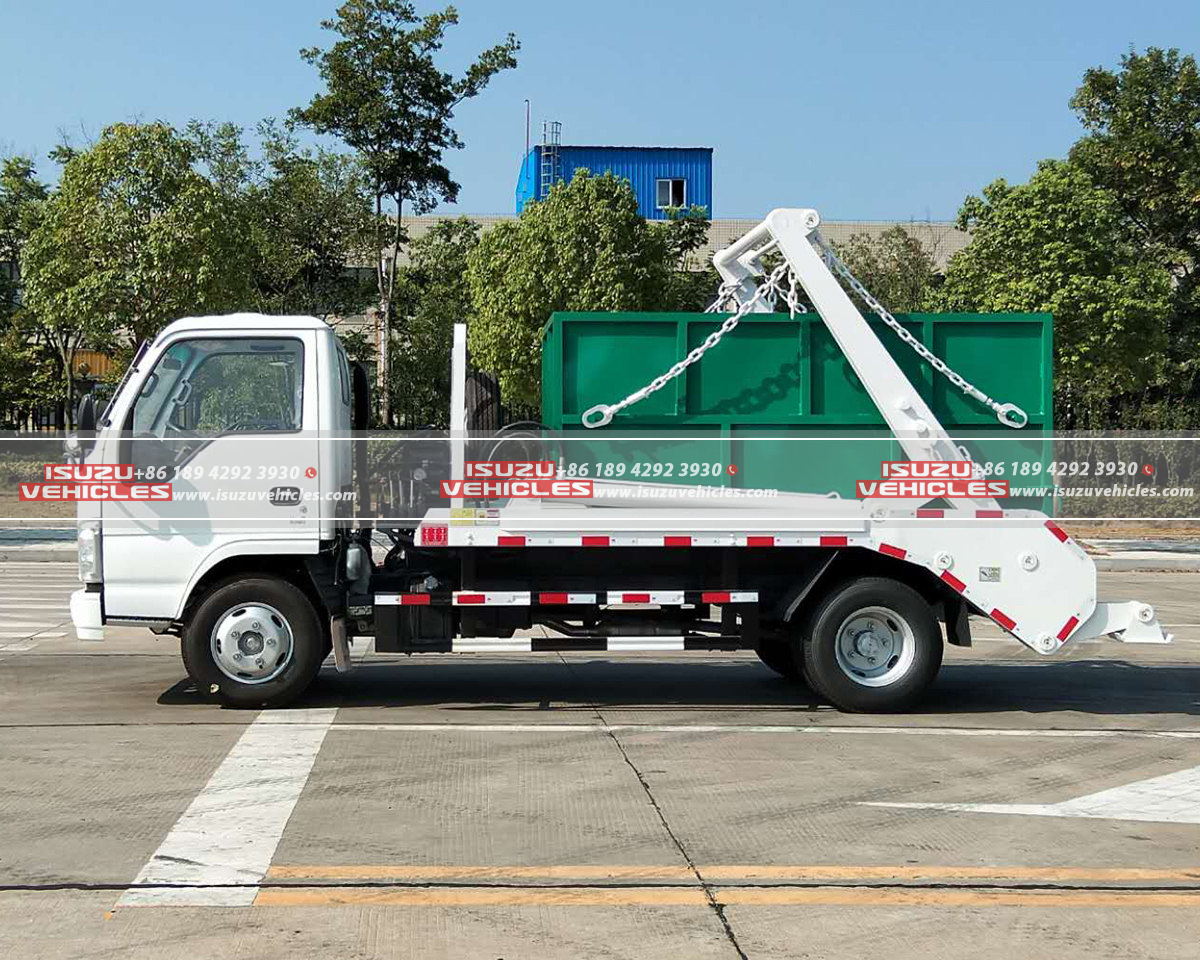

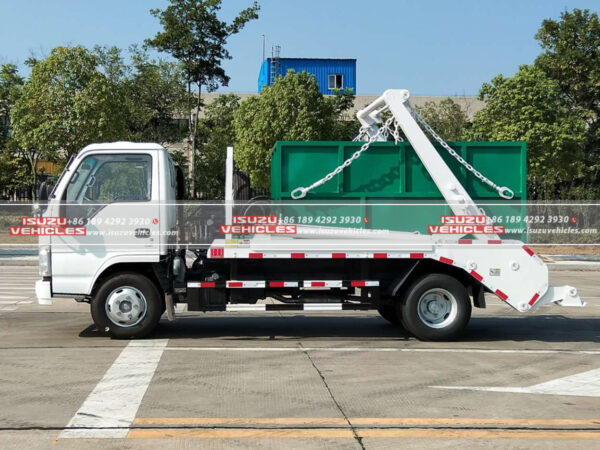

| GARBAGE CONTAINER | |
| Container Material | High tensile wear-resistant carbon steel |
| Thickness | Side and top 4mm, Bottom 4mm |
| Type | Underground and aboveground types are optional |
| Include | 1 PTO drives the hydraulic system, two balance valves, two hydraulic cylinders with lifting arms and two hydraulic cylinders with landing leg, and one unloading container locking pins. |
| Options | Stainless steel container material; Sealed cover for the container; A truck with several containers |
| Loading Time | 30s |
| Unloading Time | 50s |
