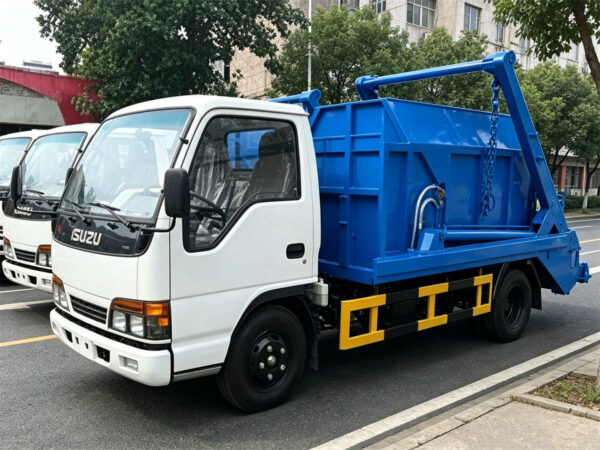

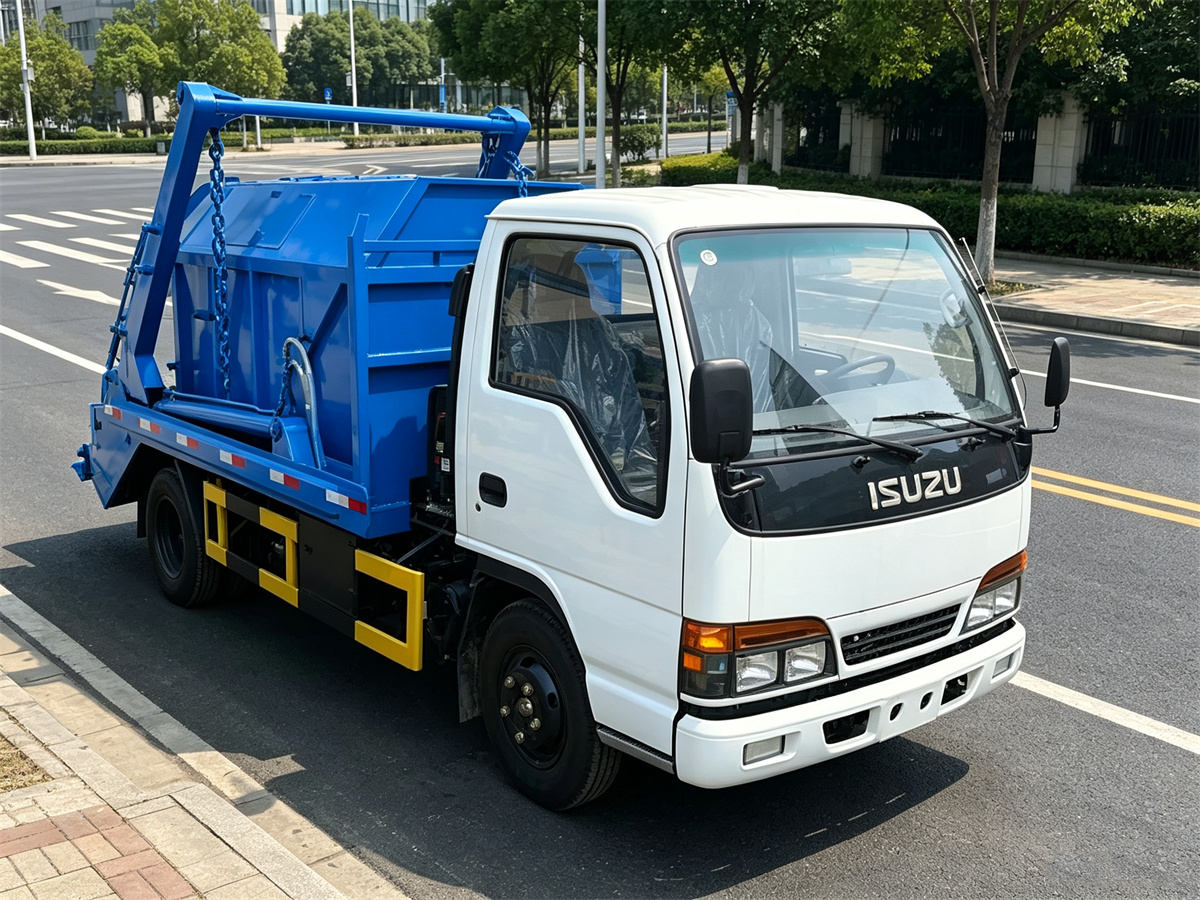

ISUZU 5 CBM Skip Loader Garbage Truck
The ISUZU 5 CBM Skip Loader Garbage Truck is a compact and practical municipal waste collection vehicle designed for the efficient handling, lifting, transporting, and unloading of detachable garbage containers. Built as a 6-wheeler skip lorry loader, the truck combines a reliable ISUZU chassis with a hydraulic rear lifting system, making it well suited for residential communities, construction sites, industrial areas, commercial districts, and other locations where flexible container-based waste collection is required.
The vehicle has overall dimensions of 5,995×1,880×2,150mm, a wheelbase of 3,360mm, and a GVW of approximately 5,500kg, giving it a compact footprint that allows convenient operation in relatively narrow urban streets and confined working areas. With a curb weight of approximately 3,000kg and a rated payload of around 5,500kg according to the supplied configuration, the truck provides substantial carrying capability for its compact size.
Power comes from an ISUZU 4JB1CN diesel engine with four cylinders, direct-line configuration, water cooling, and approximately 2,700ml displacement, producing around 72kW of power. The engine is paired with a 5-speed transmission with overdrive and 5 forward plus 1 reverse gear, allowing the truck to move efficiently between waste collection points while maintaining practical driving performance.
The skip-loading body is designed to handle 5 CBM garbage containers, while the rear lifting system can be configured to handle containers with a capacity of up to 10m³ according to the supplied specification. The body is manufactured from durable carbon steel, using 3mm side plates and a 4mm bottom plate, providing a strong structure for repeated lifting and transportation operations.
The hydraulic system is powered directly by the truck chassis through a PTO, providing the necessary power for the rear lifting mechanism without requiring a separate auxiliary engine. With a maximum road speed of approximately 95km/h, a 24V electrical system, power steering, and seating for three passengers, the ISUZU 5 CBM Skip Loader offers a practical combination of maneuverability, lifting capability, and everyday operating convenience.
Features
1. Compact 6-Wheeler ISUZU Configuration
The ISUZU 6-wheeler skip loader features a compact overall body measuring 5,995×1,880×2,150mm, making it suitable for waste collection applications where road space and maneuverability are important considerations. Its 3,360mm wheelbase provides a good balance between stability and turning flexibility, allowing the truck to operate effectively in residential streets, industrial compounds, and commercial areas.
The front and rear track dimensions are approximately 1,940mm and 1,860mm respectively, while the suspension configuration provides appropriate support for the chassis and detachable container during transportation and lifting operations.
2. Reliable ISUZU Diesel Engine
The vehicle is powered by an ISUZU 4JB1CN diesel engine, featuring four cylinders, direct-line construction, water cooling, and approximately 2,700ml displacement. With an output of around 72kW, the engine provides dependable power for both road transportation and frequent stop-and-go operations associated with municipal waste collection.
The engine is matched with a 5-speed transmission featuring overdrive, with five forward gears and one reverse gear, allowing the driver to select suitable gears for urban roads, inclines, and transportation between collection locations and waste disposal facilities.
3. Strong Carbon Steel Skip-Loading Body
The 5 CBM garbage container body is manufactured from carbon steel, with approximately 3mm-thick side plates and a 4mm-thick bottom plate, providing sufficient structural strength for regular waste loading, lifting, and transportation.
The robust construction is designed to withstand the mechanical forces generated when the container is lifted onto the truck and discharged at the destination. The body is also prepared with an anti-corrosion primer and two coats of synthetic paint, helping protect the steel structure against environmental exposure and everyday operating wear.

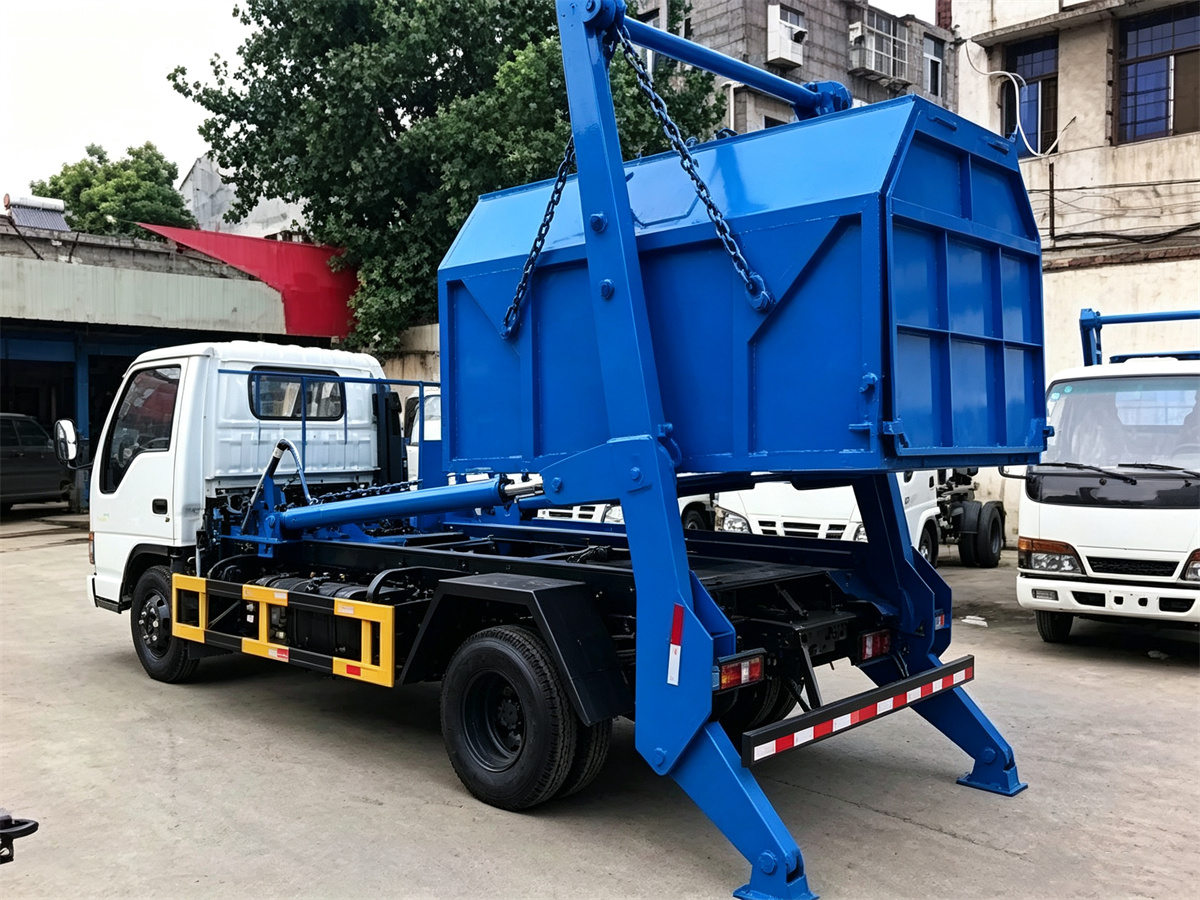

4. Hydraulic Rear Lifting System
The main advantage of the ISUZU Skip Loader Garbage Truck is its hydraulic rear lifting mechanism, which allows detachable garbage containers to be loaded onto the vehicle without requiring separate lifting equipment.
The hydraulic system is powered through the truck chassis PTO, transferring power from the main engine to the hydraulic components when lifting operations are required. This configuration provides a straightforward and reliable source of hydraulic power while keeping the overall vehicle design relatively compact.
5. Flexible Garbage Container Handling
The rear lifting system is designed to handle detachable garbage containers, with the supplied configuration specifying a 5 CBM container capacity and a lifting system capable of handling garbage containers of up to approximately 10m³. This provides operators with greater flexibility when choosing container sizes according to the waste generation rate and available collection space.
The detachable-container concept is particularly useful for industrial facilities, construction projects, transfer points, and communities where containers can remain at fixed locations while the truck transports full containers to disposal or processing facilities.
6. Practical Load-Bearing Configuration
The garbage vehicle has a GVW of approximately 5,500kg and a compact curb weight of around 3,000kg, providing a useful load-bearing configuration for its intended skip-loader application. The chassis is supported by two axles and a dedicated suspension system, helping maintain stability during normal transportation and container handling.
Power steering makes the vehicle easier to control during low-speed maneuvering, while the 24V electrical system provides reliable power for the truck’s lighting and electrical equipment.
7. Comfortable Three-Person Cabin
The ISUZU cabin is configured to accommodate up to three passengers, providing practical seating for the driver and sanitation workers who may accompany the vehicle during collection operations. The cabin design is intended to provide convenient access to the controls while maintaining good visibility around the compact chassis.
The left-hand-drive configuration makes the vehicle suitable for markets using left-hand traffic-side steering arrangements, while the power-assisted steering system reduces driver effort during frequent maneuvering in narrow collection areas.
8. Corrosion-Resistant Paint and Standard Equipment
The skip-loader body receives one coat of anti-corrosion primer and two coats of synthetic paint, creating a protective coating against moisture, dust, and other environmental factors commonly encountered in waste collection applications. The final exterior color can be adapted according to customer requirements.
The standard configuration includes the ISUZU chassis, hydraulic PTO system, rear lifting mechanism, carbon steel garbage body, anti-corrosion coating, and hydraulic operating equipment, providing a complete working platform for containerized municipal waste collection and transportation.
Specifications
| ITEM | VALUE |
|---|---|
| Vehicle | 5 CBM 6 Wheelers Skip Lorry Loader |
| Overall Dimensions (LxWxH) | 5,995×1,880×2,150 mm |
| Tank Volume | 5 m³ |
| GVW | Approx 5,500 kg |
| Curb weight | Approx 3,000 kg |
| Payload | Approx 5,500 kg |
| Wheelbase | 3,360 mm |
| Suspension | 1,250/2,400 mm |
| F/R track base | 1,940/1,860 mm |
| Approach/departure angle | 25°/21° |
| Max speed | 95 km/h |
| Axle Load | 2.5/3 tons |
| Tire specification | 7.00-15/7 Units |
| Number of axles | 2 |
| Engine model | 4JB1CN |
| Engine performance | Diesel, 4 Cylinder, direct line, water cooling; 2,700 ml / 72 kW |
| Steering | Power |
| Cab passenger | 3 |
| Tank material | Carbon steel, side thickness 3mm, bottom thickness 4mm |
| Transmission | 5-speed with overdrive, 5F&1R |
| Electric System | 24V |
| Standard configuration | 1. Hydraulic system powered by truck chassis PTO 2. Body with rear lifting system to handle garbage containers capacity 10m³ 3. Body painted 1 coat of anti-corrosion primer and 2 coats of synthetic paint |
